Marks

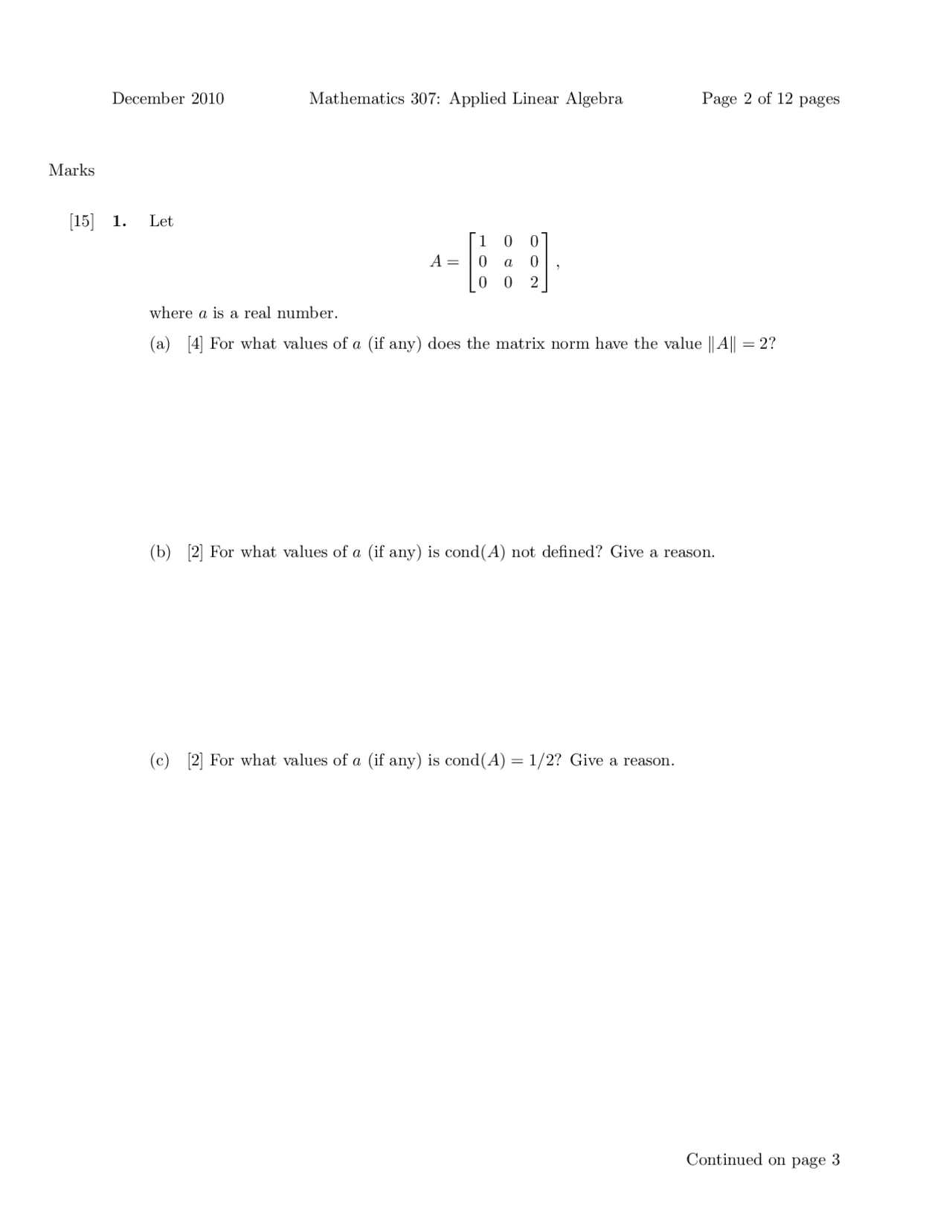

[15] 1. Let
A =
0 a 0 0 0 2
where a is a real number. (a) [4] For what values of a (if any) does the matrix norm have the value ‖A‖ = 2?
(b) [2] For what values of a (if any) is cond(A) not defined? Give a reason.
(c) [2] For what values of a (if any) is cond(A) = 1/2? Give a reason.
(d) [4] Sketch a graph of cond(A) as a function of a for −∞ < a < ∞.
(e) [3] For what values of a (if any) is cond(A) = 4?
[12] 3. Suppose we are given 4 points (x 1 , y 1 ), (x 2 , y 2 ), (x 3 , y 3 ) and (x 4 , y 4 ) in the plane and we want to find a function f (x), defined for x 1 ≤ x ≤ x 4 , whose graph interpolates these points. Assume that
f (x) =
p 1 (x) for x 1 ≤ x ≤ x 2 p 2 (x) for x 2 ≤ x ≤ x 3 p 3 (x) for x 3 ≤ x ≤ x 4
where each pi(x) is a polynomial.
(a) [3] What equations, written in terms of pi(x) and possibly their derivatives, express the condition that f (x) goes through the given points? Do these equations imply that f (x) is continuous?
(b) [3] What equations, written in terms of pi(x) and possibly their derivatives, express the condition that f ′(x) is continuous?
(c) [3] What equations, written in terms of pi(x) and possibly their derivatives, express the condition that f ′′(x) is continuous?
(d) [3] When each pi(x) is a cubic polynomial of the form ai(x−xi)^3 +bi(x−xi)^2 +ci(x−xi)+di the equations written in parts (a), (b) and (c) above are equivalent to a system of linear equations in the unknowns ai, bi, ci and di, i = 1, 2 , 3. How many more equations are needed if there are to be the same number of equations as unknowns? What equations are usually added and why?
[10] 4. In this question we are once again given 4 points (x 1 , y 1 ), (x 2 , y 2 ), (x 3 , y 3 ) and (x 4 , y 4 ) in the plane. This time we want to find a quadratic function q(x) = ax^2 + bx + c that comes closest to going through the points by doing a least squares fit.
(a) [5] The least squares equation you need to solve to find the coeficients a, b and c has the form AT^ Aa = AT^ b. Write down expressions for A, a, and b.
(b) [5] Suppose the points (xi, yi) have been defined in MATLAB/Octave as X1,.. ., X4, Y1,... Y4. Write down the MATLAB/Octave code that plots these points, then com- putes q(x), and finally plots q(x).
(b) [5] If the matrix A from part (a) is defined in MATLAB/Octave, we can do the following calculations:
eig(A) > abs(eig(A)) ans = ans =
1.83929 + 0.00000i 1. -0.41964 + 0.60629i 0. -0.41964 - 0.60629i 0.
Describe how you could make further use of the eig command and other MATLAB/Octave com- mands to determine all (possibly complex) initial values a, b and c for which xn → 0 as n → ∞.
(c) [3] Explain how you could ensure that the a, b and c you find in part (b) are real numbers.
(a) [3] Determine the coefficients cn in the expansion f (x) =
n=−∞ cne
2 πinx, where f (x) = x and 0 ≤ x ≤ 1.
(b) [3] Calculate the inner product 〈f (x), f (x)〉 for f (x) = x on the interval 0 ≤ x ≤ 1, using the definition of the inner product for functions.
(e) [3] Explain how you could use the fft command in MATLAB/Octave to compute ap- proximations to the coefficients cn in part (a). Write down the commands you would use, and say for what values of n you would expect your approximations to be most accurate.
(f) [3] Suppose you expanded the same function f (x) = x as in part (a) except on the interval 0 ≤ x ≤ 2. What would be the form (i.e., do not compute the coefficients) of the Fourier series valid for this interval. What points on the plane would you plot to produce a frequency-amplitude plot from this new Fourier series? (Give the answer in terms of the coefficients in the new expansion.)
[15] 7. Suppose A is a symmetric 4 × 4 matrix with eigenvalues 0, 1 , 4 , 5. Define a sequence of vectors xn ∈ R^4 by choosing x 0 at random, and then setting
yn = (A − 3 I)−^1 xn− 1 xn = yn/‖yn‖
for n = 1, 2 ,.. .. You then observe that xn converges to x∞ = [1/ 2 , 1 / 2 , 1 / 2 , 1 /2]T^ as n → ∞.
(a) [0] What is Ax∞?
(b) [0] What is the value of the inner (dot) product 〈x∞, Ax∞〉?
(c) [0] What vector does yn converge to?
The End
