Certificate Practice Exam

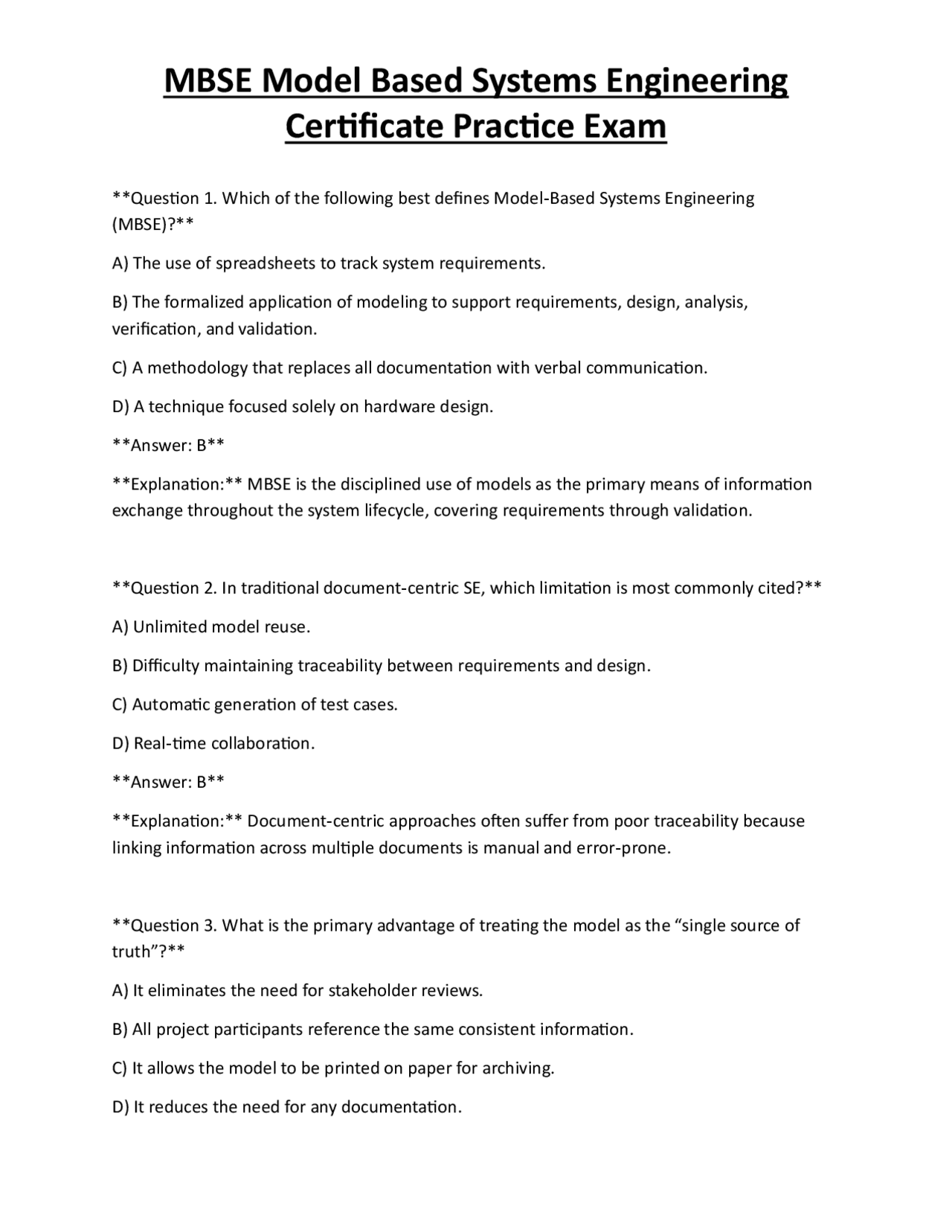

Question 1. Which of the following best defines Model‑Based Systems Engineering (MBSE)? A) The use of spreadsheets to track system requirements. B) The formalized application of modeling to support requirements, design, analysis, verification, and validation. C) A methodology that replaces all documentation with verbal communication. D) A technique focused solely on hardware design. Answer: B Explanation: MBSE is the disciplined use of models as the primary means of information exchange throughout the system lifecycle, covering requirements through validation. Question 2. In traditional document‑centric SE, which limitation is most commonly cited? A) Unlimited model reuse. B) Difficulty maintaining traceability between requirements and design. C) Automatic generation of test cases. D) Real‑time collaboration. Answer: B Explanation: Document‑centric approaches often suffer from poor traceability because linking information across multiple documents is manual and error‑prone. Question 3. What is the primary advantage of treating the model as the “single source of truth”? A) It eliminates the need for stakeholder reviews. B) All project participants reference the same consistent information. C) It allows the model to be printed on paper for archiving. D) It reduces the need for any documentation.
Certificate Practice Exam
Answer: B Explanation: A single source of truth ensures consistency, reduces duplication, and aligns all stakeholders on the same data. Question 4. Which of the following is NOT a typical benefit of MBSE? A) Improved communication among stakeholders. B) Increased error rates due to model complexity. C) Enhanced consistency across system artifacts. D) Better support for automated analysis. Answer: B Explanation: MBSE aims to reduce errors, not increase them; the other options are recognized benefits. Question 5. A major challenge in adopting MBSE is cultural resistance. Which strategy best mitigates this issue? A) Mandating immediate tool replacement without training. B) Ignoring stakeholder concerns. C) Providing incremental training and demonstrating early wins. D) Removing all legacy documents overnight. Answer: C Explanation: Incremental training and quick successes help overcome resistance by showing value and building confidence. Question 6. In systems modeling, what is a “view”? A) The entire model without any filters. B) A projection of the model tailored for a specific purpose or stakeholder.
Certificate Practice Exam
C. Composition. D) Dependency. Answer: C Explanation: Composition defines a strong “part‑of” relationship where the part’s lifecycle is bound to the whole. Question 10. In the V‑Model, where does requirements verification typically occur? A) At the bottom left of the V. B) At the top right of the V. C) At the apex of the V. D) At the bottom right of the V. Answer: D Explanation: Verification of requirements is performed during the testing phase, which is represented by the descending right side of the V. Question 11. Which SysML diagram is part of the “Structure” pillar? A) Sequence Diagram. B) State Machine Diagram. C) Block Definition Diagram. D) Parametric Diagram. Answer: C Explanation: BDD captures the system’s structural elements and their relationships. Question 12. The SysML “Behavior” pillar includes all EXCEPT: A) Activity Diagram. B) Sequence Diagram.
Certificate Practice Exam
C) Requirement Diagram. D) State Machine Diagram. Answer: C Explanation: Requirement diagrams belong to the Requirements pillar, not Behavior. Question 13. Which SysML diagram is primarily used to capture system requirements and their relationships? A) Internal Block Diagram. B) Requirement Diagram. C) Activity Diagram. D) Parametric Diagram. Answer: B Explanation: Requirement diagrams explicitly model requirements and traceability links. Question 14. In a Block Definition Diagram, the arrow with a hollow triangle denotes: A) Generalization (inheritance). B) Association. C) Aggregation. D) Dependency. Answer: A Explanation: The hollow triangle arrow represents a generalization relationship (subclass‑superclass). Question 15. Which SysML diagram would you use to model the flow of control and data between activities? A) Sequence Diagram.
Certificate Practice Exam
B) Represent a physical component. C) Encapsulate mathematical equations linking properties. D) Show a user’s interaction flow. Answer: C Explanation: Constraint blocks contain equations that bind model parameters for analysis. Question 19. Which MBSE methodology emphasizes objects and their interactions? A) ODD (Object‑Oriented Analysis and Design). B) Harmony SE. C) INCOSE Handbook. D) Agile Modeling. Answer: A Explanation: ODD focuses on object‑oriented concepts for analysis and design. Question 20. The Harmony SE methodology is best described as: A) A view‑centric approach often paired with IBM tools. B) A purely document‑based process. C) A risk‑driven waterfall method. D) An agile sprint framework. Answer: A Explanation: Harmony SE organizes development around views and is commonly used with IBM Rational tools. Question 21. According to INCOSE SE Handbook guidance, which activity directly follows functional analysis? A) Requirements definition.
Certificate Practice Exam
B) Architecture synthesis. C) System testing. D. Concept exploration. Answer: B Explanation: After functional analysis, the next step is to synthesize an architecture that satisfies the identified functions. Question 22. In model governance, a “naming convention” primarily ensures: A) Faster simulation runtimes. B) Consistency and readability across model elements. C) Automatic code generation. D) Reduced memory usage. Answer: B Explanation: Naming conventions standardize element identifiers, improving model clarity and maintenance. Question 23. Which verification technique checks that a model accurately implements its specification? A) Peer review of documentation. Answer: A Explanation: Model verification involves activities such as reviews, simulations, and checks to ensure the model conforms to its intended specification. Question 24. Model validation focuses on: A) Ensuring the model is syntactically correct. B) Confirming that the model accurately represents the real‑world system.
Certificate Practice Exam
A) TOGAF.
B) DoDAF. C) Zachman. D) ISO 9001. Answer: B Explanation: DoDAF provides specific viewpoints for defense architecture, including Operational, System, and Services. Question 28. XMI (XML Metadata Interchange) is primarily used for: A) Real‑time data acquisition. B) Exchanging model data between different MBSE tools. C) Generating physical prototypes. D) Performing statistical analysis. Answer: B Explanation: XMI serializes model information in XML, enabling interoperability across modeling tools. Question 29. Integrating a SysML model with DOORS mainly serves to: A) Automate mechanical design. B) Synchronize requirements between the model and a dedicated requirements management tool. C) Replace the need for any modeling. D) Generate 3‑D visualizations. Answer: B Explanation: Integration ensures that requirement changes in DOORS are reflected in the SysML model and vice versa.
Certificate Practice Exam
Question 30. When linking a SysML model to MATLAB/Simulink, which diagram is most commonly used to pass quantitative constraints? A) Activity Diagram. B) Parametric Diagram. C) Sequence Diagram. D) Requirement Diagram. Answer: B Explanation: Parametric diagrams capture equations and constraints that can be exported to simulation tools like Simulink. Question 31. The concept of a Digital Twin refers to: A) A physical replica of a system placed in a lab. B) A virtual model that mirrors the lifecycle and operational data of its physical counterpart. C) A duplicate copy of a CAD file. D) A backup of the source code repository. Answer: B Explanation: A Digital Twin is a live, data‑driven virtual representation of a physical system throughout its lifecycle. Question 32. Measures of Effectiveness (MOEs) are used to: A) Define the cost of a component. B) Evaluate how well a system meets its operational objectives. C) Set the physical dimensions of a part. D) Determine the programming language for implementation. Answer: B
Certificate Practice Exam
Answer: B Explanation: MBT leverages behavioral models to automatically generate test scenarios that reflect system behavior. Question 36. Traceability from requirements to test results is essential because: A) It reduces the need for documentation. B) It ensures each requirement is verified and validated. C) It allows the model to run faster. D) It eliminates the need for stakeholder involvement. Answer: B Explanation: Traceability confirms that every requirement has been addressed through testing, supporting verification and validation. Question 37. Service‑Oriented Architecture (SOA) modeling in SysML often emphasizes which diagram type? A) Block Definition Diagram with ports representing services. B) Parametric Diagram for cost analysis. C) Requirement Diagram for compliance. D) Package Diagram for file organization. Answer: A Explanation: BDDs can model services as provided/required interfaces (ports) to depict SOA relationships. Question 38. When modeling a System‑of‑Systems (SoS), a key consideration is: A) The color scheme of the diagram. B) The autonomy and emergent behavior of constituent systems.
Certificate Practice Exam
C) The number of lines of code. D) The brand of the modeling tool. Answer: B Explanation: SoS modeling must capture independent operation, interaction, and emergent properties of the combined systems. Question 39. Cyber‑physical systems (CPS) require MBSE to address: A) Only software functions. B) Integration of computation, networking, and physical processes with real‑time constraints. C) Purely mechanical design. D) Financial budgeting. Answer: B Explanation: CPS combine hardware, software, and networked control loops, necessitating models that capture real‑time and physical interactions. Question 40. A typical roadmap for transitioning from a document‑centric to an MBSE approach begins with: A) Immediate replacement of all documents with models. B) Pilot projects to demonstrate value and develop expertise. C) Eliminating all legacy tools. D) Hiring only external consultants. Answer: B Explanation: Pilot projects provide low‑risk opportunities to validate MBSE benefits and build internal capability. Question 41. Which role is most critical for maintaining model quality in a large MBSE project?
Certificate Practice Exam
Question 44. A “part” property in an Internal Block Diagram is used to: A) Model a behavioral state. B) Represent a sub‑component contained within the parent block. C) Define a performance constraint. D) Capture a user story. Answer: B Explanation: Part properties instantiate sub‑blocks, showing composition within the parent block. Question 45. Which diagram would you use to represent a system’s decomposition into subsystems and their interfaces? A) Block Definition Diagram. B) Activity Diagram. C) Sequence Diagram. D) State Machine Diagram. Answer: A Explanation: BDD shows hierarchical relationships, including subsystems and interface definitions. Question 46. The “allocation” relationship in SysML is primarily used to: A) Assign a requirement to a block or activity that fulfills it. B) Connect two physical ports. C) Define a mathematical equation. D) Create a package hierarchy. Answer: A
Certificate Practice Exam
Explanation: Allocation links requirements, functions, or performance parameters to structural elements that realize them. Question 47. In a Requirement Diagram, the <> relationship connects a requirement to: A) A test case or verification activity that confirms the requirement is met. B) A lower‑level requirement. C) A block that implements the requirement. D) A constraint block. Answer: A Explanation: <> indicates that a specific test or verification method validates the requirement. Question 48. Which SysML diagram can directly capture concurrent activities using fork and join nodes? A) Sequence Diagram. B) Activity Diagram. C) State Machine Diagram. D) Parametric Diagram. Answer: B Explanation: Fork and join nodes in activity diagrams model parallel flows. Question 49. A “port” on a block in SysML is used to: A) Store numerical data. B) Define an interaction point for communication with other blocks. C) Represent a physical dimension.
Certificate Practice Exam
D) To display state transitions. Answer: B Explanation: Package diagrams group elements, aiding model organization and modularity. Question 53. In the context of MBSE, a “trade study” typically involves: A) Randomly selecting a design. B) Systematically evaluating alternatives against defined criteria such as cost, performance, and risk. C) Ignoring stakeholder input. D) Performing only qualitative analysis. Answer: B Explanation: Trade studies compare options using quantitative and qualitative metrics to support decision‑making. Question 54. Which diagram type would you use to model a system’s response to an external event that triggers a sequence of actions? A) State Machine Diagram. B) Block Definition Diagram. C) Package Diagram. D) Parametric Diagram. Answer: A Explanation: State machines capture event‑driven transitions and resulting actions. Question 55. The “concern” concept in an architecture framework refers to: A) A type of diagram. B) A specific stakeholder interest or quality attribute that drives the creation of a view.
Certificate Practice Exam
