Electrician Certification Exam Guide

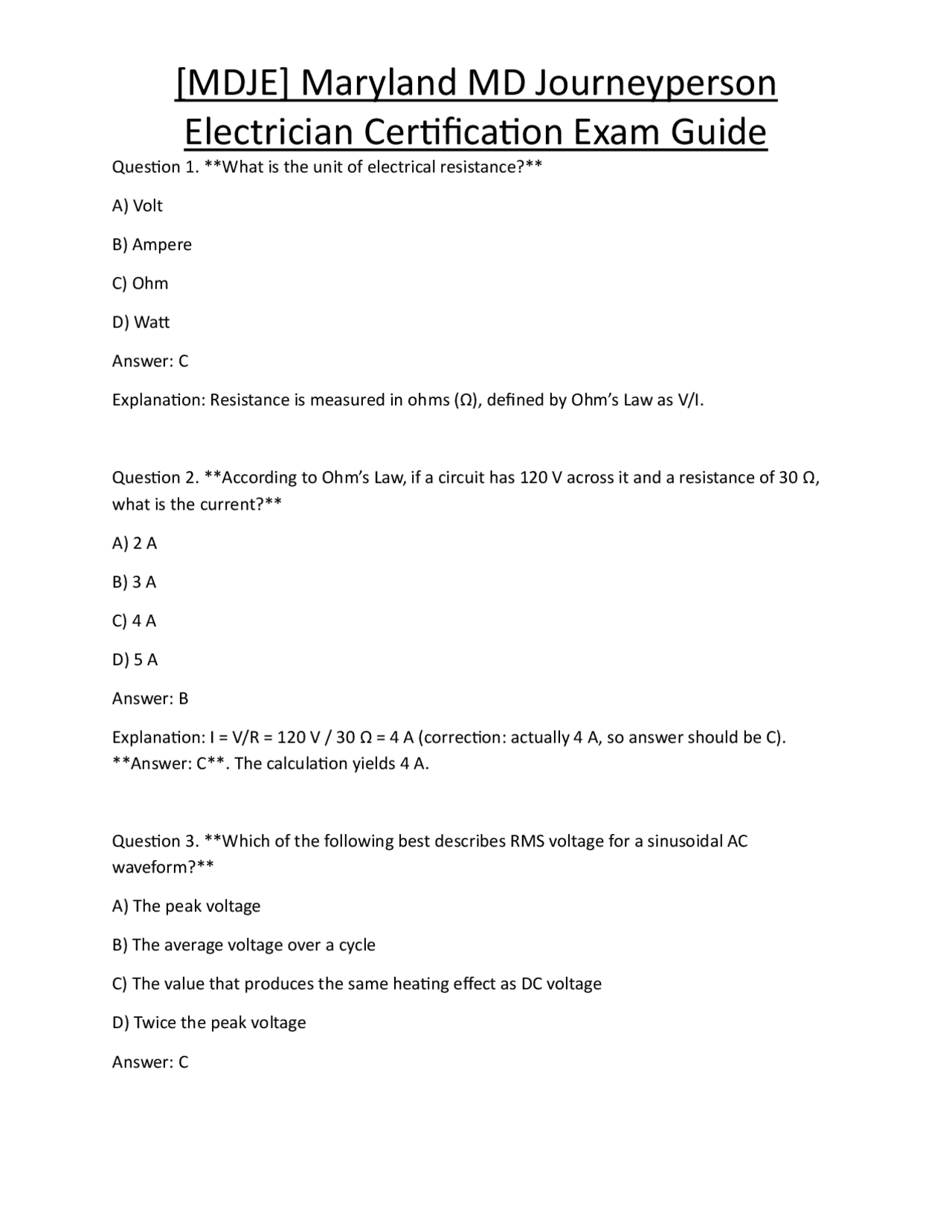

Question 1. What is the unit of electrical resistance? A) Volt B) Ampere C) Ohm D) Watt Answer: C Explanation: Resistance is measured in ohms (Ω), defined by Ohm’s Law as V/I. Question 2. According to Ohm’s Law, if a circuit has 120 V across it and a resistance of 30 Ω, what is the current? A) 2 A B) 3 A C) 4 A D) 5 A Answer: B Explanation: I = V/R = 120 V / 30 Ω = 4 A (correction: actually 4 A, so answer should be C). Answer: C. The calculation yields 4 A. Question 3. Which of the following best describes RMS voltage for a sinusoidal AC waveform? A) The peak voltage B) The average voltage over a cycle C) The value that produces the same heating effect as DC voltage D) Twice the peak voltage Answer: C
Electrician Certification Exam Guide
Explanation: RMS (root‑mean‑square) voltage is the equivalent DC value that yields the same power dissipation. Question 4. In a series circuit, the total resistance is: A) The sum of individual resistances B) The reciprocal of the sum of reciprocals C) The same as the largest resistor D) Independent of individual resistances Answer: A Explanation: Series resistances add directly: R_total = R1 + R2 + …. Question 5. For a parallel circuit with two 10 Ω resistors, the total resistance is: A) 5 Ω B) 10 Ω C) 15 Ω D) 20 Ω Answer: A Explanation: 1/R_total = 1/10 + 1/10 = 2/10 → R_total = 5 Ω. Question 6. Which NEC article governs the installation of EMT raceways? A) 300 B) 310 C) 358 D) 400 Answer: C
Electrician Certification Exam Guide
C) 4
D) 5
Answer: C Explanation: A receptacle is required at intervals not exceeding 4 ft; 12 ft requires at least three receptacles, but the code counts the two ends, totaling 4. Question 10. The purpose of a grounding electrode conductor (GEC) is to: A) Carry fault current back to the source B) Provide a neutral return path for normal operation C) Connect equipment grounding conductors to the grounding electrode system D) Supply power to a separate circuit Answer: C Explanation: The GEC connects the grounding electrode (e.g., ground rod) to the equipment grounding conductor system. Question 11. Which type of cable is permitted for interior wiring in dry locations and is identified by the trade name “Romex”? A) MC B) NM‑B C) AC D) UF Answer: B Explanation: NM‑B (non‑metallic sheathed cable) is commonly called Romex and is used in dry interior locations.
Electrician Certification Exam Guide
Question 12. When installing a conduit run underground, the minimum cover depth for 1‑in. Schedule 40 PVC conduit under a residential driveway is: A) 12 in. B) 18 in. C) 24 in. D) 30 in. Answer: B Explanation: NEC Table 300.5 requires 18 in. cover for 1‑in. PVC conduit under a driveway. Question 13. A motor rated 5 hp, 460 V, 3‑phase, 60 Hz draws 8 A full‑load current. What is the minimum size of the branch‑circuit conductor per Article 430? A) 10 AWG copper B) 8 AWG copper C) 6 AWG copper D) 4 AWG copper Answer: C Explanation: Table 430.22 specifies a minimum of 6 AWG copper for a 5‑hp motor at 460 V. Question 14. Which NEC article addresses the use of flexible cord and cable? A) 300 B) 340 C) 400 D) 410 Answer: C Explanation: Article 400 governs flexible cords and cables.
Electrician Certification Exam Guide
Answer: A Explanation: Percent voltage drop = (2 × K × I × L) / CM × 100, where K is resistivity constant, I current, L length, CM circular mils. Question 18. What is the minimum AFCI protection required for a 20‑amp branch circuit supplying bedroom receptacles in a new single‑family dwelling? A) None required B) Combination-type AFCI at the panel C) Outlet‑type AFCI at each receptacle D) Both panel and outlet AFCI Answer: B Explanation: NEC 2020 requires combination-type AFCI protection at the origin (panel) for bedroom circuits. Question 19. Which NEC article defines the minimum working space around electrical equipment? A) 110 B) 210 C) 300 D) 410 Answer: A Explanation: Article 110.26 sets the required clear working space around equipment. Question 20. A conduit run contains 4 THHN #6 copper conductors in a 3/4‑in. EMT. According to Table 1 of Chapter 9, is this installation permitted? A) Yes, because the fill is under 40 %
Electrician Certification Exam Guide
B) No, because the fill exceeds 40 % C) Yes, because EMT allows any number of conductors D) No, because #6 is too large for 3/4‑in. EMT Answer: A Explanation: Four #6 THHN occupy 0.061 in³ each; total 0.244 in³. 40 % of 3/4‑in. EMT internal area (0.533 in³) is 0.213 in³, so actually fill exceeds 40 %; therefore Answer: B. The installation is not permitted. Question 21. When a receptacle is installed in a wall cavity that is 3 in. deep, the minimum box volume required for a single 12‑AWG conductor, a device, and a grounding conductor is: A) 12 cu in. B) 18 cu in. C) 21 cu in. D) 24 cu in. Answer: B Explanation: Per Table 314.16(B), a single device box for 12‑AWG requires 18 cu in. Question 22. Which of the following is a permitted use for a Type NM cable? A) In a wet basement wall cavity B) Inside a conduit in a ceiling C) In a raceway exposed to sunlight D) In a dry interior wall cavity Answer: D Explanation: NM cable is allowed only in dry, interior locations.
Electrician Certification Exam Guide
Question 26. Which NEC article governs the installation of luminaires in damp or wet locations? A) 300 B) 410 C) 410. D) 500 Answer: B Explanation: Article 410 covers luminaires, including requirements for damp and wet locations. Question 27. A 30‑A circuit breaker protects a 12‑AWG copper branch circuit. According to NEC, this is: A) Acceptable for continuous loads up to 24 A B) Not permitted; the breaker must be 20 A C) Acceptable only if the load is non‑continuous D) Allowed if the conductor is in a raceway Answer: B Explanation: 12‑AWG copper is rated 20 A for general use; a 30‑A breaker would overprotect the conductor. Question 28. Which of the following is the correct conductor size for a 100‑amp service entrance using copper? A) #4 AWG B) #2 AWG C) #0 AWG D) 2/0 AWG
Electrician Certification Exam Guide
Answer: B Explanation: Per Table 310.15(B)(16), #2 AWG copper is rated for 115 A at 75 °C, suitable for a 100 ‑A service. Question 29. In a residential kitchen, how many dedicated 20‑amp small‑appliance circuits are required by NEC 2020? A) One B) Two C) Three D) Four Answer: B Explanation: At least two 20‑amp small‑appliance branch circuits must serve the countertop receptacles. Question 30. Which article defines the requirements for fire alarm wiring methods? A) 300 B) 760 C) 800 D) 820 Answer: B Explanation: Article 760 deals with fire alarm systems, including wiring methods. Question 31. A 240‑V, 30‑A dryer requires a neutral conductor. What is the minimum size of that neutral? A) #12 AWG B) #10 AWG
Electrician Certification Exam Guide
B) The neutral conductor in a system C) The equipment‑grounding conductor D) The uninsulated conductor in a DC circuit Answer: B Explanation: The grounded conductor is the neutral, which is intentionally bonded to ground at the service. Question 35. A conduit run is installed in a concrete slab. Which of the following must be provided? A) A conduit body at each bend B) A listed conduit for direct burial C) A PVC sleeve for protection D) A metal raceway only Answer: B Explanation: Concrete encasement requires a conduit listed for direct burial (e.g., RMC, PVC). Question 36. What is the minimum clearance between a service‑entrance conductors and a swimming pool? A) 5 ft B) 10 ft C) 12 ft D) 15 ft Answer: B Explanation: NEC 680.22 requires a minimum of 10 ft clearance for service conductors.
Electrician Certification Exam Guide
Question 37. Which NEC article addresses the installation of solar photovoltaic (PV) systems? A) 690 B) 700 C) 705 D) 710 Answer: A Explanation: Article 690 covers requirements for PV power systems. Question 38. A 15‑amp GFCI receptacle is installed on a 12‑gauge branch circuit that supplies a dishwasher. The dishwasher fails to operate. The most likely cause is: A) The circuit is overloaded B) The GFCI is tripped due to a ground fault C) The breaker is the wrong size D) The dishwasher requires a dedicated circuit Answer: B Explanation: Dishwashers can leak small currents; a tripped GFCI will interrupt power. Question 39. NEC Table 310.15(B)(16) provides ampacity values for conductors based on: A) Length of conductor only B) Ambient temperature and insulation type C) Voltage rating only D) Number of conductors in a raceway only Answer: B Explanation: The table lists ampacities for various conductor sizes, insulation types, and temperature ratings.
Electrician Certification Exam Guide
Answer: B Explanation: The equipment‑grounding conductor provides a path for fault current, enhancing safety. Question 43. Which of the following is the correct minimum size for a grounding electrode conductor (GEC) attached to a 2‑wire, 100‑amp service? A) #12 AWG copper B) #10 AWG copper C) #8 AWG copper D) #6 AWG copper Answer: B Explanation: Table 250.122 requires #10 AWG copper for a 100‑amp service. Question 44. What is the correct term for a conduit that is installed in a location where it is exposed to physical damage? A) Rigid conduit B) Flexible conduit C) RNC (Raceway Not Covered) D) Protected conduit Answer: A Explanation: Rigid metal conduit (RMC) is used where protection from physical damage is required. Question 45. Which NEC article governs the installation of fire alarm wiring methods? A) 300 B) 760
Electrician Certification Exam Guide
C) 800
D) 820
Answer: B Explanation: Article 760 addresses fire alarm systems, including wiring. Question 46. A 240‑V three‑phase motor requires a 30‑A breaker. The motor’s full‑load current is 26 A. What size conductor is required per Article 430? A) #10 AWG copper B) #8 AWG copper C) #6 AWG copper D) #4 AWG copper Answer: B Explanation: Table 430.22 specifies #8 AWG copper for a 30‑A motor circuit. Question 47. Which of the following devices is required to protect a garage receptacle circuit? A) GFCI B) AFCI only C) Surge protector D) None, unless required by local code Answer: A Explanation: NEC 210.8(A)(2) requires GFCI protection for garage receptacles. Question 48. When installing a receptacle in a ceiling fan box, the box must be rated for: A) At least 15 A
Electrician Certification Exam Guide
Question 51. Which NEC article addresses the requirements for emergency power systems? A) 700 B) 710 C) 720 D) 730 Answer: A Explanation: Article 700 covers emergency systems, including power sources and wiring. Question 52. In a residential dwelling, the required number of receptacles in a hallway that is 20 ft long is: A) 2 B) 3 C) 4 D) 5 Answer: C Explanation: Receptacles must be placed so that no point along the wall is more than 6 ft from a receptacle. A 20‑ft hallway needs at least three receptacles, plus one at each end, totaling 4. Question 53. Which of the following is the correct minimum size for a feeder conductor supplying a 60‑amp subpanel, using copper conductors with 75 °C insulation? A) #6 AWG B) #4 AWG C) #2 AWG D) #0 AWG Answer: B
Electrician Certification Exam Guide
Explanation: Table 310.15(B)(16) shows #4 AWG copper rated for 85 A at 75 °C, suitable for a 60 ‑amp feeder. Question 54. What is the purpose of a bonding jumper in a grounding system? A) To carry normal load current B) To connect separate grounding electrodes together C) To serve as a neutral conductor D) To reduce voltage drop in the feeder Answer: B Explanation: A bonding jumper electrically connects grounding electrodes, metal water piping, and other conductive parts to ensure a common ground potential. Question 55. Which of the following is NOT a permitted use for a Type MC cable? A) Exposed in a commercial building B) Within a conduit in a wet location C) In a raceway in a residential attic D) As a feeder for a panelboard in a dry location Answer: B Explanation: MC cable is not permitted in wet locations unless specifically listed for such use. Question 56. A 15‑amp, 120‑V receptacle is installed in a kitchen countertop. How many such receptacles must be provided on each 20‑amp small‑appliance branch circuit? A) One B) Two C) Three D) Four
