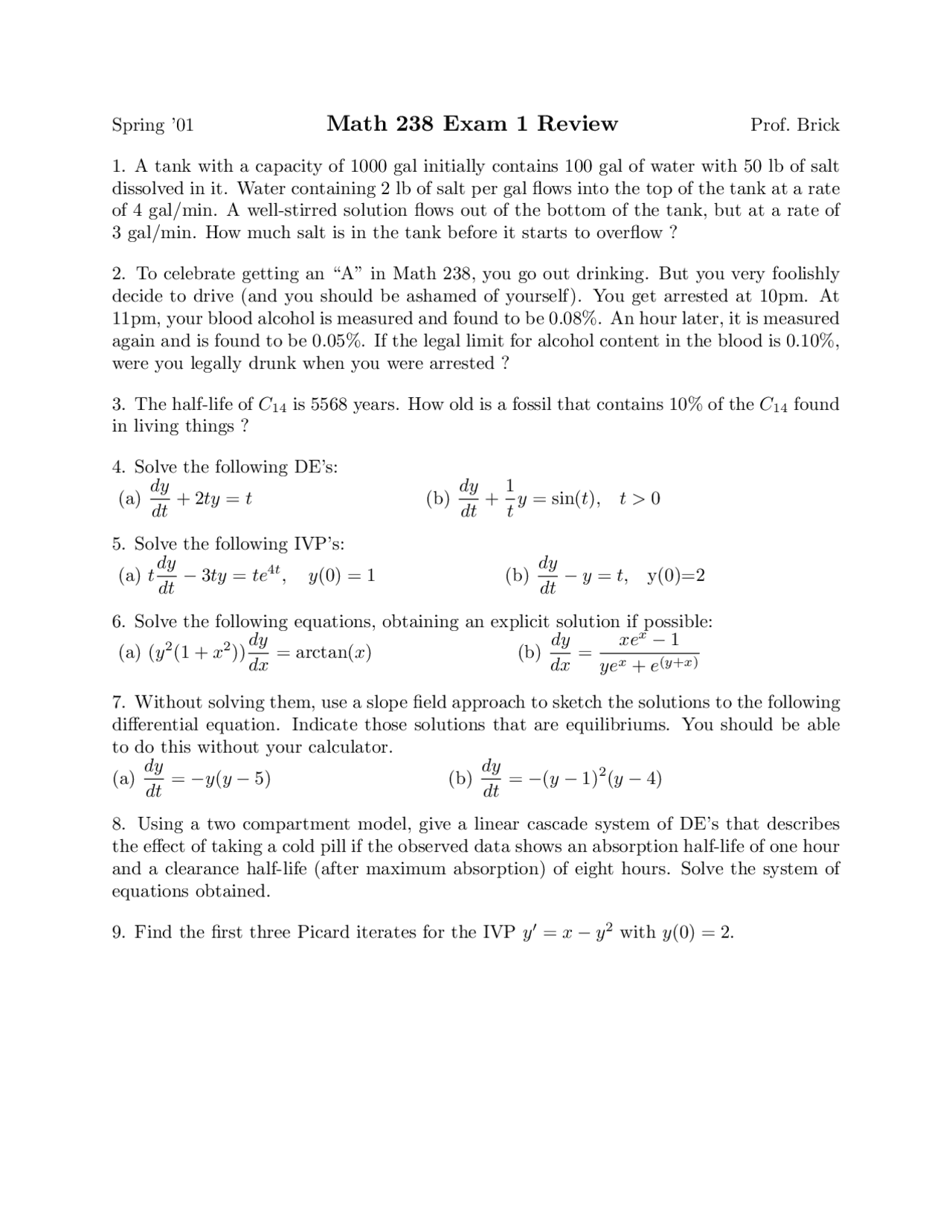

Spring ’01 Math 238 Exam 1 Review Prof. Brick
1. A tank with a capacity of 1000 gal initially contains 100 gal of water with 50 lb of salt
dissolved in it. Water containing 2 lb of salt per gal flows into the top of the tank at a rate
of 4 gal/min. A well-stirred solution flows out of the bottom of the tank, but at a rate of
3 gal/min. How much salt is in the tank before it starts to overflow ?
2. To celebrate getting an “A” in Math 238, you go out drinking. But you very foolishly
decide to drive (and you should be ashamed of yourself). You get arrested at 10pm. At
11pm, your blood alcohol is measured and found to be 0.08%. An hour later, it is measured
again and is found to be 0.05%. If the legal limit for alcohol content in the blood is 0.10%,
were you legally drunk when you were arrested ?
3. The half-life of C14 is 5568 years. How old is a fossil that contains 10% of the C14 found
in living things ?
4. Solve the following DE’s:
(a) dy
dt +2ty =t(b) dy
dt +1
ty= sin(t), t>0
5. Solve the following IVP’s:
(a) tdy
dt 3ty =te4t,y(0) = 1 (b) dy
dt y=t, y(0)=2
6. Solve the following equations, obtaining an explicit solution if possible:
(a) (y2(1 + x2)) dy
dx = arctan(x) (b) dy
dx =xex1
yex+e(y+x)
7. Without solving them, use a slope field approach to sketch the solutions to the following
differential equation. Indicate those solutions that are equilibriums. You should be able
to do this without your calculator.
(a) dy
dt =y(y5) (b) dy
dt =(y1)2(y4)
8. Using a two compartment model, give a linear cascade system of DE’s that describes
the effect of taking a cold pill if the observed data shows an absorption half-life of one hour
and a clearance half-life (after maximum absorption) of eight hours. Solve the system of
equations obtained.
9. Find the first three Picard iterates for the IVP y=xy2with y(0)=2.
pf3
pf4
pf5

Partial preview of the text

Download Measured - Differential Equations - Exam and more Exams Differential Equations in PDF only on Docsity!

Spring ’01 Math 238 Exam 1 Review Prof. Brick

  1. A tank with a capacity of 1000 gal initially contains 100 gal of water with 50 lb of salt dissolved in it. Water containing 2lb of salt per gal flows into the top of the tank at a rate of 4 gal/min. A well-stirred solution flows out of the bottom of the tank, but at a rate of 3 gal/min. How much salt is in the tank before it starts to overflow?
  2. To celebrate getting an “A” in Math 238, you go out drinking. But you very foolishly decide to drive (and you should be ashamed of yourself). You get arrested at 10pm. At 11pm, your blood alcohol is measured and found to be 0.08%. An hour later, it is measured again and is found to be 0.05%. If the legal limit for alcohol content in the blood is 0.10%, were you legally drunk when you were arrested?
  3. The half-life of C 14 is 5568 years. How old is a fossil that contains 10% of the C 14 found in living things?
  4. Solve the following DE’s:

(a)

dy dt

  • 2ty = t (b)

dy dt

t

y = sin(t), t > 0

  1. Solve the following IVP’s:

(a) t

dy dt

− 3 ty = te^4 t, y(0) = 1 (b)

dy dt

− y = t, y(0)=

  1. Solve the following equations, obtaining an explicit solution if possible:

(a) (y^2 (1 + x^2 ))

dy dx

= arctan(x) (b)

dy dx

xex^ − 1 yex^ + e(y+x)

  1. Without solving them, use a slope field approach to sketch the solutions to the following differential equation. Indicate those solutions that are equilibriums. You should be able to do this without your calculator.

(a)

dy dt

= −y(y − 5) (b)

dy dt

= −(y − 1)^2 (y − 4)

  1. Using a two compartment model, give a linear cascade system of DE’s that describes the effect of taking a cold pill if the observed data shows an absorption half-life of one hour and a clearance half-life (after maximum absorption) of eight hours. Solve the system of equations obtained.
  2. Find the first three Picard iterates for the IVP y′^ = x − y^2 with y(0) = 2.

Spring ’01 Math 238 Exam 1 Prof. Brick

Do the problems in order in your bluebook. Show your work.

  1. A tank with a capacity of 1000 gal initially contains 100 gal of water with 50 lb of salt dissolved in it. Water containing 2lb of salt per gal flows into the top of the tank at a rate of 4 gal/min. A well-stirred solution flows out of the bottom of the tank, at a rate of 4 gal/min. Set up, but do not solve, an IVP for the amount of salt in the tank.
  2. To celebrate getting an “A” in Math 238, you go out drinking. But you very foolishly decide to drive (and you should be ashamed of yourself). You get arrested at 10pm. At 11pm, your blood alcohol is measured and found to be 0.09%. An hour later, it is measured again and is found to be 0.07%. If the legal limit for alcohol content in the blood is 0.10%, were you legally drunk when you were arrested? Use and solve a DE in your answer.
  3. Solve

dy dt

  • 2ty = t, y(0) = 1
  1. Solve t

dy dt

− 3 ty = te^4 t

  1. Solve

dy dx

x y

ex, y(0) = − 2

  1. Sketch the solutions to

dy dt

= f (y), where the graph of f is pictured above. Indicate

those that are equilibriums. Note: assume t ≥ 0 and y may take on negative values.

  1. Using a two compartment model, give a linear cascade system of DE’s that describes the effect of taking a cold pill if the observed data shows an absorption half-life of two hours and a clearance half-life after maximum absorption of nine hours. Set up but do not solve the system of equations obtained.
  2. Find the first three Picard iterates for the IVP y′^ = xy with y(0) = 2.

Spring ’01 Math 238 Exam 2 Prof. Brick

Do the problems in order in your bluebook. Show your work.

  1. Solve the initial value problem y′′^ − 6 y′^ − y = 0, y(0) = α and y′(0) = 5. For what value of α does the solution approach zero as t → +∞?
  2. Solve y′′^ + y′^ = sin(3t).
  3. Suppose a mass weighing 32lb stretches a giant spring 8 feet. Assume the damping constant is α lb-sec/ft and that there is no external force. The mass is pulled downwards 6 feet and then let go with no initial velocity. Set up an IVP, but do not solve it. Without completely solving the IVP, determine what value of α causes the spring to be crticially damped or overdamped.
  4. Consider x” + x′^ − x^2 = 0. Using y = x′^ find a formula for

dy dx

that one would use to

plot the orbits in the phase plane. Find the equation of the nullcline (where the orbits have horizontal slope). Describe the regions of the phase plane for which the orbits have positive slope.

  1. Find a second order linear differential equation with constant coefficients (not necessarily homogeneous) for which y 1 = t^2 + c 12 t^ + c 2 is a solution for all constants c 1 and c 2.
  2. Solve (sin(y) − x^3 cos(y))

dy dx

= 3x^2 sin(y) + ex

  1. Solve the inital value problem y′′^ − 2 y′^ + 5y = 0, y(0) = 3, and y′(0) = 1.

Spring ’01 Math 238 Final Review Prof. Brick

  1. Go over the review sheets from the previous exams.
  2. Use the method of undetermined coefficients to solve y′′^ − 2 y′^ = 5e^2 t.
  3. Use the method of undetermined coefficients to solve y′′^ + 6y′^ + 9y = cos(3t).
  4. Use the method of undetermined coefficients to solve y′′^ + 2y = t^2 + 4t + 3.
  5. Find a second order linear differential equation with constant coefficients for which y 1 = c 1 + c 22 t^ + tan(t) are solutions for any constants c 1 and c 2.
  6. Suppose f (t) ≥

e √ π

for all t. What can you say about solutions to x′′^ + f (t) · x = 0?

  1. Describe the nature of the critical point (0, 0) of the system x′^ = y and y′^ = − 5 x − 4 y.
  2. Describe the nature of the critical point (0, 0) of the system x′^ = − 2 x and y′^ = −y.
  3. Describe the nature of the critical point (0, 0) of the system x′^ = y + 3x and y′^ = x − 4 y.
  4. Without using a table of transforms, and without doing any integration by parts, find the Laplace transform of t^3.
  5. Find the inverse Laplace transform of

s^2 + 4s + 7 (s + 4)(s − 6)(s^2 + 1)

  1. Using the Laplace transform, change the IVP y′′^ + 5y′^ − 6 y = 8 cos(2t) with y(0) = 2 and y′(0) = 8 into an algebraic equation of the form L(y) = “some expression in s”.
  2. Using integrals (and no tables), find the Laplace transform of the step function

f (t) =

0 , if x ≤ 3 1 otherwise

  1. Review everything else.
