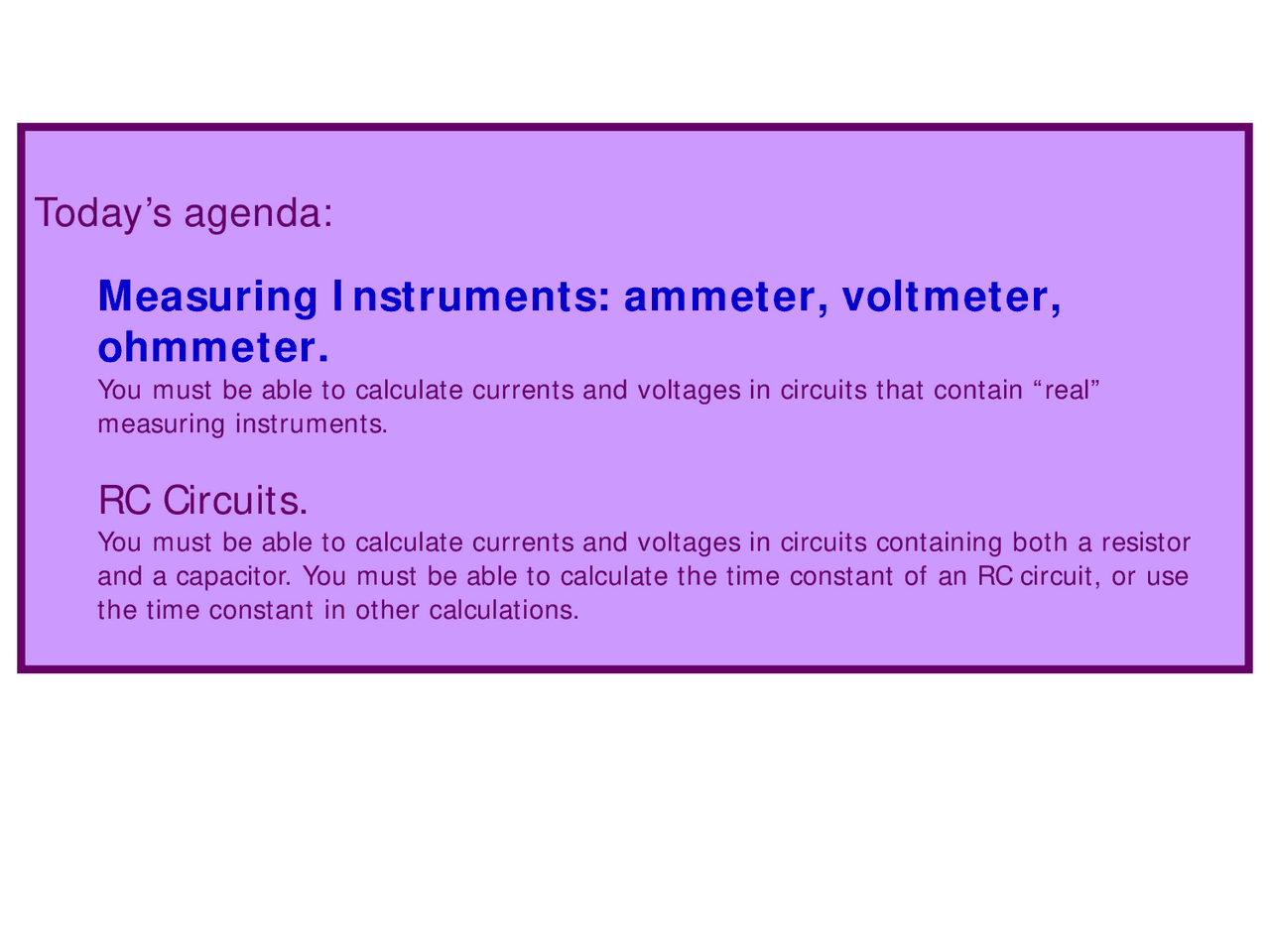

Today’s agenda:
Measuring Instruments: ammeter, voltmeter,
ohmmeter.
You must be able to calculate currents and voltages in circuits that contain “real”
measuring instruments.
RC Circuits.
You must be able to calculate currents and voltages in circuits containing both a resistor
and a capacitor. You must be able to calculate the time constant of an RC circuit, or use
the time constant in other calculations.
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
pf29
pf2a
pf2b
pf2c
pf2d
pf2e
pf2f
pf30
pf31

Partial preview of the text

Download Measuring Instruments: ammeter, voltmeter, ohmmeter. and more Study notes Law in PDF only on Docsity!

Today’s agenda:

Measuring Instruments: ammeter, voltmeter, ohmmeter. You must be able to calculate currents and voltages in circuits that contain “real” measuring instruments.

RC Circuits. You must be able to calculate currents and voltages in circuits containing both a resistor and a capacitor. You must be able to calculate the time constant of an RC circuit, or use the time constant in other calculations.

Measuring current, voltage, and resistance

A

Ammeter:

  • measures current (A)
  • connected in series (current must go through instrument)

I

V

a b

Voltmeter:

  • measures potential difference (V)
  • connected in parallel

Ohmmeter:

  • measures resistance of an isolated resistor (not in a working circuit)
  • current without the ammeter would be

V

R

V

I =

R

Measuring current in a simple circuit:

V

I =

R +r

To minimize error, ammeter resistance r must be very small. (ideal ammeter would have zero resistance)

  • any ammeter has some resistance r.

r

  • connect ammeter in series

Are we measuring the correct current? (the current in the circuit without ammeter)

  • current in presence of ammeter is

Effect of ammeter on circuit

Example: an ammeter of resistance 10 mΩ is used to measure the current through a 10 Ω resistor in series with a 3 V battery that has an internal resistance of 0.5 Ω. What is the relative (percent) error caused by the ammeter?

V=3 V

R=10 Ω

r=0.5 Ω

Actual current without ammeter:

V I = R +r

3 I = A 10 +0.

I = 0.2857 A = 285.7 mA

You might see the symbol ε used instead of V.

Designing an ammeter

http://hyperphysics.phy-astr.gsu.edu/hbase/magnetic/galvan.html#c

Galvanometer:

  • current flows through a coil in a magnetic field
  • coil experiences a torque, connected needle deflects (see later chapters of this class)

Designing an ammeter

  • ammeter can be based on galvanometer (for electronic instrument, use electronic sensor instead, analysis still applies)
  • simplest case: send current directly through galvanometer, observe deflection of needle

Needle deflection is proportional to current. Each galvanometer has a certain maximum current corresponding to full needle deflection.

What if you need to measure a larger current?

  • use shunt resistor

G

RG

RSHUNT

I G

I SHUNT

I

A B

Shunt also reduces resistance of the ammeter:

A G SHUNT

R R R

G SHUNT A G SHUNT

R R

R

R R

A galvanometer-based ammeter uses a galvanometer and a shunt, connected in parallel:

G

RG

RS

I G

I S

I

A G S

R R R

Example: what shunt resistance is required for an ammeter to have a resistance of 10 mΩ, if the galvanometer resistance is 60 Ω?

S A G

R R R

( ) ( ) S =^ G^ A =^ =^ Ω G A

R R^60.

R 0.

R - R 60 -.01 (^) (actually 0.010002 Ω)

To achieve such a small resistance, the shunt is probably a large-diameter wire or solid piece of metal.

Effect of voltmeter on circuit

Measuring voltage (potential difference) Vab in a simple circuit:

  • connect voltmeter in parallel

Are we measuring the correct voltage? (the voltage in the circuit without voltmeter)

ε=3 V

R=10 Ω

r=0.5 Ω

V

a (^) b

  • extra current changes voltage drop across r and thus Vab

To minimize error, voltmeter resistance r must be very large. (ideal voltmeter would have infinite resistance)

  • voltmeter has some resistance RV
  • current I (^) V flows through voltmeter

Effect of voltmeter on circuit

Measuring voltage (potential difference) Vab in a simple circuit:

  • connect voltmeter in parallel

Are we measuring the correct voltage? (the voltage in the circuit without voltmeter)

ε=3 V

R=10 Ω

r=0.5 Ω

RV

a (^) b

I V

The measurement is made with the galvanometer.

V=6 V

R 1 =10 kΩ

R 2 =5 kΩ

G

RG =60 Ω

a (^) b

60 Ω and 10 kΩ resistors in parallel are equivalent to 59.6 Ω resistor.

Total equivalent resistance: 5059.6 Ω

Total current: I=1.186x10-3^ A

I=1.19 mA

Vab = 6V – IR 2 = 0.07 V.

The relative error is:

×

% Error = 100 = 98% 4 Would you pay for this voltmeter?Would you pay for this voltmeter? We need a better instrument!

Example: a voltmeter of resistance 100 kΩ is used to measure the voltage drop across a 10 kΩ resistor in series with an ideal 6 V battery and a 5 kΩ resistor. What is the percent error caused by the nonzero resistance of the voltmeter?

We already calculated the actual voltage drop (2 slides back).

V=6 V

R 1 =10 kΩ

R 2 =5 kΩ

a (^) b

Vab = IR = ( 0.4 × 10 -3^ )( 10 × 10 3 Ω )= 4 V

  • voltmeter must have a very large resistance
  • voltmeter can be made from galvanometer in series with a large resistance

V G

RSer^ RG ⇒

Everything inside the blue box is the voltmeter.

a (^) b

Vab

a (^) b

Vab

Homework hints: “the galvanometer reads 1A full scale” would mean a current of I (^) G=1A would produce a full-scale deflection of the galvanometer needle. If you want the voltmeter shown to read 10V full scale, then the selected R (^) Ser must result in I (^) G=1A when Vab=10V.

Homework hints: “the galvanometer reads 1A full scale” would mean a current of I (^) G=1A would produce a full-scale deflection of the galvanometer needle. If you want the voltmeter shown to read 10V full scale, then the selected R (^) Ser must result in I (^) G=1A when Vab=10V.

Designing a voltmeter

  • Ohmmeter measures resistance of isolated resistor
  • Ohmmeter can be made from a galvanometer, a series resistance, and a battery (active device).

G

RSer^ RG

R=?

  • Terminals of ohmmeter are connected to unknown resistor
  • battery causes current to flow and galvanometer to deflect
  • V=I (Rser + RG + R) solve for unknown R

Ω

Measuring Instruments: Ohmmeter

Everything inside the blue box is the ohmmeter.

V
