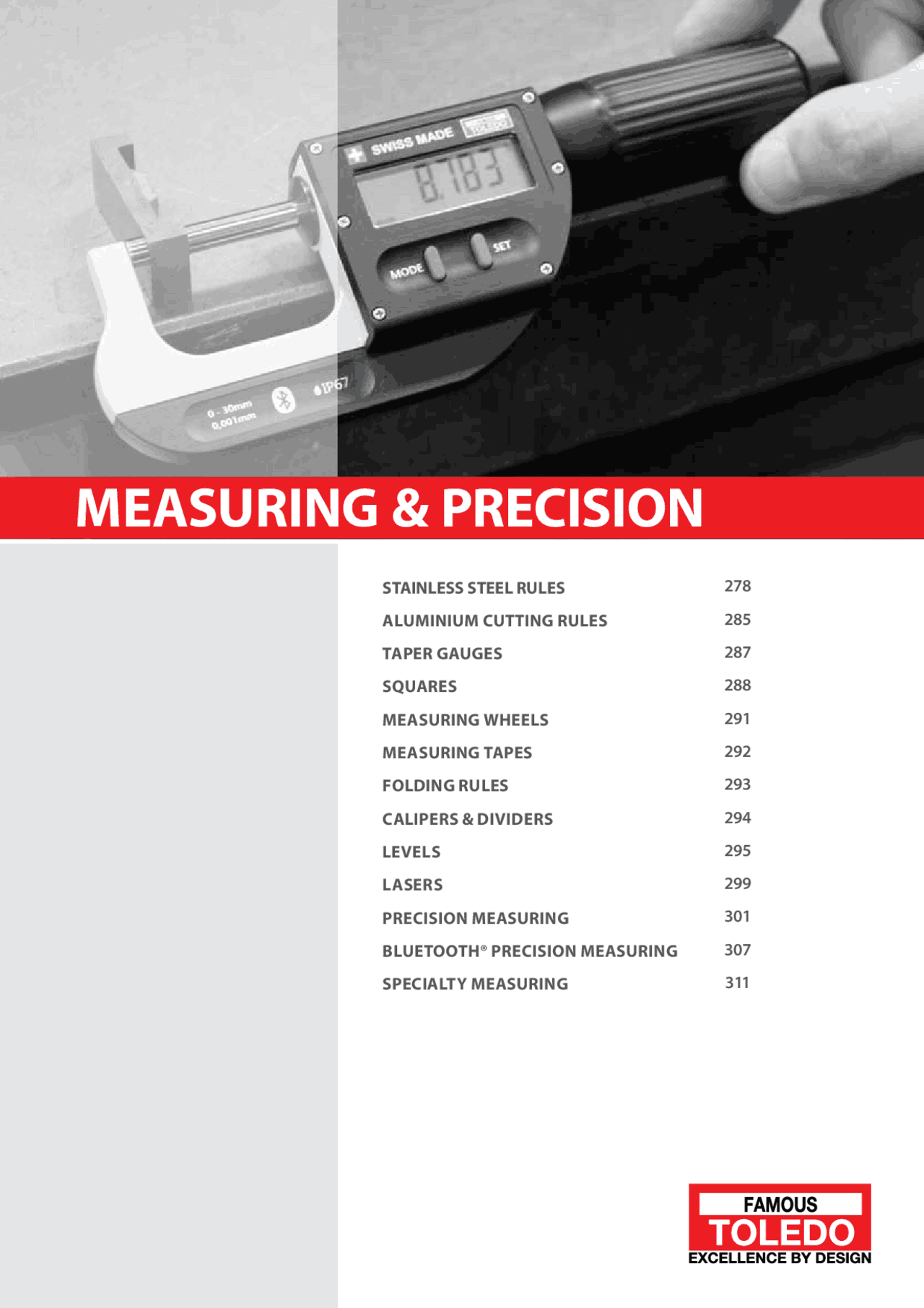

Download Japanese Stainless Steel Measuring Rules and Accessories: Specifications and Features and more Lecture notes Design and Analysis of Algorithms in PDF only on Docsity!
- STAINLESS STEEL RULES
- ALUMINIUM CUTTING RULES
- TAPER GAUGES
- SQUARES
- MEASURING WHEELS
- MEASURING TAPES
- FOLDING RULES
- CALIPERS & DIVIDERS
- LEVELS
- LASERS
- PRECISION MEASURING
- BLUETOOTH® PRECISION MEASURING
- SPECIALTY MEASURING
STAINLESS STEEL RULES
- Market leading range of trade quality stainless steel rules, famous for their long history and superior quality
- Photographically etched markings provide the highest precision and accuracy
- Black chrome plated graduations ensure long term visibility and protection against scuff marks and damage
- Fully heat treated and hardened Japanese stainless steel
- Satin chromed for quick and easy reading
- Accurate to Japanese Industrial Standard B7516 – grade one specifications
- The only rules that are certified by both JIS (Japan Industrial Standards) and JCSS (Japan Calibration Service System)
- Individually supplied in protective vinyl storage sleeve
METAL RULES GRADE 1 OF JIS B7516 - 2005 (ABSTRACT)
Standard Grade 1 of JIS B7516-
Material SUS420 J2 of JIS G 4305 or that equivalent or superior to this in quality
Hardness of Material Hv400 min
Size
Nominal Size Overall Length (L)^ Thickness (T)^ Width (W)
Size Tolerance Size Tolerance Size Tolerance
150mm 175mm
+/-5mm
0.5mm
15mm
300mm 335mm 1.0mm 25mm
600mm 640mm 1.2mm 30mm
1000mm 1050mm 1.5mm 35mm
1500mm 1565mm 2.0mm 40mm
2000mm 2065mm 2.0mm 40mm
Flatness of scale face The scale face shall be flat to a level of no hindrance to measurements
Straightness of scale side face
Nominal Size Straightness Nominal Size Straightness
150mm max 0.23mm 1000mm max 0.40mm
300mm max 0.26mm 1500mm max 0.50mm
600mm max 0.32mm 2000mm max 0.60mm
Straightness of scale side face The squareness of the scale end face of a rule in respect of its scale side shall be 0.035mm max per 10mm length of the end face
Tolerance of length
Temperature at 20°C
Length Tolerance
max 500mm +/– 0.15mm
over 500mm - max 1000 mm +/– 0.20mm
over 1000 mm - max 1500mm +/– 0.25mm
over 1500mm - max 2000mm +/– 0.30mm
T
W
L
STAINLESS STEEL RULES
SINGLE SIDED EASY PICK-UP RULES
METRIC
- Graduations on both upper and lower edges with numerical markings in centre only
- Easy pick-up rules feature a bent edge at one end to enable easy pick-up off flat surfaces
- One square end and one round end with hanging hole
- Manufactured from stainless steel
Part No. Length Width Thickness Graduations Upper Edge Lower Edge 301956 150mm 15mm 0.5mm 1mm 0.5mm 301957 300mm 25mm 1.0mm 1mm 0.5mm
Part No. Length Width Thickness Graduations Front Graduations Back Upper Edge Lower Edge Upper Edge Lower Edge 150MSE 150mm 20mm 1.0mm 0.5mm 1mm 0.5mm 1mm 300MSE 300mm 28mm 1.0mm 0.5mm 1mm 0.5mm 1mm
SINGLE SIDED FLEXIBLE RULES
METRIC
- Graduations on both upper and lower edges with numerical markings in centre only
- Toledo flexible rules are thinner in width and thickness to allow for damage free bending
- One square end and one round end with hanging hole
- Manufactured from stainless steel
Part No. Length Width Thickness Graduations Upper Edge Lower Edge 321900 300mm 15mm 0.5mm 1mm 0.5mm 321901 600mm 15mm 0.5mm 1mm 0.5mm 321059 1000mm 15mm 0.5mm 1mm 1mm 321060 2000mm 15mm 0.5mm 1mm 1mm
DOUBLE SIDED RULES
METRIC
- Front & Back: Graduations on both upper and lower edges with numerical markings in centre only
- No quiet space - complete rule is graduated, two square ends
- Manufactured from stainless steel
150MSE Front 150MSE Back
MASTER TOOL CATALOGUE 281
STAINLESS STEEL RULES
Part No. Length Width Thickness Graduations Front Graduations Back Upper Edge Lower Edge Upper Edge Lower Edge ST150M 150mm 20mm 1.0mm 1mm 0.5mm 1mm 0.5mm ST300M 300mm 28mm 1.0mm 1mm 0.5mm 1mm 0.5mm
Part No. Length Width Thickness Graduations Front Graduations Back Upper Edge Lower Edge Upper Edge Lower Edge 150SP 150mm 15mm 0.5mm 1mm 0.5mm 1mm 0.5mm 300SP 300mm 25mm 1.0mm 1mm 0.5mm 1mm 0.5mm
Part No. Length Width Thickness Graduations Front Back Upper Edge Lower Edge 150PCM 150mm 20mm 0.5mm 0.5mm 1mm Conversion table
DOUBLE SIDED RULES
METRIC
- Front & Back: Graduations and numerical markings on both upper and lower edges. Numerical markings on
lower edge counting left to right and upper edge counting right to left
- No quiet space - complete rule is graduated, two square ends
- Manufactured from stainless steel
DOUBLE SIDED RULES
METRIC
- Front & Back: Graduations on both upper and lower edges
- Numerical markings on front side in centre counting from left to right
- Numerical markings on back in centre beginning in middle and counting outwards
- One square end and one round end with hanging hole
- Manufactured from stainless steel
DOUBLE SIDED POCKET CLIP RULE
METRIC
- Front: Graduations on both upper and lower edges with
numerical markings in centre only
- Back: ‘Inch’ to ‘mm’ conversion table
- Rule with pocket clip for easy storage
- One square end and one round end
- Manufactured from stainless steel
ST150M Front ST150M Back
150SP Back
150SP Front
150PCM Front
150PCM Front
MASTER TOOL CATALOGUE 283
STAINLESS STEEL RULES
Part No. Length Width Thickness Graduations Front Graduations Back Upper Edge Lower Edge Upper Edge Lower Edge 150SE 150mm/6” 20mm 1.0mm 1/32” 1/64” 0.5mm 1mm 300MESE 300mm/12” 28mm 1.0mm 1/32” 1/64” 0.5mm 1mm
Part No. Length Width Thickness Graduations Front Graduations Back Upper Edge Lower Edge Upper Edge Lower Edge 150B6 150mm/6” 15mm 0.5mm 0.5mm 1mm 0 - 2”: 1/20”, 2 - 3”: 1/50”, 3 - 6”: 1/10” 0 - 2”: 1/32”, 2 - 3”: 1/64”, 3 - 6”: 1/16” 30012 300mm/12”^ 25mm^ 1.0mm^ 0.5mm^ 1mm^ 0 - 3”: 1/20”, 3 - 4”: 1/50”,4 - 12”: 1/10”^ 0 - 3”: 1/32”, 3 - 4”: 1/64”, 4 - 12”: 1/16” 60024 600mm/24” 30mm 1.2mm 0.5mm 1mm 0 - 3”: 1/20”, 3 - 4”: 1/50”, 4 - 24”: 1/10” 0 - 3”: 1/32”, 3 - 4”: 1/64”, 4 - 24”: 1/16” 100036 1000mm/36” 35mm 1.5mm 0.5mm 1mm 0 - 3”: 1/20”, 3 - 4”: 1/50”, 4 - 36”: 1/10” 0 - 3”: 1/32”, 3 - 4”: 1/64”, 4 - 36”: 1/16”
DOUBLE SIDED RULES
METRIC & IMPERIAL
- Imperial Front: Graduations on both upper and lower edges. Numerical markings on both upper and lower edge and in centre
- Metric Back: Graduations on both upper and lower edges with numerical markings in centre only
- No quiet space - complete rule is graduated
- See images for further explanation of markings and graduations
- Manufactured from stainless steel
DOUBLE SIDED RULES
METRIC & IMPERIAL
- Metric Front & Imperial Back: Graduations on both upper and lower edges with numerical markings in centre only
- One square end and one rounded end with hanging hole
- Manufactured from stainless steel
150SE Front
150SE Back
30012 Front
30012 Back
STAINLESS STEEL RULES
RULE SET
- Contains two popular 150mm and 300mm rules
- Manufactured from stainless steel
- Supplied in foam storage tray suitable for all tool boxes
Part No. Contents Length Width Thickness Graduations Front Graduations Back Upper Edge Lower Edge Upper Edge Lower Edge TRS 150BM 150mm 15mm 0.5mm 1/2mm 1mm Blank Blank 30012 300mm 25mm 1.0mm 1/2mm 1mm 0 - 3”: 1/20”, 3 - 4”: 1/50”, 4 - 12”: 1/10” 0 - 3”: 1/32”, 3 - 4”: 1/64”, 4 - 12”: 1/16”
PROFESSIONAL MEASURING SETS
- Professional measuring sets for ultimate precision and accuracy
- Heat treated and hardened Japanese stainless steel with photographically etched markings
- Satin chromed for easy reading and identification
- Accurate to Japanese Industrial Standard B 7516 – Grade 1 specifications
- Supplied in foam storage trays suitable for all tool boxes
Part No. Contents Description Size 321903 150B6 Rule - Metric & Imperial 150mm/6” 301959 Square - Metric 150 x 75mm 700A Taper Gauge - Metric 0 - 15mm
Part No. Contents Description Size 321904 301955 Protractor with Rule 180° / 100mm 300M Rule - Metric 300mm 50150 Spring Divider - Solid Nut 150mm 321015 Square - Metric 300 x 150mm 700A Taper Gauge - Metric 0 - 15mm
- Scriber - Pen Style with Pocket Clip 135mm
ALUMINIUM CUTTING RULES
Part No. Length Tolerance Width Tolerance Thickness Tolerance Graduations Upper Edge Lower Edge SE600 600mm +/- 0.28mm 50mm +/- 0.30mm 5.0mm +/- 0.20mm 1mm Blank SE1000 1000mm +/- 0.40mm 50mm +/- 0.30mm 5.0mm +/- 0.20mm 1mm Blank SE1500 1500mm +/- 0.55mm 50mm +/- 0.30mm 5.0mm +/- 0.20mm 1mm Blank SE2000 2000mm +/- 0.70mm 50mm +/- 0.30mm 5.0mm +/- 0.20mm 1mm Blank
Part No. Length Width Thickness Graduations Upper Edge Lower Edge AR300 300mm 35mm 5.0mm 1mm Blank AR600 600mm 35mm 5.0mm 1mm Blank AR1000 1000mm^ 35mm^ 5.0mm^ 1mm^ Blank
SINGLE SIDED STRAIGHT EDGE RULES
METRIC
- Features one straight edge and one graduated edge
- Two square ends with one hanging hole
- Manufactured from aluminium
SINGLE SIDED STRAIGHT EDGE RULES - SPONGE BACK
METRIC
- Sponge back provides anti-slip performance making measuring and alignment drawing
easy and accurate. Sponge back also protects against possible damage to the work surface
- Features one straight edge and one graduated edge
- Two square ends with one hanging hole
- Manufactured from aluminium
SE
AR
Reverse side. Sponge back
MASTER TOOL CATALOGUE 287
TAPER GAUGES
Part No. Size Range Description 700A 1 - 15mm Taper gauge with hanger hole 700B 15 - 30mm Taper gauge with hanger hole 700C 30 - 45mm^ Taper gauge with hang hole 700D 45 - 60mm Taper gauge with hang hole 700AD 1 - 15mm Taper gauge with 150mm rule & clearance gauge 700AM 1 - 15mm Taper gauge with hanger hole, metal case & pocket clip 700AR 1 - 15mm Taper gauge with 150mm rule
TAPER GAUGES
- Used to measure internal diameters
- Ideal for measuring gaps, slot widths, hole or bore sizes and flange face to face dimensions
- Photographically etched markings ensure the greatest precision and accuracy
- Satin chrome for easy reading and identification
- Manufactured from stainless steel
700AD
Front & Back
700AR
Front & Back
700A 700B 700C 700D 700AM
MASTER TOOL CATALOGUE 289
SQUARES
COMBINATION SQUARE SET
METRIC & IMPERIAL
- Versatile and useful multi-application set for a wide
range of measuring and lay out jobs
- Suitable for use as a rule, spirit level, plumb level,
45° level, try square (internal and external),
height/depth gauge, marking gauge and scriber
- Common applications include jobs in woodworking,
metal working and stonemasonry
- Black baked enamel finish (except rule)
- Stainless steel graduated rule
- Supplied in high grade EVA foam storage tray
FEATURES & APPLICATIONS
Detachable Rule
- All traditional length and dimension measurements
- Hardened stainless steel with precision milled edges
- Double sided metric and imperial 300mm/12”
- Imperial graduation: 1/32” & 1/16”
Square Head with Scriber & Spirit Level
- Lay out and checking of 45° and 90° angles
- Locking bolt for firm attachment to blade
- Detachable scriber for marking
Protractor Head with Spirit Level
- Setting, measuring and checking of angles
- Locking bolt for firm attachment to blade
Centre Head
- Allows centre lines to be obtained
- Checking the centre of round jobs
- Enables depth measurement
- Locking bolt for firm attachment to blade
Part No. Graduations Rule Square Protractor 322210 300mm/12" 45° & 90° 180°
Part No. Graduations Front Graduations Back Upper Edge Lower Edge Upper Edge Lower Edge CS30012 1mm 1/16” 1mm 1/32”
COMBINATION SQUARE
METRIC & IMPERIAL
- Popular multi-application tool with versatile functionality
- Suitable for use as inner or outer try square, mitre square, horizontal, 45°
and plumb level, depth and marking gauge and rule
- Detachable ruled blade (300mm / 12”)
- Spirit level for checking level and plumb
- Lidded scriber for marking work
- Suitable for multiple interchangeable heads including protractor and centring heads
- Useful tool for transferring duplicate measurements
Detachable ruled blade
Adjustment screw pin
Scriber
Spirit level
T-SQUARES
- Ideal tool for all measuring and technical drawings
- Ideal for applications requiring accurate horizontal or vertical lines
- Aluminium construction with special UV resistant ink
printed graduations and durable powder coated T-head
Part No. Length Width Thickness Graduations Upper Edge Lower Edge 322215 450mm 38mm 1.2mm 1mm 1mm 322216 900mm^ 38mm^ 1.2mm^ 1mm^ 1mm
Square head with scriber
Centre head
Protractor head
Detachable rule
MINI SQUARES
METRIC
- Handy mini-squares for various small and medium measuring jobs
- Simple and light “L” squares
- Double sided photographically etched markings for ultimate accuracy and precision
- Manufactured from quality stainless steel to the strict standards of all Toledo rules
Part No. Size Width Thickness Graduations Front Graduations Back Upper Edge Lower Edge Upper Edge Lower Edge 301958 100 x 50mm 10mm 1.2mm 1mm Blank 1mm 10mm 301959 150 x 75mm 10mm 1.2mm 1mm 10mm 1mm 10mm 321015 300 x 150mm 15mm 1.2mm 1mm 5mm 1mm 5mm
RAFTER SQUARES 7”
- Ideal for marking and cutting of rafters, stairs or any basic angle
- Tri-square, mitre square, protractor, line scriber and saw guide all in one tool
- Moulded-in conversion tables that never fade or rub off
- Marked with degree graduations for fast, easy layout
- Square body has a flat base on one side for easy 90° vertical measuring
- Commonly used in carpentry applications
Part No. Material 322015 ‘Ergocast’ plastic 322017 Aluminium
ENGINEERING SQUARES
- Used for producing right angles in carpentry and engineering applications
- Available with blade lengths of 50mm/2 inch to 300mm/12 inch
- Spring steel blade and handle Part No. Style Blade Length SSA2 Non-Graduated 50mm SSA3 Non-Graduated 75mm SSA4 Non-Graduated 100mm SSA6 Non-Graduated 150mm SSA8 Non-Graduated 200mm SSA10 Non-Graduated 250mm SSA12 Non-Graduated 300mm SSA4G Graduated^ 100mm SSA6G Graduated 150mm
SSA6G Front
SSA6G Back
SQUARES
SSA
MEASURING TAPES
TAPE MEASURE
METRIC & IMPERIAL 2 METRE SINGLE SIDED
- Graduations and numerical on both upper and lower edges
- Mini tape measure is very handy to keep on hand at all times
- Strong and robust design with ABS and TPE shock-proof casing
- Ergonomic design with handy keychain ring
- High visibility nylon coated blade
- Shock absorbing bumper to dampen down recall
MEASURING TAPE STEEL LONG
METRIC 30 METRE SINGLE SIDED
- Extra heavy duty steel tape option is designed for heavy duty industrial use
- Strong and robust design with ABS and TPE shock-proof casing
- Robust rewind function is designed to last
- Nylon coated blade features a fold out hook and D ring anchor
- Belt clip for easy transportation and storage
TAPE MEASURE
METRIC 10 METRE DOUBLE SIDED
- Heavy duty tape measure designed for heavy use with extra long non-kink blade stand out
- Strong and robust design with ABS and TPE shock-proof casing
- Double sided metric graduations
- Automatic blade lock function provides easy set up allowing one person operation
- Ergonomic design with belt clip and hanging tether
- High visibility nylon coated blade with long stand out
- Shock absorbing bumper to dampen down recall
Part No. Length Tape Thickness Tape Width Overall Dimension Graduations 322018 30 metres 0.15mm 9.4mm 110mm x 25mm 1mm
Part No. Length Blade Thickness Blade Width Overall Dimension Graduations Front & Back Upper Lower 321910 10 metres 0.5mm 27mm 91mm x 42mm 1mm 1mm
Part No. Length Blade Thickness Blade Width Overall Dimension Graduations Upper Lower 321922 2 metres / 6 feet 0.5mm 12.2mm 45mm x 45mm 1/32” 1mm
Hanger tether (^) Double sided Belt clip Auto blade locking Upper & lower hooks Shockproof casing
HD steel tape Robust reel Shockproof casing Fold out hook Belt clip
MASTER TOOL CATALOGUE 293
MEASURING TAPES
FOLDING RULES
MEASURING TAPE FIBREGLASS LONG
METRIC & IMPERIAL DOUBLE SIDED
- Reinforced, double coated fibreglass tape resistant to markings and abrasions
- Flat lay 13mm wide blade ensures ease of use
- Heavy duty fibreglass will not rot, corrode or distort
- Non-conductive/sparking fibreglass protects user against electrical
shock and is suitable for any worksite
- Quick rewind function for fast and easy tape retraction
- Double sided graduation markings
Part No. Description Length Width Thickness Graduations Upper Edge Lower Edge TF30M Metric 30mm 13mm 0.5mm 2mm 2mm 322220 Metric & Imperial 50mm 13mm 0.5mm 2mm 1/8"
TF30M 322220
SINGLE SIDED FOLDING RULE
METRIC
- Graduations on both upper and lower edges with numerical markings
in centre only
- Folding rules are precisely manufactured to maximise reliability and smooth operation
- Blades are locked into place when straightened via an accurately machined rivet function
- Blades straighten and align perfectly to maintain accurate graduations and measurements
- One square end and one round end when not fully extended. Square end to square end
at full extension
- Manufactured from stainless steel
Part No. Description Overall Length Width Thickness GraduationsUpper Edge Lower Edge 600FM 2 blade/1 fold 600mm 20mm 0.7mm 1mm 0.5mm
DOUBLE SIDED FOLDING RULE FIBREGLASS
METRIC
- Front & Back: Graduations in millimetres on lower and upper edges with
numerical markings in centre only
- Broken into 220mm segments connected via a reliable and sturdy fix joint mechanism
which enables extensions of 90° or 180° to firmly lock into place
- Manufactured from light, durable and insulating fibreglass
- Ideal for electrical work
- Made in Switzerland Part No. Overall Length 321902 2000mm
MASTER TOOL CATALOGUE 295
CALIPERS & DIVIDERS
Part No. Length Thickness Height 322060 600mm 31mm 66mm 322090 900mm 31mm 66mm 322120 1200mm 31mm 66mm 322180 1800mm 31mm 66mm 322240 2400mm 31mm 66mm
FIXED JOINT CALIPER (JENNY)
- Fixed joint caliper also known as a ‘Jenny’ caliper
- Used to locate the centre of a round or square section of steel
- Suitable for setting a constant distance from an edge
- One leg holds an adjustable point and the other end a locating lug
Part No. Size 321074 150mm
LEVELS
BOX LEVELS MAGNETIC
- Reinforced aluminium frame
- Epoxy locked shockproof vials
- Precision milled surfaces for accuracy (up to 1200mm)
- Enlarged easy read horizontal vial (33% bigger)
- Unique side-view vial provides accurate plumb reading
- Removable shockproof end caps
- Powerful rare earth magnets
- V-groove for pipes and curved surfaces
- Non-scratching wall grab tabs
Wall Grab Tabs
Side-View Vial
Enlarged Vial
Shockproof Vial V-Groove
NTMM
Merchandiser 9Pc.
MEASURING & PRECISION
LEVELS
BOX LEVELS DIGITAL
MAGNETIC
- Precision angle measurement to 0.05 degrees
- Individually calibrated high accuracy vials 0.5mm/m
- Memory store and recall (9 measurements)
- Mode selection: Degree/Percentage/Pitch
- Flip screen for upright read out
- Rainproof and dust resistant
- Tilted LCD screen with LED backlight
- Battery operated: 9V (not included)
Plumb Site ®^ Dual-View ™^ Vial Unique front view of the vertical vial
Accuracy Solid acrylic vials are individually calibrated
Accuracy Solid acrylic vials are individually calibrated
Solid Acrylic Shockproof Vials Superior accuracy, readability and longevity
Better readability
UV Resistant Protected from the fading effects of sunlight
Angle Finder Transfer angle measurements
Shockproof End Caps Protects the level’s integrity an
VPA
German VPA Laboratory
Air-cushioned Ergo Grip Patented wall-grip handles wi
Lifetime Vial Warranty Solid acrylic vials are guarante
Magnetic Powerful magnetic surface for
Shockproof
Plumb Site ®^ Dual-View ™^ Vial Unique front view of the vertical vial
Accuracy Solid acrylic vials are individually calibrated
Accuracy Solid acrylic vials are individually calibrated
Solid Acrylic Shockproof Vials Superior accuracy, readability and longevity
Better readability
UV Resistant Protected from the fading effects of sunlight
Angle Finder Transfer angle measurements
Shockproof End Caps Protects the level’s integrity an
VPA
German VPA Laboratory
Air-cushioned Ergo Grip Patented wall-grip handles wi
Lifetime Vial Warranty Solid acrylic vials are guarante
Magnetic Powerful magnetic surface for Magnetic
Plumb Site ®^ Dual-View Unique front view of the vertic
Accuracy Solid acrylic vials are individua
Accuracy Solid acrylic vials are individua
Solid Acrylic Shockproof V Superior accuracy, readability a
Better readability
UV Resistant Protected from the fading effe
Accuracy (^) Plumb Site ® (^) Dual-View Unique front view of the vertic
Accuracy Solid acrylic vials are individua
Accuracy Solid acrylic vials are individua
Solid Acrylic Shockproof V Superior accuracy, readability a
Better readability
UV Resistant Protected from the fading effe
ShockproofVial
Accuracy Solid acrylic v
Solid Acrylic Superior accu
Better readab
UV Resistan Protected from UV Resistant
Accuracy Solid acrylic v
Solid Acrylic Superior accu
Better readab
UV Resistan Protected from
Side-View
Plumb Site ®^ Dual-View ™^ Vial Unique front view of the vertical vial
Accuracy Solid acrylic vials are individually calibrated
Accuracy Solid acrylic vials are individually calibrated
Solid Acrylic Shockproof Vials Superior accuracy, readability and longevity
Better readability
UV Resistant Protected from the fading effects of sunlight
Ang Trans
Shoc Prote
VPA
Germ
Air-c Paten
Lifet Solid
Mag Powe
safety regulations^ Conforms to CE
Accuracy Solid acrylic vials are individually calibrated
Accuracy Solid acrylic vials are individually calibrated
Solid Acrylic Shockproof Vials Superior accuracy, readability and longevity
Better readability
UV Resistant Protected from the fading effects of sunlight
Shockproof End Caps Protects the level’s integrity and acc
VPA
German VPA Laboratory
Air-cushioned Ergo Grip Patented wall-grip handles with PVC
Lifetime Vial Warranty Solid acrylic vials are guaranteed no
Magnetic Powerful magnetic surface for accur
Battery Operated
Part No. Length Resolution Width Height 322050 600mm 0.05° 25mm 60mm 322051 1200mm^ 0.05°^ 25mm^ 60mm
TORPEDO LEVEL
MAGNETIC
- Handy portable lightweight level ideal for all big and small measuring jobs
- Features two solid shockproof horizontal and vertical acrylic vials
- UV resistant material that endures the effects of direct sunlight
- Small portable size fits perfectly into tool boxes, belts, drawers and pockets
- Precision milled flat surface with dual magnets
- Accuracy: < 0.5mm/m (0.0005 in/in.)
Part No. Length Width Thickness 322010 250mm 45mm 22mm
NTMM
Merchandiser 12Pc.
NTMM
Merchandiser 9Pc.
