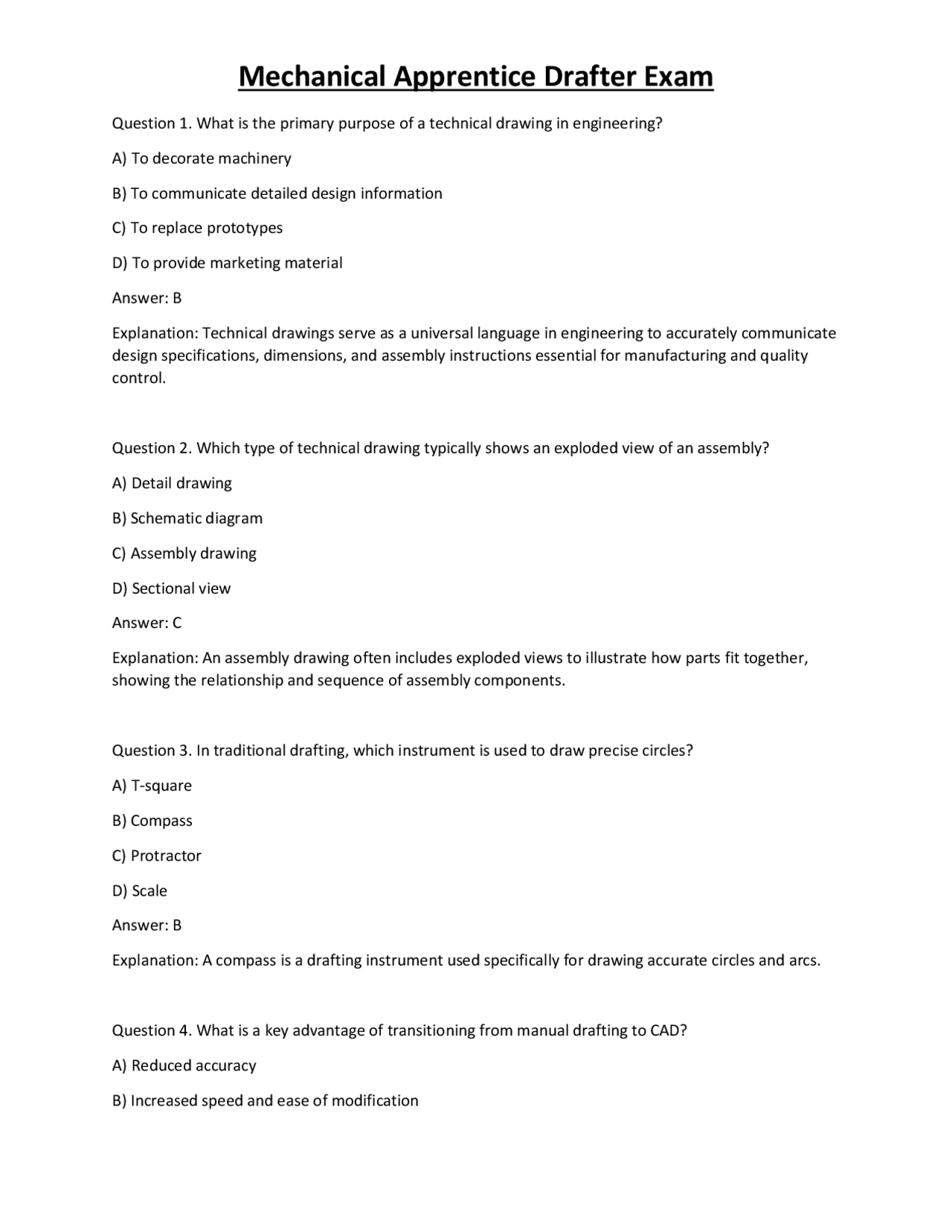

Question 1. What is the primary purpose of a technical drawing in engineering? A) To decorate machinery B) To communicate detailed design information C) To replace prototypes D) To provide marketing material Answer: B Explanation: Technical drawings serve as a universal language in engineering to accurately communicate design specifications, dimensions, and assembly instructions essential for manufacturing and quality control. Question 2. Which type of technical drawing typically shows an exploded view of an assembly? A) Detail drawing B) Schematic diagram C) Assembly drawing D) Sectional view Answer: C Explanation: An assembly drawing often includes exploded views to illustrate how parts fit together, showing the relationship and sequence of assembly components. Question 3. In traditional drafting, which instrument is used to draw precise circles? A) T-square B) Compass C) Protractor D) Scale Answer: B Explanation: A compass is a drafting instrument used specifically for drawing accurate circles and arcs. Question 4. What is a key advantage of transitioning from manual drafting to CAD? A) Reduced accuracy B) Increased speed and ease of modification
C) Higher material costs D) Less control over drawing details Answer: B Explanation: CAD offers faster editing, better accuracy, easy modifications, and improved storage and sharing capabilities compared to manual drafting. Question 5. Which line type in a technical drawing indicates hidden features? A) Continuous thick line B) Dashed line C) Chain line D) Center line Answer: B Explanation: Dashed lines are used to represent hidden edges or features not visible in the current view. Question 6. How does line weight typically relate to the importance of features in a drawing? A) Thinner lines indicate more important features B) Thicker lines are used for auxiliary details C) Thicker lines emphasize visible edges D) Line weight does not convey importance Answer: C Explanation: Thicker lines are used to emphasize visible edges and primary features, helping to distinguish them from secondary or auxiliary lines. Question 7. Which principle is essential for creating clear and legible lettering on a technical drawing? A) Using cursive script B) Small, closely spaced characters C) Uniform size and proper spacing D) Overlapping letters Answer: C
Question 11. Which projection method is primarily used in the United States for orthographic drawings? A) First-angle projection B) Third-angle projection C) Isometric projection D) Oblique projection Answer: B Explanation: The United States primarily uses third-angle projection, where the object is between the viewer and the projection plane. Question 12. Which type of pictorial drawing provides a three-dimensional view that combines features of orthographic projections? A) Isometric drawing B) Sectional view C) Detail drawing D) Assembly drawing Answer: A Explanation: Isometric drawings depict a three-dimensional object with axes equally inclined, providing a clear visualization of the shape. Question 13. In oblique projection, what distinguishes cavalier from cabinet projection? A) Cavalier exaggerates depth; cabinet scales depth by half B) Cavalier scales depth by half; cabinet exaggerates C) Both are identical D) Neither is used in mechanical drafting Answer: A Explanation: Cavalier projection preserves true scale for depth, making it appear exaggerated, while cabinet scales the depth by 50%, reducing distortion. Question 14. What is the primary function of a sectional view? A) To show external features
B) To reveal internal features by cutting through the part C) To provide a perspective view D) To illustrate assembly sequences Answer: B Explanation: Sectional views are used to cut through a part to reveal internal features that are otherwise hidden. Question 15. Which industry standard is most focused on dimensioning and tolerancing in engineering drawings? A) ISO 9001 B) ASME Y14. C) ASTM E D) JIS B 8313 Answer: B Explanation: ASME Y14.5 provides guidelines for geometric dimensioning and tolerancing, ensuring clarity and consistency in specifying part features. Question 16. What component of a title block typically contains the drawing number and revision status? A) Title B) Scale C) Revision block D) Material specification Answer: C Explanation: The revision block documents the current revision number and history, ensuring traceability of changes. Question 17. Which drawing sheet size is larger? A) A B) A
Explanation: Balloons are numbered markers that correspond to parts listed in the BOM, facilitating identification and referencing. Question 21. What is the main difference between conventional tolerancing and GD&T? A) GD&T provides a more precise and functional way to specify allowable variations B) Conventional tolerancing is more accurate C) GD&T is only used for electrical drawings D) Conventional tolerancing includes geometric controls Answer: A Explanation: GD&T offers a standardized way to define allowable variations based on functional and geometric requirements, leading to better control and communication. Question 22. What is a 'datums' in GD&T? A) The actual size of a feature B) Reference points, lines, or surfaces used to establish a coordinate system C) The material condition of a part D) A type of surface finish Answer: B Explanation: Datums are reference features used to establish a coordinate system for geometric tolerances, ensuring consistent measurement and assembly. Question 23. Which material condition modifier indicates the maximum material condition (MMC)? A) RFS B) LMC C) MMC D) Tolerance zone Answer: C Explanation: The MMC modifier indicates the condition where a feature contains the maximum amount of material, often used for functional fits.
Question 24. Which geometric characteristic describes the flatness of a surface? A) Cylindricity B) Flatness C) Parallelism D) Perpendicularity Answer: B Explanation: Flatness specifies how much a surface deviates from an ideal plane, ensuring surface uniformity. Question 25. What does the term 'Total Runout' control in GD&T? A) The variation in a surface profile B) The combined variation in circularity and concentricity C) The variation of a surface as it rotates about a datum axis D) The total length of a feature Answer: C Explanation: Total runout controls the combined variation in a surface or feature as it rotates, ensuring concentricity and roundness within limits. Question 26. Which CAD file format is commonly used for exchanging 3D models between different software? A) DWG B) STEP C) JPEG D) PDF Answer: B Explanation: STEP files are standardized for sharing 3D CAD data across different platforms and software. Question 27. In CAD, what does the 'extrude' feature do? A) Creates a 2D sketch
Answer: B Explanation: A BOM lists parts, their quantities, and descriptions, essential for procurement, assembly, and inventory management. Question 31. Which of the following file formats is commonly used for 2D CAD drawings? A) STL B) DXF C) IGES D) STEP Answer: B Explanation: DXF files are widely used for 2D drawings and data exchange between CAD programs. Question 32. In materials selection, which property is most critical for structural applications? A) Color B) Tensile strength C) Electrical conductivity D) Thermal expansion Answer: B Explanation: Tensile strength indicates the maximum stress a material can withstand without failure, essential for structural integrity. Question 33. Which manufacturing process involves shaping metal by heating and hammering? A) Casting B) Forging C) Machining D) Bending Answer: B Explanation: Forging involves shaping heated metal through compression, improving strength and grain structure.
Question 34. What does surface roughness specification indicate? A) The color of a surface B) The texture and finish quality of a surface C) The material thickness D) The chemical composition Answer: B Explanation: Surface roughness measures the texture and finish quality, affecting appearance and functional performance. Question 35. Which process is primarily used for joining two metals by melting and fusing them? A) Soldering B) Welding C) Bolting D) Adhesive bonding Answer: B Explanation: Welding melts the base metals and fuses them, creating a strong joint suitable for structural applications. Question 36. What is the purpose of a 'section line' in a technical drawing? A) To show the boundary of the drawing sheet B) To indicate the location of a sectional view C) To mark the edge of a part D) To denote the scale Answer: B Explanation: Section lines indicate where a cut is made to produce a sectional view, revealing internal features. Question 37. Which of the following is an example of a surface finish symbol? A) A triangle B) A check mark
Explanation: The shell operation hollows out a solid, leaving a specified wall thickness, useful for creating containers or casings. Question 41. Which type of material is typically used in additive manufacturing? A) Cast iron B) Plastic filament C) Steel billets D) Aluminum sheet Answer: B Explanation: Plastic filaments are commonly used in 3D printing processes like FDM (Fused Deposition Modeling). Question 42. Which property distinguishes ceramics from metals? A) High electrical conductivity B) Brittleness and high melting point C) Ductility D) Magnetic properties Answer: B Explanation: Ceramics are brittle, have high melting points, and are usually insulating, unlike metals which are ductile and conductive. Question 43. Which manufacturing process is primarily used for producing complex shapes by pouring molten material into molds? A) Casting B) Machining C) Forging D) Bending Answer: A Explanation: Casting involves pouring liquid material into molds to create complex shapes that are difficult to machine.
Question 44. Which surface treatment is used to create a corrosion-resistant, decorative coating on metals? A) Anodizing B) Plating C) Painting D) All of the above Answer: D Explanation: Anodizing, plating, and painting are surface treatments used for corrosion resistance and aesthetic purposes. Question 45. What does a 'section view' typically reveal that is not visible in external views? A) External dimensions B) Hidden internal features C) Surface finish D) Assembly sequence Answer: B Explanation: Section views cut through the object to display internal features, hidden in external views. Question 46. In GD&T, what is the purpose of a 'Feature Control Frame'? A) To specify the material B) To define geometric tolerances and their conditions C) To list manufacturing steps D) To mark the part's weight Answer: B Explanation: The Feature Control Frame encapsulates geometric tolerances, datums, and modifiers, providing precise control of features. Question 47. Which of the following is a common symbol for indicating a surface with a specified roughness?
C) To display material specifications D) To highlight surface finishes Answer: B Explanation: Exploded views visually separate components to clarify how parts assemble, aiding understanding and communication. Question 51. Which of the following is a standard sheet size used for detailed technical drawings? A) A B) A C) D D) B Answer: B Explanation: A0 is a large sheet size commonly used for detailed technical drawings due to its ample space for complex information. Question 52. What does the abbreviation 'ISO' stand for in drafting standards? A) International Standard Organization B) International Organization for Standardization C) International Society of Optics D) Internal Standards Office Answer: B Explanation: ISO stands for International Organization for Standardization, which develops international standards, including those for technical drawing conventions. Question 53. Which type of projection is most commonly used in European countries for orthographic views? A) First-angle projection B) Third-angle projection C) Isometric projection D) Oblique projection
Answer: A Explanation: First-angle projection is predominantly used in Europe and many other parts of the world, where the object is placed between the projection plane and the viewer. Question 54. What is the primary purpose of a 'title block' on a drawing sheet? A) To provide company branding B) To contain essential information such as drawing number, title, and revision C) To illustrate the assembly sequence D) To specify tolerances Answer: B Explanation: The title block contains critical information like drawing title, number, scale, date, and revision status, ensuring proper documentation. Question 55. What does the 'scale' 1:1 indicate about a drawing? A) The drawing is at full size, equal to the actual object B) The drawing is scaled down by half C) The drawing is enlarged twice D) The drawing is reduced to one-third Answer: A Explanation: A 1:1 scale means the drawing size matches the actual size of the object, providing a true representation. Question 56. Which symbol indicates a surface that has been polished or has a specified surface roughness? A) Triangle B) Check mark C) Roughness or finish symbol with a number D) Circle with a cross Answer: C
Question 60. How does the 'Maximum Material Condition' (MMC) influence GD&T tolerances? A) It allows for looser tolerances when the feature is at its largest size B) It tightens tolerances at the largest size C) It is only used for external features D) It is unrelated to tolerances Answer: A Explanation: MMC enables tolerances to be more flexible when a feature is at its largest permissible size, facilitating assembly and inspection. Question 61. Which type of line in a drawing indicates the boundary of a cutting plane? A) Continuous thick line B) Chain line C) Phantom line D) Short-dashed line Answer: D Explanation: Cutting plane lines are typically short-dashed lines with alternating long and short dashes, indicating where a section is taken. Question 62. Which CAD tool allows for creating complex curved surfaces by blending multiple surfaces? A) Loft B) Revolve C) Sweep D) Fillet Answer: A Explanation: Loft creates smooth transitions between multiple profiles, useful for complex surface modeling. Question 63. Which is the typical purpose of a 'Bill of Materials' (BOM) in an assembly drawing? A) To list raw materials used B) To detail the manufacturing process
C) To list all parts and components with quantities D) To specify tolerances Answer: C Explanation: The BOM lists all parts, components, and their quantities required to assemble the product, facilitating procurement and assembly. Question 64. In CAD, what does the 'mirror' feature do? A) Creates a duplicate of an object B) Reflects selected geometry across a specified plane C) Rotates an object 180 degrees D) Flattens a 3D model Answer: B Explanation: The mirror feature creates a reflected copy of geometry across a specified plane, useful for symmetric parts. Question 65. Which of the following is a common file format used for 3D printing? A) DWG B) STL C) DXF D) STEP Answer: B Explanation: STL (Stereolithography) files contain 3D surface geometry data and are widely used for additive manufacturing and 3D printing. Question 66. Which property of metals is most critical when designing for machining processes? A) Electrical conductivity B) Hardness C) Ductility D) Thermal expansion Answer: B
