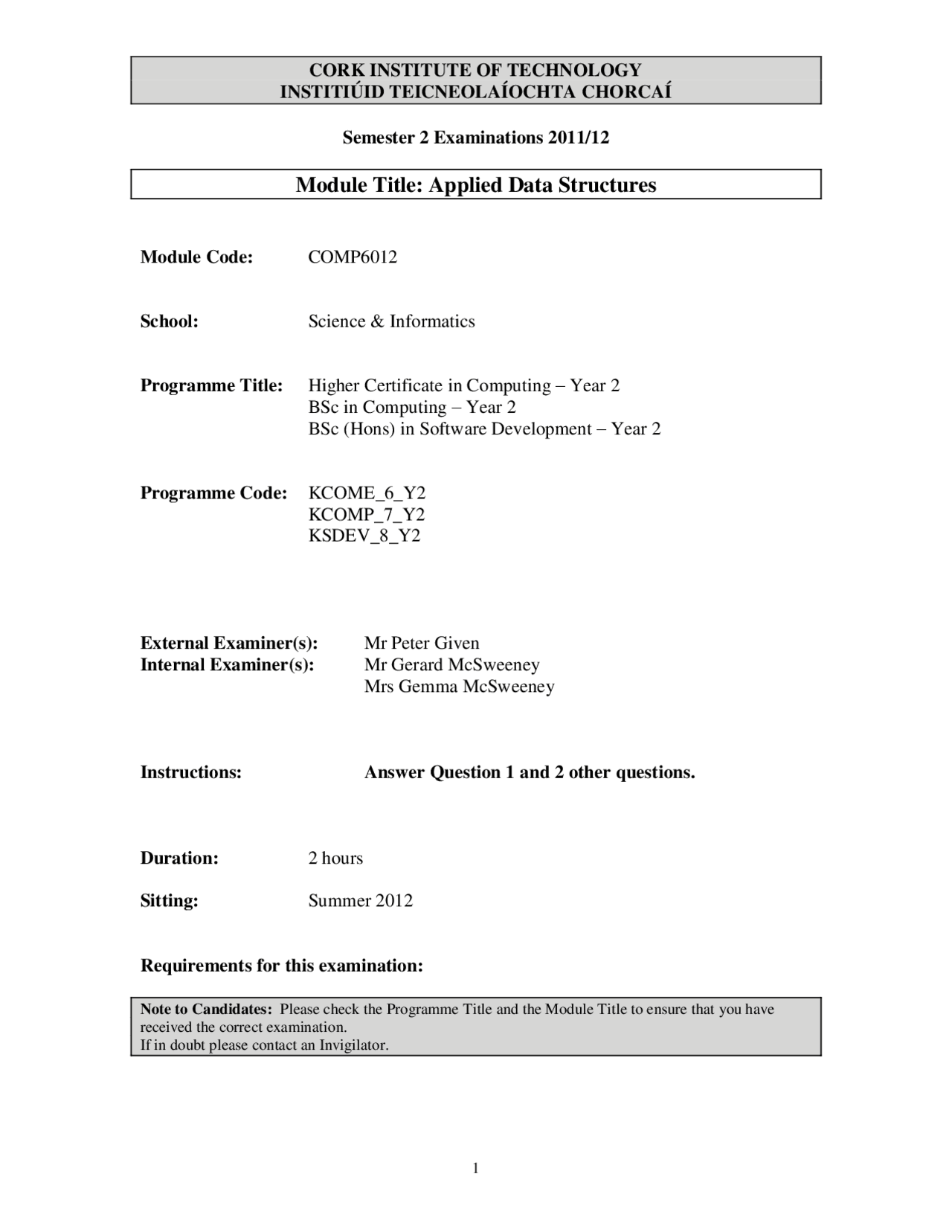

CORK INSTITUTE OF TECHNOLOGY
INSTITIÚID TEICNEOLAÍOCHTA CHORCAÍ
Semester 2 Examinations 2011/
Module Title: Applied Data Structures
Module Code: COMP
School: Science & Informatics
Programme Title: Higher Certificate in Computing – Year 2 BSc in Computing – Year 2 BSc (Hons) in Software Development – Year 2
Programme Code: KCOME_6_Y KCOMP_7_Y KSDEV_8_Y
External Examiner(s): Mr Peter Given Internal Examiner(s): Mr Gerard McSweeney Mrs Gemma McSweeney
Instructions: Answer Question 1 and 2 other questions.
Duration: 2 hours
Sitting: Summer 2012
Requirements for this examination:
Note to Candidates: Please check the Programme Title and the Module Title to ensure that you have received the correct examination. If in doubt please contact an Invigilator.
Question 1 Linked Lists (mandatory question)
Section A (i) Draw a diagram to represent a link list with 2 nodes of information. 2 marks
(ii) Describe a memory diagram to show:
(a) An empty link list (b) A list with two nodes 5 marks
(iii) (a) Set up a flight record which holds the following information flightId, route and costPerflight.
(b) Set up a node struct of a linked list which contains a flight record as in (iii)(a) and a link. 4 marks
(iv) Compare and contrast the types of memory allocation used for Linked Lists as distinct from either static or dynamic arrays. 2 marks
(v) Explain the term non-contigious memory 3 marks
(vi) Explain 2 steps that happen when the following operation is carried out: ptr1 = new node 2 marks Section A 18 marks Section B Write a program with a menu which includes the following options:
create list : which adds one record at a time display list : displays all record details
Use a selection statement to choose one of the above choices.
(i) Write a createList function which stores information of flights – one record at a time
which should be added to the end of the list.
(ii) Write the code to display all nodes of a linked list.
(iii) Write the main code for the program
Section B ==> 22 marks
Total Marks Question 1 ==> 40 marks
Question 3 Binary Trees & Binary Searching
Section A: Binary Trees
(i) Set up a node struct to hold the following information: flight id, the number of seats, the number of adults, the total cost and 2 pointers left and right. 4 marks
(ii) Set up the memory for the node in (i) and set the left and right pointer to NULL 3 marks
(iii) Write a function to display the node given in (i) for a binary tree 5 marks
(iv) Write a function to produce a binary tree of ten random integers (range from 1 to 100). 4 marks
Section A ==> 16 marks
Section B: Binary Searching
(i) What is the main criteria for a binary search? 2 marks
(ii) Given the code in Appendix 1 , show line by line what happens to find
(a) A flight record present in an array of flights, where the flightID is the key – assume there is at least 8 flights present. note: the flight Ids are not automated 4 marks
(b) A flight record that is not present in an array of flights 4 marks
(iii) Show what happens in the main program when the binary search function is called for (ii)(a) and (ii)(b) 4 marks
Section B ==> 14 marks
Total Marks Q3 ==> 30 marks
Question 4 Sorting and Recursion
Section A
(i) Explain what is recursion 1 mark (ii) Write a recursive function to find the factorial of a number 3 marks (iii) What is the anchor statement in the factorial function 2 marks (iv) Show the steps involved when using the factorial function to calculate 5!. Show how a stack is involved in the process. 6 marks
Section A 12 marks
Section B
You are required to do the first 3 Passes on the following data using the insertion sort
in Appendix 2 Please show all the working steps involved.
Show the arrangement of the numbers at each Pass
45, 12, 56, 78, 23 18 marks
Section B 18 marks
Question 4 30 marks
Appendix 2
void insertion_sort( int * array)
{
int i, j, key, array_length=array.length( ); for(j = 1; j < array_length; j++) //Notice starting with 1 (not 0) { key = array[j]; for(i = j - 1; (i >= 0) && (array[i] < key); i--) { array[i+1] = array[i]; } array[i+1] = key; } return;
}
