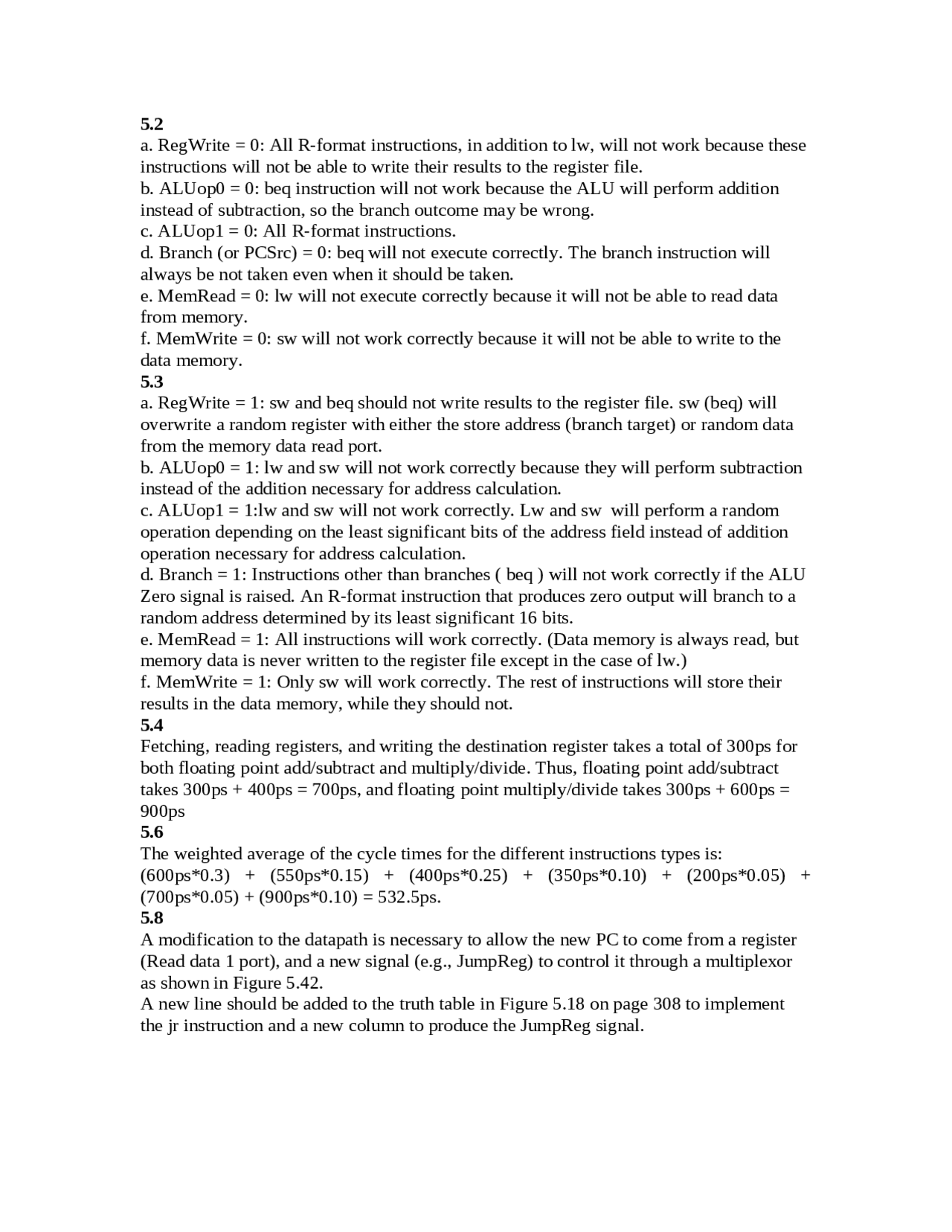

a. RegWrite = 0: All R-format instructions, in addition to lw, will not work because these instructions will not be able to write their results to the register file. b. ALUop0 = 0: beq instruction will not work because the ALU will perform addition instead of subtraction, so the branch outcome may be wrong. c. ALUop1 = 0: All R-format instructions. d. Branch (or PCSrc) = 0: beq will not execute correctly. The branch instruction will always be not taken even when it should be taken. e. MemRead = 0: lw will not execute correctly because it will not be able to read data from memory. f. MemWrite = 0: sw will not work correctly because it will not be able to write to the data memory. 5. a. RegWrite = 1: sw and beq should not write results to the register file. sw (beq) will overwrite a random register with either the store address (branch target) or random data from the memory data read port. b. ALUop0 = 1: lw and sw will not work correctly because they will perform subtraction instead of the addition necessary for address calculation. c. ALUop1 = 1:lw and sw will not work correctly. Lw and sw will perform a random operation depending on the least significant bits of the address field instead of addition operation necessary for address calculation. d. Branch = 1: Instructions other than branches ( beq ) will not work correctly if the ALU Zero signal is raised. An R-format instruction that produces zero output will branch to a random address determined by its least significant 16 bits. e. MemRead = 1: All instructions will work correctly. (Data memory is always read, but memory data is never written to the register file except in the case of lw.) f. MemWrite = 1: Only sw will work correctly. The rest of instructions will store their results in the data memory, while they should not. 5. Fetching, reading registers, and writing the destination register takes a total of 300ps for both floating point add/subtract and multiply/divide. Thus, floating point add/subtract takes 300ps + 400ps = 700ps, and floating point multiply/divide takes 300ps + 600ps = 900ps 5. The weighted average of the cycle times for the different instructions types is: (600ps0.3) + (550ps0.15) + (400ps0.25) + (350ps0.10) + (200ps0.05) + (700ps0.05) + (900ps*0.10) = 532.5ps. 5. A modification to the datapath is necessary to allow the new PC to come from a register (Read data 1 port), and a new signal (e.g., JumpReg) to control it through a multiplexor as shown in Figure 5.42. A new line should be added to the truth table in Figure 5.18 on page 308 to implement the jr instruction and a new column to produce the JumpReg signal.
a) If RegDst = 0, all R-format instructions will be unable to write into the proper register (rd). b) If MemtoReg = 0 or IorD = 0, then loads will not work. c) If ALUSrcA = 0, none of the instructions will work properly because they all require A to be operated on by the ALU at some point. 5. a) If RegDst = 1, load instructions will not work. b) If MemtoReg = 1, all R-format instructions will not work.
