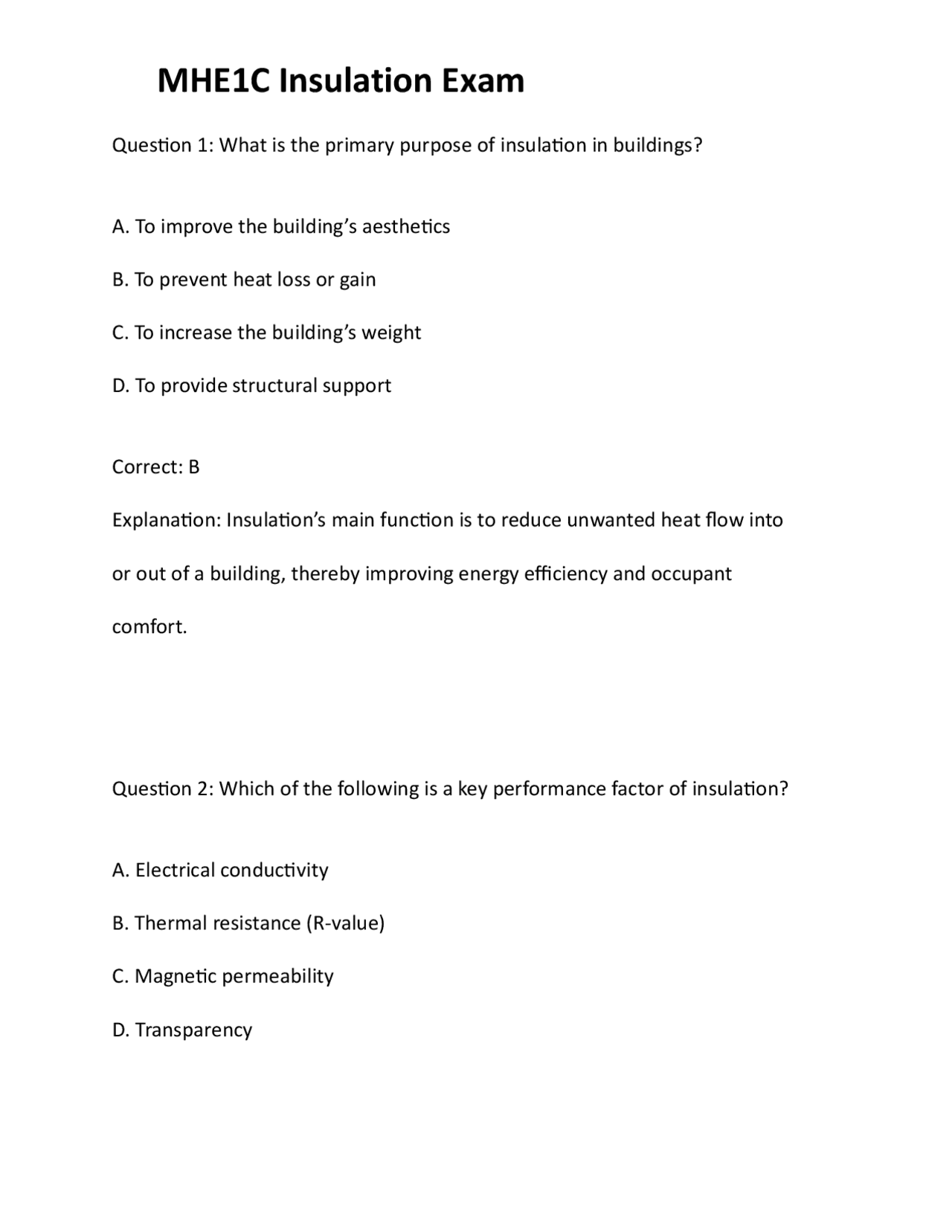

Question 1: What is the primary purpose of insulation in buildings? A. To improve the building’s aesthetics B. To prevent heat loss or gain C. To increase the building’s weight D. To provide structural support Correct: B Explanation: Insulation’s main function is to reduce unwanted heat flow into or out of a building, thereby improving energy efficiency and occupant comfort. Question 2: Which of the following is a key performance factor of insulation? A. Electrical conductivity B. Thermal resistance (R-value) C. Magnetic permeability D. Transparency
Correct: B Explanation: The R-value measures an insulation material’s resistance to heat flow, which is crucial for assessing its effectiveness. Question 3: What is meant by the term "vapour barrier"? A. A material that increases sound transmission B. A coating that reflects sunlight C. A layer that prevents moisture from passing through D. A type of insulation with a high R-value Correct: C Explanation: Vapour barriers are used to stop moisture from moving through building assemblies, which helps prevent condensation and mold. Question 4: Which insulation material is known for being made from recycled paper products?
Question 6: What does the “R” in R-value stand for? A. Resistance B. Radiance C. Reflectivity D. Reduction Correct: A Explanation: R-value stands for “resistance” to heat flow; higher values indicate better insulation performance. Question 7: Which of the following is considered a sustainable insulation material? A. Asbestos B. Sheep wool C. Lead D. PVC
Correct: B Explanation: Sheep wool is natural, renewable, and sustainable, making it a green choice for insulation. Question 8: What is the main risk of poor moisture resistance in insulation materials? A. Reduced reflectivity B. Increased fire resistance C. Mold growth and material degradation D. Lower soundproofing Correct: C Explanation: Moisture can cause mold and deteriorate insulation, reducing its effectiveness and potentially harming indoor air quality. Question 9: Which organization sets standards for insulation material testing in the US?
Correct: B Explanation: Blown-in insulation is ideal for attics and wall cavities due to its ability to fill irregular spaces. Question 11: Which insulation type offers the best fire resistance? A. Fiberglass B. Cellulose C. Mineral wool D. Polystyrene foam Correct: C Explanation: Mineral wool is non-combustible and provides excellent fire resistance. Question 12: Why is proper air sealing important when installing insulation?
A. To improve aesthetics B. To prevent energy loss through gaps C. To reduce insulation thickness D. To increase sound transmission Correct: B Explanation: Air sealing prevents drafts and heat loss, maximizing insulation’s effectiveness. Question 13: What does infrared thermography help detect in buildings? A. Wall color B. Thermal bridges and insulation gaps C. Roof slope D. Window size Correct: B Explanation: Infrared thermography visualizes heat flow, identifying areas of heat loss where insulation may be missing or inadequate.
Correct: B Explanation: Insulating ducts minimizes unwanted heat transfer, improving system efficiency and comfort. Question 16: Which property is most important for insulation used in high- humidity areas? A. High reflectivity B. Moisture resistance C. Low cost D. Flexibility Correct: B Explanation: Moisture resistance is crucial to prevent mold and maintain insulation performance in humid environments. Question 17: What is the main disadvantage of using fiberglass insulation?
A. It is highly flammable B. It can cause skin irritation C. It absorbs a lot of moisture D. It is very expensive Correct: B Explanation: Fiberglass fibers can irritate skin, eyes, and lungs if proper protective equipment is not used during installation. Question 18: What does a higher k-value indicate in an insulation material? A. Better thermal resistance B. More heat flow through the material C. Higher soundproofing D. Increased durability Correct: B Explanation: The k-value measures thermal conductivity; a higher k-value means more heat passes through, so lower is better for insulation.
Correct: B Explanation: Cotton insulation is often produced from recycled denim, offering a sustainable and safe alternative. Question 21: What is one environmental advantage of using cellulose insulation? A. It is made from natural gas B. It contains asbestos C. It uses recycled paper, reducing landfill waste D. It is water-resistant Correct: C Explanation: Cellulose insulation utilizes recycled paper, supporting waste reduction and sustainability. Question 22: Which is NOT a common use for reflective insulation or radiant barriers?
A. Attics in hot climates B. Walls in cold storage C. Roofs exposed to sunlight D. Basement floors Correct: D Explanation: Reflective insulation is most effective in attics and roofs where it reflects radiant heat, not on basement floors. Question 23: What does the term "thermal bridging" refer to? A. Insulation that bridges across two rooms B. Gaps where heat bypasses insulation through structural elements C. A type of vapor barrier D. A soundproofing technique Correct: B Explanation: Thermal bridging happens when heat flows through materials
A. Install without any protection B. Use personal protective equipment such as masks and goggles C. Only handle with bare hands D. Wet the insulation Correct: B Explanation: PPE protects workers from inhaling or coming into contact with potentially irritating or harmful dust. Question 26: Which insulation material is most susceptible to settling over time? A. Rigid foam board B. Spray foam C. Loose-fill cellulose D. Mineral wool batts
Correct: C Explanation: Loose-fill cellulose can settle, reducing its effectiveness unless installed at the proper density. Question 27: In which part of a house is insulation least likely to be installed? A. Attic B. Interior walls C. Floor slabs D. Window glass Correct: D Explanation: Windows are insulated with glazing, not traditional insulation materials. Question 28: Which standard relates specifically to fire testing of building insulation materials?
Correct: B Explanation: XPS is moisture-resistant and strong, making it suitable for foundations and below-grade uses. Question 30: Why is it important to avoid compressing fiberglass batt insulation during installation? A. It increases R-value B. It reduces R-value C. It makes the insulation fireproof D. It improves soundproofing Correct: B Explanation: Compressing batt insulation reduces trapped air, which lowers the material’s thermal resistance. Question 31: What is the primary function of insulation in industrial pipe systems?
A. To make pipes look better B. To prevent heat loss, corrosion, and condensation C. To increase water pressure D. To prevent pipe movement Correct: B Explanation: Insulation reduces heat loss/gain, controls condensation, and can help prevent corrosion on pipes. Question 32: Which is a key consideration when installing blown-in insulation in an attic? A. Only aesthetic appearance B. Achieving even distribution and correct thickness C. Using as little material as possible D. Only insulating near the attic entrance
