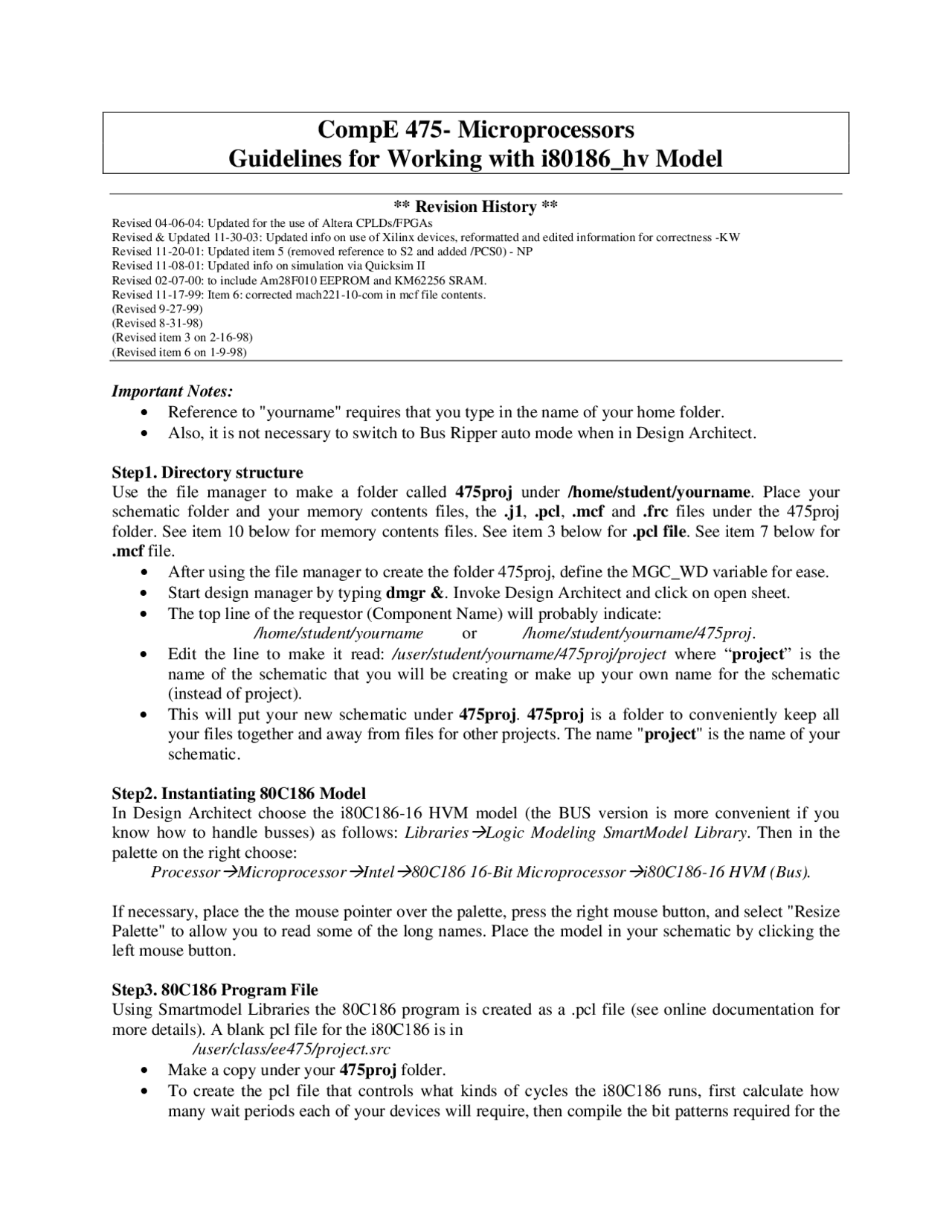

CompE 475- Microprocessors
Guidelines for Working with i80186_hv Model
** Revision History **
Revised 04-06-04: Updated for the use of Altera CPLDs/FPGAs
Revised & Updated 11-30-03: Updated info on use of Xilinx devices, reformatted and edited information for correctness -KW
Revised 11-20-01: Updated item 5 (removed reference to S2 and added /PCS0) - NP
Revised 11-08-01: Updated info on simulation via Quicksim II
Revised 02-07-00: to include Am28F010 EEPROM and KM62256 SRAM.
Revised 11-17-99: Item 6: corrected mach221-10-com in mcf file contents.
(Revised 9-27-99)
(Revised 8-31-98)
(Revised item 3 on 2-16-98)
(Revised item 6 on 1-9-98)
Important Notes:
• Reference to "yourname" requires that you type in the name of your home folder.
• Also, it is not necessary to switch to Bus Ripper auto mode when in Design Architect.
Step1. Directory structure
Use the file manager to make a folder called 475proj under /home/student/yourname. Place your
schematic folder and your memory contents files, the .j1, .pcl, .mcf and .frc files under the 475proj
folder. See item 10 below for memory contents files. See item 3 below for .pcl file. See item 7 below for
.mcf file.
• After using the file manager to create the folder 475proj, define the MGC_WD variable for ease.
• Start design manager by typing dmgr &. Invoke Design Architect and click on open sheet.
• The top line of the requestor (Component Name) will probably indicate:
/home/student/yourname or /home/student/yourname/475proj.
• Edit the line to make it read: /user/student/yourname/475proj/project where “project” is the
name of the schematic that you will be creating or make up your own name for the schematic
(instead of project).
• This will put your new schematic under 475proj. 475proj is a folder to conveniently keep all
your files together and away from files for other projects. The name "project" is the name of your
schematic.
Step2. Instantiating 80C186 Model
In Design Architect choose the i80C186-16 HVM model (the BUS version is more convenient if you
know how to handle busses) as follows: Libraries
Æ
Logic Modeling SmartModel Library. Then in the
palette on the right choose:
Processor
Æ
Microprocessor
Æ
Intel
Æ
80C186 16-Bit Microprocessor
Æ
i80C186-16 HVM (Bus).
If necessary, place the the mouse pointer over the palette, press the right mouse button, and select "Resize
Palette" to allow you to read some of the long names. Place the model in your schematic by clicking the
left mouse button.
Step3. 80C186 Program File
Using Smartmodel Libraries the 80C186 program is created as a .pcl file (see online documentation for
more details). A blank pcl file for the i80C186 is in
/user/class/ee475/project.src
• Make a copy under your 475proj folder.
• To create the pcl file that controls what kinds of cycles the i80C186 runs, first calculate how
many wait periods each of your devices will require, then compile the bit patterns required for the
pf3
pf4
pf5
