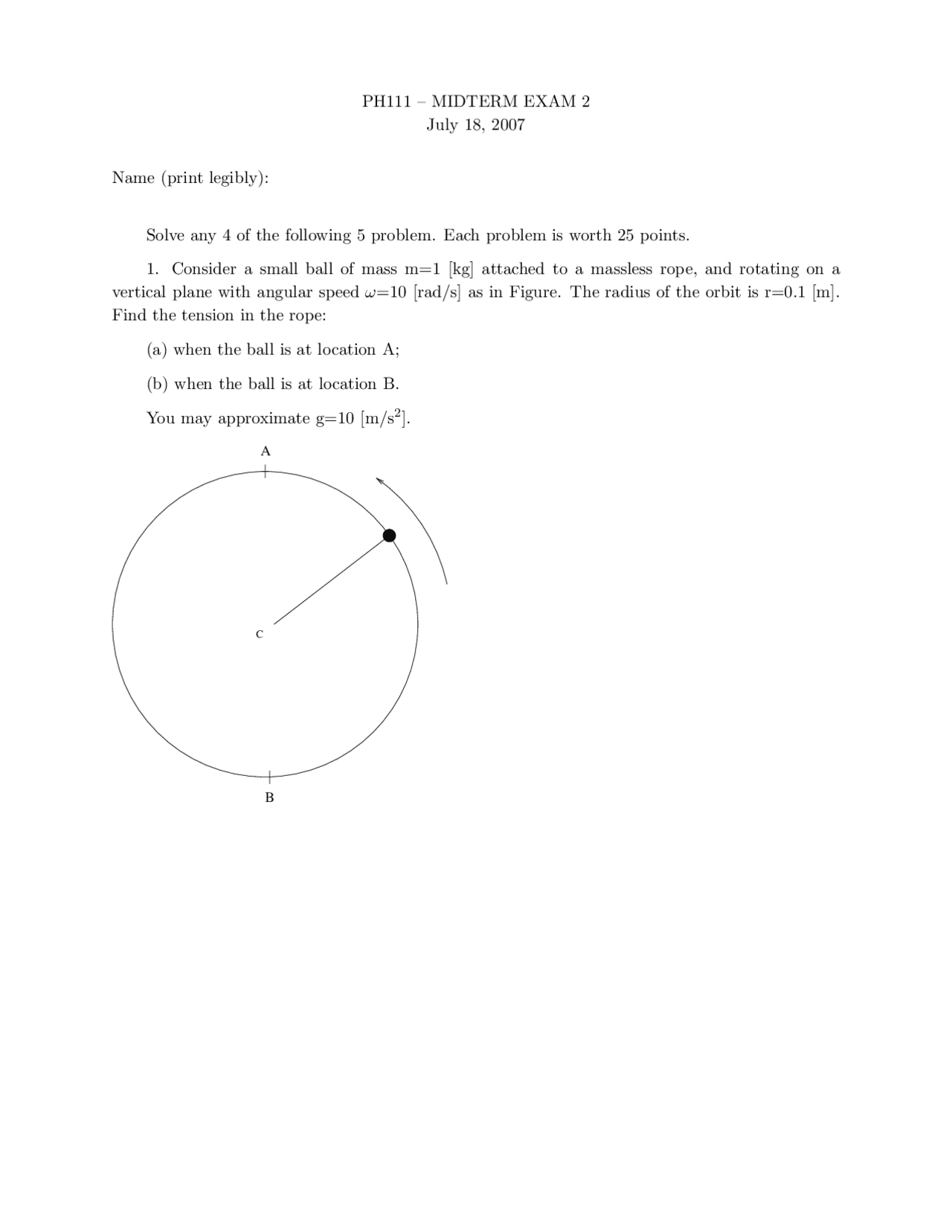

PH111 – MIDTERM EXAM 2
July 18, 2007
Name (print legibly):
Solve any 4 of the following 5 problem. Each problem is worth 25 points.
1. Consider a small ball of mass m=1 [kg] attached to a massless rope, and rotating on a
vertical plane with angular speed ω=10 [rad/s] as in Figure. The radius of the orbit is r=0.1 [m].
Find the tension in the rope:
(a) when the ball is at location A;
(b) when the ball is at location B.
You may approximate g=10 [m/s2].
C
A
B
pf3
pf4
pf5

Partial preview of the text

Download PH111 Midterm Exam 2: Mechanics Problems - Prof. Massimiliano Bonamente and more Exams Physics in PDF only on Docsity!

PH111 – MIDTERM EXAM 2

July 18, 2007

Name (print legibly):

Solve any 4 of the following 5 problem. Each problem is worth 25 points.

  1. Consider a small ball of mass m=1 [kg] attached to a massless rope, and rotating on a vertical plane with angular speed ω=10 [rad/s] as in Figure. The radius of the orbit is r=0.1 [m]. Find the tension in the rope:

(a) when the ball is at location A; (b) when the ball is at location B. You may approximate g=10 [m/s^2 ].

C

A

B

  1. Consider a force F pulling the rope as in Figure. The rope is massless and the pulley is frictionless. The coefficient of friction between each box and the surface is μK =0.05, mA=2 [kg] and mB =2[kg]. Given that the two boxes move with an acceleration of magnitude a=1 [m/s^2 ], find the tensions T 1 and T 2 in the two ropes.

F

A B

rope 1 rope 2

a

  1. A box of mass m=1 kg is pushed up an incline of angle α=30 degrees that has a coefficient of kinetic friction μK =0.5. Find the velocity of the object after it is pushed for d=2[m] by a force of magnitude F=11 [N] directed upward along the incline.

F α

d

  1. A uniform rod of length l=1[m] is pivoted at one extremity. At the other end there is attached a small ball of mass m=1[kg], and a force of magnitude F=1.0 [N] is exerted on the ball perpendicular to the rod, as in Figure. The rod has mass mrod=2[kg], it is uniform in density and the moment of inertia of the rod around its center of mass is ICOM =1[kg m^2 ]. The motion takes place on a frictionless horizontal plane.

P (pivot point)

ω θ F

(a) Find the moment of inertia of the rod/mass system with respect to the axis of rotation; (b) Find what the angular velocity ω at a time t = 2 seconds after the force F is applied.
