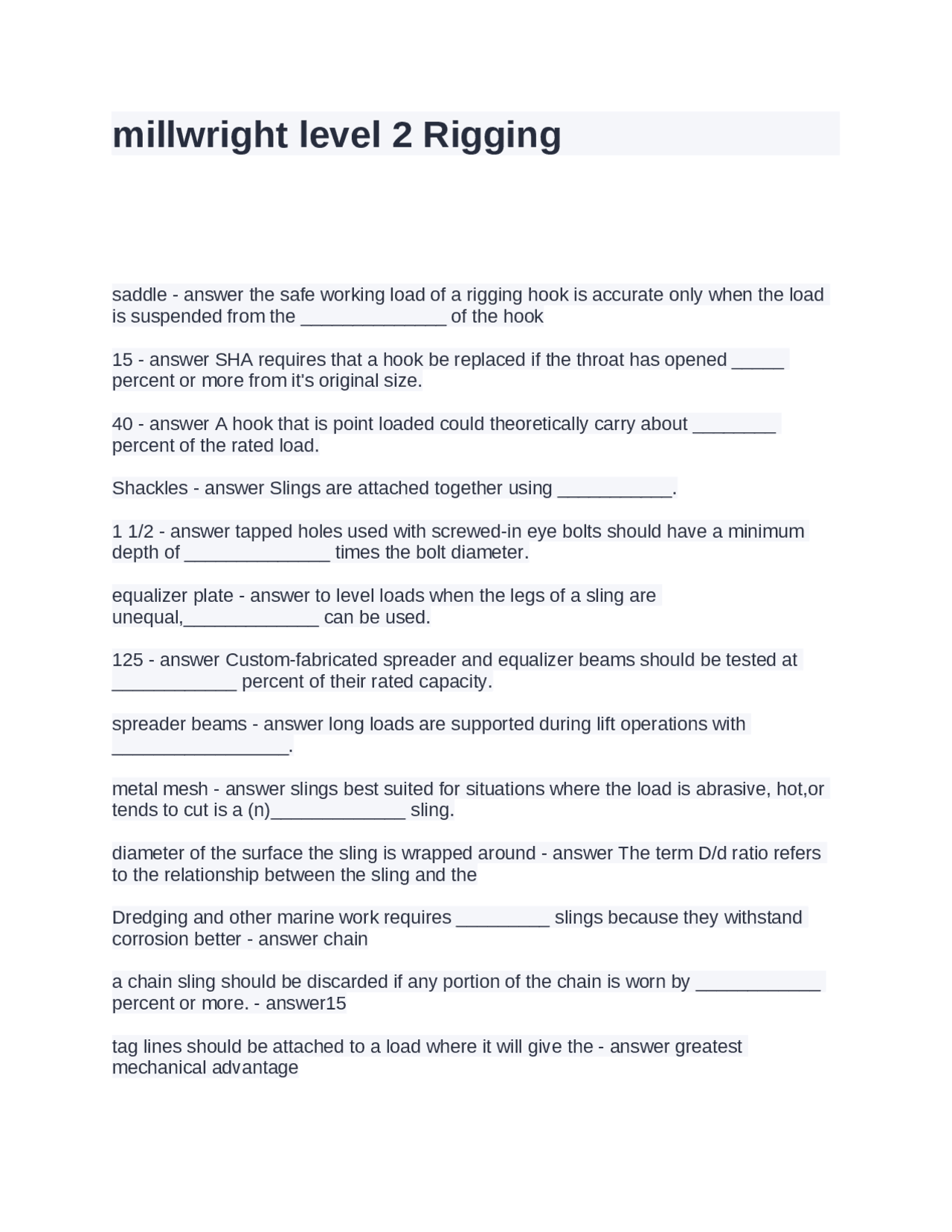

millwright level 2 Rigging
saddle - answer the safe working load of a rigging hook is accurate only when the load
is suspended from the ______________ of the hook
15 - answer SHA requires that a hook be replaced if the throat has opened _____
percent or more from it's original size.
40 - answer A hook that is point loaded could theoretically carry about ________
percent of the rated load.
Shackles - answer Slings are attached together using ___________.
1 1/2 - answer tapped holes used with screwed-in eye bolts should have a minimum
depth of ______________ times the bolt diameter.
equalizer plate - answer to level loads when the legs of a sling are
unequal,_____________ can be used.
125 - answer Custom-fabricated spreader and equalizer beams should be tested at
____________ percent of their rated capacity.
spreader beams - answer long loads are supported during lift operations with
_________________.
metal mesh - answer slings best suited for situations where the load is abrasive, hot,or
tends to cut is a (n)_____________ sling.
diameter of the surface the sling is wrapped around - answer The term D/d ratio refers
to the relationship between the sling and the
Dredging and other marine work requires _________ slings because they withstand
corrosion better - answer chain
a chain sling should be discarded if any portion of the chain is worn by ____________
percent or more. - answer15
tag lines should be attached to a load where it will give the - answer greatest
mechanical advantage
