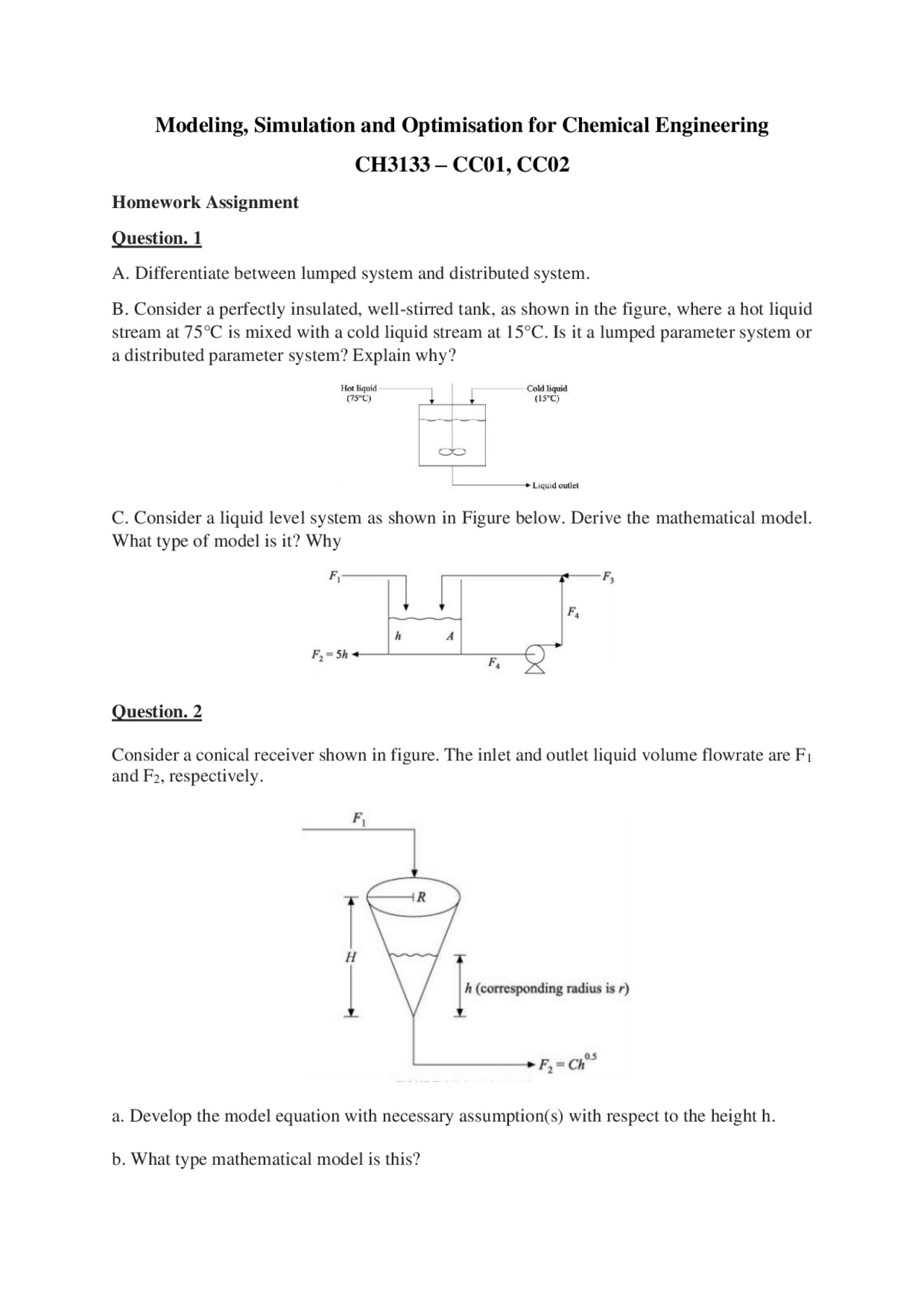

Modeling, Simulation and Optimisation for Chemical Engineering
CH3133 – CC01, CC02
Homework Assignment
Question. 1
A. Differentiate between lumped system and distributed system.
B. Consider a perfectly insulated, well-stirred tank, as shown in the figure, where a hot liquid
stream at 75°C is mixed with a cold liquid stream at 15°C. Is it a lumped parameter system or
a distributed parameter system? Explain why?
C. Consider a liquid level system as shown in Figure below. Derive the mathematical model.
What type of model is it? Why
Question. 2
Consider a conical receiver shown in figure. The inlet and outlet liquid volume flowrate are F1
and F2, respectively.
a. Develop the model equation with necessary assumption(s) with respect to the height h.
b. What type mathematical model is this?
