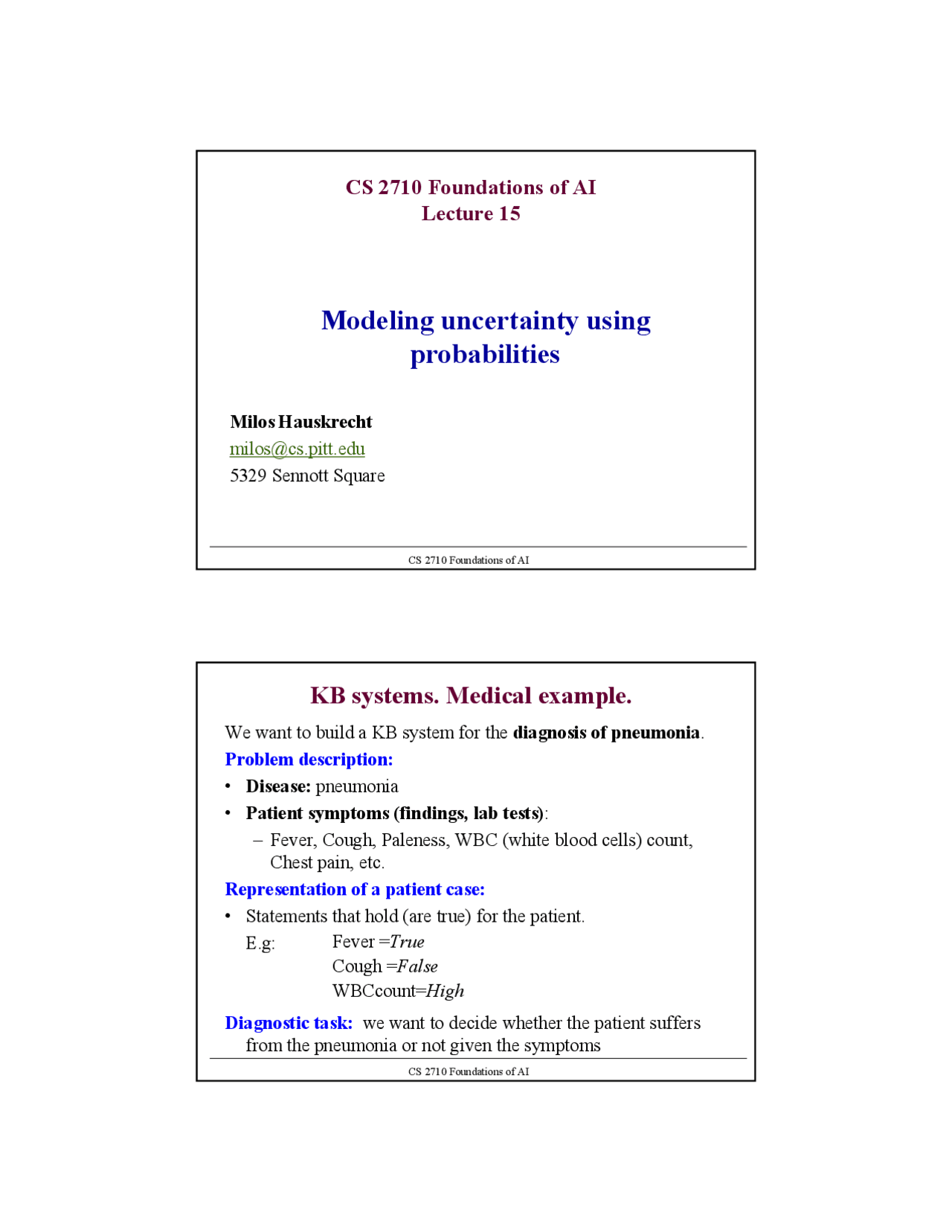

CS 2710 Foundations of AI
CS 2710 Foundations of AI
Lecture 15
Milos Hauskrecht [email protected] 5329 Sennott Square
Modeling uncertainty using
probabilities
KB systems. Medical example.
We want to build a KB system for the diagnosis of pneumonia.
Problem description:
- Disease: pneumonia
- Patient symptoms (findings, lab tests) :
- Fever, Cough, Paleness, WBC (white blood cells) count, Chest pain, etc.
Representation of a patient case:
- Statements that hold (are true) for the patient.
E.g:
Diagnostic task: we want to decide whether the patient suffers from the pneumonia or not given the symptoms
Fever = True Cough = False WBCcount= High
CS 2710 Foundations of AI
Uncertainty
To make diagnostic inference possible we need to represent knowledge (axioms) that relate symptoms and diagnosis
Problem: disease/symptoms relations are not deterministic
- They are uncertain (or stochastic) and vary from patient to patient
Pneumonia
Paleness Fever Cough WBC count
Uncertainty
Two types of uncertainty:
- Disease Symptoms uncertainty
- A patient suffering from pneumonia may not have fever all the times, may or may not have a cough, white blood cell test can be in a normal range.
- Symptoms Disease uncertainty
- High fever is typical for many diseases (e.g. bacterial diseases) and does not point specifically to pneumonia
- Fever, cough, paleness, high WBC count combined do not always point to pneumonia
CS 2710 Foundations of AI
Methods for representing uncertainty
Probability theory
- A well defined theory for modeling and reasoning in the presence of uncertainty
- A natural choice to replace certainty factors
Facts (propositional statements)
- Are represented via random variables with two or more values
Example: is a random variable values: True and False
- Each value can be achieved with some probability:
P ( Pneumonia = True )= 0. 001 P ( WBCcount = high )= 0. 005
Pneumonia
Probability theory
- Well-defined theory for representing and manipulating statements with uncertainty
- Axioms of probability:
For any two propositions A, B.
0 ≤ P ( A )≤ 1
P ( True )= 1 and P ( False )= 0 P ( A ∨ B )= P ( A )+ P ( B )− P ( A ∧ B )
CS 2710 Foundations of AI
Modeling uncertainty with probabilities
Probabilistic extension of propositional logic.
- Propositions:
- statements about the world
- Represented by the assignment of values to random variables
- Random variables:
- Boolean
- Multi-valued
- Continuous
Pneumonia iseither True , False
Pain is oneof { Nopain , Mild , Moderate , Severe }
Random variable Values
Random variable Values
HeartRate isavaluein < 0 ; 250 > Random variable (^) Values
Probabilities
Unconditional probabilities (prior probabilities)
Probability distribution
- Defines probabilities for all possible value assignments to a random variable
- Values are mutually exclusive
P ( Pneumonia )= 0. 001 P ( Pneumonia = True )= 0. 001
P ( WBCcount = high )= 0. 005
or
P ( Pneumonia = True )= 0. 001 P ( Pneumonia = False )= 0. 999
Pneumonia P ( Pneumonia ) True False
P ( Pneumonia = False )= 0. 999
CS 2710 Foundations of AI
Joint probabilities
Marginalization
- reduces the dimension of the joint distribution
- Sums variables out
P ( WBCcount )
0. 005 0.^9930.^002
P ( pneumonia , WBCcount )
high normal^ low
Pneumonia True False
WBCcount
P ( Pneumonia )
Marginalization (here summing of columns or rows)
2 × 3 matrix
Full joint distribution
- the joint distribution for all variables in the problem
- It defines the complete probability model for the problem
Example: pneumonia diagnosis Variables: Pneumonia, Fever, Paleness, WBCcount, Cough Full joint defines the probability for all possible assignments of values to Pneumonia, Fever, Paleness, WBCcount, Cough
P ( Pneumonia = T , WBCcount = High , Fever = T , Cough = T , Paleness = F )
P ( Pneumonia = T , WBCcount = High , Fever = T , Cough = F , Paleness = T )
K etc
P ( Pneumonia = T , WBCcount = High , Fever = T , Cough = T , Paleness = T )
CS 2710 Foundations of AI
Conditional probabilities
Conditional probability distribution
- Defines probabilities for all possible assignments, given a fixed assignment to some other variable values
PPneumonia falseWBCcount high
P Pneumonia true WBCcount high
1. 0 1.^01.^0
P ( Pneumonia | WBCcount )
high normal^ low
Pneumonia True False
WBCcount
3 element vector of 2 elements
P ( Pneumonia = true | WBCcount = high )
Conditional probabilities
Conditional probability
- Is defined in terms of the joint probability:
- Example:
P ( pneumonia = true | WBCcount = high ) =
s.t. ( ) 0 ( )
( | )= PB ≠
PB
P AB
P A B
PWBCcount high
P pneumonia trueWBCcount high
P ( pneumonia = false | WBCcount = high )=
PWBCcount high
P pneumonia falseWBCcount high
CS 2710 Foundations of AI
Bayes rule
Assume a variable A with multiple values Bayes rule can be rewritten as:
( )
( | ) ( ) ( | ) PB b
P B b A a P A a P A aj B b j j =
= = = = = =
a 1 , a 2 ,K a k
( | ) ( )
( | ) ( )
∑ (^) = 1 = = =
= = = = (^) k i j j
j j PB b A a P A a
P B b A a PA a
P ( A | B = b ) for all values of a 1^ ,^ a 2 ,K ak
Used in practice when we want to compute:
Bayes Rule in a simple diagnostic inference.
- Device (equipment) operating normally or malfunctionin g.
- Operation of the device sensed indirectly via a sensor
- Sensor reading is either high or lo w
Device status
Sensor reading
P (Device status)
0.9 0.
normal malfunctioning
Device\Sensor high low normal 0.1 0. malfunctioning 0.6 0.
P (Sensor reading| Device status)
CS 2710 Foundations of AI
Bayes Rule in a simple diagnostic inference.
- Diagnostic inference: compute the probability of device operating normally or malfunctioning given a sensor reading
- Note that typically the opposite conditional probabilities are given to us: they are much easier to estimate
- Solution: apply Bayes rule to reverse the conditioning variables
P ( Device status |Sensor reading = high )=?
= =
= =
(Devicestatus |Sensorreading )
(Devicestatus |Sensorreading ) P malfunctioning high
P normal high
Probabilistic inference
Various inference tasks :
- Diagnostic task. (from effect to cause)
- Prediction task. (from cause to effect)
- Other probabilistic queries ( queries on joint distributions).
P ( Pneumonia | Fever = T )
P ( Fever | Pneumonia = T )
P ( Fever )
P ( Fever , ChestPain )
CS 2710 Foundations of AI
Modeling uncertainty with probabilities
- Defining the full joint distribution makes it possible to represent and reason with uncertainty in a uniform way
- We are able to handle an arbitrary inference problem
Problems:
- Space complexity. To store a full joint distribution we need to remember numbers. n – number of random variables, d – number of values
- Inference (time) complexity. To compute some queries requires. steps.
- Acquisition problem. Who is going to define all of the probability entries?
O (d n)
O (d n )
Medical diagnosis example.
- Space complexity.
- Pneumonia (2 values: T,F), Fever (2: T,F), Cough (2: T,F), WBCcount (3: high, normal, low), paleness (2: T,F)
- Number of assignments: 22232=
- We need to define at least 47 probabilities.
- Time complexity.
- Assume we need to compute the marginal of Pneumonia=T from the full joint
- Sum over: 223*2=24 combinations
P ( Pneumonia = T ) =
∈ ∈ = ∈
i TFj TFk hnluTF
P Fever iCough jWBCcount k Pale u , , , , ,
CS 2710 Foundations of AI
Modeling uncertainty with probabilities
- Knowledge based system era (70s – early 80’s)
- Extensional non-probabilistic models
- Solve the space, time and acquisition bottlenecks in probability-based models
- froze the development and advancement of KB systems and contributed to the slow-down of AI in 80s in general
- Breakthrough (late 80s, beginning of 90s)
- Bayesian belief networks
- Give solutions to the space, acquisition bottlenecks
- Partial solutions for time complexities
- Bayesian belief network
Bayesian belief networks (BBNs)
Bayesian belief networks.
- Represent the full joint distribution over the variables more compactly with a smaller number of parameters.
- Take advantage of conditional and marginal independences among random variables
- A and B are independent
- A and B are conditionally independent given C
P ( A , B )= P ( A ) P ( B )
P ( A , B | C )= P ( A | C ) P ( B | C )
P ( A | C , B )= P ( A | C )
