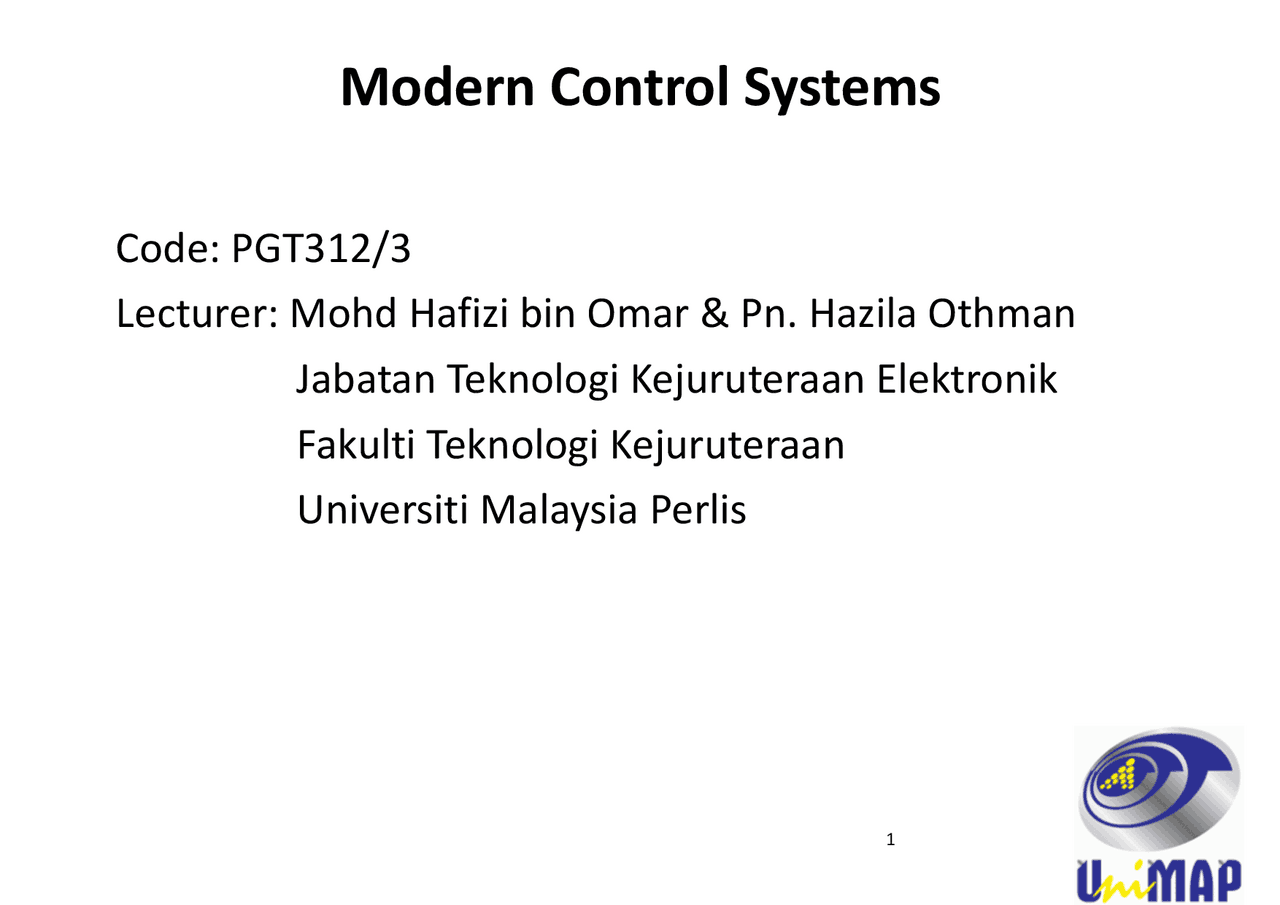

Modern Control Systems
Code: PGT312/
Lecturer: Mohd Hafizi bin Omar & Pn. Hazila Othman
Jabatan Teknologi Kejuruteraan Elektronik
Fakulti Teknologi Kejuruteraan
Universiti Malaysia Perlis
Course Outcomes CO1: Ability to EXPLAIN control systems and control systems design. CO2: Ability to DESCRIBE the mathematical model models for such mechanical, electrical and electromechanical systems. (state variable systems, stability in feedback control systems, and frequency domain). CO3: Ability to ANALYZE AND DESIGN linear feedback systems using root locus method, digital control systems.
References Text Book: Richard C. Dorf, Robert H. Bishop, Modern Control Systems, 12 th edition, Prentice Hall, 2011. Norman S Nise, Control System Engineering, 6 th Ed, 2011. Other references: K. Ogata, Modern Control Engineering, 5 th edition, Prentice Hall, 2009. G. Franklin, J.D. Powell and A. Emani-Naeini, Feedback Control and Dynamic Systems, 6 th edition, Prentice Hall, 2009. Constantine H. Houpis, Stuart N. Sheldon, Linear Control System Analysis and Design with MATLAB, 6 th edition, CRC Press, 2014.
Teaching Plan Week Course Contents 1 Introduction to Control Systems 2-3 Mathematical Models of Systems 4-5 State Variable Models 6-7 Feedback Control Systems And Characteristics, Performance and Stability of Linear Feedback Systems. 9 Root Locus Method 10-11 Frequency Response Method 12-13 Stability in the frequency domain. 14-15 Digital Control Systems
Definition on standard terms used:
Control: The process of causing or regulate the system to
to desired value.
System: A collection of components which are
coordinated together to perform a function.
Control System:
Interconnection of components forming a system
configuration that will provide a desired system response.
Figure 1.1: Simplified description of a control system 7
Example 1: Elevator Figure 1.2 Elevator response
Figure: Escalator incident. Adapted from Harian Metro, 13 Feb 2016.
Advantages of Control Systems
- Can^ move large equipment^ with precision that otherwise be impossible.
- Can point huge antennas toward the farthest reaches of the universe to pick up faint radio signals
- Elevators (timing) carry us quickly to our destination. Control systems built for four (4) primary reason: - Power amplification - Remote control - Convenience to input form - Compensation to disturbances - Others?…
Example 2: Antenna azimuth position control Figure 1.4 (a): System concept Figure 1.4 (b): Detailed layout Figure 1.4 (c): Schematic Figure 1.4 (d): Functional block diagram
Analysis and Design Objectives
- Analysis is the process by which a system’s performance
is determine.
- Design is the process by which a system’s performance
is created or changed.
- Familiar with Transient, Steady-State, and Stability
(please refer Fig 1.2)
- Other considerations: Hardware selection, finances, and
robustness
*please describe based on your understanding
Summary
What have you learned from this topic?
- Name three applications for feedback control systems. Guided missiles, automatic gain control in radio receivers, satellite tracking antenna
- Name three reasons for using feedback control systems and at least one reason for not using them. Yes - power gain, remote control, parameter conversion; No - Expense, complexity
- Give three examples of open-loop systems. Motor, low pass filter, inertia supported between two bearings
- Functionally, how do closed-loop systems differ from open-loop systems? Closed-loop systems compensate for disturbances by measuring the response, comparing it to the input response (the desired output), and then correcting the output response.
- Name the three major design criteria for control systems. Stability, transient response, and steady-state error
- Name the two parts of a system’s response. Steady-state, transient
- Physically, what happens to a system that is unstable? It follows a growing transient response until the steady-state response is no longer visible. The system will either destroy itself, reach an equilibrium state because of saturation in driving amplifiers, or hit limit stops. Review Questions
- Answer to Exercise
CHAPTER 2: MATHEMATICAL MODELS OF SYSTEM
