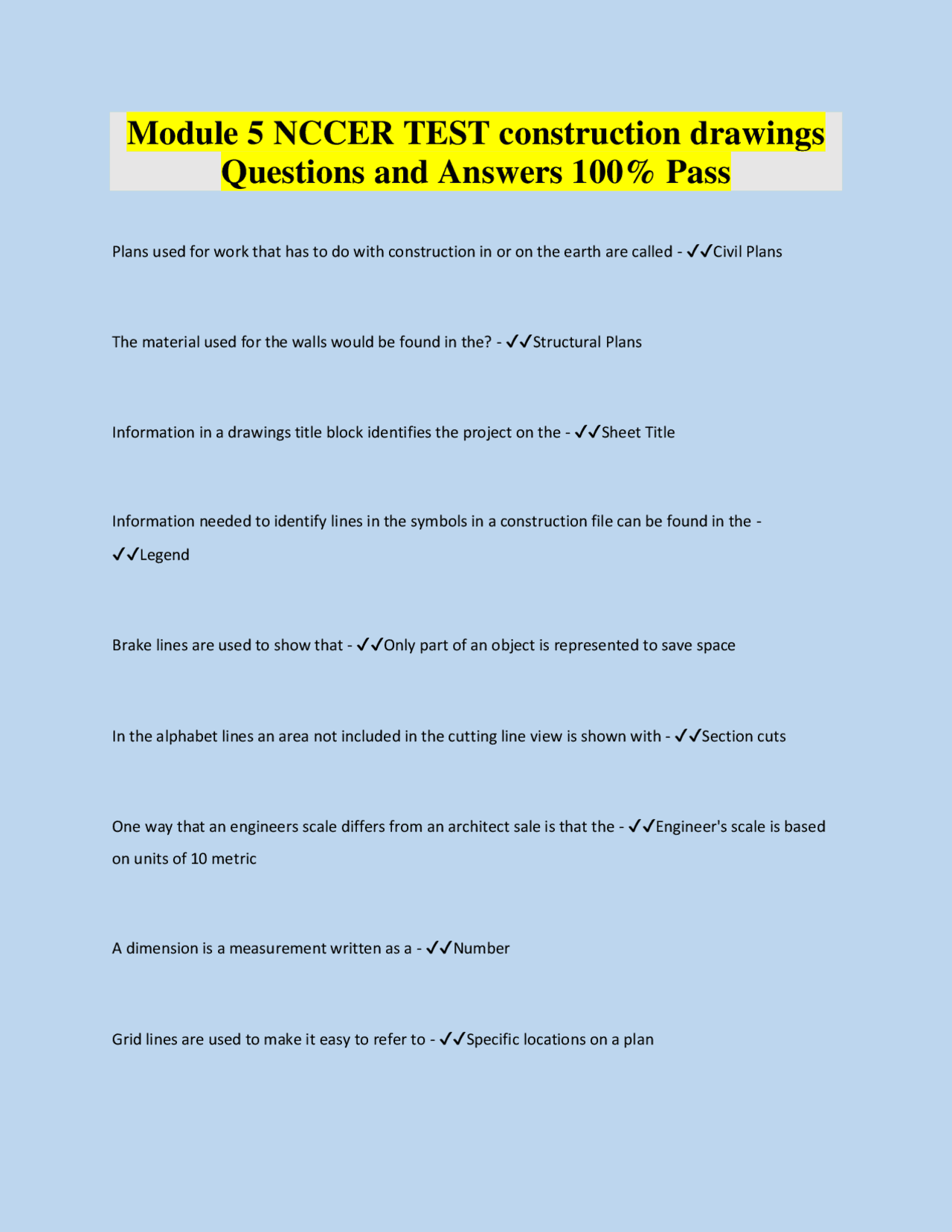

Module 5 NCCER TEST construction drawings
Questions and Answers 100% Pass
Plans used for work that has to do with construction in or on the earth are called - ✔✔Civil Plans
The material used for the walls would be found in the? - ✔✔Structural Plans
Information in a drawings title block identifies the project on the - ✔✔Sheet Title
Information needed to identify lines in the symbols in a construction file can be found in the -
✔✔Legend
Brake lines are used to show that - ✔✔Only part of an object is represented to save space
In the alphabet lines an area not included in the cutting line view is shown with - ✔✔Section cuts
One way that an engineers scale differs from an architect sale is that the - ✔✔Engineer's scale is based
on units of 10 metric
A dimension is a measurement written as a - ✔✔Number
Grid lines are used to make it easy to refer to - ✔✔Specific locations on a plan
