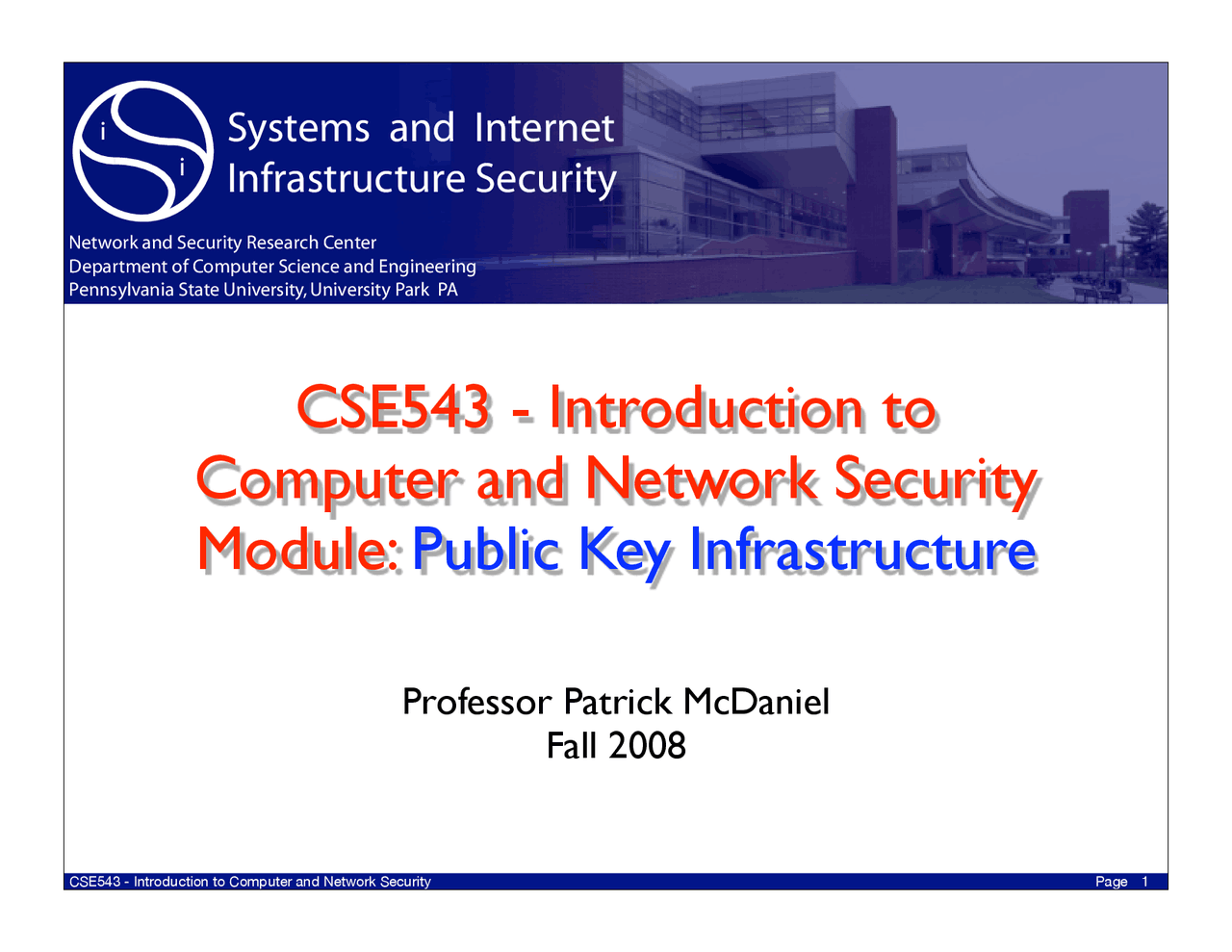

3YSTEMS AND )NTERNET
)NFRASTRUCTURE 3ECURITY
I I .ETWORK AND 3ECURITY 2ESEARCH #ENTER $EPARTMENT OF #OMPUTER 3CIENCE AND %NGINEERING 0ENNSYLVANIA 3TATE 5NIVERSITY 5NIVERSITY 0ARK 0! CSE543 - Introduction to Computer and Network Security Module: Public Key Infrastructure Professor Patrick McDaniel Fall 2008
Meeting Someone New
- (^) Anywhere in the Internet
Why do I trust the certificate?
- (^) A collections of “root” CA certificates
‣ … baked into your browser
‣ … vetted by the browser manufacturer
‣ … supposedly closely guarded (yeah, right)
- (^) Root certificates used to validate certificate
‣ Vouches for certificate’s authenticity
CA (signs) Certificate Signature
Public Key Infrastructure
• System to “ securely distribute public keys (certificates) ”
‣ Q: Why is that hard?
• Terminology:
‣ Alice signs a certificate for Bob’s name and key
- (^) Alice is issuer, and Bob is subject
‣ Alice wants to find a path to Bob’s key
- (^) Alice is verifier, and Bob is target
‣ Anything that has a public key is a principal
‣ Anything trusted to sign certificates is a trust anchor
- (^) Its certificate is a root certificate
Certificate Validation
… … … Root CA CA2 CA CA11 CA12 CA1n CA21 CA Cert11a Cert11b Cert11c … … … … Certificate Signature
PKI and Revocation
• Certificate may be revoked before expiration
‣ Lost private key
‣ Compromised
‣ Owner no longer authorized
• Revocation is hard …
‣ The “anti-matter” problem
‣ Verifiers need to check revocation state
- (^) Loses the advantage of off-line verification
‣ Revocation state must be authenticated
10 Risks of PKI
- (^) This is an overview of one of many perspectives of PKI technologies ‣ PKI was, like many security technologies, claimed to be a panacea ‣ It was intended to solve a very hard problem: build trust on a global level ‣ Running a CA -- “license to print money”
- (^) Basic premise: ‣ Assertion #1 - e-commerce does not need PKI ‣ Assertion #2 - PKI needs e-commerce
- (^) Really talking about a full PKI (everyone has certs.)
Risk 1 - Who do we trust, and for what?
- (^) Argument: CA is not inherently trustworthy ‣ Why do/should you trust a CA? ‣ In reality, they defer all legal liability for running a bad CA ‣ Risk in the hands of the certificate holder
- (^) Counter-Argument: Incentives ‣ Any CA caught misbehaving is going to be out of business tomorrow ‣ This scenario is much worse than getting sued ‣ Risk held by everybody , which is what you want
Aside: TEMPEST
- Transient Electromagnetic Pulse Surveillance Technology ‣ Monitor EMF emanations to reconstruct signal ‣ For example, a video monitor normally exist at around 55- MHz, and can be picked up as far as one kilometer away. ‣ ... or by a guy in a van across the street, e.g., steal private key.
- Generally, this is the domain of spy/national security issues
- (^) Much classified work on signal eavesdropping and prevention
Risk 3 - How secure is the verif(ier)?
- (^) Argument: the computer that verifies your credential is fundamentally vulnerable ‣ Everything is based on the legitimacy of the verifier root public key (integrity of certificate files) ‣ Browsers transparently use certificates
- (^) Counter-Argument: this is the price of technology ‣ (^) You have to accept some risk in order to get benefit ‣ Will encourage people to use only safe technology
- (^) Q: What’s in your browser?
Risk 5 - Is the CA an authority?
- (^) Argument: there are things in certificates that claim authenticity and authorization of which they have no dominion ‣ “rights” (such as the right to perform SSL) - this confuses authorization authority with authentication authority ‣ DNS, attributes -- the CA is not the arbiter of these things
- (^) Counter-Argument: this is OK, because it is part of the implicit charge we give our CA -- we implicitly accept the CA as authority in several domains
Risks 6 and 7
- (^) 6 : Is the user part of the design? ‣ Argument: too many things hidden in use, user has no ability to affect or see what is going on ‣ Counter-Argument: too sophisticated for user to understand ‣ Ex.: Hosted website has cert. of host(er), not page
- (^) 7 : Was it one CA or CA+RA? ‣ Argument: separation of registration from issuance allows forgery - (^) e.g., RA handles vetting, CA makes certificates, so, you better have good binding between these entities or bad things can happen ‣ Counter-Argument: this is an artifact of organization, only a problem when CA is bad (you are doomed anyway)
Risk 9 - How secure cert. practices?
- (^) Argument: certificates have to be used properly to be secure ‣ Everything is based on the legitimacy of the verifier root public key, protection of its key ‣ Lifetime & revocation have to be done
- (^) Counter-Argument: this is the price of technology ‣ (^) You have to accept some risk in order to get benefit ‣ Will encourage people to use only safe technology
Risk 10 - Why are we using PKI?
- (^) Argument: We are trying to solve a painful problem: authenticating users. ‣ However, certificates don’t really solve the problem, just give you another tool to implement it ‣ Hence, it is not a panacea ‣ No delivered on it promises
- (^) Counter-argument?
