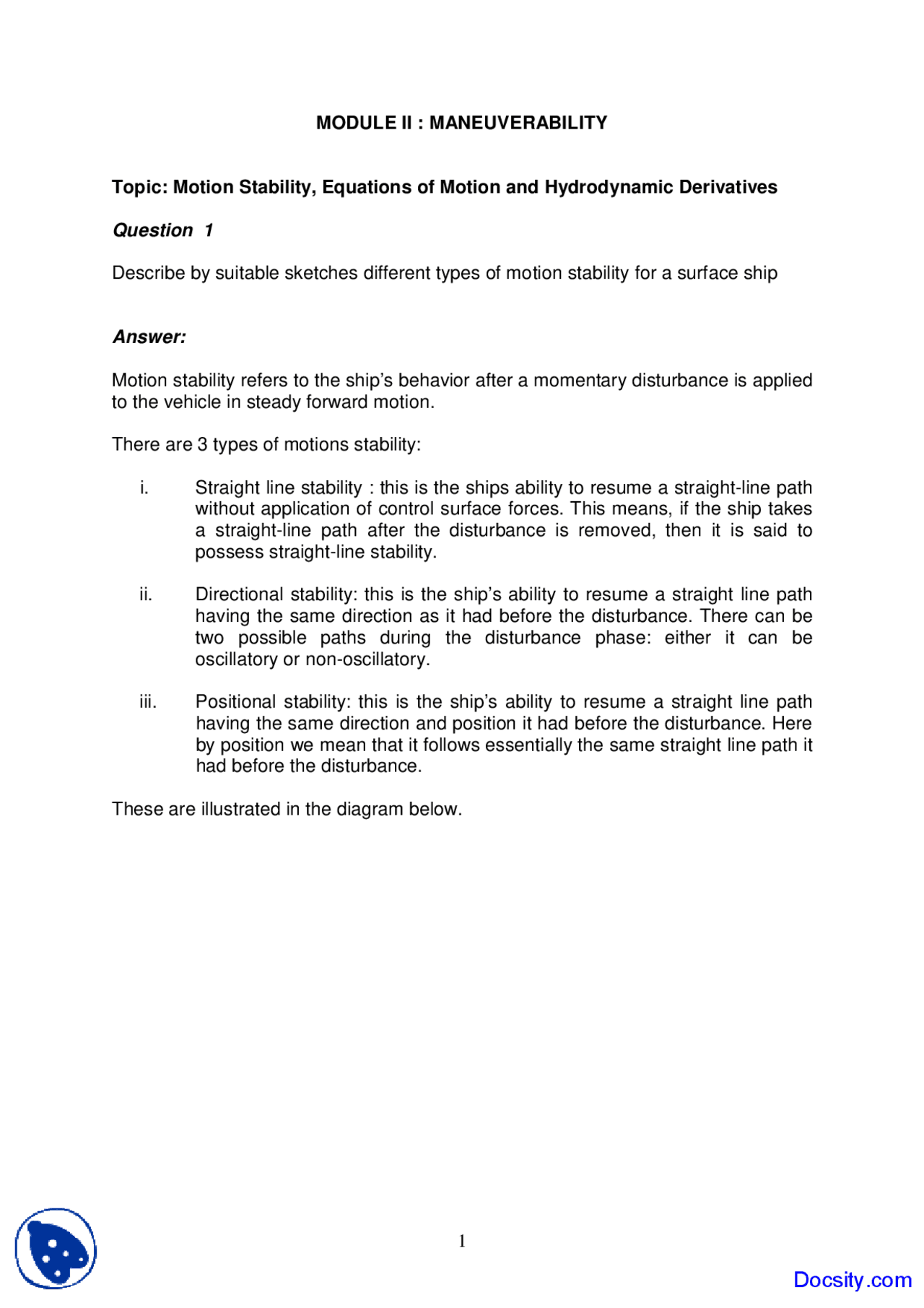

MODULE II : MANEUVERABILITY
Topic: Motion Stability, Equations of Motion and Hydrodynamic Derivatives
Question 1
Describe by suitable sketches different types of motion stability for a surface ship
Answer:
Motion stability refers to the ship’s behavior after a momentary disturbance is applied to the vehicle in steady forward motion.
There are 3 types of motions stability:
i. Straight line stability : this is the ships ability to resume a straight-line path without application of control surface forces. This means, if the ship takes a straight-line path after the disturbance is removed, then it is said to possess straight-line stability.
ii. Directional stability: this is the ship’s ability to resume a straight line path having the same direction as it had before the disturbance. There can be two possible paths during the disturbance phase: either it can be oscillatory or non-oscillatory.
iii. Positional stability: this is the ship’s ability to resume a straight line path having the same direction and position it had before the disturbance. Here by position we mean that it follows essentially the same straight line path it had before the disturbance.
These are illustrated in the diagram below.
Question 3
Briefly describe what is meant by hydrodynamic derivatives. Identify the important linear hydrodynamic derivatives that arise in the study of maneuverability and discuss their relative magnitudes.
Answer:
Hydrodynamic derivatives are essentially derivatives of hydrodynamic forces and moments against the motion parameters. Thus if A represents hydrodynamic forces/moments and α represents a velocity parameter, then the derivatives 2 , 2
A A
etc. are called the hydrodynamic derivatives. Forces/moments and
velocities/accelerations are related through Newton’s equation of motion and one influences the other. The importance of the hydrodynamic derivatives terms arise from the fact that the nature of the various hydrodynamic forces/moments and the motions parameters are related through these terms.
For a ship in horizontal plane motions, the important forces and moments are sway force Y and yaw moment N. The important motion parameters are sway and yaw
velocities and accelerations v v , ,&^ ψ ψ & &&,^. Thus the important linear derivatives are:
Yv , Nv , Yv (^) & , Nv (^) & , Y ψ (^) & , N ψ (^) & , Y (^) ψ (^) && , N ψ&&. Their relative magnitudes are as shown below:
Y v & : large negative Y v : large negative N v & : small, positive or negative N v : small, positive or negative Y ψ (^) && ≡ Y r & : small, positive or negative Y ψ (^) & ≡ Y r : small, positive or negative N ψ (^) && ≡ N r &: large negative N ψ (^) & ≡ N r : large negative
Question 4
Two designs possess the following values of derivatives:
Design (^) Y v ' N v ' Y r ' N ' r m ' A -0.36 -0.07 0.06 -0.07 0. B -0.26 -0.10 0.01 -0.03 0.
Comment on the straight-line motion stability of the two designs. Assuming both designs are 100m long, how far are the neutral points ahead of CG?
Answer:
For the ship to possess straight-line motion stability, the following criterion must be met:
' ' ' '
r v r v
N N
Y m Y
or equivalently the stability index must be positive:
' ' ' (^) ( ' ') 0 c ≡ N Yr v − Nv Yr − m >
For design A, c = (-0.07)(-0.36) - (-0.07)(0.06-0.12)=0.0252 - 0.0042=+0.
For design B, c =(-0.03)((-0.26) – (-0.10)(0.01-0.10)=0.0078 – 0.009 = -0.
Thus we see that design B does not possess straight-line stability while design A has straight-line stability.
The distance of neutral point ahead of CG is given by ( Nv '^ / Yv ') L.
Thus for L =100m., the distance of neutral point for design A and B are respectively (100)(-0.07/-0.36)=19.44m and (100)(-0.10/-0.26)=38.46m.
Question 5
The hydrodynamic derivatives for a 180m. long ship without a skeg are:
' ' ' ' '
v v r r
Y N
Y N
m
When a skeg is added, Y v ' and N v ' become -0.0050 and 0.0 respectively, Show that
the ship without the skeg is unstable but addition of the skeg makes it stable. Determine the distance of the neutral point for the two cases, and find the relative distance the neutral point has shifted aft due to addition of the skeg.
Answer:
The stability index is :
' ' ' (^) ( ' ') c ≡ N Yr v − Nv Yr − m
