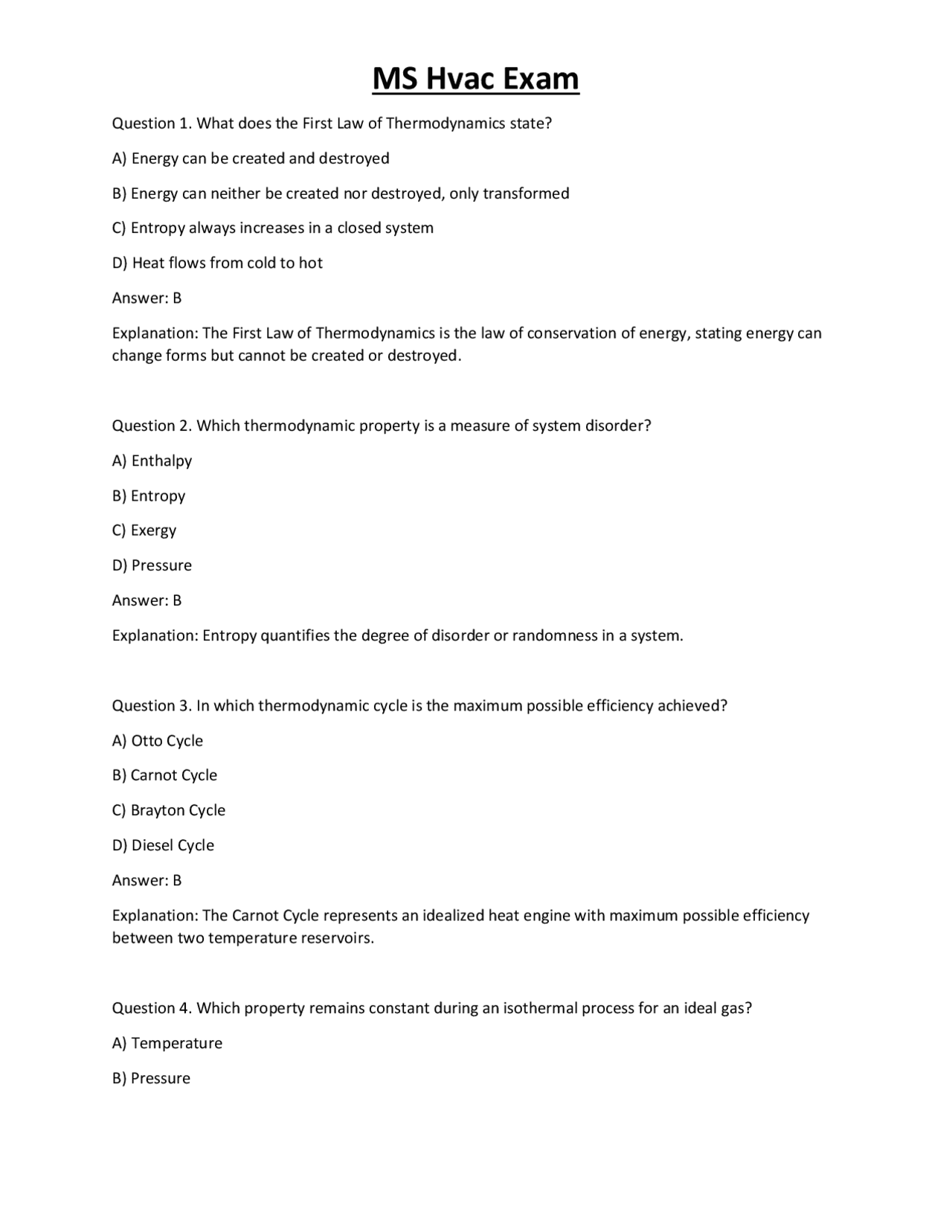

Question 1. What does the First Law of Thermodynamics state? A) Energy can be created and destroyed B) Energy can neither be created nor destroyed, only transformed C) Entropy always increases in a closed system D) Heat flows from cold to hot Answer: B Explanation: The First Law of Thermodynamics is the law of conservation of energy, stating energy can change forms but cannot be created or destroyed. Question 2. Which thermodynamic property is a measure of system disorder? A) Enthalpy B) Entropy C) Exergy D) Pressure Answer: B Explanation: Entropy quantifies the degree of disorder or randomness in a system. Question 3. In which thermodynamic cycle is the maximum possible efficiency achieved? A) Otto Cycle B) Carnot Cycle C) Brayton Cycle D) Diesel Cycle Answer: B Explanation: The Carnot Cycle represents an idealized heat engine with maximum possible efficiency between two temperature reservoirs. Question 4. Which property remains constant during an isothermal process for an ideal gas? A) Temperature B) Pressure
C) Volume D) Entropy Answer: A Explanation: An isothermal process occurs at constant temperature. Question 5. The enthalpy of moist air is primarily a function of: A) Dry-bulb temperature and relative humidity B) Partial pressure of water vapor only C) Dry-bulb temperature and humidity ratio D) Total barometric pressure only Answer: C Explanation: Moist air enthalpy depends on both the dry-bulb temperature and the humidity ratio (mass of water vapor per mass of dry air). Question 6. The psychrometric chart is used to find all of the following EXCEPT: A) Dew point temperature B) Enthalpy of moist air C) Heat transfer coefficient D) Specific volume of air Answer: C Explanation: Psychrometric charts do not provide heat transfer coefficients; they are used for air properties. Question 7. Which law governs steady-state heat conduction through a plane wall? A) Newton’s Law of Cooling B) Fourier’s Law C) Stefan-Boltzmann Law D) Planck’s Law Answer: B
A) Calculate pressure drop B) Determine average temperature difference for heat transfer C) Find fouling factor D) Select pump size Answer: B Explanation: LMTD provides the effective temperature difference to evaluate heat transfer rate. Question 12. What is the primary function of a boiler in an HVAC system? A) Cool air B) Heat water or steam for space heating C) Reduce humidity D) Filter air Answer: B Explanation: Boilers heat water or produce steam for heating applications. Question 13. Which type of boiler is most commonly used for high-pressure steam generation? A) Fire-tube B) Water-tube C) Cast iron sectional D) Electric resistance Answer: B Explanation: Water-tube boilers are preferred for high-pressure applications due to their design. Question 14. The efficiency of a furnace is measured by: A) SEER B) AFUE C) COP D) EER Answer: B
Explanation: Annual Fuel Utilization Efficiency (AFUE) measures the efficiency of combustion heating appliances. Question 15. How does a heat pump differ from a conventional electric heater? A) It only cools B) It moves heat from a lower to higher temperature C) It generates heat through resistance only D) It cannot be used for cooling Answer: B Explanation: Heat pumps transfer heat from a source (outside or ground) to inside, using refrigerant cycles. Question 16. The Coefficient of Performance (COP) for a heat pump is defined as: A) Work output divided by heat input B) Heat output divided by work input C) Temperature difference divided by work input D) Heat output divided by temperature Answer: B Explanation: COP = useful heating or cooling provided divided by work required. Question 17. In an air-source heat pump during the heating season, the outdoor coil acts as a: A) Condenser B) Evaporator C) Compressor D) Expansion valve Answer: B Explanation: In heating mode, the outdoor coil absorbs heat and acts as the evaporator. Question 18. Which fan type is typically used for high airflow and low static pressure applications?
Explanation: AHUs provide comprehensive air conditioning and distribution. Question 22. Which type of ventilation relies on pressure differences caused by wind and thermal buoyancy? A) Mechanical ventilation B) Natural ventilation C) Hybrid ventilation D) Forced ventilation Answer: B Explanation: Natural ventilation uses natural forces for air movement. Question 23. The basic components of a vapor-compression refrigeration cycle include all EXCEPT: A) Compressor B) Absorber C) Evaporator D) Condenser Answer: B Explanation: Absorbers are used in absorption refrigeration, not vapor-compression systems. Question 24. Which refrigerant property is most important for environmental safety? A) High Ozone Depletion Potential (ODP) B) Low Global Warming Potential (GWP) C) High toxicity D) High flammability Answer: B Explanation: Low GWP refrigerants are preferred to minimize climate impact. Question 25. The efficiency of a chiller is often expressed as: A) Boiler horsepower
B) EER (Energy Efficiency Ratio) C) Tons of refrigeration D) SEER (Seasonal Energy Efficiency Ratio) Answer: B Explanation: Chiller efficiency is often rated by EER. Question 26. What is the main purpose of a cooling tower in HVAC? A) Cool the building directly B) Reject heat from water-cooled condenser C) Increase air humidity D) Filter air Answer: B Explanation: Cooling towers remove heat from the condenser water loop. Question 27. In a direct expansion (DX) system, the evaporator coil is located: A) In the outdoor unit B) In the supply air duct C) In the return air plenum D) In the conditioned space or air handler Answer: D Explanation: The DX evaporator coil is placed where heat absorption is needed, typically in the air handler. Question 28. Which filter type is best for removing fine particulates and allergens? A) Panel filter B) Bag filter C) HEPA filter D) Washable foam filter Answer: C
C) The vertical temperature gradient D) The pressure drop across the diffuser Answer: B Explanation: Throw is the distance air travels from the diffuser before its velocity drops to a specified value. Question 33. The main heat gain from people in a building is due to: A) Latent heat only B) Sensible heat and latent heat C) Radiation only D) Evaporation only Answer: B Explanation: Occupants contribute both sensible (body heat) and latent (moisture) loads. Question 34. Solar heat gain through windows can be reduced by: A) Increasing U-factor B) Using low-E coatings and shading devices C) Increasing glass area D) Decreasing R-value Answer: B Explanation: Low-E coatings and shading devices reduce solar heat gain. Question 35. The U-factor of a window assembly measures: A) Solar radiation admitted B) Overall heat transfer rate through the window C) Air infiltration rate D) Noise reduction capability Answer: B Explanation: U-factor quantifies the rate of heat transfer through a window assembly.
Question 36. The R-value of insulation expresses: A) Overall heat transfer coefficient B) Resistance to heat flow C) Amount of solar gain D) Air infiltration resistance Answer: B Explanation: R-value is a measure of insulation's resistance to heat flow. Question 37. The main purpose of an economizer in an air conditioning system is to: A) Increase humidity B) Use outdoor air for cooling when conditions allow C) Boost heating capacity D) Increase fan speed Answer: B Explanation: Economizers reduce mechanical cooling by using cool outdoor air. Question 38. The CLTD/CLF method is used in load calculations to: A) Determine duct size B) Estimate cooling load due to walls and roofs C) Size boilers D) Select fans Answer: B Explanation: Cooling Load Temperature Difference/Cooling Load Factor estimates heat gain through opaque surfaces. Question 39. The Transfer Function Method (TFM) in load calculations is: A) A simplified method for quick estimates B) A detailed time-based method for dynamic loads
Question 43. In hydronic system design, the pump head calculation must include: A) Only the vertical lift B) Only the friction loss C) Both friction loss and static lift D) Only the flow rate Answer: C Explanation: Pump head combines elevation change and frictional losses in piping. Question 44. Which valve type is best for throttling flow in hydronic systems? A) Gate valve B) Ball valve C) Globe valve D) Check valve Answer: C Explanation: Globe valves offer good flow regulation for throttling. Question 45. Steam traps in steam heating systems are used to: A) Remove air only B) Remove condensate and air without losing steam C) Increase steam pressure D) Inject chemicals Answer: B Explanation: Steam traps discharge condensate while retaining steam. Question 46. Which building energy simulation software is open-source and widely used for detailed HVAC modeling? A) EnergyPlus B) Trane Trace C) Carrier HAP
D) DOE- 2
Answer: A Explanation: EnergyPlus is open-source and widely adopted for advanced simulations. Question 47. The peak cooling load in a building is important for: A) Sizing filters B) Sizing the air conditioning equipment C) Selecting pipe material D) Calculating fan noise Answer: B Explanation: Peak load determines the minimum required capacity of cooling equipment. Question 48. Which component is not typically found in a chilled water distribution system? A) Chiller B) Cooling tower C) Boiler D) Circulation pump Answer: C Explanation: Boilers are for heating, not chilled water systems. Question 49. The primary function of a diffuser in an air distribution system is to: A) Increase airflow velocity B) Evenly distribute air into a space C) Reduce air temperature D) Filter particulates Answer: B Explanation: Diffusers spread air evenly and reduce drafts. Question 50. Which property is NOT required to locate a state point on the psychrometric chart?
Explanation: Expansion tanks are part of hydronic systems, not AHUs. Question 54. The expansion device in a refrigeration system performs what function? A) Compresses the refrigerant B) Absorbs heat from the air C) Reduces refrigerant pressure and temperature D) Increases refrigerant flow Answer: C Explanation: Expansion devices lower refrigerant pressure, causing cooling. Question 55. What is the typical purpose of a chilled beam system? A) Provide primary ventilation B) Provide radiant cooling/heating to spaces C) Increase outdoor air humidity D) Remove particulates Answer: B Explanation: Chilled beams use convection and radiation to cool/heat spaces. Question 56. Which of the following is NOT a property of an ideal gas? A) Negligible molecular volume B) No intermolecular attractions C) Variable specific heats with temperature D) Follows the ideal gas law Answer: C Explanation: Ideal gases are assumed to have constant specific heats. Question 57. The Prandtl number represents: A) Ratio of momentum diffusivity to thermal diffusivity B) Ratio of heat capacity to density
C) Ratio of thermal conductivity to viscosity D) Ratio of Reynolds to Nusselt number Answer: A Explanation: Prandtl number = (viscous diffusion rate) / (thermal diffusion rate). Question 58. Which heat exchanger type is best for applications requiring high effectiveness and compact size? A) Shell-and-tube B) Plate C) Finned-tube D) Double-pipe Answer: B Explanation: Plate heat exchangers offer high effectiveness in a small footprint. Question 59. In a hydronic piping system, what is the purpose of an air separator? A) Increase water flow B) Remove dissolved air and microbubbles C) Filter particulates D) Reduce temperature Answer: B Explanation: Air separators prevent air lock and corrosion by removing air. Question 60. Which refrigerant has zero ozone depletion potential (ODP)? A) R- 22 B) R-410A C) R-134a D) R- 11 Answer: B Explanation: R-410A is a widely used refrigerant with zero ODP.
D) Conduction Answer: B Explanation: Grashof number characterizes buoyancy-driven (natural) convection. Question 65. Which air distribution device is placed in the wall or ceiling to return air to the system? A) Diffuser B) Grille C) Register D) Damper Answer: B Explanation: Grilles are used for air return or supply, often without dampers. Question 66. Which of the following is a key benefit of variable refrigerant flow (VRF) systems? A) Single-zone application only B) Simultaneous heating and cooling of different zones C) Inability to control humidity D) Poor efficiency Answer: B Explanation: VRF systems can heat and cool different zones at the same time. Question 67. The primary function of a pre-filter in an HVAC system is: A) Remove odors B) Remove large particles and protect final filters C) Increase airflow velocity D) Humidify air Answer: B Explanation: Pre-filters capture large debris, extending final filter life. Question 68. The main reason for using a desiccant dehumidifier is:
A) Low cost B) High efficiency at low temperatures/humidities C) Simple design D) No maintenance required Answer: B Explanation: Desiccant dehumidifiers are effective where refrigerant systems are less efficient. Question 69. What is the primary source of internal heat gain in an office building? A) Solar radiation B) Occupants, lighting, and equipment C) Infiltration D) Duct losses Answer: B Explanation: Lighting, equipment, and people are the primary internal loads. Question 70. Which piping material is NOT commonly used for chilled water systems? A) Steel B) Copper C) PVC D) Wood Answer: D Explanation: Wood is not suitable for pressurized water piping. Question 71. The main reason to use a variable frequency drive (VFD) on a pump or fan is to: A) Increase noise B) Maintain constant speed C) Adjust speed for demand, saving energy D) Increase pressure only Answer: C
