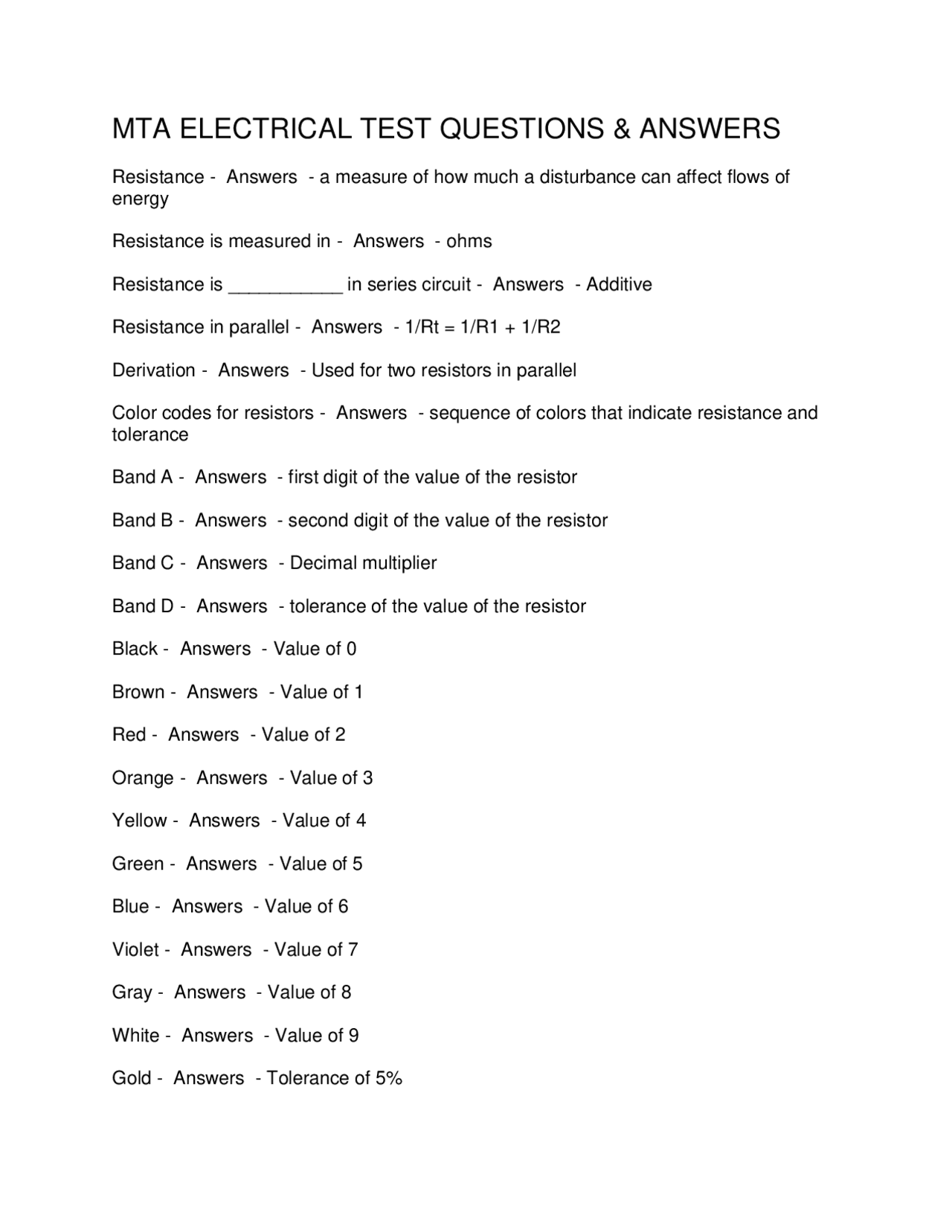

MTA ELECTRICAL TEST QUESTIONS & ANSWERS
Resistance - Answers - a measure of how much a disturbance can affect flows of
energy
Resistance is measured in - Answers - ohms
Resistance is ___________ in series circuit - Answers - Additive
Resistance in parallel - Answers - 1/Rt = 1/R1 + 1/R2
Derivation - Answers - Used for two resistors in parallel
Color codes for resistors - Answers - sequence of colors that indicate resistance and
tolerance
Band A - Answers - first digit of the value of the resistor
Band B - Answers - second digit of the value of the resistor
Band C - Answers - Decimal multiplier
Band D - Answers - tolerance of the value of the resistor
Black - Answers - Value of 0
Brown - Answers - Value of 1
Red - Answers - Value of 2
Orange - Answers - Value of 3
Yellow - Answers - Value of 4
Green - Answers - Value of 5
Blue - Answers - Value of 6
Violet - Answers - Value of 7
Gray - Answers - Value of 8
White - Answers - Value of 9
Gold - Answers - Tolerance of 5%
