Exam

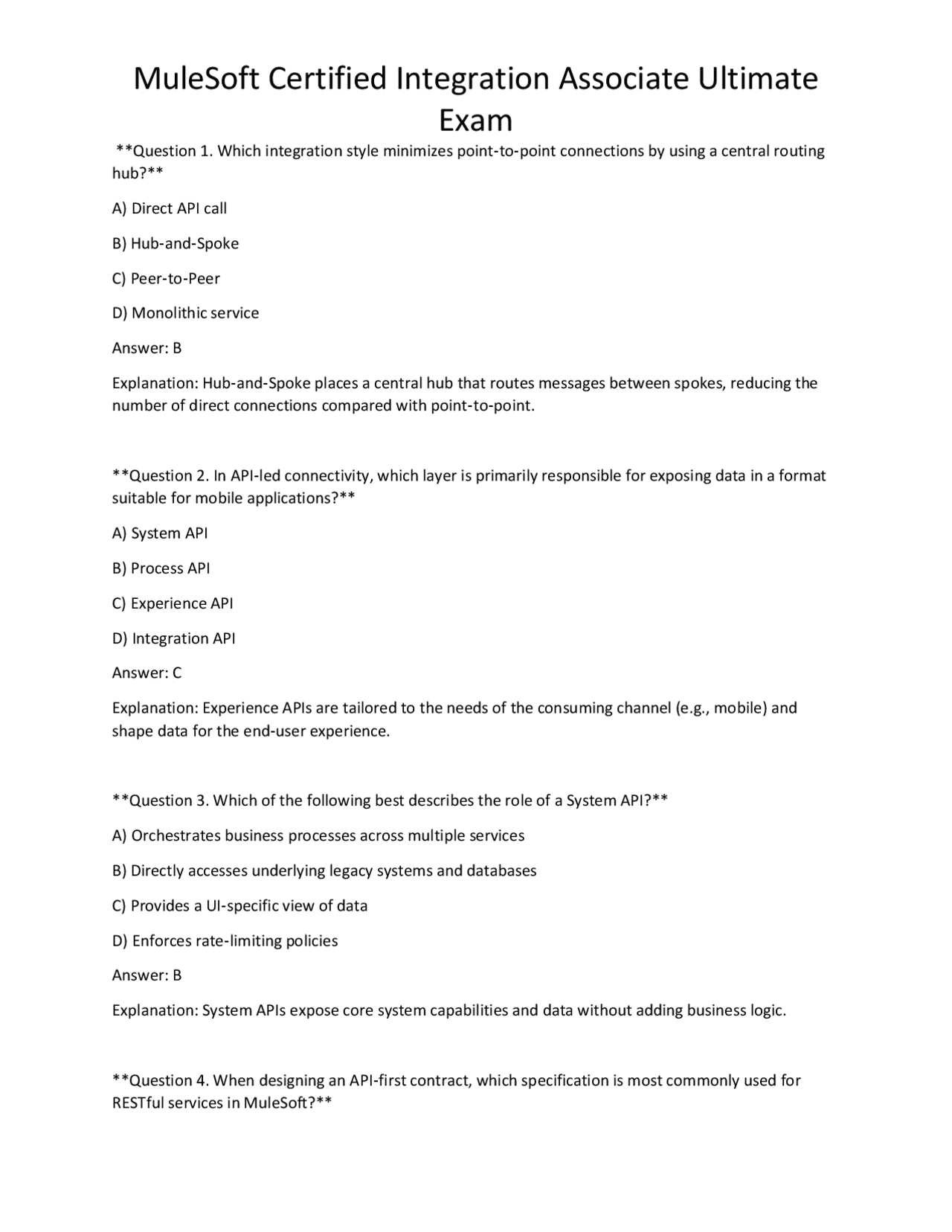

Question 1. Which integration style minimizes point‑to‑point connections by using a central routing hub? A) Direct API call B) Hub‑and‑Spoke C) Peer‑to‑Peer D) Monolithic service Answer: B Explanation: Hub‑and‑Spoke places a central hub that routes messages between spokes, reducing the number of direct connections compared with point‑to‑point. Question 2. In API‑led connectivity, which layer is primarily responsible for exposing data in a format suitable for mobile applications? A) System API B) Process API C) Experience API D) Integration API Answer: C Explanation: Experience APIs are tailored to the needs of the consuming channel (e.g., mobile) and shape data for the end‑user experience. Question 3. Which of the following best describes the role of a System API? A) Orchestrates business processes across multiple services B) Directly accesses underlying legacy systems and databases C) Provides a UI‑specific view of data D) Enforces rate‑limiting policies Answer: B Explanation: System APIs expose core system capabilities and data without adding business logic. Question 4. When designing an API‑first contract, which specification is most commonly used for RESTful services in MuleSoft?
Exam
A) WSDL
B) RAML
C) GraphQL Schema D) SOAP Envelope Answer: B Explanation: RAML (RESTful API Modeling Language) is MuleSoft’s preferred format for defining REST contracts. Question 5. Which data format is best suited for transmitting hierarchical data with mixed data types in MuleSoft integrations? A) CSV B) JSON C) Plain Text D) Binary Answer: B Explanation: JSON naturally represents nested structures and mixed data types, making it ideal for hierarchical data. Question 6. Which Anypoint Platform component acts as a marketplace for reusable assets such as connectors and templates? A) Runtime Manager B] Anypoint Visualizer C) Anypoint Exchange D) API Manager Answer: C Explanation: Anypoint Exchange hosts and shares reusable assets across projects. Question 7. In Design Center, what is the primary purpose of a “mocking service”? A) Deploy applications to CloudHub
Exam
C) Create API contracts D) Manage connector licenses Answer: B Explanation: Visualizer provides a graphical map of APIs, flows, and runtimes, showing dependencies and status. Question 11. Which of the following is a core advantage of the “Design‑First” approach? A) Faster code compilation B) Early validation of contract before implementation C) Reduced need for security testing D) Eliminates the need for documentation Answer: B Explanation: Design‑First lets teams agree on the API contract early, enabling mock testing and reducing rework. Question 12. In the API lifecycle, which stage follows “Simulate”? A) Build B) Validate C) Test D) Secure Answer: B Explanation: After simulating the API behavior, the contract is validated against requirements before building. Question 13. Which specification is used for describing REST APIs in the OpenAPI format? A) RAML B) WSDL C) OAS D) XSD
Exam
Answer: C Explanation: OAS (OpenAPI Specification) is the industry‑standard format for RESTful API description. Question 14. In DataWeave, what does the “%dw 2.0” header denote? A) Mule version B) DataWeave language version C) JSON schema version D) API version Answer: B Explanation: “%dw 2.0” declares that the script uses DataWeave 2.0 syntax. Question 15. Which DataWeave function would you use to convert a JSON payload to XML? A) write() with “application/xml” B) read() with “application/json” C) toXML() D) mapObject() Answer: A Explanation: Using write(payload, “application/xml”) converts the in‑memory representation to XML. Question 16. Which connector would you choose to interact with a relational database like MySQL? A) HTTP Connector B) File Connector C) Database Connector D) Salesforce Connector Answer: C Explanation: The Database connector provides CRUD operations for JDBC‑compatible databases.
Exam
C) A data format like JSON D) A security policy applied to an API Answer: B Explanation: In an Application Network, a node represents an API, microservice, or system that other nodes can consume. Question 21. In MuleSoft, what is the primary purpose of an “edge” in an Application Network? A) To store configuration files B) To define the relationship/communication between two nodes C) To encrypt data at rest D) To manage user authentication Answer: B Explanation: Edges model the connections and data flow between nodes, illustrating dependencies. Question 22. Which format is most efficient for transmitting large tabular data sets with minimal overhead? A) JSON B) XML C) CSV D) YAML Answer: C Explanation: CSV is a plain‑text format optimized for rows and columns, resulting in low overhead. Question 23. Which MuleSoft component provides real‑time monitoring of CPU, memory, and latency for deployed applications? A) Anypoint Monitoring B) Anypoint Exchange C) API Manager D) Design Center
Exam
Answer: A Explanation: Anypoint Monitoring collects runtime metrics such as CPU, memory usage, and response times. Question 24. When securing an Experience API, which layer is the most appropriate place to enforce OAuth 2.0 token validation? A) System API B) Process API C) Experience API D) Database layer Answer: C Explanation: Experience APIs act as the entry point for external consumers, making them the ideal location for access‑token validation. Question 25. Which MuleSoft policy would you apply to protect an API from malicious XML payloads? A) Rate Limiting B) XML Threat Protection C) Client ID Enforcement D) Basic Authentication Answer: B Explanation: XML Threat Protection sanitizes incoming XML to prevent XML‑related attacks such as entity expansion. Question 26. What is the main benefit of using Anypoint Exchange for a connector? A) It automatically generates documentation. B) It allows versioning and sharing across teams. C) It runs the connector in a sandbox environment. D) It encrypts the connector code. Answer: B
Exam
Question 30. Which Mule connector would you use to publish messages to a queue that other Mule applications can consume? A) JMS Connector B) Anypoint MQ Connector C) File Connector D) HTTP Listener Answer: B Explanation: Anypoint MQ provides a cloud‑based messaging service for publish‑subscribe patterns. Question 31. What does the “until‑successful” scope do in a Mule flow? A) Retries the enclosed processors until they succeed or a limit is reached B) Executes processors in parallel C) Converts payloads to XML D) Validates API contracts Answer: A Explanation: Until‑Successful retries the inner flow on failure, adhering to a maximum retry count. Question 32. Which HTTP status code indicates that a request was successful but there is no content to return? A) 200 B) 201 C) 204 D) 404 Answer: C Explanation: 204 No Content signals a successful request with an empty response body. Question 33. In MuleSoft, what is the purpose of a “RAML fragment”? A) To store runtime logs B) To reuse parts of an API definition across multiple APIs
Exam
C) To define a database schema D) To encrypt API payloads Answer: B Explanation: RAML fragments allow modular reuse of data types, traits, or resource definitions. Question 34. Which of the following best describes a “batch step” in a Mule Batch Job? A) The initial loading of data into the batch B) A unit of processing applied to each record in the batch C) The final commit of all processed data D) The error handling mechanism for the job Answer: B Explanation: A batch step processes each record (e.g., transformation, enrichment) within the batch. Question 35. Which Mule component would you use to call an external SOAP service? A) HTTP Request Connector with SOAP envelope B) Web Service Consumer Connector C) REST Connector D) FTP Connector Answer: B Explanation: The Web Service Consumer is designed to interact with SOAP services using WSDL contracts. Question 36. Which policy would you apply to protect an API from being called more than 5 times per second per client? A) IP Filtering B) Rate Limiting (5 requests per second) C) JWT Validation D) CORS Policy Answer: B
Exam
Question 40. Which transformation language is native to MuleSoft for mapping data between formats? A) XSLT B) Velocity C) DataWeave D) Groovy Answer: C Explanation: DataWeave is MuleSoft’s built‑in language for data transformation. Question 41. When using the For‑Each scope, which statement is correct? A) It processes the entire collection in a single thread. B) It automatically persists each item to a database. C) It iterates over each element of an array or collection. D) It can only be used with XML payloads. Answer: C Explanation: For‑Each loops over each element of a collection, executing the enclosed processors per item. Question 42. Which MuleSoft component is used to define reusable sub‑flows that can be called from multiple parent flows? A) Global Elements B) Sub‑Flow C) API Specification D) Mule Domain Answer: B Explanation: Sub‑Flows encapsulate logic that can be invoked via Flow‑Ref from any flow. Question 43. Which of the following is a typical use case for the “Scatter‑Gather” router? A) Serially processing a single payload
Exam
B) Invoking multiple downstream services in parallel and aggregating responses C) Encrypting a message payload D) Validating an OAuth token Answer: B Explanation: Scatter‑Gather sends the same request to multiple routes concurrently and merges the results. Question 44. In Anypoint Platform, which tool helps you create a “contract” for an API without writing any code? A) Runtime Manager B) API Designer (Design Center) C) Anypoint Monitoring D) API Manager Answer: B Explanation: API Designer lets you model RAML or OAS contracts using a visual, code‑free interface. Question 45. Which HTTP response code indicates that the client must authenticate to gain network access? A) 200 B) 401 C) 403 D) 500 Answer: B Explanation: 401 Unauthorized signals that authentication is required. Question 46. Which Mule component provides a built‑in cache for storing and retrieving data during flow execution? A) Object Store B) DataSense
Exam
D) Runtime Manager Auto‑Deploy Answer: B Explanation: Anypoint Exchange can generate client SDKs (Java, JavaScript, etc.) from RAML/OAS definitions. Question 50. Which of the following best describes the purpose of an “API Proxy” in MuleSoft? A) To transform payloads between JSON and XML B) To expose an existing API through Mule without modifying the backend C) To store API contracts in a database D) To schedule batch jobs Answer: B Explanation: An API Proxy forwards requests to an existing endpoint while allowing policies to be applied. Question 51. In DataWeave, which function would you use to filter an array of objects where the field “status” equals “ACTIVE”? A) map() B) filter((item) - > item.status == "ACTIVE") C) reduce() D) groupBy() Answer: B Explanation: The filter function evaluates a predicate and returns only matching elements. Question 52. Which Mule connector is best suited for reading and writing files on an SFTP server? A) FTP Connector B) SFTP Connector C) File Connector D) HTTP Connector Answer: B
Exam
Explanation: The SFTP connector handles secure file transfer over SSH. Question 53. Which of the following is a primary benefit of using Anypoint Exchange to store API fragments? A) It automatically scales the API runtime. B) It ensures consistent data models across multiple APIs. C) It encrypts all API traffic. D) It replaces the need for API Manager. Answer: B Explanation: Fragments enable reuse of common data types, traits, or security definitions, promoting consistency. Question 54. In the MuleSoft API lifecycle, which stage involves “contract testing” against consumer expectations? A) Build B) Validate C) Test D) Secure Answer: C Explanation: The Test stage includes contract tests to verify that the implementation meets the defined contract. Question 55. What is the default transport protocol used by the HTTP Listener component? A) FTP B) TCP C) HTTP/HTTPS D) JMS Answer: C Explanation: HTTP Listener receives inbound HTTP or HTTPS requests.
Exam
Question 59. Which DataWeave operator merges two objects, with the second object's fields overriding the first’s when keys collide? A) ++ B) + C) mergeWith() D) : Answer: B Explanation: The “+” operator combines two objects, with later values taking precedence. Question 60. Which of the following best describes a “circuit breaker” pattern in Mule? A) It retries a failed request indefinitely. B) It stops calling a downstream service after a threshold of failures, returning a fallback response. C) It encrypts payloads before transmission. D) It logs every request for audit purposes. Answer: B Explanation: Circuit Breaker prevents cascading failures by opening the circuit after repeated errors. Question 61. In Mule 4, which component replaces the “Message Enricher” from Mule 3 for adding additional data without losing the original payload? A) Transform Message (DataWeave) with “merge” B) Enrich scope (available in Mule 4) C) Set Variable D) Flow Ref Answer: B Explanation: The Enrich scope in Mule 4 adds data to the message while preserving the original payload. Question 62. Which of the following is a key difference between RAML and OpenAPI? A) RAML supports GraphQL, OpenAPI does not. B) OpenAPI is XML‑based, RAML is JSON‑based.
Exam
C) RAML emphasizes reusable data types via “traits” and “resourceTypes”. D) OpenAPI cannot describe query parameters. Answer: C Explanation: RAML’s traits and resourceTypes provide modular reuse, a feature not present in OpenAPI. Question 63. Which Mule component would you use to schedule a flow to run every hour? A) Poll B) Scheduler C) Timer D) Cron Trigger Answer: B Explanation: The Scheduler component provides cron‑like scheduling capabilities. Question 64. Which of the following best explains “loose coupling” in an API‑led architecture? A) APIs share the same database schema. B) Changes in one API require changes in all dependent APIs. C) APIs communicate via well‑defined contracts, allowing independent evolution. D) All APIs must be deployed together in a single runtime. Answer: C Explanation: Loose coupling relies on contracts so that services can evolve without breaking consumers. Question 65. In the context of MuleSoft, what does “autodiscovery” enable? A) Automatic generation of API documentation. B) Dynamic retrieval of API policies and configuration at runtime. C) Auto‑scaling of CloudHub workers. D) Automatic conversion of XML to JSON. Answer: B
