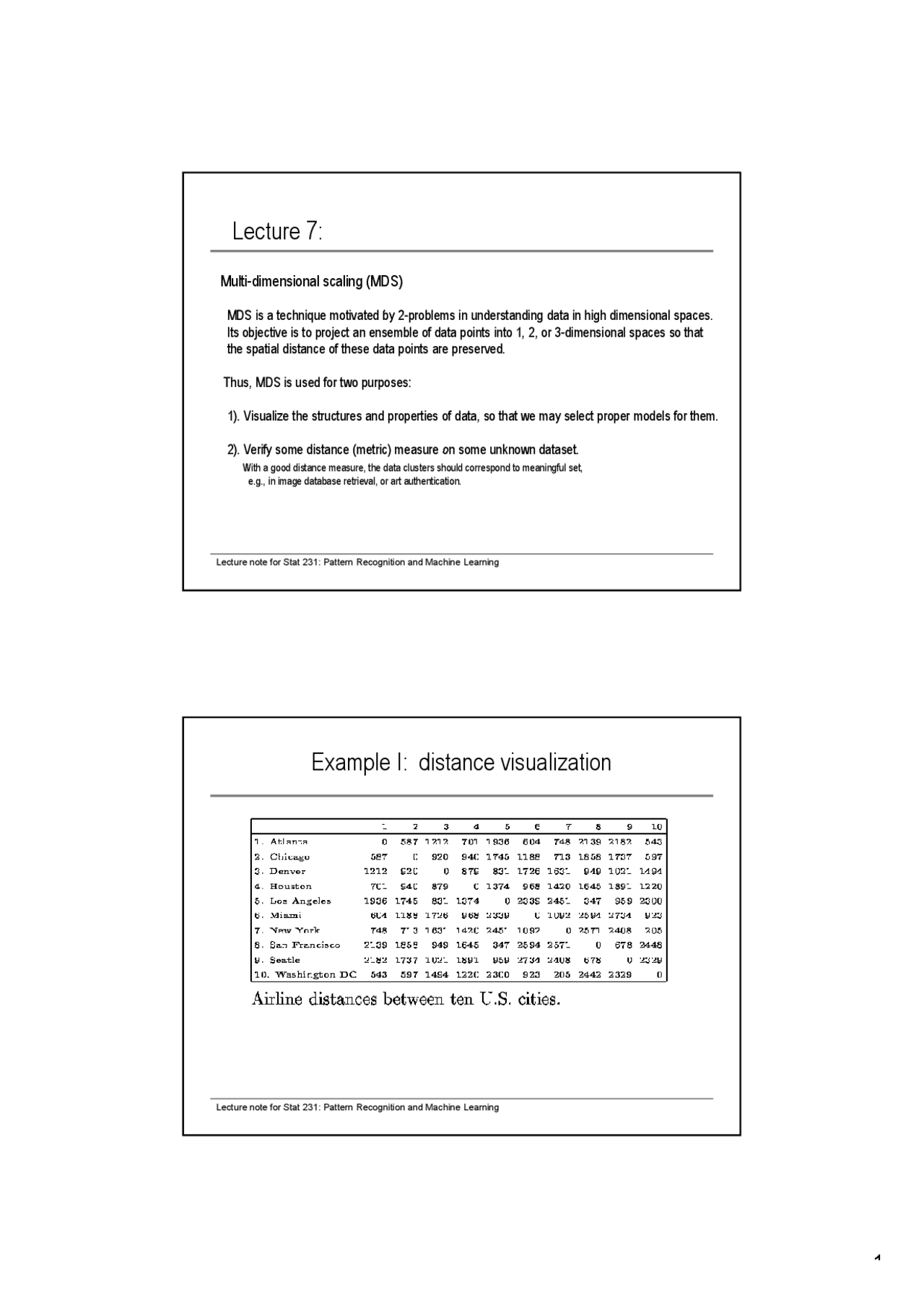

Lecture 7:
Multi-dimensional scaling (MDS)
MDS iMDS is a technique motivated by 2-problems in understanding data in high dimensional spaces. t h i ti t d b 2 bl i d t di d t i hi h di i l Its objective is to project an ensemble of data points into 1, 2, or 3-dimensional spaces so that the spatial distance of these data points are preserved.
Thus, MDS is used for two purposes:
1). Visualize the structures and properties of data, so that we may select proper models for them.
- Verify some distance (metric) measure on some unknown dataset
Lecture note for Stat 231: Pattern Recognition and Machine Learning
2). Verify some distance (metric) measure on some unknown dataset. With a good distance measure, the data clusters should correspond to meaningful set, e.g., in image database retrieval, or art authentication.
Example I: distance visualization
Lecture note for Stat 231: Pattern Recognition and Machine Learning
Reconstructed 2D Map
One computes the (x,y) coordinates for the 10 cities that best preserve the distance matrix.
Lecture note for Stat 231: Pattern Recognition and Machine Learning
Example II: color mapping
Another example is to map various colors in a 2D matrix so that some perceptual distances are preserved. I am sorry that we cannot print out color, but the pdf file will be in color. One can calculate a perceptual color distance by psychology experiments then obtainsOne can calculate a perceptual color distance by psychology experiments, then obtains a distance matrix, like the city matrix, then we can map colors in 2D
Lecture note for Stat 231: Pattern Recognition and Machine Learning
Example V: Art Authentication
Lecture note for Stat 231: Pattern Recognition and Machine Learning
S. Lyu, D. Rockmore, and H. Farid, PNAS, 2004
Basic idea of MDS
Given: a set of data points in d-space {x 1 , x 2 , …, x (^) n } a dissimilarity / distance measure/metric between two points x (^) i, x (^) j: δij
Objective: find points in 1,2, or 3-space {y 1 , y 2 , …, y (^) n } with usually Eclidean distances dij for two points y (^) i and y (^) j.
A criterion (Kruskal 1964) is to minimize
ij
dij ij
2
,
( )^2
Stress
Lecture note for Stat 231: Pattern Recognition and Machine Learning
ij
ij ,
Senator map by MDS
Lecture note for Stat 231: Pattern Recognition and Machine Learning
MDS for non-metric data
In some applications, the quantitative distance or dissimilarity is less important than the rank order. Thus an MDS mapping criterion will be a monotonic constraint that the project points preserve the rank order of the original data points.g p
Suppose we re-order the m=n(n-1)/2 distance in the original data
For any m numbers that preserve the monotonic constraints,
Lecture note for Stat 231: Pattern Recognition and Machine Learning
We define a criterion for the projected points as,
Kolmogorov Capacity Dimension
Let N(e) be the minimum e-cover of the dataset D, we define a Kolmogorov capacity dimension (or Box counting dimension) by
In other word, the number (volume) has an exponential rate
Or we have a linear relation in a log-log plot
Lecture note for Stat 161: Introduction to Pattern Recognition and Machine Learning
O e a e a ea e at o a og og p ot
Information Dimension
The capacity dimension assumes a uniform probability for each ball. If this is not uniform, we have a modified version called the information dimension,
Where It is easy to check that
Lecture note for Stat 161: Introduction to Pattern Recognition and Machine Learning
Theorem:
Correlation dimension
Given N data points,
The correlation dimension is
Lecture note for Stat 161: Introduction to Pattern Recognition and Machine Learning
Intuitively, the higher dimension the manifold is, the more neighbors a point will have.
