Module 20: Multi-core Computing Multi-processor Scheduling
Lecture 39: Multi-processor Scheduling

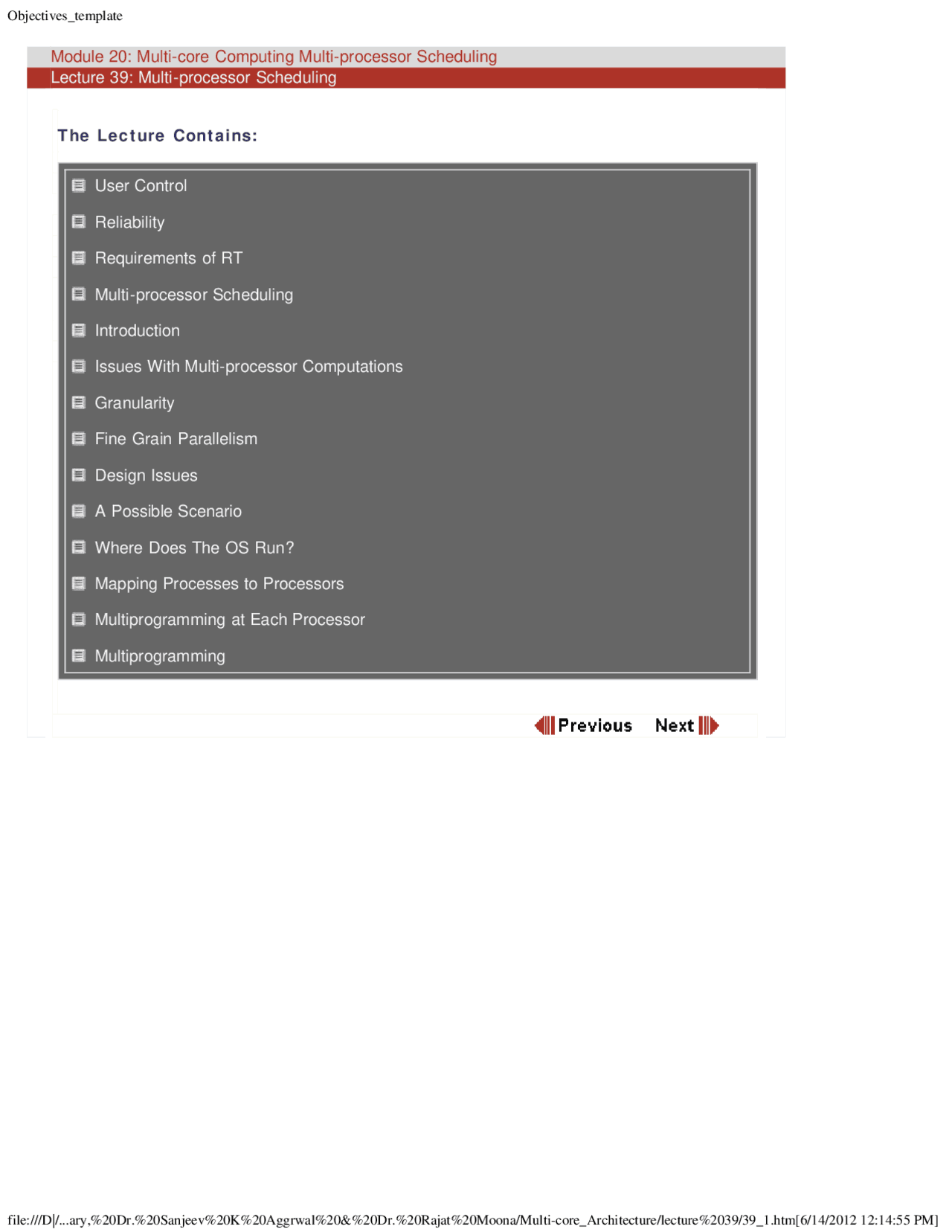

The Lecture Contains:
User Control
Reliability
Requirements of RT
Multi-processor Scheduling
Introduction
Issues With Multi-processor Computations
Granularity
Fine Grain Parallelism
Design Issues
A Possible Scenario
Where Does The OS Run?
Mapping Processes to Processors
Multiprogramming at Each Processor
Multiprogramming
Module 20: Multi-core Computing Multi-processor Scheduling
Lecture 39: Multi-processor Scheduling
User Control
User Control : User has broader control on process characteristics specs in an RTOS Priority Deadlines: Hard or soft. Memory Management: paging or swapping Name the processes to be resident in memory Scheduling policies
Reliability
Reliability: A processor failure in a non-RT may result in reduced level of service. But in an RT it may be catastrophic : life and death, financial loss, equipment damage. Fail-soft Operation: Ability of the system to fail in such a way preserve as much capability and data as possible. In the event of a failure, immediate detection and correction is important. Notify user processes to rollback. Apply compensation. Check-pointing and rollback states.
Module 20: Multi-core Computing Multi-processor Scheduling
Lecture 39: Multi-processor Scheduling
Multi-processor Scheduling
Load sharing Each processor runs one process. A single ready queue is maintained (in a shared memory). Each processor makes scheduling decisions independently. Speed up of an application Processor assignment (within threads of the process): Dynamic or fixed Scheduling: Gang scheduling or independent scheduling
Multi-core Computing Multi-processor Scheduling
Introduction
Design issues in system with multiple processors Tightly coupled or loosely coupled. Message passing, shared memory or both. Several new issues are introduced into the design of scheduling functions. Loosely coupled systems are easier to handle. Not an OS issue but an application issue Several message passing systems are available (such as MPI) We will examine these issues and the details of scheduling algorithms for tightly coupled multi- processor systems.
Module 20: Multi-core Computing Multi-processor Scheduling
Lecture 39: Multi-processor Scheduling
Issues With Multi-processor Computations.
Granularity of computation Fine grain Coarse grain Various shades of coarseness. Design issues Assignment of processes to processors Multiprogramming on individual processors Actual dispatching of a process
Granularity
The main purpose of having multiple processors is to realize ????. Applications exhibit parallelism at various levels with varying degree of granularity. Fine grain parallelism: Inherent parallelism within a single instruction stream. High data dependency high frequency of synchronizations required between processes. Dynamic Scheduling/Superscalar architectures exploit this kind of parallelism.
Module 20: Multi-core Computing Multi-processor Scheduling
Lecture 39: Multi-processor Scheduling
Granularity
Very Coarse Grain: When synchronization needs are not high among parallel processes. Processes can even be distributed across network. Example: CORBA standard for distributed system. Independent parallelism: Multiple unrelated processes. All independent processes can run in parallel.
Design Issues
Where does the OS run? Mapping processes to processors. Static or dynamic Use of multiprogramming on individual processors. Actual dispatching of a process.
Module 20: Multi-core Computing Multi-processor Scheduling
Lecture 39: Multi-processor Scheduling
Where Does The OS Run?
Master/slave Assignment: Kernel functions always run on a particular processor. Other processors execute user processes. Advantage: Resource conflict resolution simplified since single processor has control. Single point of failure (Master). Peer Assignment: OS executes on all processors. Each processor does its own scheduling from the pool of available processes. Most OSes implement this in an SMP environment.
Mapping Processes to Processors
Largely an application issue. Applications may be written for a particular configuration of the machine. Application create threads of computations and channel of communication between these threads assuming a particular machine configuration. Applications may be generic in nature Create n threads of computations. These threads can execute on machines with 1, <n, n or >n processors. OS may assign any number of processors (1 to n) to this application.
