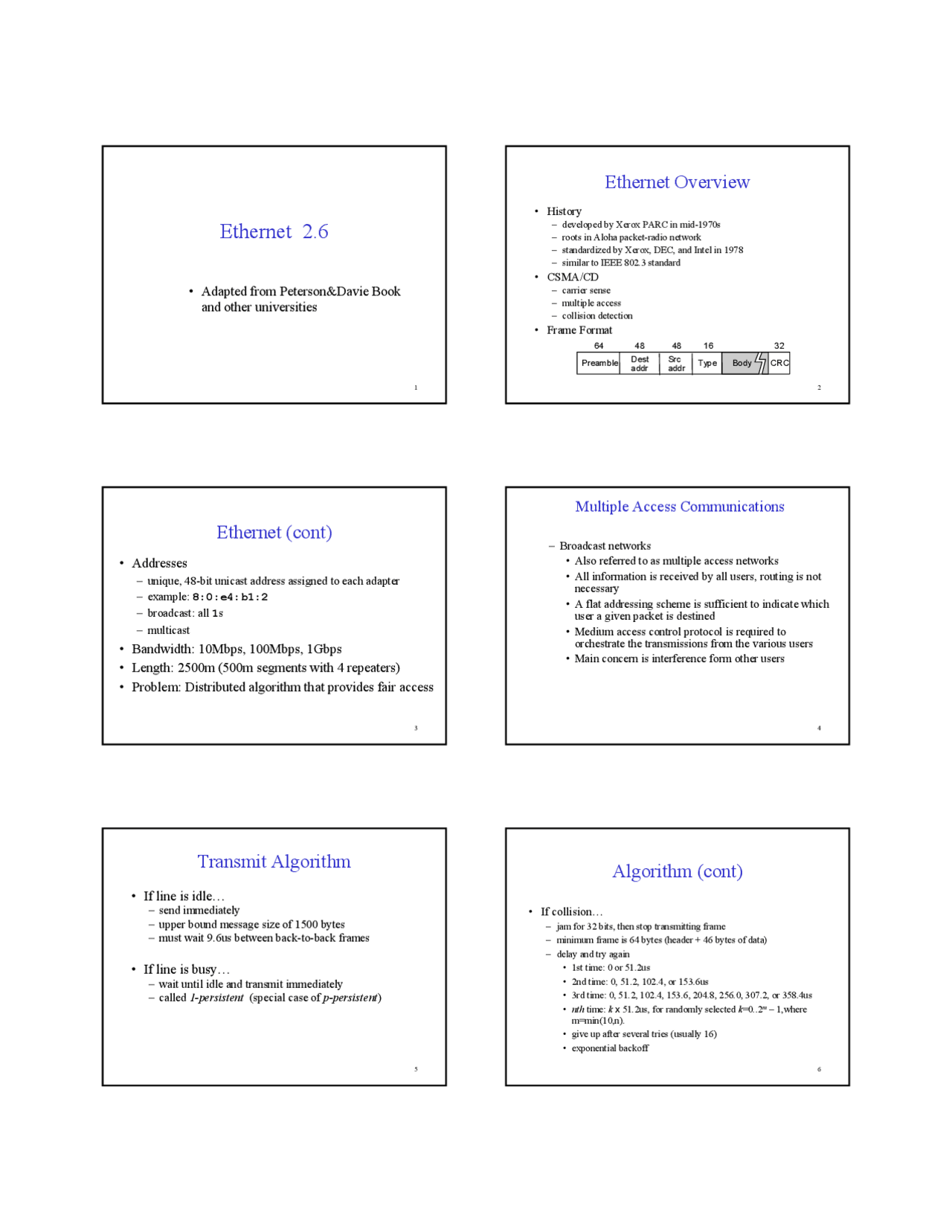

1
1
Ethernet 2.6
Adapted from Peterson&Davie Book
and other universities
2
Ethernet Overview
History
developed by Xerox PARC in mid-1970s
roots in Aloha packet-radio network
standardized by Xerox, DEC, and Intel in 1978
similar to IEEE 802.3 standard
•CSMA/CD
carrier sense
multiple access
collision detection
•Frame Format
Dest
addr
64 48 32
CRCPreamble Src
addr Type Body
1648
3
Ethernet (cont)
Addresses
unique, 48-bit unicastaddress assigned to each adapter
example: 8:0:e4:b1:2
broadcast: all 1s
multicast
Bandwidth: 10Mbps, 100Mbps, 1Gbps
Length: 2500m (500m segments with 4 repeaters)
Problem: Distributed algorithm that provides fair access
4
Multiple Access Communications
Broadcast networks
Also referred to as multiple access networks
All information is received by all users, routing is not
necessary
A flat addressing scheme is sufficient to indicate which
user a given packet is destined
Medium access control protocol is required to
orchestrate the transmissions from the various users
Main concern is interference form other users
5
Transmit Algorithm
If line is idle…
send immediately
upper bound message size of 1500 bytes
must wait 9.6us between back-to-back frames
If line is busy…
wait until idle and transmit immediately
called 1-persistent (special case of p-persistent)
6
Algorithm (cont)
If collision…
jam for 32 bits, then stop transmitting frame
minimum frame is 64 bytes (header + 46 bytes of data)
delay and try again
1st time: 0 or 51.2us
2nd time: 0, 51.2, 102.4, or 153.6us
3rd time: 0, 51.2, 102.4, 153.6, 204.8, 256.0, 307.2, or 358.4us
nth time: k x51.2us, for randomly selected k=0..2m–1,where
m=min(10,n).
give up after several tries (usually 16)
exponential backoff
