How to Multiply
integers, matrices, and polynomials 2

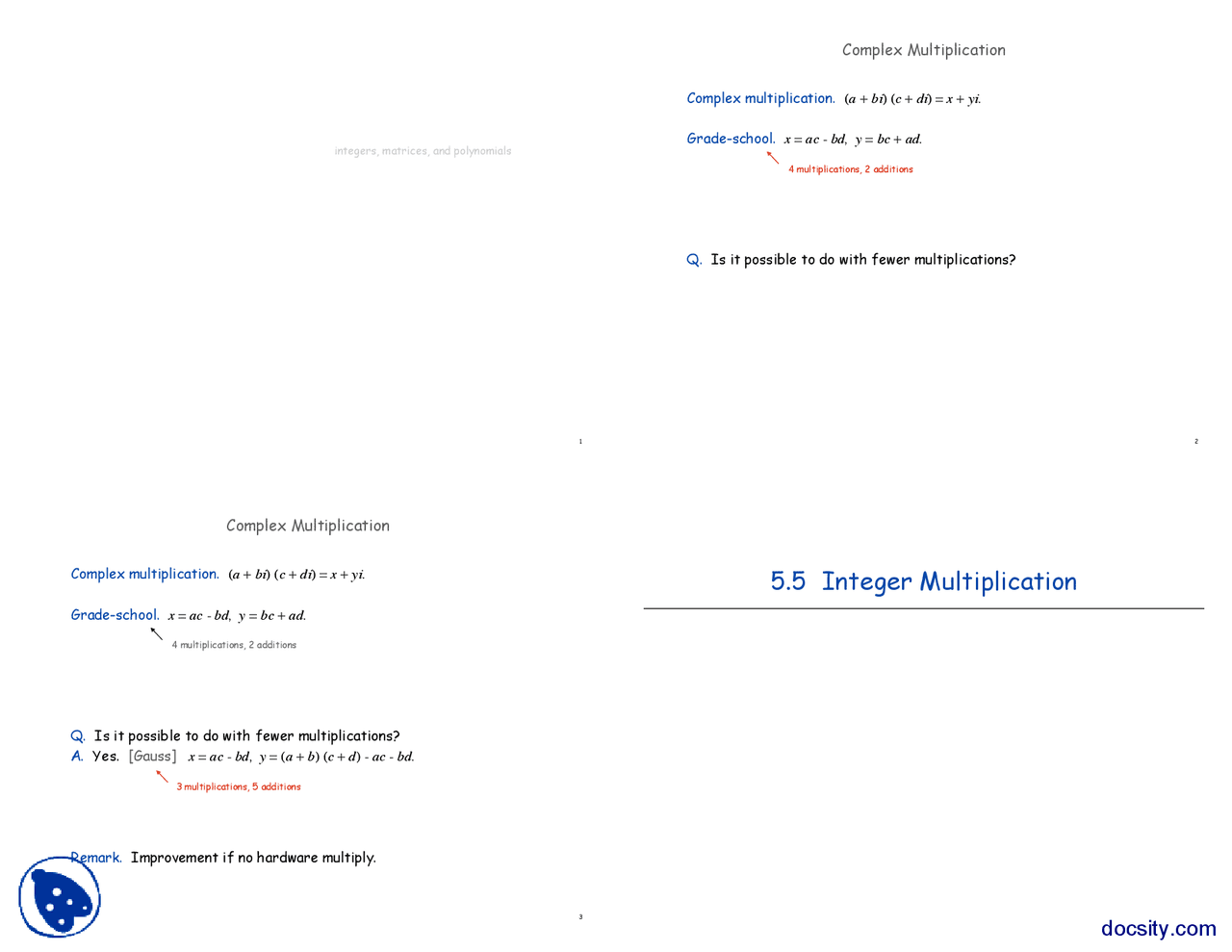

Complex Multiplication
Complex multiplication. ( a + bi ) ( c + di ) = x + yi. Grade-school. x = ac - bd , y = bc + ad. Q. Is it possible to do with fewer multiplications? 4 multiplications, 2 additions 3
Complex Multiplication
Complex multiplication. ( a + bi ) ( c + di ) = x + yi. Grade-school. x = ac - bd , y = bc + ad. Q. Is it possible to do with fewer multiplications? A. Yes. [Gauss] x = ac - bd , y = ( a + b ) ( c + d ) - ac - bd. Remark. Improvement if no hardware multiply. 4 multiplications, 2 additions 3 multiplications, 5 additions
5.5 Integer Multiplication
5 Addition. Given two n -bit integers a and b , compute a + b. Grade-school. Θ( n ) bit operations. Remark. Grade-school addition algorithm is optimal.
Integer Addition
**1 1 1 0 1
- 0 1 1 1 0 1 0 1 1 1 1 0 1 0 1 1 1 0 1 0 0 1 0 1 1 1 0 1** 6
Integer Multiplication
Multiplication. Given two n -bit integers a and b , compute a × b. Grade-school. Θ( n^2 ) bit operations. Q. Is grade-school multiplication algorithm optimal? 1 1 1 0 0 0 1 1 1 0 1 0 1 1 1 0 1 0 1 1 1 1 0 1 00000000 10101010 10101010 10101010 10101010 10101010 00000000 110100000000001 0 1 1 1 1 1 0 0 × 7 To multiply two n -bit integers a and b : Multiply four ½ n -bit integers, recursively. Add and shift to obtain result. Ex.
Divide-and-Conquer Multiplication: Warmup
!
T ( n ) = 4 T ( n / 2 )
recursive calls 14 2 43 +^ "( n ) add, shift 123 #^ T^ ( n )^ =^ "( n (^2) ) ! a = 2 n^ /^2 " a 1 + a 0 b = 2 n^ /^2 " b 1 + b 0 a b = (^) ( 2 n^ /^2 " a 1 + a 0 ) ( 2 n^ /^2 " b 1 + b 0 ) = 2 n^ " a 1 b 1 + 2 n^ /^2 " (^) ( a 1 b 0 + a 0 b 1 ) + a 0 b 0 a = 10001101 b = 11100001 a 1 a 0 b 1 b 0 8
Recursion Tree
! T ( n ) = 0 if^ n^ =^0 4 T ( n / 2 ) + n otherwise " # $ n 4(n/2) 16(n/4) 4 k^ (n / 2 k) 4 lg^ n^ (1) T(n) T(n/2) T(n/4) T(n/4) T(2) T(2) T(2) T(2) T(2) T(2) T(2) T(2) T(n / 2 k) T(n/4) T(n/2) T(n/4) T(n/4) T(n/2) T(n/4) T(n/4) T(n/4) ... ... ! T ( n ) = n 2 k k = 0 lg n " = n^2 1 + lg n (^) # 1 2 # 1 $ % & ' ( ) =^2 n^2 #^ n T(n/2) ... ... ... ...
Matrix Multiplication 14 Dot product. Given two length n vectors a and b , compute c = a ⋅ b. Grade-school. Θ( n ) arithmetic operations. Remark. Grade-school dot product algorithm is optimal.
Dot Product
! a " b = ai bi i = 1 n
a = (^) [ .70 .20 .10] b = (^) [ .30 .40 .30] a " b = (. 70 # .30) + (.20 # .40) + (. 10 # .30) =. 15 Matrix multiplication. Given two n -by- n matrices A and B , compute C = AB. Grade-school. Θ( n^3 ) arithmetic operations. Q. Is grade-school matrix multiplication algorithm optimal?
Matrix Multiplication
! cij = aik bkj k = 1 n " ! c 11 c 12 L c 1 n c 21 c 22 L c 2 n M M O M cn 1 cn 2 L cnn "
$ $ $ $ % & ' ' ' ' = a 11 a 12 L a 1 n a 21 a 22 L a 2 n M M O M an 1 an 2 L ann "
$ $ $ $ % & ' ' ' ' ( b 11 b 12 L b 1 n b 21 b 22 L b 2 n M M O M bn 1 bn 2 L bnn "
$ $ $ $ % & ' ' ' ' ! .59 .32. .31 .36. .45 .31. "
$ $ $ % & ' ' ' = .70 .20. .30 .60. .50 .10. "
$ $ $ % & ' ' ' ( .80 .30. .10 .40. .10 .30. "
$ $ $ % & ' ' ' 16
Block Matrix Multiplication
! C 11 = A 11 " B 11 + A 12 " B 21 = 0 1 4 5
$^ % & '^ (^ " 16 17 20 21
$^ % & '^ (^
2 3 6 7
$^ % & '^ (^ " 24 25 28 29
$^ % & '^ (^ = 152 158 504 526
$^ % & '^ ( ! 152 158 164 170 504 526 548 570 856 894 932 970 1208 1262 1316 1370 "
$ $ $ $ % & ' ' ' ' = 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 "
$ $ $ $ % & ' ' ' ' ( 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 "
$ $ $ $ % & ' ' ' ' C 11^ A^11 A^12 B^11 B 11
17
Matrix Multiplication: Warmup
To multiply two n -by- n matrices A and B : Divide: partition A and B into ½ n -by-½ n blocks. Conquer: multiply 8 pairs of ½ n -by-½ n matrices, recursively. Combine: add appropriate products using 4 matrix additions. !
C 11 = ( A 11 " B 11 ) + ( A 12 " B 21 )
C 12 = ( A 11 " B 12 ) + ( A 12 " B 22 )
C 21 = ( A 21 " B 11 ) + ( A 22 " B 21 )
C 22 = ( A 21 " B 12 ) + ( A 22 " B 22 )
C 11 C 12
C 21 C 22
#^ $
&^ '^
A 11 A 12
A 21 A 22
#^ $
&^ '^
B 11 B 12
B 21 B 22
#^ $
&^ '
T ( n ) = 8 T (^) ( n / (^2) ) recursive calls
- "( n^2 ) add, form submatrices 1 442 443 #^ T^ ( n )^ =^ "( n
18
Fast Matrix Multiplication
Key idea. multiply 2 -by- 2 blocks with only 7 multiplications. 7 multiplications. 18 = 8 + 10 additions and subtractions.
P 1 = A 11 " ( B 12 # B 22 )
P 2 = ( A 11 + A 12 ) " B 22
P 3 = ( A 21 + A 22 ) " B 11
P 4 = A 22 " ( B 21 # B 11 )
P 5 = ( A 11 + A 22 ) " ( B 11 + B 22 )
P 6 = ( A 12 # A 22 ) " ( B 21 + B 22 )
P 7 = ( A 11 # A 21 ) " ( B 11 + B 12 )
C 11 = P 5 + P 4 " P 2 + P 6
C 12 = P 1 + P 2
C 21 = P 3 + P 4
C 22 = P 5 + P 1 " P 3 " P 7
! C 11 C 12 C 21 C 22 " #^ $ % &^ '^ = A 11 A 12 A 21 A 22 " #^ $ % &^ '^ ( B 11 B 12 B 21 B 22 " #^ $ % &^ ' 19
Fast Matrix Multiplication
To multiply two n -by- n matrices A and B : [Strassen 1969] Divide: partition A and B into ½ n -by-½ n blocks. Compute: 14 ½ n -by-½ n matrices via 10 matrix additions. Conquer: multiply 7 pairs of ½ n -by-½ n matrices, recursively. Combine: 7 products into 4 terms using 8 matrix additions. Analysis. Assume n is a power of 2. T ( n ) = # arithmetic operations. !
T ( n ) = 7 T ( n / 2 )
recursive calls 14 2 43 +^ "( n (^2) ) add, subtract 1 42 43 #^ T^ ( n )^ =^ "( n log (^2 7) ) = O ( n 2.81 (^) ) 20
Fast Matrix Multiplication: Practice
Implementation issues. Sparsity. Caching effects. Numerical stability. Odd matrix dimensions. Crossover to classical algorithm around n = 128. Common misperception. “Strassen is only a theoretical curiosity.” Apple reports 8 x speedup on G4 Velocity Engine when n ≈ 2,500. Range of instances where it's useful is a subject of controversy. Remark. Can "Strassenize" Ax = b , determinant, eigenvalues, SVD, ….
25
Euler's Identity
Sinusoids. Sum of sine an cosines. Sinusoids. Sum of complex exponentials. eix^ = cos x + i sin x Euler's identity 26
Time Domain vs. Frequency Domain
Signal. [touch tone button 1] Time domain. Frequency domain. ! y ( t ) = 12 sin( 2 " # 697 t ) + 12 sin( 2 " # 1209 t ) Reference: Cleve Moler, Numerical Computing with MATLAB frequency (Hz) amplitude 0. time (seconds) pressure^ sound 27
Time Domain vs. Frequency Domain
Signal. [recording, 8192 samples per second] Magnitude of discrete Fourier transform. Reference: Cleve Moler, Numerical Computing with MATLAB 28
Fast Fourier Transform
FFT. Fast way to convert between time-domain and frequency-domain. Alternate viewpoint. Fast way to multiply and evaluate polynomials. If you speed up any nontrivial algorithm by a factor of a million or so the world will beat a path towards finding useful applications for it. -Numerical Recipes we take this approach
29
Fast Fourier Transform: Applications
Applications. Optics, acoustics, quantum physics, telecommunications, radar, control systems, signal processing, speech recognition, data compression, image processing, seismology, mass spectrometry… Digital media. [DVD, JPEG, MP3, H.264] Medical diagnostics. [MRI, CT, PET scans, ultrasound] Numerical solutions to Poisson's equation. Shor's quantum factoring algorithm. … The FFT is one of the truly great computational developments of [the 20th] century. It has changed the face of science and engineering so much that it is not an exaggeration to say that life as we know it would be very different without the FFT. -Charles van Loan 30
Fast Fourier Transform: Brief History
Gauss (1805, 1866). Analyzed periodic motion of asteroid Ceres. Runge-König (1924). Laid theoretical groundwork. Danielson-Lanczos (1942). Efficient algorithm, x-ray crystallography. Cooley-Tukey (1965). Monitoring nuclear tests in Soviet Union and tracking submarines. Rediscovered and popularized FFT. Importance not fully realized until advent of digital computers. 31
Polynomials: Coefficient Representation
Polynomial. [coefficient representation] Add. O ( n ) arithmetic operations. Evaluate. O ( n ) using Horner's method. Multiply (convolve). O ( n^2 ) using brute force.
A ( x ) = a 0 + a 1 x + a 2 x^2 +L+ an " 1 xn "^1 ! B ( x ) = b 0 + b 1 x + b 2 x^2 +L+ bn " 1 xn "^1 ! A ( x ) + B ( x ) = ( a 0 + b 0 ) + ( a 1 + b 1 ) x +L+ ( an " 1 + bn " 1 ) xn "^1 ! A ( x ) = a 0 + ( x ( a 1 + x ( a 2 +L+ x ( an " 2 + x ( an " 1 ))L)) ! A ( x ) " B ( x ) = ci xi i = 0 2 n # 2 $ ,^ where^ ci =^ a^ j bi # j j = 0 i $ 32
A Modest PhD Dissertation Title
"New Proof of the Theorem That Every Algebraic Rational Integral Function In One Variable can be Resolved into Real Factors of the First or the Second Degree."
- PhD dissertation, 1799 the University of Helmstedt docsity.com
37
Converting Between Two Representations: Brute Force
Point-value ⇒ coefficient. Given n distinct points x 0 , ... , xn -1 and values y 0 , ... , yn -1, find unique polynomial a 0 + a 1 x + ... + an -1 xn -1, that has given values at given points. Running time. O ( n^3 ) for Gaussian elimination.
y 0 y 1 y 2 M yn " 1
1 x 0 x 02 L x 0^ n "^1 1 x 1 x 12 L x 1^ n "^1 1 x 2 x 22 L x 2^ n "^1 M M M O M 1 xn " 1 xn^2 "^1 L xn^ n "" 11
a 0 a 1 a 2 M an " 1
Vandermonde matrix is invertible iff xi distinct or O ( n 2.376) via fast matrix multiplication 38
Divide-and-Conquer
Decimation in frequency. Break up polynomial into low and high powers. A ( x ) = a 0 + a 1 x + a 2 x^2 + a 3 x^3 + a 4 x^4 + a 5 x^5 + a 6 x^6 + a 7 x^7_._ Alow ( x ) = a 0 + a 1 x + a 2 x^2 + a 3 x^3_._ Ahigh ( x ) = a 4 + a 5 x + a 6 x^2 + a 7 x^3_._ A ( x ) = Alow ( x ) + x^4 Ahigh ( x ). Decimation in time. Break polynomial up into even and odd powers. A ( x ) = a 0 + a 1 x + a 2 x^2 + a 3 x^3 + a 4 x^4 + a 5 x^5 + a 6 x^6 + a 7 x^7_._ Aeven ( x ) = a 0 + a 2 x + a 4 x^2 + a 6 x^3_._ Aodd ( x ) = a 1 + a 3 x + a 5 x^2 + a 7 x^3_._ A ( x ) = Aeven ( x^2 ) + x Aodd ( x^2 ). 39
Coefficient to Point-Value Representation: Intuition
Coefficient ⇒ point-value. Given a polynomial a 0 + a 1 x + ... + an -1 xn -1, evaluate it at n distinct points x 0 , ..., xn -1. Divide. Break polynomial up into even and odd powers. A ( x ) = a 0 + a 1 x + a 2 x^2 + a 3 x^3 + a 4 x^4 + a 5 x^5 + a 6 x^6 + a 7 x^7_._ Aeven ( x ) = a 0 + a 2 x + a 4 x^2 + a 6 x^3_._ Aodd ( x ) = a 1 + a 3 x + a 5 x^2 + a 7 x^3_._ A ( x ) = Aeven ( x^2 ) + x Aodd ( x^2 ). A ( -x ) = Aeven ( x^2 ) - x Aodd ( x^2 ). Intuition. Choose two points to be ±1. A ( 1) = Aeven (1) + 1 Aodd (1). A (-1) = Aeven (1) - 1 Aodd (1). (^) Can evaluate polynomial of degree ≤ n at 2 points by evaluating two polynomials of degree ≤ ½ n at 1 point. we get to choose which ones! 40
Coefficient to Point-Value Representation: Intuition
Coefficient ⇒ point-value. Given a polynomial a 0 + a 1 x + ... + an -1 xn -1, evaluate it at n distinct points x 0 , ..., xn -1. Divide. Break polynomial up into even and odd powers. A ( x ) = a 0 + a 1 x + a 2 x^2 + a 3 x^3 + a 4 x^4 + a 5 x^5 + a 6 x^6 + a 7 x^7_._ Aeven ( x ) = a 0 + a 2 x + a 4 x^2 + a 6 x^3_._ Aodd ( x ) = a 1 + a 3 x + a 5 x^2 + a 7 x^3_._ A ( x ) = Aeven ( x^2 ) + x Aodd ( x^2 ). A ( -x ) = Aeven ( x^2 ) - x Aodd ( x^2 ). Intuition. Choose four complex points to be ±1, ± i. A (1) = Aeven ( 1 ) + 1 Aodd (1). A (-1) = Aeven ( 1 ) - 1 Aodd ( 1 ). A ( i ) = Aeven (-1) + i Aodd (-1). A ( -i ) = Aeven (-1) - i Aodd (-1). Can evaluate polynomial of degree ≤ n at 4 points by evaluating two polynomials of degree ≤ ½ n at 2 points. we get to choose which ones!
41
Discrete Fourier Transform
Coefficient ⇒ point-value. Given a polynomial a 0 + a 1 x + ... + an -1 xn -1, evaluate it at n distinct points x 0 , ..., xn -1. Key idea. Choose xk = ω k^ where ω is principal nth^ root of unity. DFT ! y 0 y 1 y 2 y 3 M yn " 1
1 1 1 1 L 1
1 )^1 )^2 )^3 L ) n "^1 1 )^2 )^4 )^6 L )^2 ( n "^1 ) 1 )^3 )^6 )^9 L )3( n "^1 ) M M M M O M 1 ) n "^1 )^2 ( n "^1 )^ )3( n "^1 )^ L )( n "^1 )( n "^1 )
a 0 a 1 a 2 a 3 M an " 1
Fourier matrix Fn 42
Roots of Unity
Def. An nth^ root of unity is a complex number x such that xn^ = 1. Fact. The nth^ roots of unity are: ω^0 , ω^1 , …, ω n -1^ where ω = e^2 π^ i / n. Pf. (ω k ) n^ = ( e^2 π^ i k / n ) n^ = (e π^ i^ ) 2 k^ = (-1) 2 k^ = 1. Fact. The ½ nth^ roots of unity are: ν^0 , ν^1 , …, ν n /2-1^ where ν = ω^2 = e^4 π^ i / n. ω^0 = ν^0 = 1 ω^1 ω^2 = ν^1 = i ω^3 ω^4 = ν^2 = - ω^5 ω^6 = ν^3 = - i ω^7 n = 8 43
Fast Fourier Transform
Goal. Evaluate a degree n -1 polynomial A ( x ) = a 0 + ... + an -1 xn -1^ at its nth^ roots of unity: ω^0 , ω^1 , …, ω n -1. Divide. Break up polynomial into even and odd powers. Aeven ( x ) = a 0 + a 2 x + a 4 x^2 + … + an -2 x n /2 - 1_._ Aodd ( x ) = a 1 + a 3 x + a 5 x^2 + … + an -1 x n /2 - 1_._ A ( x ) = Aeven ( x^2 ) + x Aodd ( x^2 ). Conquer. Evaluate Aeven ( x ) and Aodd ( x ) at the ½ nth roots of unity: ν^0 , ν^1 , …, ν n /2-1. Combine. A ( ω k ) = Aeven ( ν k ) + ω k^ Aodd ( ν k ), 0 ≤ k < n / A ( ω k+^ ½n ) = Aeven ( ν k ) – ω k^ Aodd ( ν k ), 0 ≤ k < n / ω k +^ ½ n^ = - ω k ν k^ = (ω k^ )^2 ν k^ = (ω k^ +^ ½ n^ )^2 44 fft(n, a 0 ,a 1 ,…,an-1) { if (n == 1) return a 0 (e 0 ,e 1 ,…,en/2-1) ← FFT(n/2, a 0 ,a 2 ,a 4 ,…,an-2) (d 0 ,d 1 ,…,dn/2-1) ← FFT(n/2, a 1 ,a 3 ,a 5 ,…,an-1) for k = 0 to n/2 - 1 { ω k^ ← e^2 π ik/n yk+n/2 ← ek + ω k^ dk yk+n/2 ← ek - ω k^ dk } return (y 0 ,y 1 ,…,yn-1) }
FFT Algorithm
49
Inverse FFT: Proof of Correctness
Claim. Fn and Gn are inverses. Pf. Summation lemma. Let ω be a principal nth^ root of unity. Then Pf. If k is a multiple of n then ω k^ = 1 ⇒ series sums to n. Each nth^ root of unity ω k^ is a root of xn^ - 1 = ( x - 1) (1 + x + x^2 + ... + xn -1). if ω k^ ≠ 1 we have: 1 + ω k^ + ω k (2)^ + … + ω k ( n -1)^ = 0 ⇒ series sums to 0. ▪
" k^ j j = 0 n # 1 $ = n if k % 0 mod n 0 otherwise
(^ Fn Gn ) (^) k k "=^1 n
k^ j^ #$^ j^ k "
j = 0 n $ 1 % =^
n #( k $^ k^ ")^ j j = 0 n $ 1 % =^ 1 if k = k " 0 otherwise
summation lemma 50
Inverse FFT: Algorithm
ifft(n, a 0 ,a 1 ,…,an-1) { if (n == 1) return a 0 (e 0 ,e 1 ,…,en/2-1) ← FFT(n/2, a 0 ,a 2 ,a 4 ,…,an-2) (d 0 ,d 1 ,…,dn/2-1) ← FFT(n/2, a 1 ,a 3 ,a 5 ,…,an-1) for k = 0 to n/2 - 1 { ω k^ ← e-2 π ik/n yk+n/2 ← (ek + ω k^ dk) / n yk+n/2 ← (ek - ω k^ dk) / n } return (y 0 ,y 1 ,…,yn-1) } 51
Inverse FFT Summary
Theorem. Inverse FFT algorithm interpolates a degree n -1 polynomial given values at each of the nth^ roots of unity in O ( n log n ) steps. assumes n is a power of 2 ! a 0 , a 1 , K, an - 1 ! ( " 0 , y 0 ), K, ( " n #^1 , yn # 1 ) O ( n log n ) coefficient representation O ( n log n ) (^) point-value representation 52
Polynomial Multiplication
Theorem. Can multiply two degree n -1 polynomials in O ( n log n ) steps. ! a 0 , a 1 , K, an - 1 b 0 , b 1 , K, bn - 1 ! c 0 , c 1 , K, c 2 n - 2 ! A ( " 0 ), ..., A ( " 2 n #^1 ) B ( " 0 ), ..., B ( " 2 n #^1 ) ! C ( " 0 ), ..., C ( " 2 n #^1 ) O ( n ) point-value multiplication 2 FFTs O ( n log n ) inverse FFT O ( n log n ) coefficient representation (^) coefficient representation pad with 0 s to make n a power of 2 docsity.com
53
FFT in Practice?
54
FFT in Practice
Fastest Fourier transform in the West. [Frigo and Johnson] Optimized C library. Features: DFT, DCT, real, complex, any size, any dimension. Won 1999 Wilkinson Prize for Numerical Software. Portable, competitive with vendor-tuned code. Implementation details. Instead of executing predetermined algorithm, it evaluates your hardware and uses a special-purpose compiler to generate an optimized algorithm catered to "shape" of the problem. Core algorithm is nonrecursive version of Cooley-Tukey. O ( n log n ), even for prime sizes. Reference: http://www.fftw.org 55
Integer Multiplication, Redux
Integer multiplication. Given two n bit integers a = an-1 … a 1 a 0 and b = bn-1 … b 1 b 0 , compute their product a ⋅ b. Convolution algorithm. Form two polynomials. Note: a = A (2) , b = B (2). Compute C ( x ) = A ( x ) ⋅ B ( x ). Evaluate C (2) = a ⋅ b. Running time: O(n log n) complex arithmetic operations. Theory. [Schönhage-Strassen 1971] O ( n log n log log n ) bit operations. Theory. [Fürer 2007] O( n log n 2 O(log * n )) bit operations.
A ( x ) = a 0 + a 1 x + a 2 x^2 +L+ an " 1 xn "^1 ! B ( x ) = b 0 + b 1 x + b 2 x^2 +L+ bn " 1 xn "^1 56
Integer Multiplication, Redux
Integer multiplication. Given two n bit integers a = an-1 … a 1 a 0 and b = bn-1 … b 1 b 0 , compute their product a ⋅ b. Practice. [GNU Multiple Precision Arithmetic Library] It uses brute force, Karatsuba, and FFT, depending on the size of n. "the fastest bignum library on the planet"
61
Shor's Factoring Algorithm
Period finding. Theorem. [Euler] Let p and q be prime, and let N = p q. Then, the following sequence repeats with a period divisible by ( p -1) ( q -1): Consequence. If we can learn something about the period of the sequence, we can learn something about the divisors of ( p -1) ( q -1). by using random values of x , we get the divisors of ( p -1) ( q -1), and from this, can get the divisors of N = p q 2 i 1 2 4 8 16 32 64 128 … 2 i^ mod 15 1 2 4 8 1 2 4 8 … 2 i^ mod 21 1 2 4 8 16 11 1 2 … period = 4 period = 6 x mod N , x^2 mod N , x^3 mod N , x^4 mod N , … Extra Slides 63
Fourier Matrix Decomposition
! y = Fn a = In / 2 Dn / 2 In / 2 " Dn / 2
$ % & ' ( Fn / 2 aeven Fn / 2 aodd
$ % & ' ! (
I 4 =
D 4 =
"^0 0 0
0 "^1 0
0 0 "^2
0 0 0 "^3
! Fn = 1 1 1 1 L 1 1 "^1 "^2 "^3 L " n #^1 1 "^2 "^4 "^6 L "^2 ( n #^1 ) 1 "^3 "^6 "^9 L "^3 ( n #^1 ) M M M M O M 1 " n #^1 "^2 ( n #^1 )^ "^3 ( n #^1 )^ L "( n #^1 )( n #^1 ) $ % & & & & & & & ' (
a = a 0 a 1 a 2 a 3
