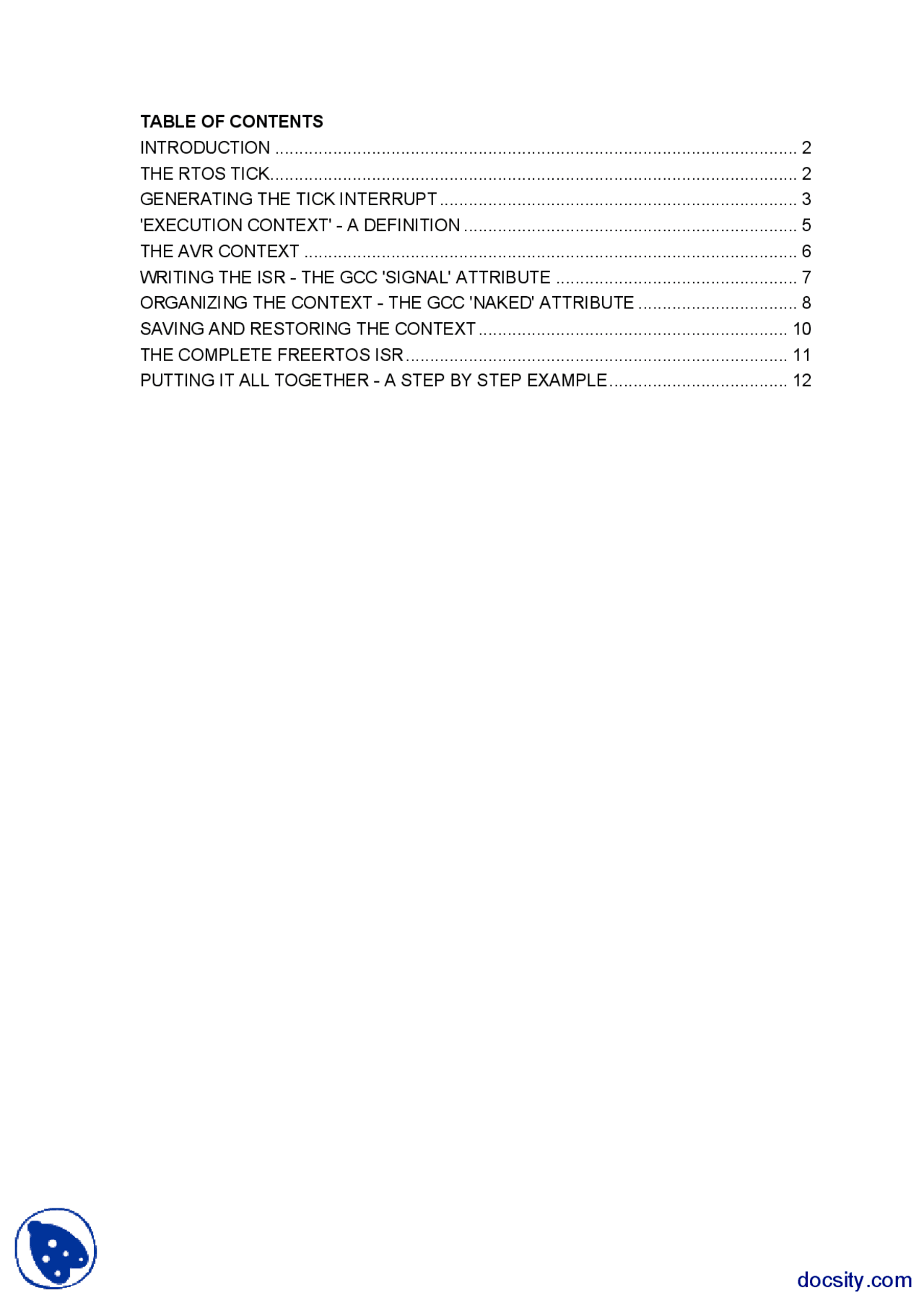

TABLE OF CONTENTS
- INTRODUCTION
- THE RTOS TICK.............................................................................................................
- GENERATING THE TICK INTERRUPT
- 'EXECUTION CONTEXT' - A DEFINITION
- THE AVR CONTEXT
- WRITING THE ISR - THE GCC 'SIGNAL' ATTRIBUTE
- ORGANIZING THE CONTEXT - THE GCC 'NAKED' ATTRIBUTE
- SAVING AND RESTORING THE CONTEXT................................................................
- THE COMPLETE FREERTOS ISR
- PUTTING IT ALL TOGETHER - A STEP BY STEP EXAMPLE.....................................
Introduction
A real time operating system has to switch execution from one task to another to ensure each task is
given processing time in accordance with the tasks priority. How this switch is performed is dependent
on the microcontroller architecture. This article uses source code from FreeRTOS (an open source real
time scheduler) and the free GCC development tools to demonstrate how a task switch can be
implemented on an AVR.
The source code is explained from the bottom up. Topics covered include the setup of a periodic tick
interrupt, using GCC to write interrupt service routines in C, special GCC features used by FreeRTOS and
the AVR execution context.
The last pages demonstrates the source code operation with a detailed step by step guide to one
complete task switch.
Following the source code can be a good way of learning both the compiler and hardware - even if task
switching is not directly relevant to your application. I hope the topics will be of interest to those
wishing to learn how to write interrupts using AVR builds of GCC, people new to AVR microcontrollers, or
those who are just interested in RTOS implementation.
Readers should be familiar with the basic concepts of a real time operating system - such as tasks,
multitasking and context switching. A brief introduction to these topics along with the complete
FreeRTOS source code can be obtained from www.FreeRTOS.org.
The RTOS Tick
Applications that use a real time operating system (RTOS) are structured as a set of autonomous
tasks, with the operating system deciding which task should execute at any given time. The RTOS
kernel will suspend and resume tasks as necessary to ensure the task with the highest priority that is
ready to run is the task given processing time. In addition to being suspended by the RTOS kernel a
task can choose to suspend itself. It will do this if it either wants to sleep for a fixed period or wait (with
a timeout) for a resource to become available. See the FreeRTOS WEB site for a more detailed
explanation if you are not familiar with these concepts.
FreeRTOS measures time using a tick count variable. A timer interrupt (the RTOS tick interrupt)
increments the tick count with strict temporal accuracy - allowing time to be measured to a resolution
of the chosen timer interrupt frequency.
When a task suspends itself it specifies a delay (or "sleep") period. Each time the tick count is
incremented the RTOS kernel must check to see if the new tick value has caused a delay period to
expire. Any task found by the RTOS kernel to have an expired delay period is made ready to run. A
context switch will be required within the RTOS tick if a task made ready to run by the tick interrupt
service routine (ISR) has a priority higher than the task interrupted by the tick ISR. When this occurs
the RTOS tick will interrupt one task, but return to another. This is depicted below:
/* We only have 16 bits so have to scale to get our required tick rate. / ulCompareMatch /= portCLOCK_PRESCALER; / Setup compare match value for compare match A. Interrupts are disabled before calling this function so we need not bother here. [casting has been removed for each of reading] / ucLowByte = ulCompareMatch & 0xff; ulCompareMatch >>= 8; ucHighByte = ulCompareMatch & 0xff; outb( OCR1AH, ucHighByte ); outb( OCR1AL, ucLowByte ); / Setup clock source and compare match behaviour. / ucLowByte = portCLEAR_COUNTER_ON_MATCH | portPRESCALE_256; outb( TCCR1B, ucLowByte ); / Enable the interrupt - this is okay as interrupt are currently globally disabled. */ ucLowByte = inb( TIMSK ); ucLowByte |= portCOMPARE_MATCH_A_INTERRUPT_ENABLE; outb( TIMSK, ucLowByte ); } Source code to setup the tick interrupt
'Execution Context' - a Definition
As a task executes it utilizes microcontroller registers and accesses RAM and ROM just as any other
program. These resources together (the registers, stack, etc.) comprise the task execution context.
A task is a sequential piece of code that does not know when it is going to get suspended (stopped
from executing) or resumed (given more processing time) by the RTOS and does not even know when
this has happened. Consider the example of a task being suspended immediately before executing an
instruction that sums the values contained within two registers.
While the task is suspended other tasks will execute and may modify the register values. Upon
resumption the task will not know that the registers have been altered - if it used the modified values
the summation would result in an incorrect value.
To prevent this type of error it is essential that upon resumption a task has a context identical to that
immediately prior to its suspension. The RTOS kernel is responsible for ensuring this is the case - and
does so by saving the context of a task as it is suspended. When the task is resumed its saved context
is restored by the RTOS kernel prior to its execution. The process of saving the context of a task being
suspended and restoring the context of a task being resumed is called context switching.
Writing the ISR - The GCC 'signal' Attribute
FreeRTOS generates the tick interrupt from a compare match event on the AVR timer 1 peripheral.
Using GCC the tick ISR function can be written in C by using the following syntax.
void SIG_OUTPUT_COMPARE1A( void ) attribute ( ( signal ) ); void SIG_OUTPUT_COMPARE1A( void ) { /* ISR C code for RTOS tick. */ vPortYieldFromTick(); }
C code for compare match ISR
The 'attribute ( ( signal ) )' directive informs the compiler that the function is an ISR and
results in two important changes to the code output by the compiler:
1. The 'signal' attribute ensures that every AVR register that gets modified during the ISR is
restored to its original value when the ISR exits. This is required as the compiler cannot make
any assumptions as to when the interrupt will execute, and therefore cannot optimize which
registers require saving and which don't.
2. The 'signal' attribute also forces a 'return from interrupt' instruction (RETI) to be used in
place of the 'return' instruction (RET) that would otherwise be used. The AVR disables
interrupts upon entering an ISR and the RETI instruction is required to re-enable them on
exiting.
Code output by the compiler:
;void SIG_OUTPUT_COMPARE1A( void ) ;{ ; --------------------------------------- ; CODE GENERATED BY THE COMPILER TO SAVE ; THE REGISTERS THAT GET ALTERED BY THE ; APPLICATION CODE DURING THE ISR. PUSH R PUSH R IN R0,0x3F PUSH R CLR R PUSH R PUSH R PUSH R PUSH R PUSH R PUSH R PUSH R PUSH R PUSH R PUSH R PUSH R PUSH R ; ---------------------------------------
; CODE GENERATED BY THE COMPILER FROM THE
; APPLICATION C CODE.
;vTaskIncrementTick(); CALL 0x0000029B ;Call subroutine ;} ; --------------------------------------- ; CODE GENERATED BY THE COMPILER TO ; RESTORE THE REGISTERS PREVIOUSLY ; SAVED. POP R POP R POP R POP R POP R POP R POP R POP R POP R POP R POP R POP R POP R OUT 0x3F,R POP R POP R RETI ; ---------------------------------------
Organizing the Context - The GCC 'naked' Attribute
The previous page shows how the 'signal' attribute can be used to write an ISR in C and how this
results in part of the execution context being automatically saved (only the microcontroller registers
modified by the ISR get saved). Performing a context switch however requires the entire context to be
saved. If the application code saved the entire context some AVR registers would get saved twice -
once by the compiler generated code and then again by the application code. This can be avoided by
also using the 'naked' attribute.
void SIG_OUTPUT_COMPARE1A( void ) attribute ( ( signal, naked ) ); void SIG_OUTPUT_COMPARE1A( void ) { /* ISR C code for RTOS tick. */ vPortYieldFromTick(); }
Naked C code for compare match ISR
The 'naked' attribute prevents the compiler generating any function entry or exit code.
Saving and Restoring the Context
Registers are saved by simply pushing them onto the stack. Each task has it's own stack, into which it's
context is saved when the task gets suspended.
Saving the AVR context is one place where assembly code is unavoidable. portSAVE_CONTEXT() is
implemented as a macro, the source for which is given below:
#define portSAVE_CONTEXT()
asm volatile (
"push r0 \n\t" \ (1) "in r0, SREG \n\t" \ (2) "cli \n\t" \ (3) "push r0 \n\t" \ (4) "push r1 \n\t" \ (5) "clr r1 \n\t" \ (6) "push r2 \n\t" \ (7) "push r3 \n\t"
"push r4 \n\t"
"push r5 \n\t"
: : : "push r3 0 \n\t"
"push r31 \n\t"
"lds r26, pxCurrentTCB \n\t" \ (8) "lds r27, pxCurrentTCB + 1 \n\t" \ (9) "in r0, SP_L \n\t" \ (10) "st x+, r0 \n\t" \ (11) "in r0, SP_H \n\t" \ (12) "st x+, r0 \n\t" \ (13) );
Referring to the code above:
- Register R0 is saved first (1) as it is used when the status register is saved, and must be
saved with its original value.
- The status register is moved into R0 (2) so it can be saved onto the stack (4).
- Interrupts are disabled (3). If portSAVE_CONTEXT() was only called from within an ISR there
would be no need to explicitly disable interrupts as the AVR will have already done so. As the
portSAVE_CONTEXT() macro is also used outside of interrupt service routines (when a task
suspends itself) interrupts must be explicitly cleared as early as possible.
- The code generated by the compiler from the ISR C code assumes R1 is set to zero. The
original value of R1 is saved (5) before R1 is cleared (6).
- Between (7) and (8) all remaining microcontroller registers are saved in numerical order.
- The stack of the task being suspended now contains a copy of the tasks execution context.
The kernel stores the tasks stack pointer so the context can be retrieved and restored when
the task is resumed. The x register is loaded with the address to which the stack pointer is to
be saved (8 and 9).
- The stack pointer is saved, first the low byte (10 and 11), then the high nibble (12 and 13).
- Restoring the Context
- portRESTORE_CONTEXT() is the reverse of portSAVE_CONTEXT(). The context of the task
being resumed was previously stored in the tasks stack. The kernel retrieves the stack pointer
for the task then POP's the context back into the correct microcontroller registers.
#define portRESTORE_CONTEXT()
asm volatile ( "lds r26, pxCurrentTCB \n\t" \ (1) "lds r27, pxCurrentTCB + 1 \n\t" \ (2) "ld r28, x+ \n\t"
"out SP_L, r28 \n\t" \ (3) "ld r29, x+ \n\t"
"out SP_H, r29 \n\t" \ (4) "pop r31 \n\t"
"pop r30 \n\t"
: : : "pop r1 \n\t"
"pop r0 \n\t" \ (5) "out SREG, r0 \n\t" \ (6) "pop r0 \n\t" \ (7) ); Referring to the code above:
- pxCurrentTCB holds the address from where the tasks stack pointer can be retrieved. This is
loaded into the X register (1 and 2).
- The stack pointer for the task being resumed is loaded into the AVR stack pointer, first the low
byte (3), then the high nibble (4).
- The microcontroller registers are then popped from the stack in reverse numerical order,
down to R1.
- The status register stored on the stack between registers R1 and R0, so is restored (6)
before R0 (7).
The Complete FreeRTOS ISR
The actual source code used by the FreeRTOS AVR port is slightly different to the examples shown on
the previous pages. The context is saved from within vPortYieldFromTick() which is itself implemented
as a 'naked' function. It is done this way due to the implementation of non-preemptive context switches
(not described here).
The FreeRTOS implementation of the RTOS tick is therefore (see the comments in the code
snippets for further details) :
void SIG_OUTPUT_COMPARE1A( void ) attribute ( ( signal, naked ) ); void vPortYieldFromTick( void ) attribute ( ( naked ) ); /--------------------------------------------------/
The (A) label within each register shows that the register contains the correct value for the context of
task A.
Step 2: The RTOS tick in terrupt occurs
The RTOS tick occurs just as TaskA is about to execute an LDI instruction. When the interrupt occurs
the AVR automatically places the current program counter (PC) onto the stack before jumping to the
start of the RTOS tick ISR.
Step 3: The RTOS tick interrupt executes
The ISR application code is given below. The comments have been removed to ease reading, but can
be viewed on a previous page.
/* Interrupt service routine for the RTOS tick. */ void SIG_OUTPUT_COMPARE1A( void ) { vPortYieldFromTick();
asm volatile ( "reti" ); } /--------------------------------------------------/ void vPortYieldFromTick( void ) { portSAVE_CONTEXT(); vTaskIncrementTick(); vTaskSwitchContext(); portRESTORE_CONTEXT(); asm volatile ( "ret" ); } /--------------------------------------------------/
SIG_OUTPUT_COMPARE1A() is a naked function, so the first instruction is a call to
vPortYieldFromTick(). vPortYieldFromTick() is also a naked function so the AVR execution context is
saved explicitly by a call to portSAVE_CONTEXT().
portSAVE_CONTEXT() pushes the entire AVR execution context onto the stack of TaskA, resulting in the
the stack illustrated below. The stack pointer for TaskA now points to the top of it's own context.
portSAVE_CONTEXT() completes by storing a copy of the stack pointer. The kernel already has copy of
the TaskB stack pointer - taken the last time TaskB was suspended.
16
Only the program counter remains on the stack.
Step 7: The RTOS tick exits
vPortYieldFromTick() returns to SIG_OUTPUT_COMPARE1A() where the final instruction is a return from
interrupt (RETI). A RETI instruction assumes the next value on the stack is a return address placed
onto the stack when the interrupt occurred.
When the RTOS tick interrupt started the the AVR automatically placed the TaskA return address onto
the stack - the address of the next instruction to execute in TaskA. The ISR altered the stack pointer so
it now points to the TaskB stack. Therefore the return address POP'ed from the stack by the RETI
instruction is actually the address of the instruction TaskB was going to execute immediately before it
was suspended.
The RTOS tick interrupt interrupted TaskA, but is returning to TaskB - the context switch is complete!
