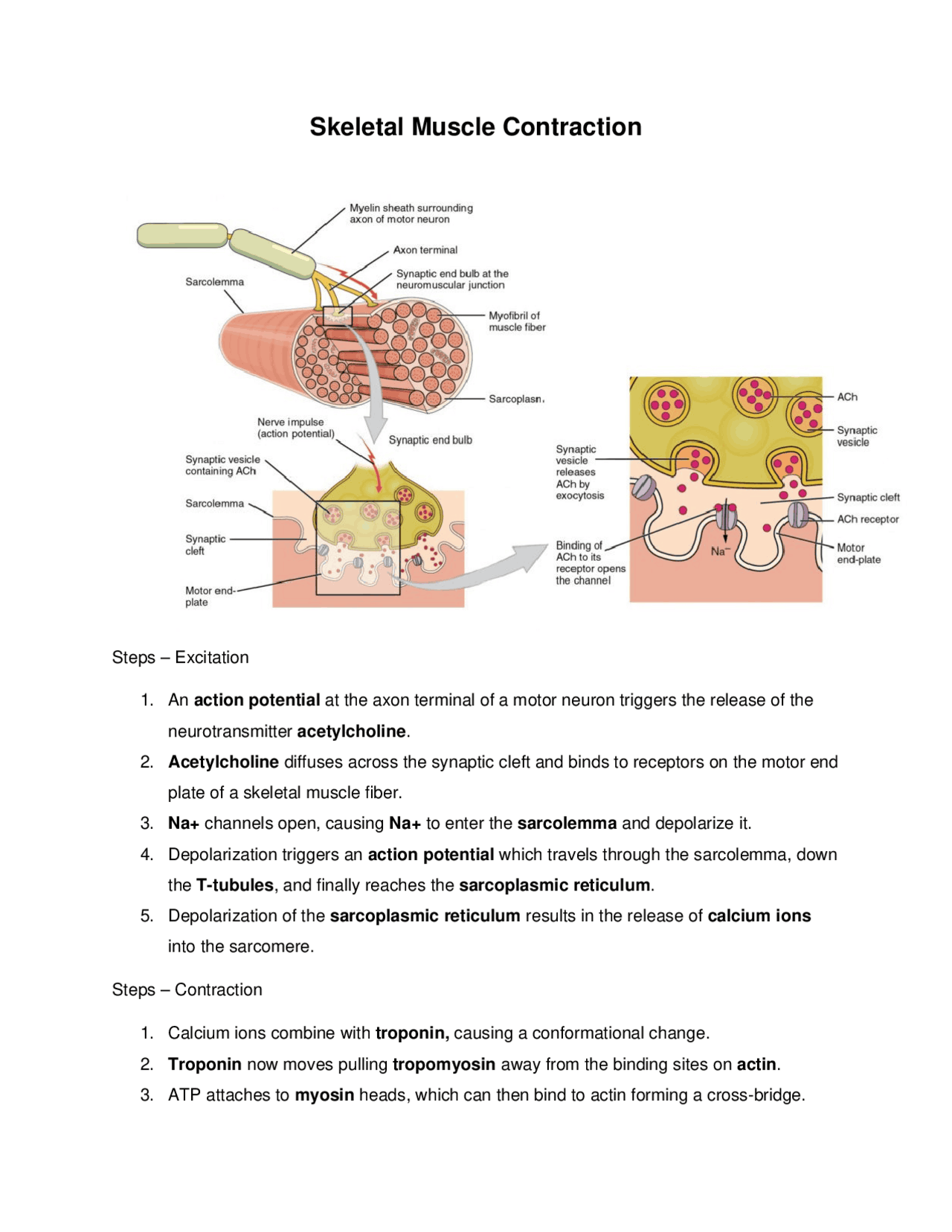

Skeletal Muscle Contraction
Steps – Excitation
1. An action potential at the axon terminal of a motor neuron triggers the release of the
neurotransmitter acetylcholine.
2. Acetylcholine diffuses across the synaptic cleft and binds to receptors on the motor end
plate of a skeletal muscle fiber.
3. Na+ channels open, causing Na+ to enter the sarcolemma and depolarize it.
4. Depolarization triggers an action potential which travels through the sarcolemma, down
the T-tubules, and finally reaches the sarcoplasmic reticulum.
5. Depolarization of the sarcoplasmic reticulum results in the release of calcium ions
into the sarcomere.
Steps – Contraction
1. Calcium ions combine with troponin, causing a conformational change.
2. Troponin now moves pulling tropomyosin away from the binding sites on actin.
3. ATP attaches to myosin heads, which can then bind to actin forming a cross-bridge.
pf3

Partial preview of the text

Download Muscle contraction process explanation and more Schemes and Mind Maps Anatomy in PDF only on Docsity!

Skeletal Muscle Contraction

Steps – Excitation

  1. An action potential at the axon terminal of a motor neuron triggers the release of the neurotransmitter acetylcholine.
  2. Acetylcholine diffuses across the synaptic cleft and binds to receptors on the motor end plate of a skeletal muscle fiber.
  3. Na+ channels open, causing Na+ to enter the sarcolemma and depolarize it.
  4. Depolarization triggers an action potential which travels through the sarcolemma, down the T-tubules , and finally reaches the sarcoplasmic reticulum.
  5. Depolarization of the sarcoplasmic reticulum results in the release of calcium ions into the sarcomere. Steps – Contraction
  6. Calcium ions combine with troponin, causing a conformational change.
  7. Troponin now moves pulling tropomyosin away from the binding sites on actin.
  8. ATP attaches to myosin heads, which can then bind to actin forming a cross-bridge.
  1. Myosin heads swivel towards the center of the sarcomere, pulling actin towards the H zone.
  2. A new ATP molecule binds to myosin causing it to detach from actin. Steps – Relaxation
  3. Acetylcholinesterase breaks down acetylcholine in the synaptic cleft.
  4. Calcium ions are returned to the sarcoplasmic reticulum by active transport.
  5. Troponin and tropomyosin return to their position, blocking the binding sites on actin.
