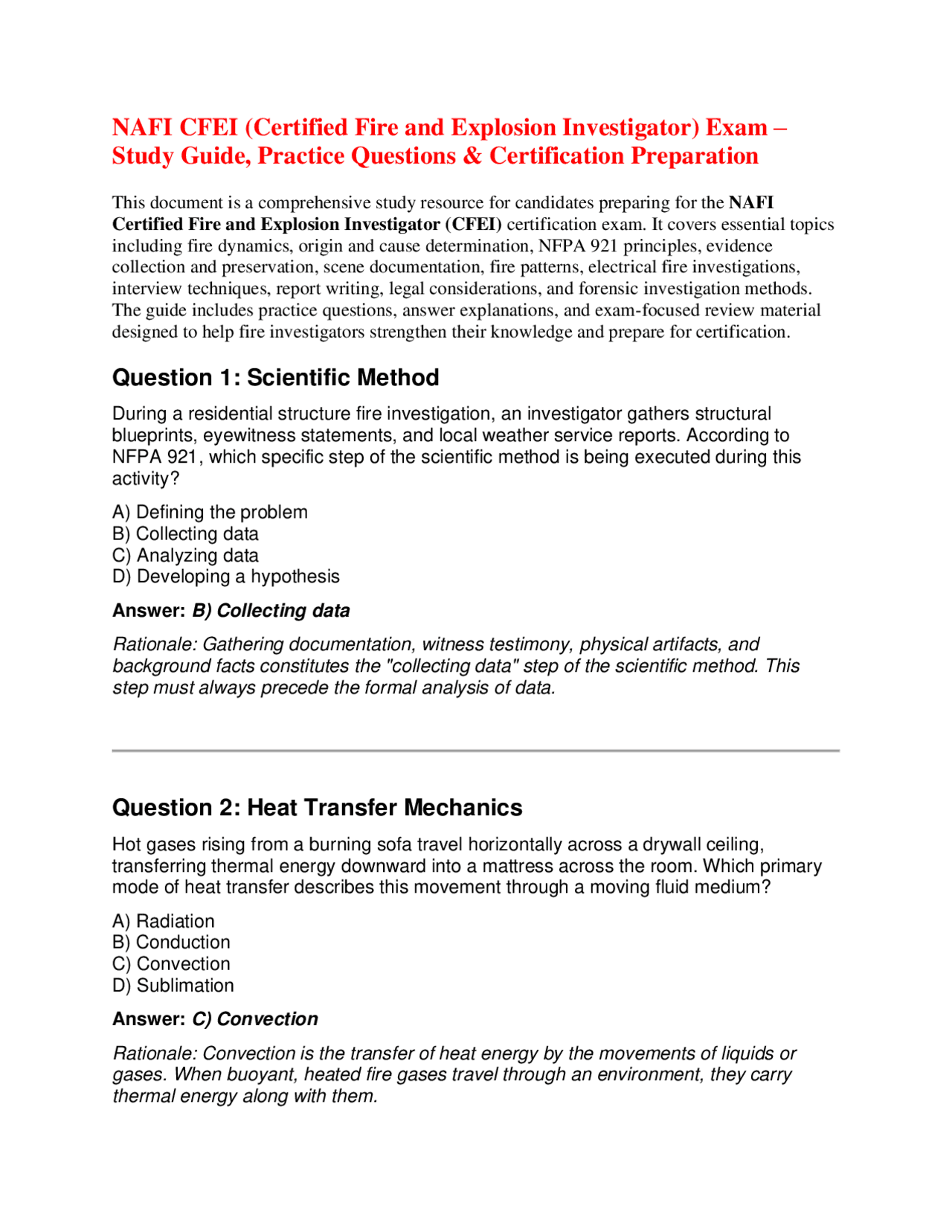

NAFI CFEI (Certified Fire and Explosion Investigator) Exam –
Study Guide, Practice Questions & Certification Preparation
This document is a comprehensive study resource for candidates preparing for the NAFI Certified Fire and Explosion Investigator (CFEI) certification exam. It covers essential topics including fire dynamics, origin and cause determination, NFPA 921 principles, evidence collection and preservation, scene documentation, fire patterns, electrical fire investigations, interview techniques, report writing, legal considerations, and forensic investigation methods. The guide includes practice questions, answer explanations, and exam-focused review material designed to help fire investigators strengthen their knowledge and prepare for certification.
Question 1: Scientific Method
During a residential structure fire investigation, an investigator gathers structural blueprints, eyewitness statements, and local weather service reports. According to NFPA 921, which specific step of the scientific method is being executed during this activity? A) Defining the problem B) Collecting data C) Analyzing data D) Developing a hypothesis Answer: B) Collecting data Rationale: Gathering documentation, witness testimony, physical artifacts, and background facts constitutes the "collecting data" step of the scientific method. This step must always precede the formal analysis of data.
Question 2: Heat Transfer Mechanics
Hot gases rising from a burning sofa travel horizontally across a drywall ceiling, transferring thermal energy downward into a mattress across the room. Which primary mode of heat transfer describes this movement through a moving fluid medium? A) Radiation B) Conduction C) Convection D) Sublimation Answer: C) Convection Rationale: Convection is the transfer of heat energy by the movements of liquids or gases. When buoyant, heated fire gases travel through an environment, they carry thermal energy along with them.
Question 3: Electrical Failure Modes
An investigator discovers an electrical circuit breaker that has tripped due to an overload condition. According to NFPA 921, what constitutes an electrical overload? A) An instantaneous high-current grounding event B) Operation of equipment in excess of its normal, full-load rating C) A severe drop in supply voltage from the utility company D) High-resistance contact generating localized heat Answer: B) Operation of equipment in excess of its normal, full-load rating Rationale: An overload occurs when electrical current exceeds the rated capacity of a conductor or equipment over a sustained period. It differs from a short circuit, which is an immediate, unintended path of negligible resistance.
Question 4: Arc Mapping
An investigator uses arc mapping to narrow down the area of origin. Circuit 1 displays distinct arcing beads, while Circuit 2 shows only external fire melting. Circuit 1 is located upstream in the same room. What does this pattern typically indicate? A) The fire originated near Circuit 2 and spread to Circuit 1. B) Circuit 1 was attacked by the fire first, causing downstream circuits to de-energize. C) Both circuits failed simultaneously due to high room temperatures. D) The breaker for Circuit 1 failed to trip during the fire event. Answer: B) Circuit 1 was attacked by the fire first, causing downstream circuits to de-energize. Rationale: Arc mapping relies on the principle that electrical circuits can only arc while they are energized. Circuits that arc first are typically closer to the point of origin, as subsequent fire spread destroys downstream wiring after power is lost.
Question 5: Scene Safety
While entering a structurally compromised commercial building post-fire, which atmospheric hazard poses the most immediate, persistent threat of chemical asphyxiation to investigators not wearing SCBA?
Rationale: Private sector investigators do not possess public police powers and cannot obtain administrative or criminal search warrants on their own. They must secure explicit consent from the party holding property control or obtain a civil court order.
Question 8: Fire Dynamics
During a compartment fire, a stage is reached where all exposed combustible surfaces within the room are heated to their ignition temperatures, causing them to ignite simultaneously. This transition phase is called: A) Ceiling jet formation B) Backdraft C) Flashover D) Flameover Answer: C) Flashover Rationale: Flashover is the transition phase in the development of a compartment fire where a shift occurs from a fire localized in one item to a fire involving all combustible surfaces within the room, driven by radiant heat.
Question 9: Evidence Preservation
An investigator collects a liquid sample suspected of containing gasoline from a concrete floor. Which container type is standard for preserving this volatile organic compound evidence? A) A clean, unlined Ziploc polyethylene plastic bag B) A new, clean, lined paint can with an airtight friction lid C) A clear glass jar sealed with a standard rubber gasket D) A clean cardboard evidence box secured with paper tape Answer: B) A new, clean, lined paint can with an airtight friction lid Rationale: Volatile hydrocarbons can migrate through ordinary plastic bags and break down rubber gaskets over time. New, unlined or specially lined metal paint cans with tight friction lids are standard for containing vaporous accelerant evidence.
Question 10: Definitions
According to NFPA 921, the temperature to which a fuel must be heated in air to introduce self-sustained combustion independent of the external heating source is called the: A) Flash point B) Fire point C) Autoignition temperature D) Boiling point Answer: C) Autoignition temperature Rationale: The autoignition temperature is the minimum temperature required to initiate or cause self-sustained combustion in any substance without an external spark or flame source. Flash and fire points require an ignition source.
Question 11: Origin Determination
When executing an origin investigation, which directional sequence should an investigator follow to maintain systematic objectivity? A) From the area of least damage to the area of greatest damage B) From the area of greatest damage to the area of least damage C) From the exterior roof line directly downward to the basement floor D) From the suspected point of origin outward to the property perimeter Answer: A) From the area of least damage to the area of greatest damage Rationale: Working from the areas of least damage toward the areas of greatest damage allows the investigator to systematically track fire patterns backwards, preserves fragile evidence in high-burn areas, and builds a contextual map of fire behavior.
Question 12: Building Construction
A building utilizes structural framing members made of non-combustible materials, but the walls, floors, and roof assemblies have no fire-resistive ratings. According to NFPA 220, what construction type is this? A) Type I (Fire-Resistive) B) Type II (Non-combustible / Unprotected) C) Type III (Ordinary) D) Type IV (Heavy Timber)
Question 15: Explosion Types
A chemical explosion occurs within a confined space when a dust cloud of grain particles encounters an open flame, resulting in a flame front propagation speed that is slower than the speed of sound. This event is a: A) Detonation B) Deflagration C) Implosion D) Thermal runaway Answer: B) Deflagration Rationale: A deflagration is an exothermic reaction or chemical explosion where the reaction front advances into the unburned material at a propagation velocity that is subsonic (slower than the speed of sound).
Question 16: Materials Analysis
An investigator notes that a steel structural I-beam in a commercial building has sagged, twisted, and distorted heavily without melting. At approximately what temperature does structural steel lose roughly half of its load-bearing design strength? A) 200°C (392°F) B) 593°C (1,100°F) C) 1,100°C (2,012°F) D) 1,538°C (2,800°F) Answer: B) 593°C (1,100°F) Rationale: Structural steel exhibits a severe drop in structural integrity and yields under load when exposed to temperatures around 593°C (1,100°F), losing approximately 50% of its strength well before reaching its actual melting point.
Question 17: Hypotheses Formulation
An investigator concludes that an electrical outlet caused a fire because "no other ignition sources were present in the room," despite finding no physical evidence of arcing or failure on the receptacle. This logical fallacy violates NFPA 921 and is known as: A) Deductive certainty B) Process of elimination (Negative Corpus)
C) Empirical validation D) Systemic correlation Answer: B) Process of elimination (Negative Corpus) Rationale: NFPA 921 clarifies that identifying an ignition source through the complete absence of proof for other sources (Negative Corpus) is an unscientific practice. An ignition source hypothesis must be supported by positive physical evidence or data.
Question 18: Fire Classifications
A fire is determined to have been caused by lightning striking an exterior pine tree and jumping to the service entrance mast of a residential home. What is the correct classification for this fire cause? A) Accidental B) Natural C) Incendiary D) Undetermined Answer: B) Natural Rationale: Natural fire causes involve environmental forces acting without direct human intervention or human error, such as lightning strikes, earthquakes, volcanic eruptions, or high winds.
Question 19: Thermodynamics
What is the term for the chemical decomposition of a solid matter through the direct application of thermal energy, occurring before or during its actual combustion? A) Deflagration B) Calcination C) Pyrolysis D) Oxidation Answer: C) Pyrolysis Rationale: Pyrolysis is the chemical decomposition of a solid or liquid substance by heating. It converts solid carbon-based fuels into flammable vapors capable of mixing with air to support flaming combustion.
A) The distance to the nearest municipal fire hydrant B) A clear compass arrow pointing to True or Magnetic North C) The location of the responding fire engine's attack line D) The manufacturer serial numbers of all light switches Answer: B) A clear compass arrow pointing to True or Magnetic North Rationale: A North arrow is an essential drafting element on any schematic or scene layout, ensuring that readers, attorneys, and peer reviewers can accurately orient the spatial layouts of walls, doors, and fire patterns.
Question 23: Appliance Fire Analysis
A residential toaster is suspected of initiating a fire. While examining the internal electrical components, the investigator notes that the mechanical lifter assembly is fused in the down position and the heating elements show localized severe oxidation. What should the investigator do next? A) Disassemble the heating wires on-site using standard pliers. B) Discard the toaster and document it solely via field notes. C) Preserve the appliance intact for lab analysis and x-ray imaging. D) Scrap the housing to inspect the underlying countertop surface. Answer: C) Preserve the appliance intact for lab analysis and x-ray imaging. Rationale: Suspected appliances require non-destructive laboratory testing, such as x- ray radiography, to verify internal contact conditions, micro-welds, or component failures without altering the evidence through manual disassembly.
Question 24: Legal Considerations
In the landmark U.S. Supreme Court case Michigan v. Tyler , what guiding rule was established regarding public officials and fire scene search constraints? A) Public officials need no warrant if a fire occurs on commercial land. B) Investigators may remain on scene for a reasonable time to determine origin and cause, but subsequent re-entries require a warrant or consent. C) Fire patterns are not protected by Fourth Amendment privacy laws. D) All arson scenes require a criminal warrant before fire suppression begins. Answer: B) Investigators may remain on scene for a reasonable time to determine origin and cause, but subsequent re-entries require a warrant or consent.
Rationale: Michigan v. Tyler established that while immediate entry to fight a fire and investigate its cause is an exigent circumstance requiring no warrant, administrative entries conducted days or weeks later require administrative warrants or owner consent.
Question 25: Fire Chemistry
The minimum concentration of a flammable gas or vapor in air below which propagation of a flame does not occur when exposed to an ignition source is known as the: A) Upper Flammable Limit (UFL) B) Lower Flammable Limit (LFL) C) Stoichiometric Midpoint D) Vapor Pressure Threshold Answer: B) Lower Flammable Limit (LFL) Rationale: The Lower Flammable Limit (LFL) is the minimum concentration of fuel vapor in air that can propagate a flame. Below this concentration, the mixture is considered too "lean" to burn.
Question 26: Calcination
An investigator scratches the surface of a fire-damaged drywall sheet and notes a deep, chalky, crumbly white layer that lacks structural cohesion. This chemical transformation of gypsum board due to heat exposure is called: A) Pyrolysis B) Charring C) Calcination D) Vitrification Answer: C) Calcination Rationale: Calcination is the process where gypsum drywall loses its chemically bound crystalline water when exposed to fire. Measuring the depth of calcination across walls can help track radiant heat exposure and locate the origin.
Question 27: Explosion Dynamics
Answer: D) Radiant shielding from a heavy object located on the floor during the fire. Rationale: Shielding patterns occur when an object blocks radiant heat and soot deposition from reaching a specific surface area. The clean area reflects protection from the object, which was subsequently removed during overhaul.
Question 30: Human Behavior
An analysis of fire fatalities indicates that victims frequently attempt to escape using familiar paths and routine exits, even if those paths are blocked by smoke or fire. This sociological and psychological phenomenon is known as: A) Panic flight syndrome B) Behavioral role stereotyping C) Habitual egress routing (Role Preservation) D) Agoraphobic convergence Answer: C) Habitual egress routing (Role Preservation) Rationale: Human behavior studies in fires demonstrate that individuals under stress naturally default to familiar pathways (such as the main door they always use) rather than seeking out emergency fire exits.
Question 31: Scientific Method
An investigator formulates three different ideas regarding how a warehouse fire could have started. To satisfy the scientific method, the investigator must now compare these ideas against all known evidence collected from the scene. This phase is known as: A) Hypothesis development B) Hypothesis testing C) Empirical collection D) Data classification Answer: B) Hypothesis testing Rationale: Testing hypotheses requires examining each potential cause against the physical facts, fire patterns, timelines, and thermodynamic principles gathered during the scene examination to determine if it can be proven or disproven.
Question 32: Photographic Documentation
When systematically documenting a fire scene photographically, what sequence should the investigator use to establish proper visual context for external reviewers? A) Close-up views → Medium views → Sequential exterior wide shots B) Exterior wide shots → Medium interior views → Detailed close-up views C) Randomly capturing items as they are uncovered during excavation D) Focusing exclusively on the suspected point of origin with macro lenses Answer: B) Exterior wide shots → Medium interior views → Detailed close-up views Rationale: Standard photographic methodology dictates working from the outside inward. Exterior wide shots establish the building's setting, medium shots document room layouts and patterns, and close-ups capture specific evidence details.
Question 33: Fire Chemistry
What is the term for an oil or fat that reacts with oxygen at room temperature without an external heat source, creating an escalating exothermic reaction cycle? A) Saturated hydrocarbon B) Unsaturated fatty acid C) Noble gas compound D) High-density polymer Answer: B) Unsaturated fatty acid Rationale: Unsaturated fatty acids (found in vegetable or linseed oils) contain double chemical bonds that readily react with oxygen. This oxidation process releases heat, driving spontaneous combustion if insulated.
Question 34: Sovereign Immunity & Evidence
During a fire scene overhaul, a fire department crew uses high-pressure water streams to spray down a room, washing away valuable physical evidence before the investigator can document it. This unintended destruction or alteration of physical evidence is called: A) Subrogation B) Spoliation C) Interrogatory D) Recusal
Question 37: Fire Patterns
What type of wall pattern is produced when a localized fire plume is blocked by a horizontal ceiling, forcing the thermal energy to spread outward symmetrically in all directions? A) Inverted cone pattern B) Saddle burn pattern C) Pointer pattern D) Circular ceiling jet plume pattern Answer: D) Circular ceiling jet plume pattern Rationale: When a buoyant plume of hot gases hits a flat ceiling, it is deflected horizontally, moving outward radially to create a circular ceiling jet pattern of thermal discoloration and soot.
Question 38: Marine Investigations
Unlike land-based structures, fire investigations on commercial marine vessels require investigators to pay close attention to which structural stability element when dealing with large volumes of water from fire suppression? A) Siphon drainage pressure B) The vessel's center of gravity and buoyancy (Metacentric height) C) Exterior hull barnacle growth rates D) Deck canvas tensile strength Answer: B) The vessel's center of gravity and buoyancy (Metacentric height) Rationale: Accumulating water from fire hoses on upper decks can destabilize a vessel's center of gravity, risking capsizing or sinking during or immediately after fire suppression efforts.
Question 39: Physical Evidence
An investigator packages an item containing soil suspected of being contaminated with a liquid accelerant. Why should soil samples be analyzed or frozen as quickly as possible by the forensic laboratory? A) Concrete particles inside soil neutralize hydrocarbons within an hour. B) Soil microbes can consume and metabolize hydrocarbon vapors over time.
C) Soil samples naturally mutate into low explosives if kept warm. D) Organic clay dissolves standard metal evidence cans. Answer: B) Soil microbes can consume and metabolize hydrocarbon vapors over time. Rationale: Soil contains active biological bacteria and microorganisms that use petroleum hydrocarbons as a food source. If left unmanaged at warm temperatures, these microbes can destroy accelerant evidence.
Question 40: Definitions
According to NFPA 921, a fuel item that is ignited by an initial heat source and subsequently transmits fire to adjacent secondary fuel packages is known as the: A) Primary target fuel B) Initial fuel package C) Intermediate ignition vector D) Main thermal engine Answer: B) Initial fuel package Rationale: The first fuel item ignited by the heat source is termed the initial fuel package. Its burning characteristics determine whether the fire generates enough radiant energy to ignite adjacent objects.
Question 41: Electrical Arcing
What is the term for a high-temperature luminous electric discharge across a gap between two electrical conductors, capable of reaching temperatures over 2,000°C (3,632°F)? A) Inductive capacitance B) Ground fault tracking C) Electrical arc D) Dielectric breakdown Answer: C) Electrical arc Rationale: An electrical arc is a high-temperature discharge across an insulating medium gap. It can ignite nearby ordinary combustibles due to the extreme temperatures generated within the plasma stream.
C) Charring is deeper on the side of the branch facing the approaching fire front. D) The branch tips twist 180 degrees toward magnetic north. Answer: C) Charring is deeper on the side of the branch facing the approaching fire front. Rationale: As a wildfire progresses through vegetation, the side of a plant or branch facing the oncoming fire front receives the most direct radiant and convective heat, resulting in deeper charring on that side.
Question 45: Evidence Chains
A fire investigator maintains a continuous, documented log tracking every single individual who takes physical custody of an accelerant can from the moment it is collected at the scene until it is introduced in court. This protocol is called the: A) Custodial processing manifest B) Chain of custody C) Forensic tracking sequence D) Evidence path record Answer: B) Chain of custody Rationale: The chain of custody is a legally mandated log that records the collection, transfer, analysis, and storage of physical evidence. Any undocumented gaps can compromise the evidence's admissibility in court.
Question 46: Explosion Physics
What term describes the rapid expansion of gases resulting in a destructive pressure wave that projects outward radially from an explosion epicenter? A) Structural vacuum wave B) Blast pressure front C) Seismic tracking arc D) Convective vent line Answer: B) Blast pressure front Rationale: The blast pressure front is the expanding wave of compressed air and gases generated by an explosion. It travels outward from the source, causing structural damage and projecting debris.
Question 47: Fire Safety Systems
An investigator notes that a commercial kitchen fire was quickly extinguished by an overhead wet-chemical fire suppression system. According to NFPA 96, what primary chemical reaction allows these agents to extinguish hot cooking grease fires? A) Calcination B) Pyrolysis C) Saponification D) Sublimation Answer: C) Saponification Rationale: Wet-chemical agents react with hot cooking fats and oils to form an alkaline soapy foam blanket through a process called saponification. This blanket cuts off oxygen supplies and cools the fuel.
Question 48: Wood Char Analysis
An investigator examines wood framing studs and notes a surface pattern of large, shiny, deeply blistered char formations ("alligator char"). NFPA 921 states that this visual appearance indicates: A) The certain use of a liquid accelerant like kerosene. B) A fast-developing, high-intensity radiant heat exposure. C) A slow, smoldering fire that lasted for several days. D) An electrical short circuit within an adjacent wall cavity. Answer: B) A fast-developing, high-intensity radiant heat exposure. Rationale: Large, shiny, well-defined char blisters typically indicate rapid exposure to high radiant heat flux. NFPA 921 cautions that char appearance alone cannot confirm or rule out the presence of accelerants.
Question 49: Fuel-Controlled vs. Ventilation-Controlled
A fire occurs inside a modern, tightly sealed, energy-efficient office building. The fire consumes available oxygen until flaming combustion transitions to a hot, smoldering state. This compartment condition is classified as:
