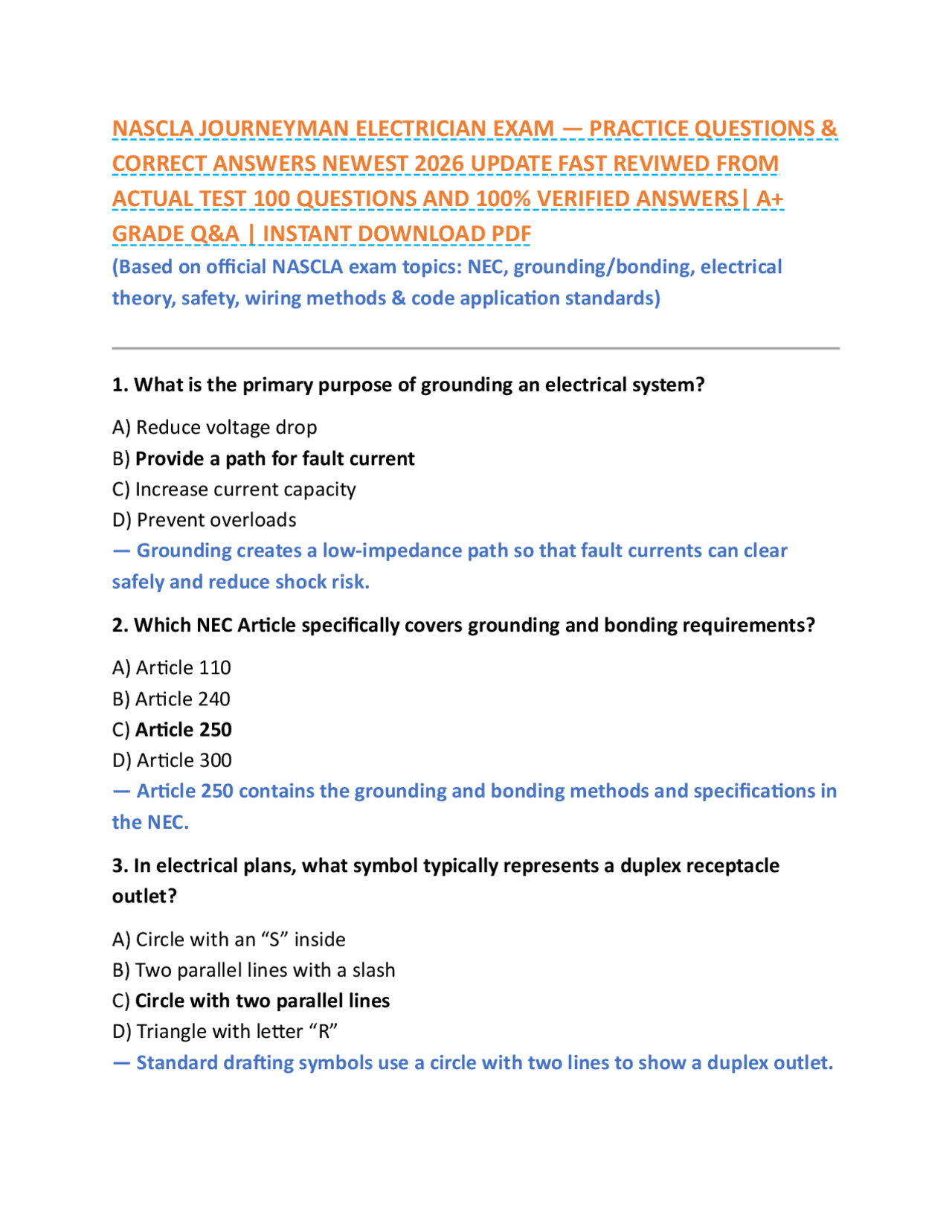

NASCLA JOURNEYMAN ELECTRICIAN EXAM — PRACTICE QUESTIONS &
CORRECT ANSWERS NEWEST 2026 UPDATE FAST REVIWED FROM
ACTUAL TEST 100 QUESTIONS AND 100% VERIFIED ANSWERS| A+
GRADE Q&A | INSTANT DOWNLOAD PDF
(Based on official NASCLA exam topics: NEC, grounding/bonding, electrical
theory, safety, wiring methods & code application standards)
1. What is the primary purpose of grounding an electrical system?
A) Reduce voltage drop
B) Provide a path for fault current
C) Increase current capacity
D) Prevent overloads
— Grounding creates a low-impedance path so that fault currents can clear
safely and reduce shock risk.
2. Which NEC Article specifically covers grounding and bonding requirements?
A) Article 110
B) Article 240
C) Article 250
D) Article 300
— Article 250 contains the grounding and bonding methods and specifications in
the NEC.
3. In electrical plans, what symbol typically represents a duplex receptacle
outlet?
A) Circle with an “S” inside
B) Two parallel lines with a slash
C) Circle with two parallel lines
D) Triangle with letter “R”
— Standard drafting symbols use a circle with two lines to show a duplex outlet.
