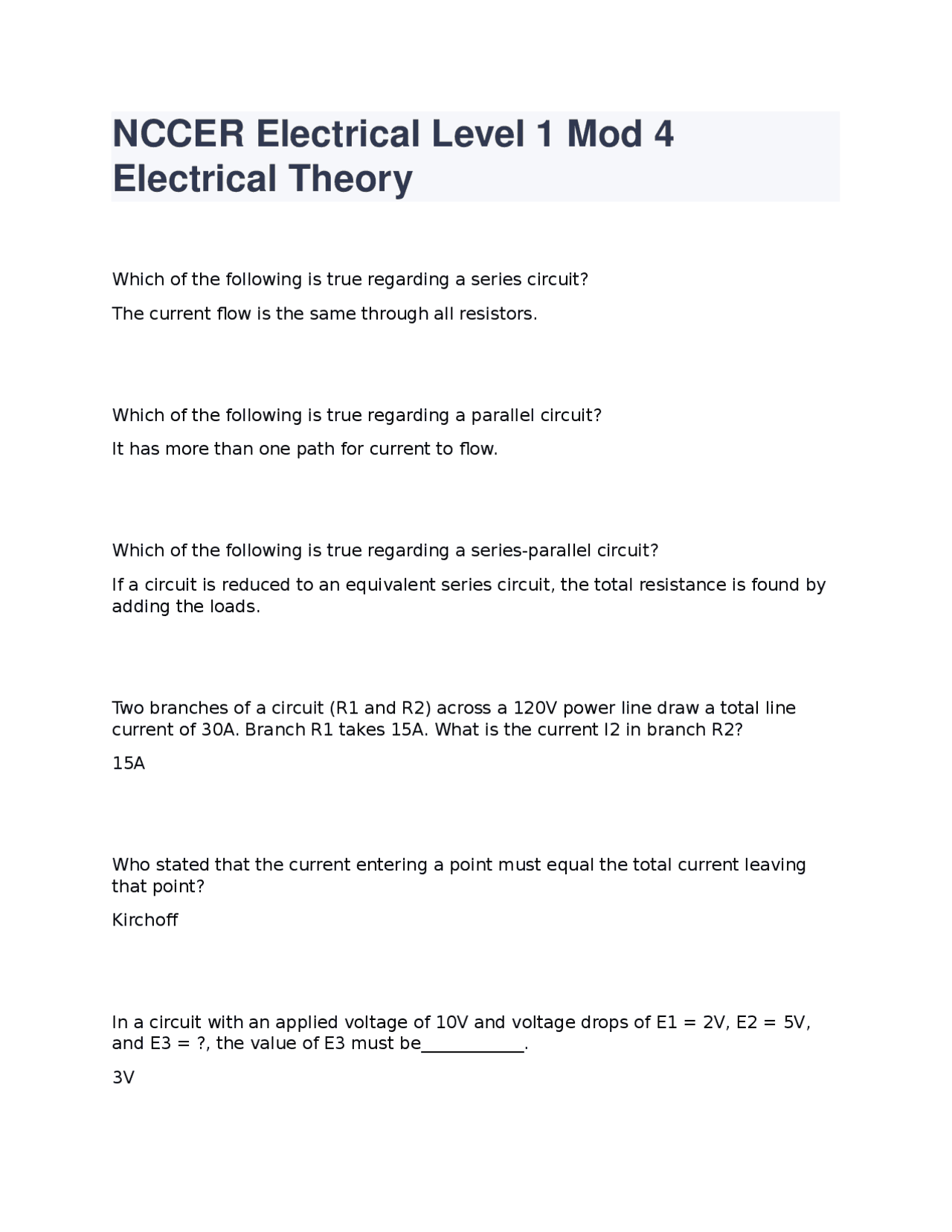

NCCER Electrical Level 1 Mod 4
Electrical Theory
Which of the following is true regarding a series circuit?
The current flow is the same through all resistors.
Which of the following is true regarding a parallel circuit?
It has more than one path for current to flow.
Which of the following is true regarding a series-parallel circuit?
If a circuit is reduced to an equivalent series circuit, the total resistance is found by
adding the loads.
Two branches of a circuit (R1 and R2) across a 120V power line draw a total line
current of 30A. Branch R1 takes 15A. What is the current I2 in branch R2?
15A
Who stated that the current entering a point must equal the total current leaving
that point?
Kirchoff
In a circuit with an applied voltage of 10V and voltage drops of E1 = 2V, E2 = 5V,
and E3 = ?, the value of E3 must be____________.
3V
