NCCT Limited X-Ray Machine Operator Certification Exam (LCXMO) Practice Questions And Co, Exams of Health, psychology

Chamberlain College of NursingHealth, psychology

NCCT Limited X-Ray Machine Operator Certification Exam (LCXMO) Practice Questions And Correct Answers (Verified Answers) Plus Rationales 2026 Q&A | Instant Download Pdf

Typology: Exams

2025/2026

Available from 01/08/2026

Theexamwhisperer
Theexamwhisperer 🇺🇸

3

(9)

24K documents

1 / 39

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

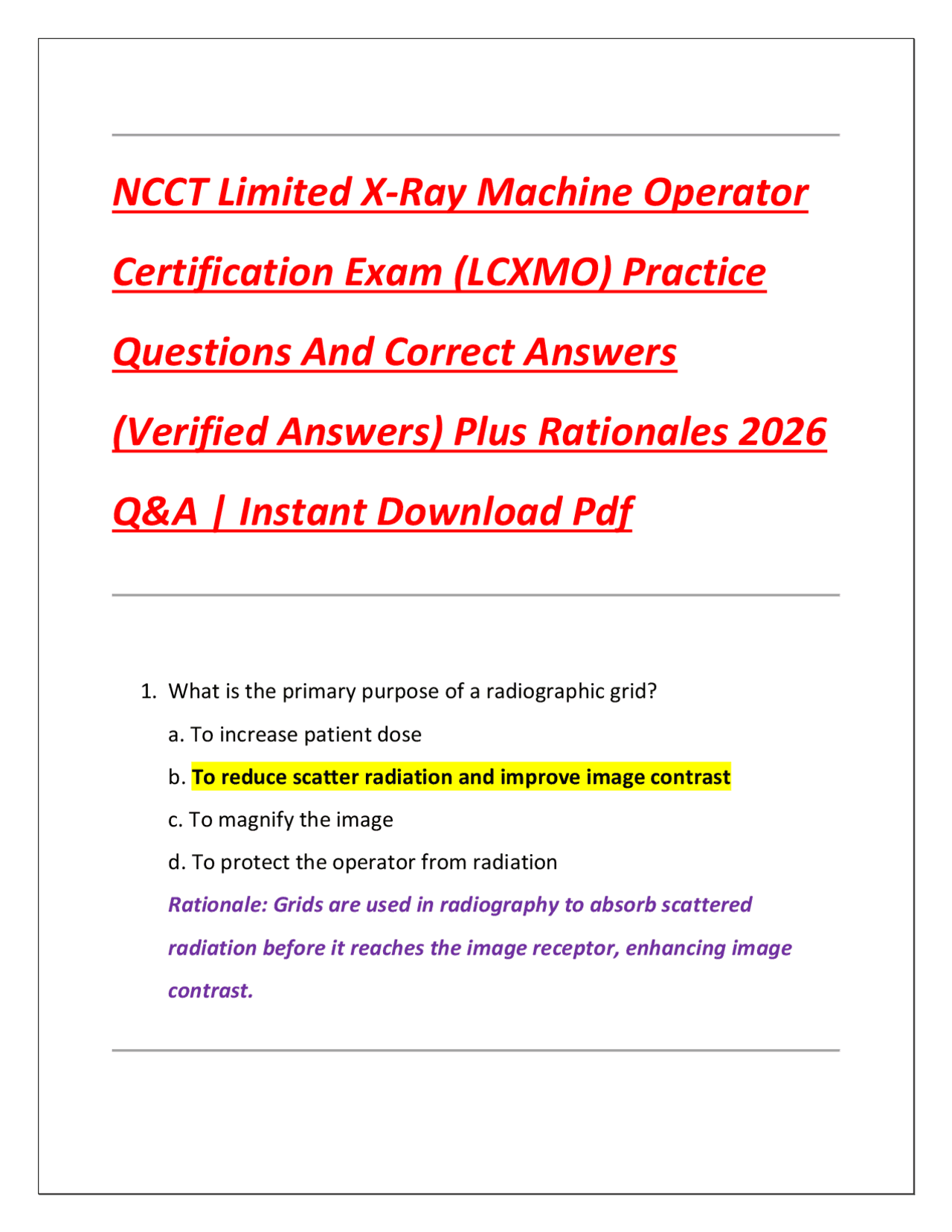

NCCT Limited X-Ray Machine Operator
Certification Exam (LCXMO) Practice
Questions And Correct Answers
(Verified Answers) Plus Rationales 2026
Q&A | Instant Download Pdf
1. What is the primary purpose of a radiographic grid?
a. To increase patient dose
b. To reduce scatter radiation and improve image contrast
c. To magnify the image
d. To protect the operator from radiation
Rationale: Grids are used in radiography to absorb scattered
radiation before it reaches the image receptor, enhancing image
contrast.
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27

Partial preview of the text

Download NCCT Limited X-Ray Machine Operator Certification Exam (LCXMO) Practice Questions And Co and more Exams Health, psychology in PDF only on Docsity!

NCCT Limited X-Ray Machine Operator

Certification Exam (LCXMO) Practice

Questions And Correct Answers

(Verified Answers) Plus Rationales 2026

Q&A | Instant Download Pdf

  1. What is the primary purpose of a radiographic grid? a. To increase patient dose b. To reduce scatter radiation and improve image contrast c. To magnify the image d. To protect the operator from radiation Rationale: Grids are used in radiography to absorb scattered radiation before it reaches the image receptor, enhancing image contrast.
  1. What type of radiation is produced when high-speed electrons strike the target in an X-ray tube? a. Ultraviolet radiation b. Alpha radiation c. X-ray radiation d. Gamma radiation Rationale: When electrons collide with the anode target, X-rays are produced through the bremsstrahlung and characteristic processes.
  2. Which part of the X-ray tube is the source of electrons? a. Target b. Glass envelope c. Collimator d. Cathode Rationale: The cathode contains the filament that emits electrons when heated.
  3. The function of a collimator in radiography is to: a. Increase the X-ray tube current b. Restrict the size of the X-ray beam c. Measure patient dose d. Amplify image brightness

c. Distance d. Exposure time Rationale: kVp controls the energy of X-ray photons, which directly affects contrast by influencing penetration and scatter.

  1. A grid ratio is defined as: a. Height of lead strips ÷ distance between them b. Height of lead strips ÷ interspace thickness c. Interspace thickness ÷ height of lead strips d. Lead strip thickness ÷ distance from patient Rationale: Grid ratio is the ratio of the height of the lead strips to the thickness of the interspaces, affecting scatter absorption.
  2. What is the function of the anode in the X-ray tube? a. Emit electrons b. Serve as the target for electron collisions to produce X-rays c. Cool the cathode d. Filter scattered radiation Rationale: The anode receives high-speed electrons from the cathode, producing X-rays upon collision.
  1. Which of the following is considered a stochastic effect of radiation? a. Skin erythema b. Cataract formation c. Cancer induction d. Hair loss Rationale: Stochastic effects occur by chance and have no threshold; cancer is an example.
  2. Inverse square law states that radiation intensity: a. Increases with distance b. Decreases with the square of the distance from the source c. Remains constant with distance d. Is proportional to mAs Rationale: Intensity diminishes as distance increases, following I1/I = (D2²/D1²).
  3. The purpose of filtration in X-ray equipment is to: a. Increase scatter b. Remove low-energy X-rays c. Cool the X-ray tube d. Focus the beam

a. 0.05 mm b. 0.10 mm c. 0.25–0.5 mm Pb equivalent d. 1 mm Rationale: Standard lead aprons are 0.25–0.5 mm lead equivalent to attenuate scatter radiation safely.

  1. The cathode filament is heated by: a. kVp b. mA c. Exposure time d. Collimator Rationale: The filament current (mA) heats the cathode, causing thermionic emission of electrons.
  2. The term “focal spot” refers to: a. Cathode filament b. Area on the anode where electrons strike c. Collimator opening d. Tube housing Rationale: The focal spot is the specific area on the anode target that emits X-rays.
  1. Which type of X-ray interaction primarily produces scatter radiation in soft tissue? a. Photoelectric effect b. Compton effect c. Pair production d. Coherent scattering Rationale: The Compton effect occurs when an X-ray photon ejects an outer-shell electron, producing scattered radiation.
  2. If a patient’s body part is thicker than normal, what adjustment is needed? a. Decrease kVp b. Increase kVp or mAs c. Shorten exposure time d. Remove the grid Rationale: Thicker body parts require more penetration or higher photon quantity to produce adequate image density.
  3. Which of the following is NOT a property of X-rays? a. Travel in straight lines b. Cause fluorescence
  1. Which principle is used to minimize patient exposure in radiography? a. ALARA b. ALARA (As Low As Reasonably Achievable) c. HARP d. DICOM Rationale: ALARA emphasizes minimizing radiation dose while achieving diagnostic quality.
  2. A radiographic image with long scale contrast will appear: a. Gray with many shades b. Black and white c. Very dark d. Very light Rationale: Long scale contrast has low contrast with many gray shades, often from high kVp settings.
  3. Which factor affects the sharpness of a radiographic image the most? a. mAs b. Focal spot size c. kVp d. Tube current

Rationale: Smaller focal spots reduce penumbra, improving image sharpness.

  1. What is the recommended maximum weekly dose for occupational exposure to whole-body radiation? a. 50 mSv b. 0.5 mSv/week (or 50 mSv/year) c. 10 mSv/week d. 100 mSv/year Rationale: Occupational exposure limits are regulated to minimize stochastic effects; the standard is 50 mSv/year.
  2. Which of the following will NOT reduce patient dose? a. Using a grid b. Collimation c. Proper filtration d. Increasing exposure time Rationale: Longer exposure time increases dose; grids, collimation, and filtration reduce unnecessary radiation.
  3. The term “radiopacity” refers to: a. Ability of tissue to emit X-rays
  1. Which type of X-ray tube target material is commonly used for diagnostic imaging? a. Tungsten b. Aluminum c. Tungsten or Molybdenum (for mammography) d. Copper Rationale: Tungsten has a high atomic number and melting point, ideal for producing X-rays.
  2. How does increasing kVp affect patient dose? a. Can decrease dose if mAs is reduced b. Always increases dose c. Has no effect d. Reduces scatter only Rationale: Higher kVp increases penetration, allowing lower mAs, which can reduce dose.
  3. Which part of the X-ray film is sensitive to radiation? a. Base b. Emulsion c. Lead backing d. Protective coating

Rationale: The emulsion contains silver halide crystals that react to X-rays to create the latent image.

  1. The term “quantum mottle” refers to: a. Overexposure b. Grainy appearance due to insufficient photons c. Motion blur d. Scatter radiation Rationale: Quantum mottle occurs when not enough photons reach the receptor, causing a grainy image.
  2. Which factor primarily affects patient entrance skin dose? a. kVp b. mAs c. Grid ratio d. Focal spot Rationale: mAs determines the number of photons, directly influencing skin dose.
  3. For safety, the control panel must: a. Be near the patient b. Be behind protective barrier or at a safe distance
  1. The radiographic density is primarily controlled by: a. kVp b. mAs c. Grid ratio d. Distance Rationale: mAs determines the total number of X-ray photons, directly affecting density.
  2. The primary use of intensifying screens is to: a. Reduce image blur b. Increase X-ray beam energy c. Reduce patient dose by converting X-rays to light d. Collimate the beam Rationale: Screens reduce dose by increasing efficiency of photon detection.
  3. How should X-ray tubes be positioned to avoid motion blur? a. Keep tube stationary b. Align tube and patient properly, and use short exposure time c. Use high mA only d. Use grids only Rationale: Proper alignment and short exposure minimize motion blur in the image.
  1. Which type of radiography uses a continuous X-ray beam for imaging? a. CT scan b. Fluoroscopy c. Mammography d. CR/DR Rationale: Fluoroscopy provides real-time imaging using a continuous X-ray beam.
  2. The anode heel effect causes: a. Increased patient dose on cathode side b. Variation in X-ray intensity across the field c. Scatter radiation only d. Increased mAs requirement Rationale: X-rays are more intense on the cathode side due to absorption in the anode heel.
  3. Which factor does NOT affect X-ray attenuation in tissue? a. Tissue density b. Tissue thickness c. Operator experience
  1. What type of radiation is responsible for fogging the film? a. Primary radiation b. Scatter radiation c. Bremsstrahlung radiation d. Gamma rays Rationale: Scatter radiation reaches the receptor from directions other than the primary beam, causing fog.
  2. Which is the safest position for the operator during exposure? a. Directly in front of the tube b. Behind a protective barrier or at 90–135° angle from the beam c. Next to the patient d. Holding the tube manually Rationale: Standing behind barriers or at angles minimizes exposure to scatter radiation.
  3. Which body part has the highest natural radiodensity? a. Lung b. Fat c. Bone d. Muscle Rationale: Bone is radiopaque due to its high calcium content and density.
  1. What is the main advantage of digital radiography over film? a. Higher patient dose b. Immediate image viewing and post-processing c. Less efficient capture d. Requires chemical processing Rationale: Digital radiography allows instant image review, adjustment, and storage, reducing repeat exposures.
  2. The filament in the X-ray tube is made of: a. Tungsten b. Copper c. Tungsten or thoriated tungsten d. Aluminum Rationale: Tungsten is used for filaments because of its high melting point and durability; thoriated tungsten improves electron emission.
  3. A short exposure time is most important for: a. Increasing contrast b. Reducing motion blur c. Decreasing density d. Increasing scatter
