Exam

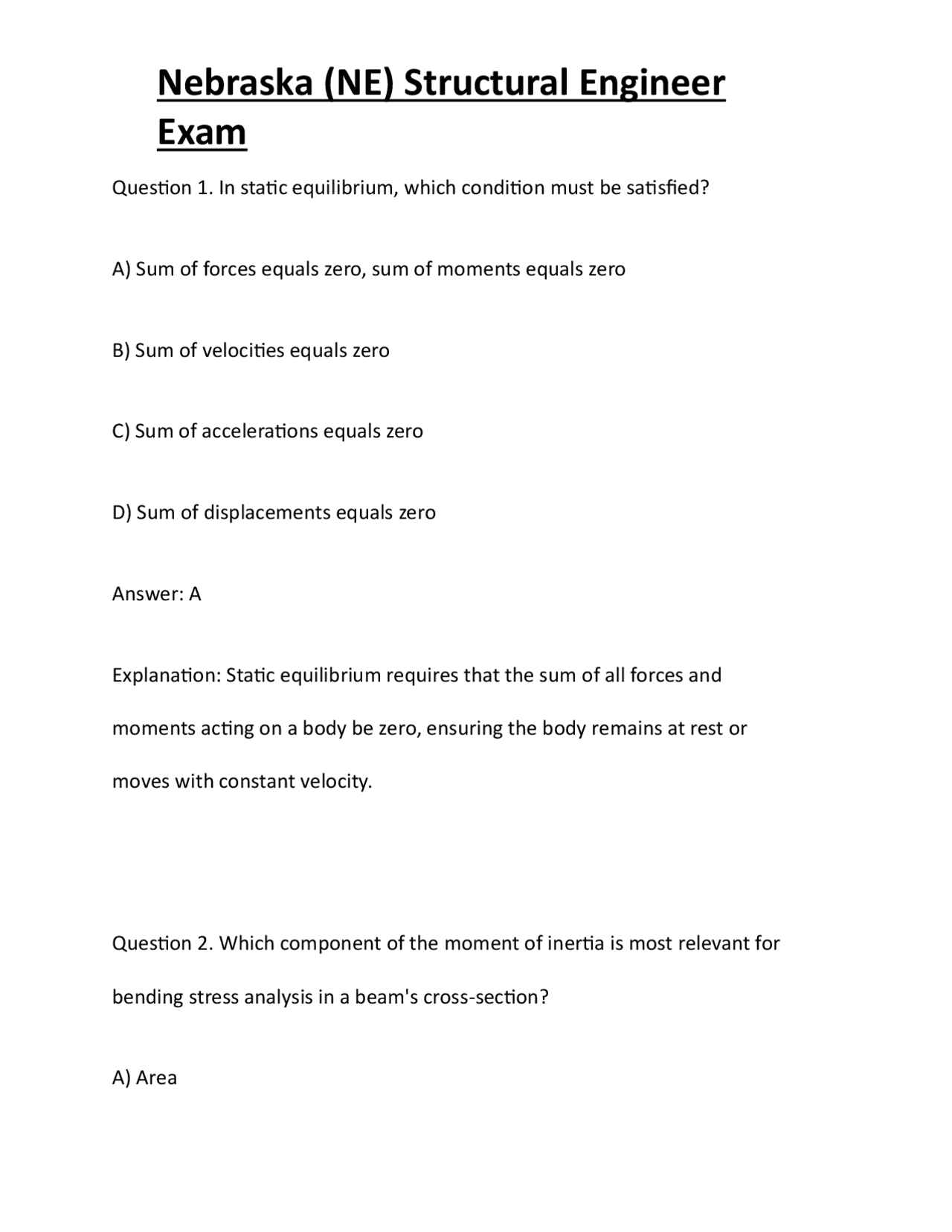

Question 1. In static equilibrium, which condition must be satisfied? A) Sum of forces equals zero, sum of moments equals zero B) Sum of velocities equals zero C) Sum of accelerations equals zero D) Sum of displacements equals zero Answer: A Explanation: Static equilibrium requires that the sum of all forces and moments acting on a body be zero, ensuring the body remains at rest or moves with constant velocity. Question 2. Which component of the moment of inertia is most relevant for bending stress analysis in a beam's cross-section? A) Area
Exam
B) Second moment of area C) Centroid D) Radius of gyration Answer: B Explanation: The second moment of area (moment of inertia) determines a cross-section's resistance to bending; higher values reduce bending stresses. Question 3. When analyzing the kinematics of a rigid body, which of the following is primarily concerned? A) Forces and moments B) Displacements and velocities C) Material properties D) Stress and strain
Exam
Question 5. Which of the following best describes the concept of principal stresses? A) Normal stresses acting at an angle B) Maximum and minimum normal stresses at a point C) Shear stresses acting on planes D) Torsional stresses in a shaft Answer: B Explanation: Principal stresses are the maximum and minimum normal stresses at a point, occurring on mutually perpendicular planes where shear stresses are zero. Question 6. In a determinate truss, the internal forces can be found using which method?
Exam
A) Force method B) Displacement method C) Finite element method D) Influence line method Answer: A Explanation: The force method is typically used for analyzing determinate trusses, leveraging static equilibrium equations directly. Question 7. Which analysis method is most suitable for complex indeterminate frames? A) Moment distribution B) Force method C) Influence lines
Exam
Question 9. Which behavior describes a material that deforms permanently after exceeding its elastic limit? A) Elastic B) Inelastic C) Ductile D) Brittle Answer: B Explanation: Inelastic behavior involves permanent deformation, occurring when stresses surpass the elastic limit. Question 10. Ductility refers to a material's ability to: A) Absorb energy before failure
Exam
B) Undergo large strains without fracturing C) Resist shear forces D) Fail suddenly without warning Answer: B Explanation: Ductility is the capacity of a material to undergo significant plastic deformation before failure. Question 11. Which instability concern is most associated with slender columns? A) Buckling B) Shear failure C) Torsional failure D) Fatigue
Exam
Question 13. Which of the following best describes the natural frequency of a structure? A) Frequency at which the structure resonates B) Frequency of the applied load C) Frequency of maximum deflection D) Frequency of maximum stress Answer: A Explanation: The natural frequency is the rate at which a structure tends to oscillate when disturbed; resonance occurs when external excitation matches this frequency.
Exam
Question 14. The basic principle behind the finite element analysis (FEA) is to: A) Discretize a structure into smaller, manageable elements B) Solve for forces directly C) Approximate the influence line D) Simplify complex geometry to a single element Answer: A Explanation: FEA divides a structure into finite elements to approximate the response of complex systems under loads. Question 15. Which load is most associated with the seismic response spectrum analysis? A) Earthquake loads
Exam
Answer: A Explanation: Exposure categories describe how terrain and obstructions affect wind pressures on structures. Question 17. Which load combination is used in LRFD (Load and Resistance Factor Design)? A) Factored loads with safety factors B) Service loads only C) Allowable stresses only D) Unfactored loads Answer: A Explanation: LRFD combines loads with load factors to ensure a consistent safety margin across various load cases.
Exam
Question 18. The main purpose of reinforcement in concrete beams is to: A) Carry tensile stresses B) Carry compressive stresses C) Improve fire resistance D) Reduce weight Answer: A Explanation: Reinforcing steel in concrete primarily resists tensile stresses, which concrete alone cannot handle effectively. Question 19. The ACI 318 code provides requirements for: A) Structural concrete design
Exam
Answer: A Explanation: The net area subtracts the cross-sectional area occupied or reduced by holes, critical for tension member capacity calculations. Question 21. Which property of steel is most critical for its ductility? A) Yield strength B) Tensile strength C) Modulus of elasticity D) Strain hardening Answer: D Explanation: Strain hardening allows steel to undergo plastic deformation beyond yield without fracturing, contributing to ductility.
Exam
Question 22. Wood members are typically designed based on: A) Species, grade, and moisture content B) Concrete cover C) Steel reinforcement ratio D) Masonry strength Answer: A Explanation: Wood design considers species, grade, and moisture content because these factors influence strength and stiffness. Question 23. Masonry shear walls are primarily designed to resist which type of load? A) Lateral loads B) Axial compressive loads
Exam
Explanation: Footings transfer structural loads to the ground, preventing excessive settlement and bearing failure. Question 25. In soil mechanics, the bearing capacity of a soil is defined as: A) The maximum load per unit area the soil can support B) The minimum load the soil can support C) The settlement under load D) The lateral earth pressure Answer: A Explanation: Bearing capacity indicates the maximum sustainable load per unit area without failure or excessive settlement.
Exam
Question 26. Which foundation type is most suitable for soft, compressible soils? A) Deep foundations such as piles B) Spread footings C) Mat foundations D) Raft slabs Answer: A Explanation: Deep foundations like piles reach stable soil layers below soft, compressible soils, providing better support. Question 27. Which governing code is primarily referenced for masonry design in the US? A) TMS 402/ACI 530
