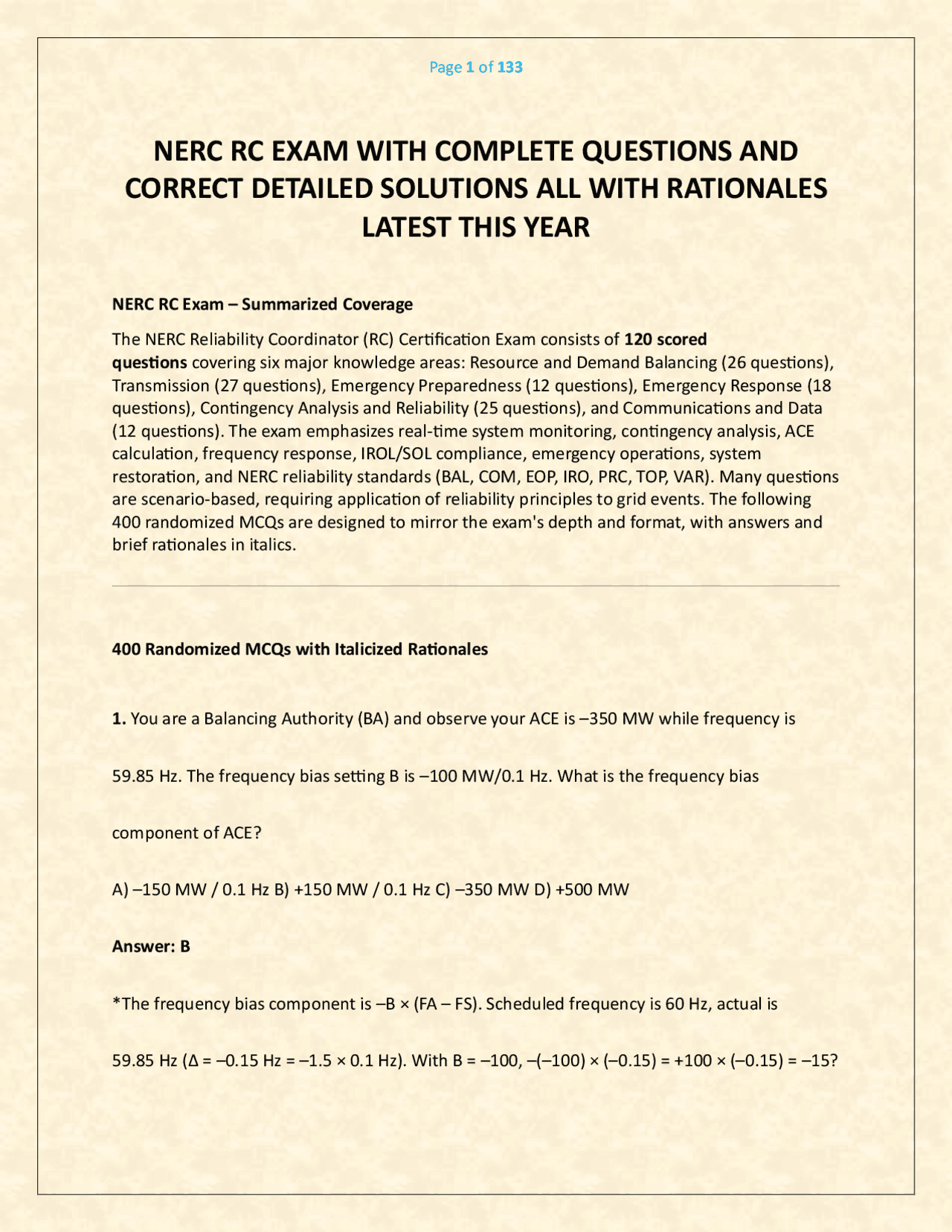

NERC RC EXAM WITH COMPLETE QUESTIONS AND
CORRECT DETAILED SOLUTIONS ALL WITH RATIONALES
LATEST THIS YEAR
NERC RC Exam – Summarized Coverage The NERC Reliability Coordinator (RC) Certification Exam consists of 120 scored questions covering six major knowledge areas: Resource and Demand Balancing (26 questions), Transmission (27 questions), Emergency Preparedness (12 questions), Emergency Response ( questions), Contingency Analysis and Reliability (25 questions), and Communications and Data (12 questions). The exam emphasizes real-time system monitoring, contingency analysis, ACE calculation, frequency response, IROL/SOL compliance, emergency operations, system restoration, and NERC reliability standards (BAL, COM, EOP, IRO, PRC, TOP, VAR). Many questions are scenario-based, requiring application of reliability principles to grid events. The following 400 randomized MCQs are designed to mirror the exam's depth and format, with answers and brief rationales in italics. 400 Randomized MCQs with Italicized Rationales
1. You are a Balancing Authority (BA) and observe your ACE is – 350 MW while frequency is 59.85 Hz. The frequency bias setting B is – 100 MW/0.1 Hz. What is the frequency bias component of ACE? A) – 150 MW / 0.1 Hz B) +150 MW / 0.1 Hz C) – 350 MW D) +500 MW Answer: B *The frequency bias component is – B × (FA – FS). Scheduled frequency is 60 Hz, actual is 59.85 Hz (Δ = – 0.15 Hz = – 1.5 × 0.1 Hz). With B = – 100, – (–100) × (–0.15) = +100 × (–0.15) = – 15?
Let's recalc properly: Many sources use – 10×B×(FA–FS). A more common formula: ACE = (NIA – NIS) – 10×B×(FA – FS). For B negative, the term becomes positive when FA is low. Given the answer choices, the correct frequency bias term is +150 MW, which matches – 10×(–100)×(– 0.15) = +150.*
2. What is the purpose of the governor deadband on a generator turbine governor? A) To prevent over-frequency trips B) To minimize wear on generator equipment C) To ensure 5 % droop response D) To enable isochronous operation Answer: B A governor deadband prevents the governor from responding to very small, non-critical frequency deviations, thus reducing unnecessary mechanical wear. 3. A Transmission Operator (TOP) observes a line loading reaching 95 % of its Normal Rating during steady-state, and load is forecast to increase. What should the TOP do first? A) Shed firm load immediately B) Notify the RC and evaluate remedial action C) De-rate the line manually D) Open the line to prevent overload Answer: B NERC TOP- 001 - 4 requires TOPs to monitor SOLs/IROLs. Ninety-five percent is not an immediate violation, but trending upward requires coordination with the RC.
Answer: B Station batteries are designed to carry DC control power for 8–12 hours without AC grid supply.
7. A Reliability Coordinator (RC) performs a next-day analysis. What information is required for the system study? A) Area Interchange Error documents, weather forecast B) Interchange transactions, staffing summaries, load C) Critical facility status, load, generation, operation reserve projections, known interchange transactions D) Load, generation, staffing summaries, AIE documents Answer: C Next-day operational planning requires real-time data: critical facility status, load, generation, operating reserve projections, and known interchange schedules. 8. When a BA denies an interchange request, how long does it have to notify the RC? A) 10 minutes B) 30 minutes C) 60 minutes D) 120 minutes Answer: A Denials must be reported to the RC within 10 minutes to allow alternate scheduling. 9. Under TOP- 002 - 4, when the RC issues an IROL relief instruction, what is the TOP's obligation? A) Delay execution for 15 minutes B) Execute instruction immediately C) Verify instruction before acting D) Execute only non-firm load relief
Answer: B RC Operating Instructions for IROL relief must be executed without delay; any hesitation risks cascading outages.
10. On a classic disturbance frequency chart, what causes the initial "step" drop in frequency? A) Governor response B) Contingency reserve deployment C) Fast-start generation D) Loss of generation or load Answer: D The instantaneous drop (step change) occurs the moment a generator trips or a large load is lost, before any primary response. 11. What is the default contingency reserve restoration period in BAL-002 after a reportable disturbance? A) 60 minutes B) 90 minutes C) 120 minutes D) 180 minutes Answer: B BAL-002 specifies 90 minutes to return contingency reserves to at least pre-disturbance levels. 12. Power Transfer Distribution Factors (PTDFs) help system operators do what? A) Determine interchange transactions affecting a constrained path B) Determine power needs of BAs C) Estimate the effect of an outaged transmission element D) Determine a generator's
15. What is the maximum time allowed to transition to a backup control facility and have it fully functional? A) 30 minutes B) 1 hour C) 2 hours D) 4 hours Answer: C NERC requires backup control facilities to be fully operational within 2 hours of declaring a control center emergency. 16. A BA is on EEA-2, experiencing an energy emergency. How often must it update the RC until the alert is terminated? A) Every 15 minutes B) Every 30 minutes C) Every 60 minutes D) Every 120 minutes Answer: C During EEA-2 or EEA-3, the energy-deficient BA must report status hourly to the RC. 17. Your SCADA system fails, leaving no real-time visibility of line loadings. You have paper records from 5 minutes ago. What should you do? A) Assume loadings unchanged and continue B) Declare an emergency and shed load C) Use paper records as best data available D) Transfer operations to backup control center immediately Answer: D
Loss of primary monitoring tools requires immediate transfer to backup control center per NERC operating protocols.
18. A transmission line is loaded at 105 % of its System Operating Limit (SOL) due to a single contingency. This condition is: A) Acceptable under normal conditions B) A violation requiring immediate load relief C) An IROL exceedance D) Permitted for 15 minutes Answer: B Exceeding SOL under contingency conditions requires immediate action; IROLs have stricter thresholds, but SOL violations also demand mitigation. 19. During an IROL violation, the RC can direct the TOP and BA to take which actions? (Select all correct options) A) Re-dispatch generation B) Shed load C) Switch transmission facilities D) Delay interchange scheduling Answer: A, B, C To resolve IROL violations, the RC can re-dispatch generation, shed load, or reconfigure transmission.
25 MW D) Decrease generation by 50 MW Answer: C With ACE positive (over-generating), decrease generation. The expected load and import changes are future projections; ACE indicates current control error.
23. What is the maximum time for a BA to restore data exchange redundancy when redundancy testing by RC/TOP/BA is deemed unsuccessful? A) 30 minutes B) 1 hour C) 2 hours D) 4 hours Answer: C Failed redundancy testing requires restoration of data exchange redundancy within 2 hours. 24. A generator with isochronous governor droop has which characteristic? A) 0 % droop B) 5 % droop C) 10 % droop D) Variable droop Answer: A Isochronous generators are set to 0 % droop, maintaining constant speed regardless of load, typically used only during islanding. 25. A congestion management request in the Eastern Interconnection from one RC to another must be implemented within: A) 5 minutes B) 10 minutes C) 15 minutes D) 30 minutes
Answer: C Inter-RC congestion requests require implementation within 15 minutes to maintain reliability.
26. A voltage deviation of ≥10 % nominal is reportable after how long? A) 5 minutes B) 10 minutes C) 15 minutes D) 30 minutes Answer: C Sustained voltage deviation of 10 % or more for 15 minutes triggers reporting under NERC event reporting requirements. 27. How often should transmission and generator data (status, output capability, AVR status) be updated? A) 5 minutes B) 10 minutes C) 15 minutes D) 30 minutes Answer: B Real-time operational data must be refreshed every 10 minutes for system operators. 28. What is the default ramp rate for interchange schedules in the Eastern Interconnection? A) 5 minutes B) 10 minutes C) 15 minutes D) 20 minutes Answer: B The Eastern Interconnection uses a 10-minute default ramp rate for interchange schedule changes.
EEA-3 permits firm load interruption (load shedding) as a last resort to prevent uncontrolled cascading outages.
32. Which of the following is a reportable event per EOP-004? A) Voltage reduction B) Manual load shed of 200 MW C) Automatic load shed of 100 MW D) Public appeal for conservation Answer: C Automatic load shedding of 100 MW or more is reportable; manual load shed thresholds vary but generally exceed 200 MW. 33. A TOP's communication link to the RC fails. How long does the TOP have to restore redundant communication? A) 30 minutes B) 1 hour C) 2 hours D) 4 hours Answer: C Per COM standards, redundant communication must be restored within 2 hours of failure. 34. Under what condition should a BA with behind-the-meter generation see its system peak load shift? A) During summer evenings B) During winter mornings C) During midday solar generation D) During nighttime wind generation
Answer: C High behind-the-meter solar generation reduces net load during midday, shifting the peak later into the afternoon/evening (the duck curve).
35. What does a negative ACE value indicate for a Balancing Authority? A) Generation is less than load, and/or net actual interchange is less than scheduled B) Generation is greater than load, and/or net actual interchange is greater than scheduled C) Frequency is above schedule D) Frequency bias is positive Answer: A Negative ACE means the BA is deficient in generation relative to its load/interchange obligation, importing more than scheduled or generating less. 36. How often must hourly Available Transfer Capability (ATC) for the next 48 hours be calculated? A) Once per day B) Every 4 hours C) Hourly D) Every 30 minutes Answer: C ATC for the next 48 hours is updated hourly to reflect changing system conditions. 37. A GOP with blackstart resources must provide how many hours of training every 2 years to operating personnel responsible for startup?
40. What is the maximum allowed time for a BA to provide MW-hour meter readings to an adjacent BA after an hour ends? A) 30 minutes B) 1 hour C) 2 hours D) 4 hours Answer: B Meter readings for the previous hour must be provided within 60 minutes. 41. A TOP is considering approving an interchange transaction. What is the primary constraint from a ramping perspective? A) Generation ramp rate B) Transmission thermal limits C) Frequency bias setting D) Voltage stability Answer: A Ramping ability refers to the generator's capability to change output as needed to follow interchange schedules. 42. Which of the following is an example of asynchronous generation? A) Gas turbine B) Solar photovoltaic C) Coal-fired steam turbine D) Hydroelectric Answer: B Solar PV and wind turbines are asynchronous because they are not directly tied to system frequency through a synchronous generator.
43. A BA experiences a 500 MW generator trip. What happens to its ACE? A) Increases by 500 MW B) Decreases by 500 MW C) No change D) Becomes positive Answer: B Loss of generation reduces net actual interchange (or increases import needs), making ACE more negative (decreases by 500 MW). 44. The TLR procedure for identifying TLR level and actions needs updating how often? A) Every 30 minutes B) Every 60 minutes C) Every 2 hours D) Every 4 hours Answer: B Transmission Loading Relief (TLR) procedures are updated hourly to reflect current congestion. 45. What is the System Operating Limit (SOL)? A) The maximum flow a facility can carry without violating reliability criteria B) The limit beyond which instability occurs C) The maximum permissible voltage drop D) The rating for a facility after a contingency Answer: A SOL is the value that satisfies the most limiting of the prescribed operating criteria for a specified system configuration.
The frequency bias setting amplifies or attenuates the frequency component in ACE, directly affecting AGC response.
49. An RC identifies a potential transmission problem that affects another RC. What should the RC do? A) Handle it internally B) Notify other RCs in the Interconnection C) Wait for the problem to develop D) Issue a public advisory Answer: B Inter-RC coordination requires immediate notification of other Reliability Coordinators in the interconnection. 50. A BA is unable to calculate ACE due to telemetry failure. How long before it must notify the RC? A) 15 minutes B) 30 minutes C) 45 minutes D) 60 minutes Answer: B BAs must notify the RC if unable to calculate ACE for more than 30 minutes. 51. After a disturbance, a BA's contingency reserve is restored to pre-disturbance levels. This is part of which requirement? A) BAL-002 Contingency Reserve B) BAL-005 ACE calculation C) TOP-001 operating limits D)
EOP-004 reporting Answer: A BAL-002 governs contingency reserve restoration following reportable disturbances.
52. A generating unit has 5 % droop and 10 % droop. Which is more responsive? A) 5 % droop B) 10 % droop C) Both are identical D) Droop does not affect response Answer: A Lower droop percentage means the generator changes output more for a given frequency deviation, making it more responsive. 53. What is the maximum time for a sink BA to submit interchange modifications after the modification is made? A) 30 minutes B) 60 minutes C) 90 minutes D) 120 minutes Answer: B Interchange modifications must be submitted within 60 minutes. 54. Your BA's CPS1 score for the past rolling 12 months is 95 %. This indicates: A) Compliance with Control Performance Standard B) Non-compliance requiring penalty C) Need to carry additional regulating reserve D) Acceptable frequency response
