Ultimate Exam

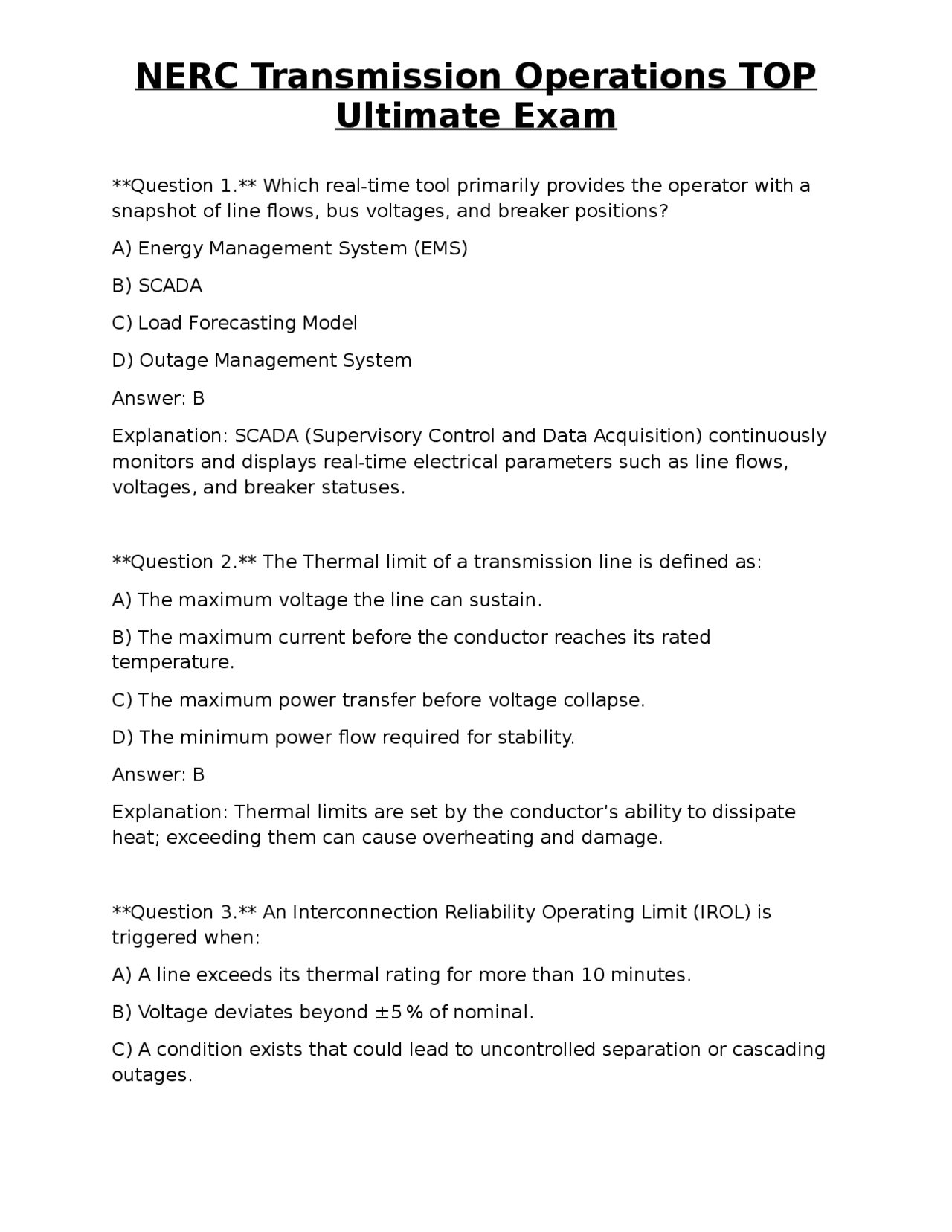

Question 1. Which real-time tool primarily provides the operator with a snapshot of line flows, bus voltages, and breaker positions? A) Energy Management System (EMS) B) SCADA C) Load Forecasting Model D) Outage Management System Answer: B Explanation: SCADA (Supervisory Control and Data Acquisition) continuously monitors and displays real-time electrical parameters such as line flows, voltages, and breaker statuses. Question 2. The Thermal limit of a transmission line is defined as: A) The maximum voltage the line can sustain. B) The maximum current before the conductor reaches its rated temperature. C) The maximum power transfer before voltage collapse. D) The minimum power flow required for stability. Answer: B Explanation: Thermal limits are set by the conductor’s ability to dissipate heat; exceeding them can cause overheating and damage. Question 3. An Interconnection Reliability Operating Limit (IROL) is triggered when: A) A line exceeds its thermal rating for more than 10 minutes. B) Voltage deviates beyond ±5 % of nominal. C) A condition exists that could lead to uncontrolled separation or cascading outages.
Ultimate Exam
D) The system frequency drops below 59.5 Hz. Answer: C Explanation: IROLs are limits whose violation indicates a risk of instability, uncontrolled separation, or cascading failures. Question 4. In next-day analysis, which study is most commonly used to assess the impact of a planned outage on system adequacy? A) Dynamic stability simulation B) N-1 contingency analysis C) Power flow contingency screening D) Transient stability assessment Answer: C Explanation: Power flow contingency screening evaluates how a planned outage will affect line flows, voltages, and other operating limits. Question 5. A voltage schedule typically defines: A) The exact voltage at each bus at all times. B) A target voltage range and deadband for each bus. C) The maximum reactive power a generator can supply. D) The order in which breakers must operate during emergencies. Answer: B Explanation: Voltage schedules set target voltage levels with allowable deadbands to guide operator actions. Question 6. Which device provides fast reactive power support without moving parts? A) Shunt reactor B) SVC (Static VAR Compensator)
Ultimate Exam
B) Change the phase angle to redirect power flow. C) Provide voltage regulation on a feeder. D) Protect against short circuits. Answer: B Explanation: PSTs adjust the phase angle across a transformer, thereby influencing the direction and magnitude of power flow. Question 10. Opening a parallel transmission line typically results in: A) Decreased system impedance and reduced flows on remaining lines. B) Increased system impedance and higher flows on adjacent lines. C) No change in power flow distribution. D) Immediate voltage collapse. Answer: B Explanation: Removing a parallel path raises overall impedance, causing remaining parallel lines to carry more power. Question 11. An abnormal frequency below 59.8 Hz most likely indicates: A) Excess generation. B) A loss of load. C) A loss of generation. D) A transformer tap change. Answer: C Explanation: Frequency drops when generation is insufficient to meet load; a loss of generation is the primary cause. Question 12. Geomagnetically Induced Currents (GIC) primarily affect which component? A) Generator stator windings.
Ultimate Exam
B) HVDC converter stations and transformer cores. C) Circuit breaker contacts. D) SCADA communication links. Answer: B Explanation: GICs flow through grounded metallic structures, especially HVDC converters and transformer cores, causing half-cycle saturation. Question 13. Under-Frequency Load Shedding (UFLS) is initiated when system frequency falls below: A) 60.5 Hz B) 59.5 Hz C) 58.5 Hz D) 57.0 Hz Answer: C Explanation: UFLS schemes typically trigger at 58.5 Hz (or similar) to quickly reduce load and arrest frequency decline. Question 14. A public appeal for voluntary conservation is most effective when: A) Issued after a blackout has occurred. B) Coordinated with a scheduled maintenance outage. C) Communicated during the early stages of a capacity emergency. D) Sent only to industrial customers. Answer: C Explanation: Early voluntary conservation can reduce demand before the system reaches a critical emergency state. Question 15. Voltage reduction as an emergency action works by:
Ultimate Exam
Question 18. During dynamic loading of the system, the most critical parameter to monitor is: A) Transformer oil temperature. B) System frequency deviation. C) Line conductor sag. D) SCADA latency. Answer: B Explanation: As load is added, frequency must be closely watched to ensure the generation-load balance remains stable. Question 19. Before closing a tie-line between two islands, a synchroscope must indicate: A) A phase angle difference of 180°. B) Zero phase angle difference and matching frequency. C) Any non-zero angle as long as frequency is within 0.1 Hz. D) A positive frequency deviation. Answer: B Explanation: A synchroscope shows zero or near-zero phase angle with matched frequency, indicating safe conditions for closing. Question 20. The N-1 criterion requires that the system remain secure after: A) The loss of any single component, such as a generator, line, or transformer. B) The simultaneous loss of two parallel lines. C) A 10 % increase in load. D) A scheduled maintenance outage. Answer: A
Ultimate Exam
Explanation: N-1 reliability means the system must withstand the outage of any single element without violating limits. Question 21. Which of the following is a common-mode failure scenario? A) Failure of a single breaker due to mechanical wear. B) Simultaneous loss of multiple transformers caused by a common substation fire. C) A single line outage due to a tree contact. D) An overload on a single generator. Answer: B Explanation: Common-mode failures affect multiple components through a shared cause, such as a fire or cyber-attack. Question 22. The typical time frame for a corrective action plan after an N-1 contingency is: A) 5 minutes B) 15 minutes C) 30 minutes D) 1 hour Answer: C Explanation: Standards often require that the system be returned to a secure state within 30 minutes after a contingency. Question 23. Transient stability primarily concerns: A) Long-term voltage regulation. B) The ability of generators to remain in synchronism after a severe disturbance. C) Maintaining thermal limits during normal operation.
Ultimate Exam
B) Request, Reply, Confirm. C) Repeat, Correct, Acknowledgment. D) Start, Stop, Verify. Answer: C Explanation: NERC requires the use of “Repeats,” “Corrects,” and “Acknowledgments” for all critical communications. Question 27. If a SCADA telemetry link fails, the operator must: A) Shut down the entire system. B) Switch to manual reporting and estimate values using state estimator outputs. C) Ignore the loss and continue normal operation. D) Immediately issue a public appeal. Answer: B Explanation: When telemetry is lost, operators rely on manual reports and the state estimator to maintain situational awareness. Question 28. The Inter-Control Center Communications Protocol (ICCP) is used to: A) Exchange market bids between balancing authorities. B) Transfer real-time data and control messages between control centers. C) Synchronize generator excitation systems. D. Provide cybersecurity firewalls. Answer: B Explanation: ICCP is the standard protocol for real-time data exchange among control centers. Question 29. A “bad data” flag in the state estimator indicates:
Ultimate Exam
A) A missing breaker status. B) Inconsistent or erroneous measurement data that may degrade the estimator’s solution. C. A transformer tap position error. D. A voltage sag on a distribution feeder. Answer: B Explanation: Bad data detection identifies measurements that are outliers or inconsistent, prompting verification. Question 30. Operator authority in TOP allows the operator to: A) Request a market price adjustment from the ISO. B. Shed load without prior approval during an emergency. C. Modify generation schedules for a month. D. Override all NERC standards. Answer: B Explanation: Operators have standing authority to take any action, including load shedding, to protect reliability. Question 31. During shift handover, the most important element to communicate is: A. The operator’s personal schedule. B. The current system state, pending actions, and any alarms. C. The weather forecast for the next week. D. The maintenance crew lunch schedule. Answer: B Explanation: Effective handover ensures the incoming operator is aware of real-time conditions and outstanding tasks.
Ultimate Exam
Question 35. When a line experiences a Ferranti effect, the operator should: A. Increase line loading to reduce voltage rise. B. Decrease the line’s tap setting on the sending-end transformer. C. Add series compensation. D. Install a shunt reactor at the receiving end. Answer: D Explanation: Adding a shunt reactor mitigates the voltage rise caused by the Ferranti effect. Question 36. The deadband in a voltage schedule is used to: A. Define the exact voltage to be maintained. B. Provide a tolerance range to avoid unnecessary control actions. C. Set the maximum reactive power output of generators. D. Determine the frequency of SCADA updates. Answer: B Explanation: A deadband allows voltage to fluctuate within a set range without triggering corrective actions. Question 37. Which of the following best describes a “congestion management” action? A. Opening a breaker to isolate a fault. B. Re-dispatching generation to reduce overload on a constrained line. C. Raising transformer tap settings to increase voltage. D. Initiating a public appeal for demand reduction. Answer: B
Ultimate Exam
Explanation: Congestion management involves adjusting generation or load to keep power flows within line limits. Question 38. A “phase-shifting transformer” can be used to: A. Increase the thermal rating of a line. B. Reduce the series reactance of a line. C. Change the power flow direction by altering the phase angle. D. Provide voltage support during a voltage dip. Answer: C Explanation: PSTs adjust the phase angle across the transformer, thereby influencing power flow direction. Question 39. In an emergency frequency response, the primary control action is: A. Adjusting generator governor setpoints. B. Changing transformer tap positions. C. Issuing a public appeal. D. Opening all circuit breakers. Answer: A Explanation: Primary frequency control is provided by governor response, rapidly adjusting generation output. Question 40. When implementing under-frequency load shedding, the sequence of load blocks is typically based on: A. Customer class priority (e.g., residential vs. industrial). B. Geographic location only. C. Random selection. D. The order of customer contract numbers.
Ultimate Exam
D. Limited to a single transmission line. Answer: A Explanation: The cranking path must be energized and stable before connecting additional generation or load. Question 44. Which parameter is most directly affected by a sudden loss of a large generator? A. System voltage profile. B. System frequency. C. Transformer oil temperature. D. SCADA communication latency. Answer: B Explanation: Loss of generation creates an immediate imbalance, causing frequency to drop. Question 45. During a geomagnetic disturbance, the recommended operator action is to: A. Increase line loading to compensate for induced currents. B. Reduce transformer tap settings to lower voltage. C. Switch off or limit the operation of HVDC converters and series-compensated lines. D. Activate all shunt capacitors. Answer: C Explanation: Limiting HVDC and series-compensated equipment reduces the impact of GICs, which can cause transformer saturation. Question 46. A “public appeal” differs from “load shedding” in that it: A. Is mandatory for all customers.
Ultimate Exam
B. Relies on voluntary demand reduction rather than forced disconnection. C. Requires operator approval from the regional reliability coordinator. D. Is only used during winter storms. Answer: B Explanation: Public appeals request voluntary conservation; load shedding is an automatic, enforced action. Question 47. In a contingency analysis, a “double-circuit tower” failure is considered a: A. Single-element N-1 event. B. Multiple-contingency scenario requiring special assessment. C. Routine maintenance event. D. Voltage stability issue only. Answer: B Explanation: Failure of both circuits on a tower constitutes a multiple contingency that may have higher impact than a single N-1 event. Question 48. The primary purpose of the “state estimator” in real-time operations is to: A. Predict next-day load. B. Provide a best-fit snapshot of the system using redundant measurements. C. Control generator excitation. D. Schedule maintenance outages. Answer: B Explanation: The state estimator reconciles measurements to produce an accurate real-time network model.
Ultimate Exam
Question 52. The “deadband” for a voltage schedule is typically set at: A. ±0.5 % of nominal voltage. B. ±2 % to ±5 % of nominal voltage. C. ±10 % of nominal voltage. D. No deadband; exact voltage is required. Answer: B Explanation: Deadbands are commonly set between 2 % and 5 % to balance stability and control effort. Question 53. When a line is operating at 110 % of its thermal limit, the operator must: A. Increase the line’s rating temporarily. B. Reduce the flow by re-dispatching generation or shedding load. C. Open the line’s breaker immediately. D. Do nothing; the limit is advisory only. Answer: B Explanation: Exceeding thermal limits requires corrective actions such as re-dispatch or load shedding to bring flows back within limits. Question 54. The “frequency response” of a generator is primarily provided by: A. Exciter control. B. Governor control. C. Automatic voltage regulator. D. Transformer tap changer. Answer: B
Ultimate Exam
Explanation: The governor adjusts turbine input to regulate generator output in response to frequency changes. Question 55. In a “load shedding” scheme, the first block of load is typically shed when frequency reaches: A. 59.9 Hz B. 59.5 Hz C. 58.5 Hz D. 57.0 Hz Answer: C Explanation: Many UFLS schemes initiate the first load block at around 58.5 Hz to arrest frequency decline. Question 56. A “phase angle difference” exceeding 180 degrees between two critical buses indicates: A. Normal operation. B. Potential out-of-step (loss of synchronism). C. A voltage collapse scenario. D. A communication error. Answer: B Explanation: Large phase angle differences can cause generators to lose synchronism, leading to out-of-step. Question 57. The primary function of a “shunt capacitor” in a transmission system is to: A. Reduce line resistance. B. Provide leading reactive power to raise voltage. C. Absorb reactive power to lower voltage.
