This exam assesses a candidate's ability to effectively deploy Citrix NetScaler 11.5, covering installation, initial configuration, load balancing, SSL offloading, and traffic management. It validates skills required to implement robust application delivery controllers in enterprise environments.
Typology: Exams
1 / 163
This page cannot be seen from the preview
Don't miss anything!

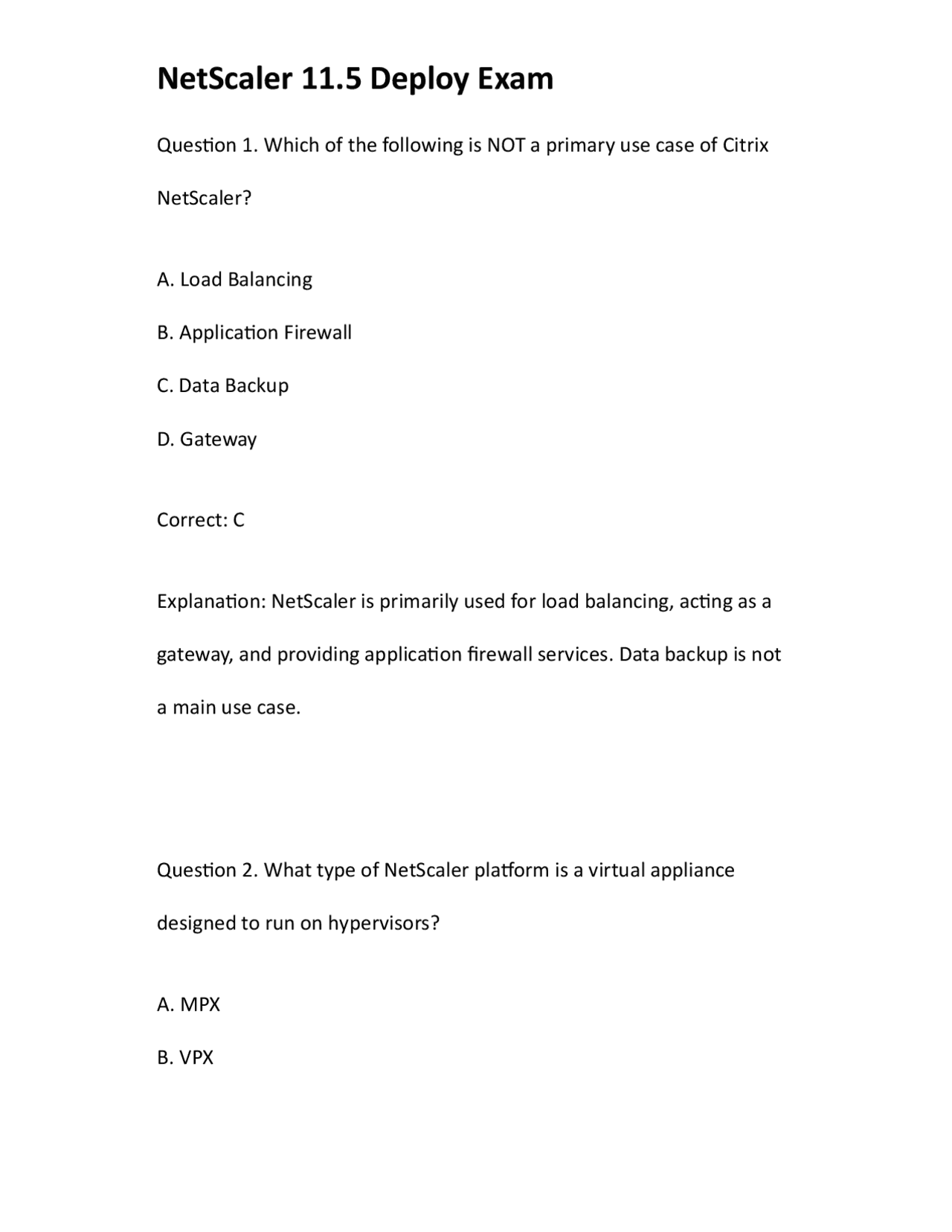

Question 1. Which of the following is NOT a primary use case of Citrix NetScaler? A. Load Balancing B. Application Firewall C. Data Backup D. Gateway Correct: C Explanation: NetScaler is primarily used for load balancing, acting as a gateway, and providing application firewall services. Data backup is not a main use case. Question 2. What type of NetScaler platform is a virtual appliance designed to run on hypervisors? A. MPX B. VPX
Correct: B Explanation: VPX is the virtual appliance version of NetScaler that runs on hypervisors such as VMware or XenServer. Question 3. Which NetScaler edition provides the most advanced features, including GSLB and integrated caching? A. Standard B. Enterprise C. Platinum D. Basic Correct: C Explanation: Platinum edition includes all advanced features such as GSLB and integrated caching.
C. Memory D. Management Plane Correct: B Explanation: Packet engines process and forward network traffic in NetScaler. Question 6. What are the two main architectural planes in NetScaler? A. Data Plane and Control Plane B. Management Plane and Data Plane C. Application Plane and Network Plane D. User Plane and Control Plane Correct: B Explanation: The NetScaler architecture consists of the Management Plane and Data Plane.
Question 7. What is the main difference between NetScaler MPX and SDX platforms? A. MPX is a virtual appliance, SDX is hardware B. SDX supports virtualization of multiple NetScaler instances C. MPX supports only SSL, SDX does not D. SDX is for cloud only Correct: B Explanation: SDX allows virtualization and hosting of multiple NetScaler instances on a single hardware appliance. Question 8. Which NetScaler deployment model is best for minimizing the number of required interfaces? A. Inline B. Two-Arm C. One-Arm D. Transparent
A. One-Arm B. Two-Arm C. Transparent D. Bridge Correct: B Explanation: Two-Arm topology separates client and server traffic for better isolation and security. Question 11. When deploying NetScaler in AWS, which appliance type is typically used? A. MPX B. VPX C. SDX D. CPX Correct: B
Explanation: VPX is used for cloud deployments such as AWS and Azure. Question 12. Which command-line protocol is commonly used to manage a NetScaler appliance remotely? A. Telnet B. SSH C. FTP D. RDP Correct: B Explanation: SSH is the secure method for remote CLI management. Question 13. What is the function of a Subnet IP Address (SNIP) in NetScaler? A. Management access B. Client request entry point
Question 15. Which option best describes NetScaler’s Configuration Wizard? A. Automated firmware update tool B. Guided step-by-step setup tool C. Error log viewing utility D. Licensing management tool Correct: B Explanation: The Configuration Wizard guides users through initial setup steps. Question 16. Which file contains the saved configuration on NetScaler? A. ns.conf B. config.xml
C. startup.ini D. netscaler.cfg Correct: A Explanation: ns.conf is the main configuration file on a NetScaler appliance. Question 17. Which NetScaler tool provides both a graphical user interface and command-line interface for management? A. SDX B. Insight Center C. NSIP D. NetScaler GUI Correct: D Explanation: NetScaler can be managed via both GUI and CLI.
Correct: C Explanation: RBAC enables granular control and multiple admin access. Question 20. What is the first step in creating a High Availability (HA) pair on NetScaler? A. Configure VLANs B. Assign NSIP addresses C. Connect appliances physically D. Install licenses Correct: C Explanation: Physical connectivity between appliances is required before HA configuration. Question 21. Which NetScaler feature ensures continuous service in case one appliance fails?
A. Load Balancing B. High Availability C. SSL Offloading D. Caching Correct: B Explanation: High Availability provides failover and redundancy. Question 22. How does NetScaler synchronize configurations between HA nodes? A. Manual file copy B. Automatically via HA sync C. With a third-party tool D. With Insight Center Correct: B Explanation: HA nodes synchronize configuration automatically.
Correct: B Explanation: Split-brain is when both nodes assume primary role, causing conflicts. Question 25. What is the recommended way to upgrade NetScaler in an HA environment? A. Upgrade both nodes at once B. Upgrade primary node first C. Upgrade secondary node first D. Remove HA before upgrade Correct: C Explanation: Always upgrade the secondary node first to maintain availability.
Question 26. Which load balancing method distributes requests evenly across all servers? A. Round Robin B. Least Connection C. Least Response Time D. Hash Correct: A Explanation: Round Robin cycles through all servers in order. Question 27. What is the main purpose of service monitoring in NetScaler load balancing? A. Increase bandwidth B. Verify server health C. Encrypt traffic D. Reduce latency
A. Switching cables B. Directing requests based on content type C. Encrypting data D. Monitoring sessions Correct: B Explanation: Content Switching routes requests based on content or URL. Question 30. What does a persistency (stickiness) policy ensure in load balancing? A. Requests go to random servers B. Requests from the same client go to the same server C. Traffic is encrypted D. Cache is cleared Correct: B
Explanation: Persistency keeps client requests directed to the same server for session continuity. Question 31. Which NetScaler feature enables global distribution of traffic across multiple data centers? A. SSL Offload B. Global Server Load Balancing (GSLB) C. Content Switching D. HTTP Compression Correct: B Explanation: GSLB distributes traffic to servers in different geographical locations. Question 32. What is the first step when configuring an SSL Offload on NetScaler?
