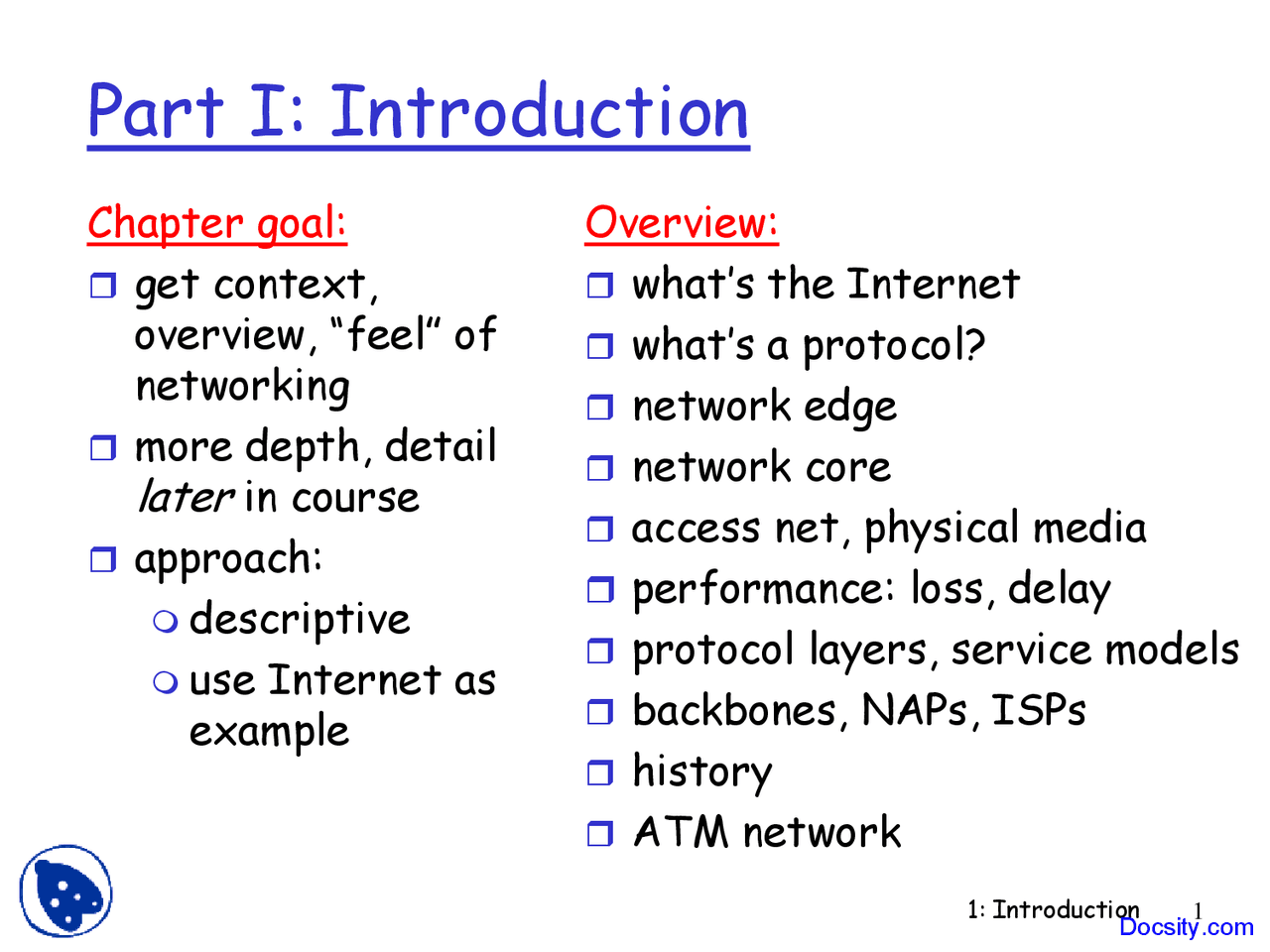

1: Introduction 1
Chapter goal:
get context, overview, “feel” of networking
more depth, detail
approach:
descriptive use Internet as example
Overview: what’s the Internet what’s a protocol? network edge network core access net, physical media performance: loss, delay protocol layers, service models backbones, NAPs, ISPs history ATM network
1: Introduction 2
What’s the Internet
backbone ISPs
regional ISPs
local ISPs
1: Introduction 4
A closer look at network structure:
network edge:
applications and hosts
network core:
routers network of networks
access networks,
physical media: communication links
1: Introduction 5
end systems (hosts):
run application programs e.g., WWW, email at “edge of network”
client/server model
client host requests, receives service from server e.g., WWW client (browser)/ server; email client/server
peer-peer model:
host interaction symmetric e.g.: teleconferencing
1: Introduction 7
Network edge: connectionless service
Goal: data transfer between end systems same as before! UDP - User Datagram Protocol [RFC 768]: Internet’s connectionless service unreliable data transfer no flow control no congestion control
App’s using TCP: HTTP (WWW), FTP (file transfer), Telnet (remote login), SMTP (email)
App’s using UDP: streaming media, teleconferencing, Internet telephony
1: Introduction 8
mesh of interconnected routers
question: how is data transferred through net? circuit switching: dedicated circuit per call: telephone net packet-switching: data sent thru net in discrete “chunks”
1: Introduction 10
Network Core: Circuit Switching
network resources
(e.g., bandwidth) divided into “pieces”
pieces allocated to calls
not used by owning call
dividing link bandwidth into “pieces” frequency division time division
1: Introduction 11
Network Core: Packet Switching
each end-end data stream
network resources
each packet uses full link bandwidth
resource contention: aggregate resource demand can exceed amount available congestion: packets queue, wait for link use store and forward: packets move one hop at a time transmit over link wait turn at next link
Bandwidth division into “pieces” Dedicated allocation Resource reservation
1: Introduction 13
Network Core: Packet Switching
Packet-switching: store and forward behavior
1: Introduction 14
Packet switching versus circuit switching
1 Mbit link
each user: 100Kbps when “active” active 10% of time
circuit-switching: 10 users
packet switching: with 35 users, probability > 10 active less that.
Packet switching allows more users to use network!
N users 1 Mbps link
1: Introduction 16
Packet-switched networks: routing
destination we’ll study several path selection algorithms (chapter 4)
datagram network: destination address determines next hop routes may change during session analogy: driving, asking directions
virtual circuit network: each packet carries tag (virtual circuit ID), tag determines next hop fixed path determined at call setup time, remains fixed thru call routers maintain per-call state
1: Introduction 17
Access networks and physical media
residential access nets institutional access networks (school, company) mobile access networks
bandwidth (bits per second) of access network? shared or dedicated?
1: Introduction 19
Residential access: cable modems
HFC: hybrid fiber coax asymmetric: up to 10Mbps upstream, 1 Mbps downstream network of cable and fiber attaches homes to ISP router shared access to router among home issues: congestion, dimensioning deployment: available via cable companies, e.g., MediaOne
1: Introduction 20
Institutional access: local area networks
company/univ local area network (LAN) connects end system to edge router Ethernet: shared or dedicated cable connects end system and router 10 Mbs, 100Mbps, Gigabit Ethernet deployment: institutions, home LANs soon LANs: chapter 5
