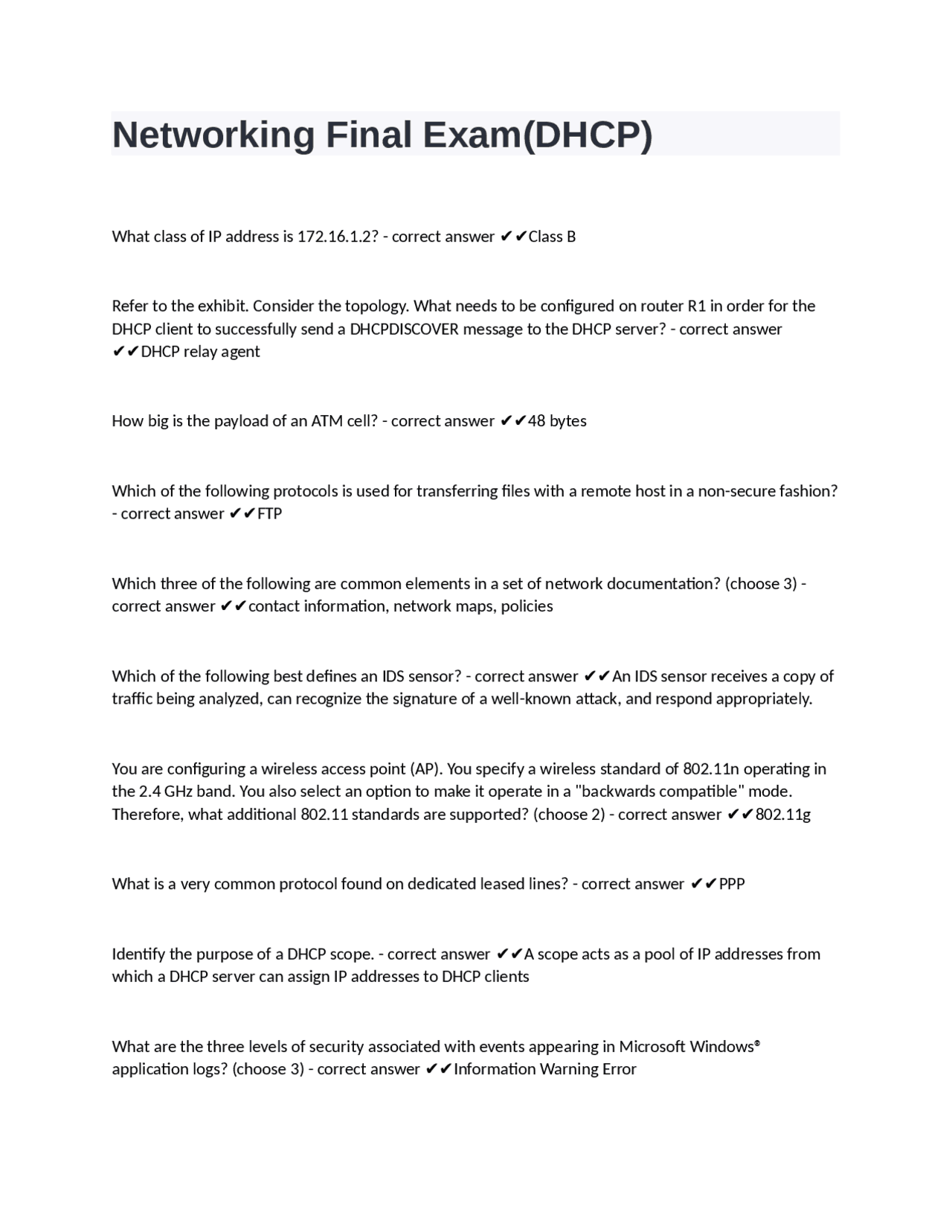

Networking Final Exam(DHCP)
What class of IP address is 172.16.1.2? - correct answer ✔✔Class B
Refer to the exhibit. Consider the topology. What needs to be configured on router R1 in order for the
DHCP client to successfully send a DHCPDISCOVER message to the DHCP server? - correct answer
✔✔DHCP relay agent
How big is the payload of an ATM cell? - correct answer ✔✔48 bytes
Which of the following protocols is used for transferring files with a remote host in a non-secure fashion?
- correct answer ✔✔FTP
Which three of the following are common elements in a set of network documentation? (choose 3) -
correct answer ✔✔contact information, network maps, policies
Which of the following best defines an IDS sensor? - correct answer ✔✔An IDS sensor receives a copy of
traffic being analyzed, can recognize the signature of a well-known attack, and respond appropriately.
You are configuring a wireless access point (AP). You specify a wireless standard of 802.11n operating in
the 2.4 GHz band. You also select an option to make it operate in a "backwards compatible" mode.
Therefore, what additional 802.11 standards are supported? (choose 2) - correct answer ✔✔802.11g
What is a very common protocol found on dedicated leased lines? - correct answer ✔✔PPP
Identify the purpose of a DHCP scope. - correct answer ✔✔A scope acts as a pool of IP addresses from
which a DHCP server can assign IP addresses to DHCP clients
What are the three levels of security associated with events appearing in Microsoft Windows®
application logs? (choose 3) - correct answer ✔✔Information Warning Error
