1

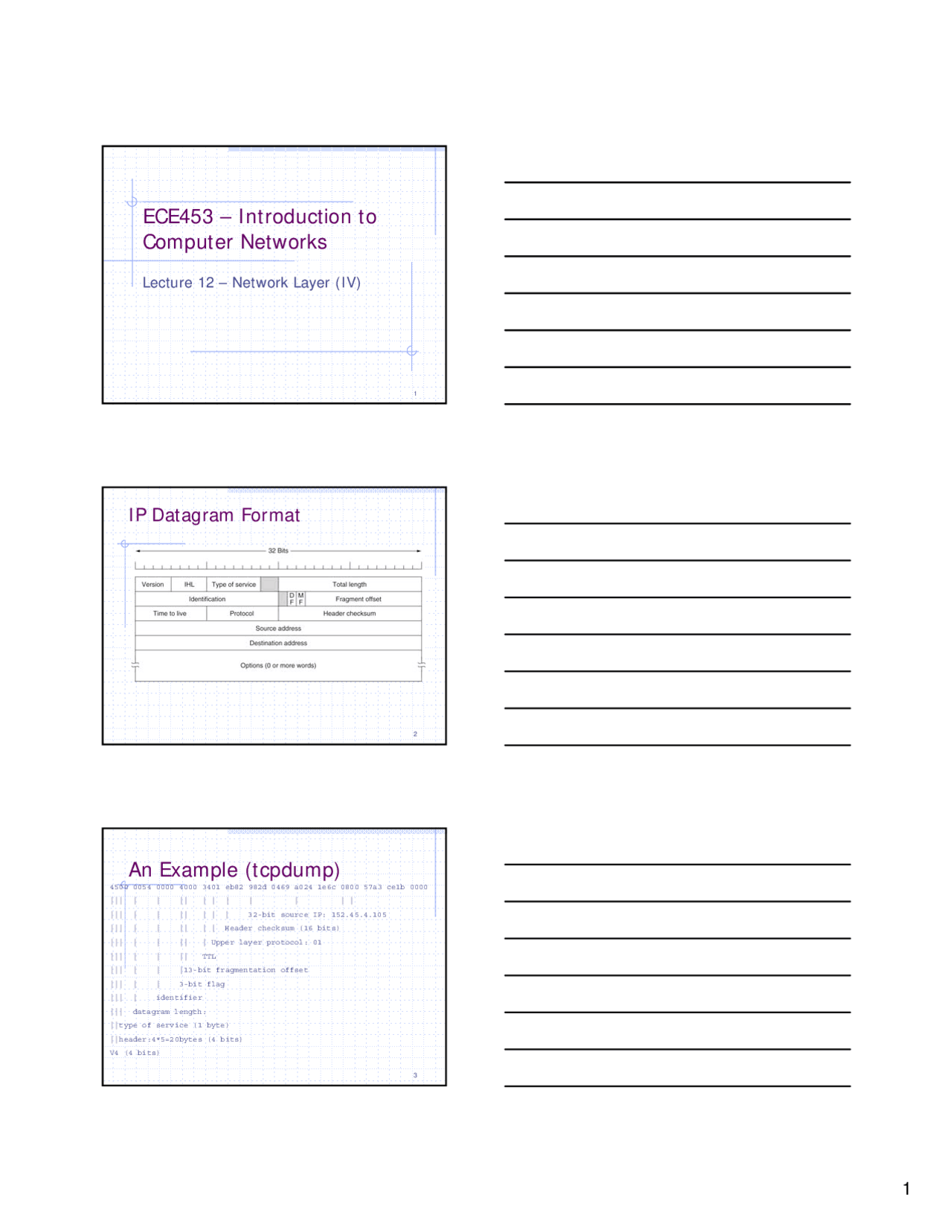

ECE453 – Introduction to
Computer Networks
Lecture 12 – Network Layer (IV)
2
IP Datagram Format
3
An Example (tcpdump)
4500 0054 0000 4000 3401 eb82 982d 0469 a024 1e6c 0800 57a3 ce1b 0000
||| | | || | | | | | | | ||| | | || | | | 32-bit source IP: 152.45.4.
||| | | || | | Header checksum (16 bits)
||| | | || | Upper layer protocol: 01
||| | | || TTL
||| | | |13-bit fragmentation offset
||| | | 3-bit flag
||| | identifier
||| datagram length:
||type of service (1 byte) ||header:4*5=20bytes (4 bits)
V4 (4 bits)
4
Analyze Network: tcpdump
You need root privilege
-i : listen to a specific interface, e.g., eth
-w: write the raw packet to a file rather than print
them out, -r can be used to read packet from a file
-s num: get num bytes of data from each packet rather
than the default value of 68
src host xyz: true if IP destination field of the packet is
xyz
dst host xyz: true if IP source field of the packet is xyz
ip proto xyz: true if the packet is an IP packet and
protocol type is xyz
Example: /usr/sbin/tcpdump src host 152.45.4.11 and
icmp
5
IP Fragmentation & Reassembly
Link-layer protocols can only carry packets of a limited size Different link-layer protocols may carry packets of different size Ethernet: 1,500 bytes Others: 576 bytes MTU: maximum transfer unit large IP datagram divided (“fragmented”) within net one datagram becomes several datagrams “reassembled” only at final destination IP header bits used to identify, order related fragments
fragmentation: in: one large datagram out: 3 smaller datagram
reassembly
IPv6 doesn’t allow fragmentation at routers
6
IP Fragmentation and
Reassembly
ID
=x
offset
fragflag
length
ID
=x
offset
fragflag
length
ID =x
offset
fragflag
length
ID =x
offset
fragflag
length
One large datagram becomes several smaller datagrams
10
ICMP Message Format
Type Code description 0 0 echo reply (ping) 3 0 dest. network unreachable 3 1 dest host unreachable 3 2 dest protocol unreachable 3 3 dest port unreachable 3 6 dest network unknown 3 7 dest host unknown 4 0 source quench (congestion control - not used) 8 0 echo request (ping) 9 0 route advertisement 10 0 router discovery 11 0 TTL expired 12 0 bad IP header
Type 8,0Code 0 checksum
identifier Sequence #
Optional data (header plus 64 bits)
…
Echo request / reply
11
Test Reachability (Ping)
A host or router sends an ICMP echo request
message to a specified destination
Any machine that receives echo request must
formulate an echo reply message and send to
sender
Successful receipt of a reply verifies that
major pieces of transport system work
12
Traceroute
traceroute: Warning: cn.yahoo.com has multiple addresses; using 61.135.128. traceroute to cn.yahoo.com (61.135.128.50), 30 hops max, 38 byte packets 1 r6hm01v163.ns.utk.edu (160.36.30.1) 1.373 ms 0.332 ms 0.322 ms 2 bsm01v200.ns. utk .edu (160.36.1.104) 0.417 ms 0.515 ms 0.393 ms 3 atl-edge-19.inet. qwest .net (216.207.16.33) 5.452 ms 5.547 ms 5.484 ms 4 atl-core-03.inet.qwest.net (205.171.21.125) 5.486 ms 5.688 ms 5.520 ms 5 atl-core-01.inet.qwest.net (205.171.21.153) 5.836 ms 5.905 ms 5.830 ms 6 iah-core-03.inet.qwest.net (205.171.8.145) 25.322 ms 25.348 ms 25.325 ms 7 iah-core-02.inet.qwest.net (205.171.31.41) 25.321 ms 25.419 ms 25.299 ms 8 bur-core-01.inet.qwest.net (205.171.205.25) 56.697 ms 56.746 ms 56.713 ms 9 lax-core-01.inet.qwest.net (205.171.8.41) 57.019 ms 57.058 ms 57.022 ms 10 lax-brdr-01.inet.qwest.net (205.171.19.38) 57.064 ms 57.099 ms 57.020 ms 11 202.97.48.65 (202.97.48.65) 264.265 ms 259.337 ms 257.330 ms 12 202.97.51.193 (202.97.51.193) 492.494 ms 470.912 ms 464.106 ms 13 p-13-0-r1-c-bjbj-1.cn.net (202.97.33.9) 958.715 ms 1012.859 ms 1016.328 ms 18 202.108.61.2 (202.108.61.2) 298.953 ms 293.484 ms 300.453 ms 19 cn.yahoo.com (61.135.128.50) 1908.846 ms 1892.476 ms 1953.833 ms
13
ARP: Address Resolution
Protocol
Each node on LAN has ARP module,
maintaining ARP table
ARP Table: IP/MAC address mappings for
some LAN nodes
< IP address; MAC address; TTL>
TTL (Time To Live): time after which address
mapping will be forgotten (typically 20 min)
14
ARP protocol
A knows B's IP address, wants to learn physical
address of B
A broadcasts ARP query pkt, containing B's IP
address
all machines on LAN receive ARP query
B receives ARP packet, replies to A with its (B's)
physical layer address
A caches (saves) IP-to-physical address pairs until
information becomes old (times out)
soft state: information that times out (goes away) unless refreshed
/sbin/arp
15
Example
/sbin/arp
[hqi@panther hqi]$ /sbin/arp Address HWtype HWaddress Flags Mask Iface panda.ece.utk.edu ether 00:C0:4F:2D:81:29 C eth lion.mail.utk.edu ether 00:D0:04:77:4F:FC C eth miranda.org ether 00:D0:04:77:4F:FC C eth ns0.utk.edu ether 00:D0:04:77:4F:FC C eth
19
IPv
Initial motivation: 32-bit address space
completely allocated by 2008.
Additional motivation:
header format helps speed
processing/forwarding
header changes to facilitate QoS
The concept of flow
new “anycast” address: route to “best” of
several replicated servers
20
IPv6 Header
ver (^) length
data (variable length, typically a TCP or UDP segment)
16-bit identifier Internet checksum
time to live 32 bit source IP address
head. len
type of service flgs
fragment offset upper layer
32 bit destination IP address
Options (if any)
21
Other Changes from IPv
Length field: fixed-length 40 byte header
No fragmentation allowed
Checksum: removed entirely to reduce
processing time at each hop
Options: allowed, but outside of header,
indicated by “Next Header” field
ICMPv6: new version of ICMP
additional message types, e.g. “Packet Too Big”
Subsumes multicast group management functions
(IGMP – Internet Group management Protocol)
“Unrecognized IPv6 option”
22
Transition From IPv4 To IPv
Flag day?
Dual stack
some routers with dual stack (v6, v4) can
“translate” between formats (IPv6/IPv
nodes)
Tunneling:
IPv6 carried as payload of IPv4 datagram
among IPv4 routers
23
Dual Stack Approach
IPv6/IPv4 nodes must have both IPv6 and IPv
addresses
Be able to determine whether another node is IPv6-
capable or IPv4-only
24
Tunneling
IPv6 inside IPv4 where needed
