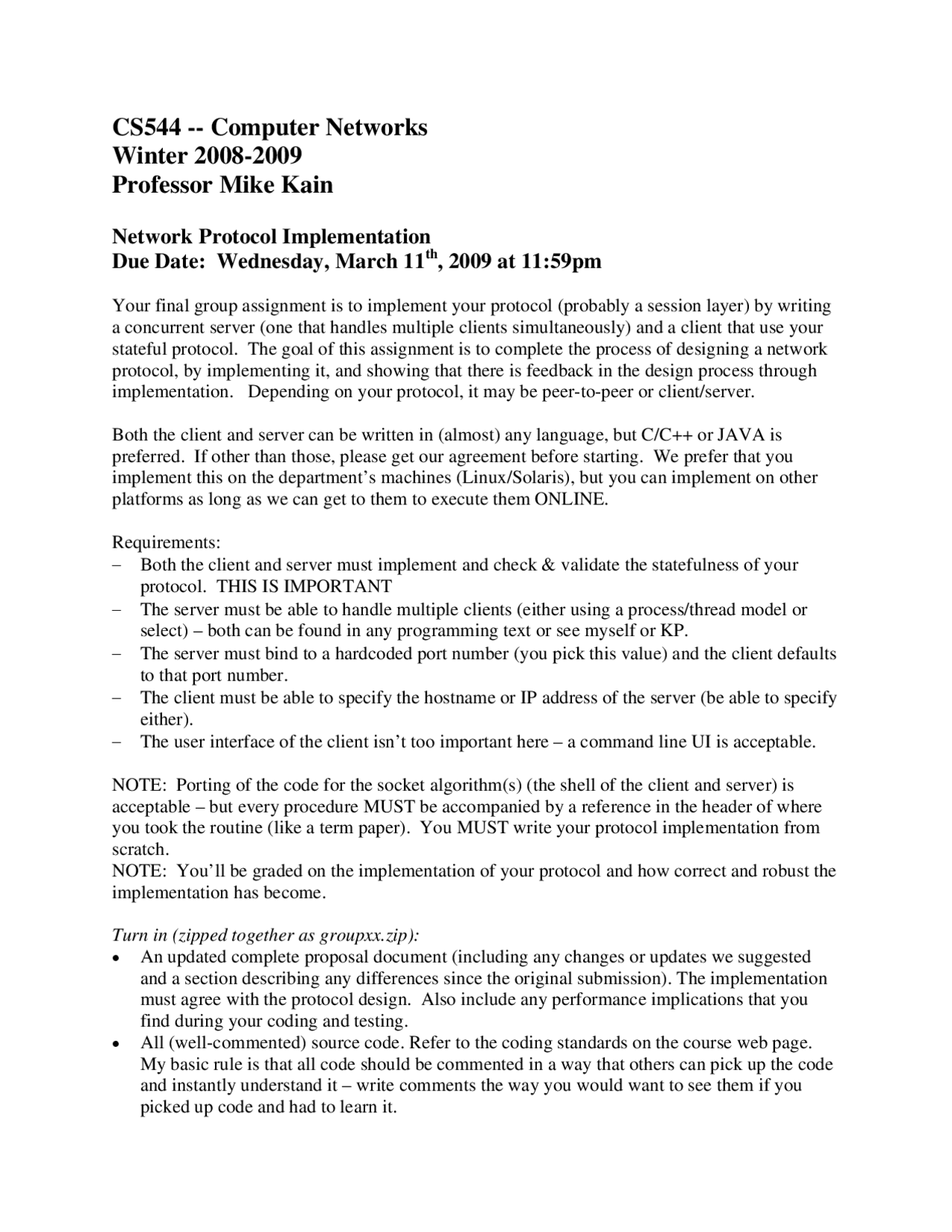

CS544 -- Computer Networks
Winter 2008-2009
Professor Mike Kain
Network Protocol Implementation
Due Date: Wednesday, March 11th, 2009 at 11:59pm
Your final group assignment is to implement your protocol (probably a session layer) by writing
a concurrent server (one that handles multiple clients simultaneously) and a client that use your
stateful protocol. The goal of this assignment is to complete the process of designing a network
protocol, by implementing it, and showing that there is feedback in the design process through
implementation. Depending on your protocol, it may be peer-to-peer or client/server.
Both the client and server can be written in (almost) any language, but C/C++ or JAVA is
preferred. If other than those, please get our agreement before starting. We prefer that you
implement this on the department’s machines (Linux/Solaris), but you can implement on other
platforms as long as we can get to them to execute them ONLINE.
Requirements:
− Both the client and server must implement and check & validate the statefulness of your
protocol. THIS IS IMPORTANT
− The server must be able to handle multiple clients (either using a process/thread model or
select) – both can be found in any programming text or see myself or KP.
− The server must bind to a hardcoded port number (you pick this value) and the client defaults
to that port number.
− The client must be able to specify the hostname or IP address of the server (be able to specify
either).
− The user interface of the client isn’t too important here – a command line UI is acceptable.
NOTE: Porting of the code for the socket algorithm(s) (the shell of the client and server) is
acceptable – but every procedure MUST be accompanied by a reference in the header of where
you took the routine (like a term paper). You MUST write your protocol implementation from
scratch.
NOTE: You’ll be graded on the implementation of your protocol and how correct and robust the
implementation has become.
Turn in (zipped together as groupxx.zip):
• An updated complete proposal document (including any changes or updates we suggested
and a section describing any differences since the original submission). The implementation
must agree with the protocol design. Also include any performance implications that you
find during your coding and testing.
• All (well-commented) source code. Refer to the coding standards on the course web page.
My basic rule is that all code should be commented in a way that others can pick up the code
and instantly understand it – write comments the way you would want to see them if you
picked up code and had to learn it.
