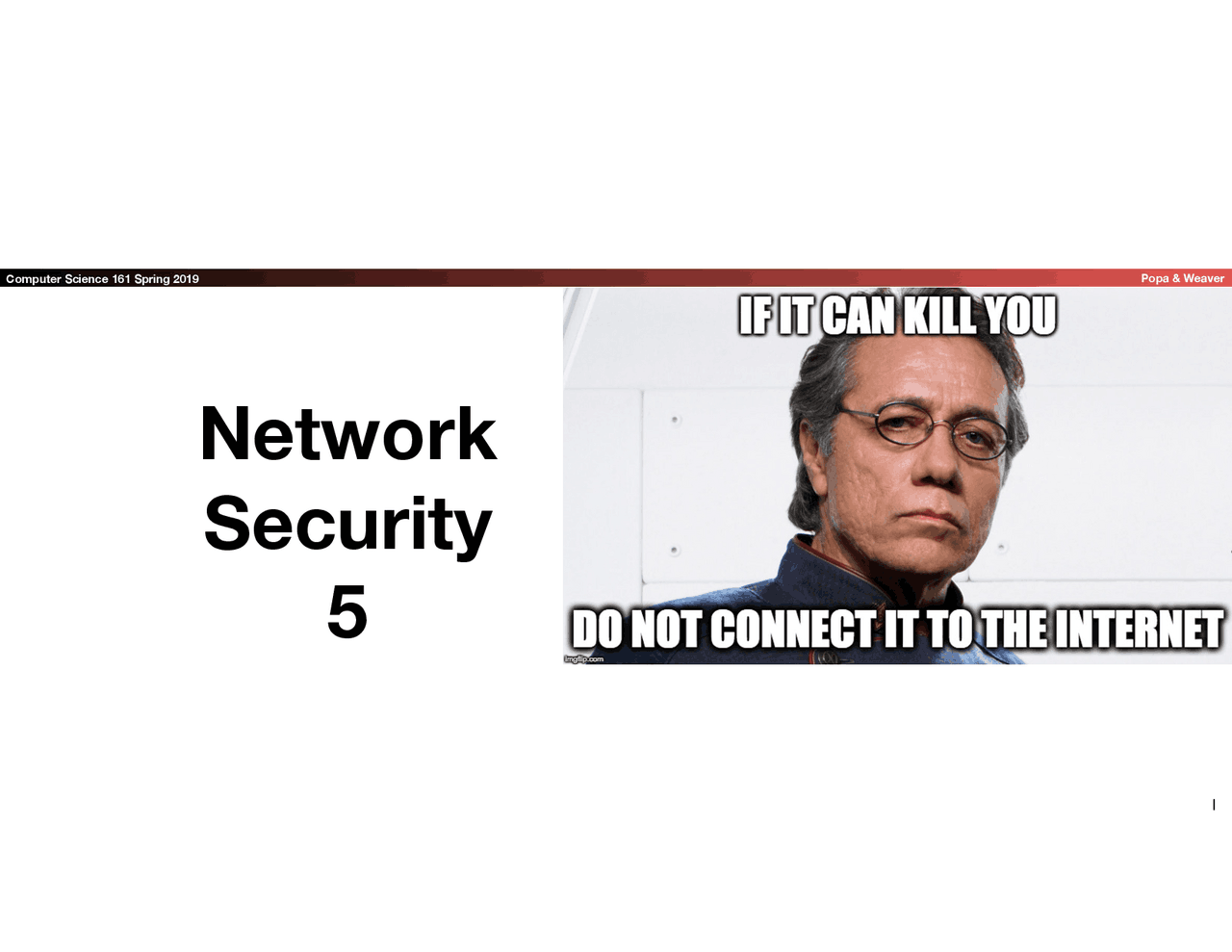

Computer Science 161 Spring 2019 Popa & Weaver

Network

Security

Computer Science 161 Spring 2019 Popa & Weaver

Reminder:

HTTPS Connection (SSL / TLS)

• Browser (client) connects via TCP to Amazon’s HTTPS server
• Client picks 256-bit random number RB, sends over list of crypto protocols it supports
• Server picks 256-bit random number RS, selects protocols to use for this session
• Server sends over its certificate
  • (all of this is in the clear)
• (^) Client now validates cert 2 SYN SYN ACK ACK Browser Amazon Server Hello. My rnd # = R B. I support (TLS+RSA+AES128+SHA1) (^) or (SSL+RSA+3DES+MD5) (^) or … My rnd # = R S. Let ’s use TLS+RSA+AES128+SHA Here ’s my cert ~2- KB of^ data

Computer Science 161 Spring 2019 Popa & Weaver

Alternative: Ephemeral Key Exchange via

Diffie-Hellman

• For Diffie-Hellman (DHE), server generates random a, sends public parameters and ga^ mod p
• Signed with server’s private key
• Browser verifies signature
• Browser generates random b, computes PS = gab mod p, sends gb^ mod p to server
• Server also computes PS = gab^ mod p
• Remainder is as before: from PS, RB, and RS, browser & server derive symm. cipher keys (CB, CS) and MAC integrity keys (IB, IS), etc… 4 Browser Here’ s my cert ~2- KB of^ data gb (^) mod p PS PS {M 1 , MAC(M 1 ,IB)} CB MAC( dialog ,IS) MAC( dialog ,IB) {g, p, g a^ mod p} (^) K -1Amazon … Amazon Server

Computer Science 161 Spring 2019 Popa & Weaver

Cipher Suite

Negotiation

• Chrome's cipher-suite information
  • Client sends to the server
  • Server then choses which one it wants
    • It should pick the common mode that both prefer based on order
• First is a dummy to keep servers honest
• Then its the bulk encryption only options
• Then key exchanges w encryption mode
  • Description is key exchange, signature (if necessary), and then bulk cipher & hash

Computer Science 161 Spring 2019 Popa & Weaver

And Sabotaged pRNGs...

• Let us assume the server is using DHE...
  • If an attacker can know^ a , they have all the information needed to decrypt the traffic:
    • Since PS = gab, and can see gb.
• TLS spews a lot of "random" numbers publicly as well
  • Nonces in the crypto, Rs, etc...
• If the server uses a bad pRNG which is both sabotaged and doesn't have rollback resistance ...
  • Dual_EC DRBG where you know the secret used to create the generator...
  • ANSI X9.31: An AES based one with a secret key...
• (^) Attacker sees the handshake, sees subsequent PRNG calls, works backwards to get the secret
  • Attack of the week: DUHK
  • https://blog.cryptographyengineering.com/2017/10/23/attack-of-the-week-duhk/

Computer Science 161 Spring 2019 Popa & Weaver

Forward Secrecy Modes...

• The real benefit from DHE/ECDHE "forward secret" modes
  • Reminder: Forward Secrecy: Even if the attacker later compromises the server's private key, the attacker can't compromise previous traffic
• It makes it far more difficult to use even after an attacker compromises the server's private key
  • Attacker has to be a full MitM: Do the handshake to the client and a separate one for the server

Computer Science 161 Spring 2019 Popa & Weaver

The Easy DoS on a System:

Resource Consumption...

• Bad Dude has an account on your computer...
  • And wants to disrupt your work on Project 2...
• He runs this simple program:
  • while(1):
    • Write random junk to random files
      • (uses disk space, thrashes the disk)
    • Allocate a bunch of RAM and write to it
      • (uses memory)
    • fork()
      • (creates more processes to run)
• Only defense is some form of quota or limits: The system itself must enforce some isolation

Computer Science 161 Spring 2019 Popa & Weaver

The Network DOS

Computer Science 161 Spring 2019 Popa & Weaver

DoS & Networks

• How could you DoS a target’s Internet access?
  • Send a zillion packets at them
  • Internet lacks^ isolation^ between traffic of different users!
• What resources does attacker need to pull this off?
  • At least as much sending capacity ( bandwidth ) as the bottleneck link of the target’s Internet connection
• Attacker sends maximum-sized packets
  • Or: overwhelm the rate at which the bottleneck router can process packets
    • Attacker sends minimum-sized packets!
      • (in order to maximize the packet arrival rate)

Computer Science 161 Spring 2019 Popa & Weaver

Defending Against Network DoS

• Suppose an attacker has access to a beefy system with high-speed Internet access (a “big pipe”).
• They pump out packets towards the target at a very high rate.
• What might the target do to defend against the onslaught?
  • Install a network filter to discard any packets that arrive with attacker’s IP address as their source
• E.g., drop * 66.31.33.7: -> :*
• Or it can leverage any other pattern in the flooding traffic that’s not in benign traffic
  • Attacker’s IP address = means of identifying misbehaving user^

Computer Science 161 Spring 2019 Popa & Weaver

It’s Not A “Level Playing Field”

• When defending resources from exhaustion, need to beware of asymmetries, where attackers can consume victim resources with little comparable effort
• Makes DoS easier to launch
• Defense costs much more than attack
• Particularly dangerous form of asymmetry: amplification
  • Attacker leverages system’s own structure to pump up the load they induce on a resource

Computer Science 161 Spring 2019 Popa & Weaver

Amplification

• Example of amplification: DNS lookups
  • Reply is generally much bigger than request
    • Since it includes a copy of the reply, plus answers etc.
  • Attacker spoofs DNS request to a patsy DNS server, seemingly from the target
    • Small attacker packet yields large flooding packet
    • Doesn’t increase # of packets, but total volume
• Note #1: these examples involve blind spoofing
  • So for network-layer flooding, generally only works for UDP-based protocols (can’t establish a TCP connection)
• Note #2: victim doesn’t see spoofed source addresses
  • Addresses are those of actual intermediary systems^

Computer Science 161 Spring 2019 Popa & Weaver

Transport-Level Denial-of-Service

• Recall TCP’s 3-way connection establishment handshake
  • Goal: agree on initial sequence numbers Client (initiator) SYN, SeqNum = x SYN + ACK, SeqNum = y, Ack = x + 1 ACK, Ack = y + 1 Server Server creates state associated with connection here (buffers, timers, counters) Attacker doesn’t even need to send this ack

Computer Science 161 Spring 2019 Popa & Weaver

Transport-Level Denial-of-Service

• Recall TCP’s 3-way connection establishment handshake
  • Goal: agree on initial sequence numbers
• So a single SYN from an attacker suffices to force the server to spend some memory Client (initiator) SYN, SeqNum = x SYN + ACK, SeqNum = y, Ack = x + 1 ACK, Ack = y + 1 Server Server creates state associated with connection here (buffers, timers, counters) Attacker doesn’t even need to send this ack
