1

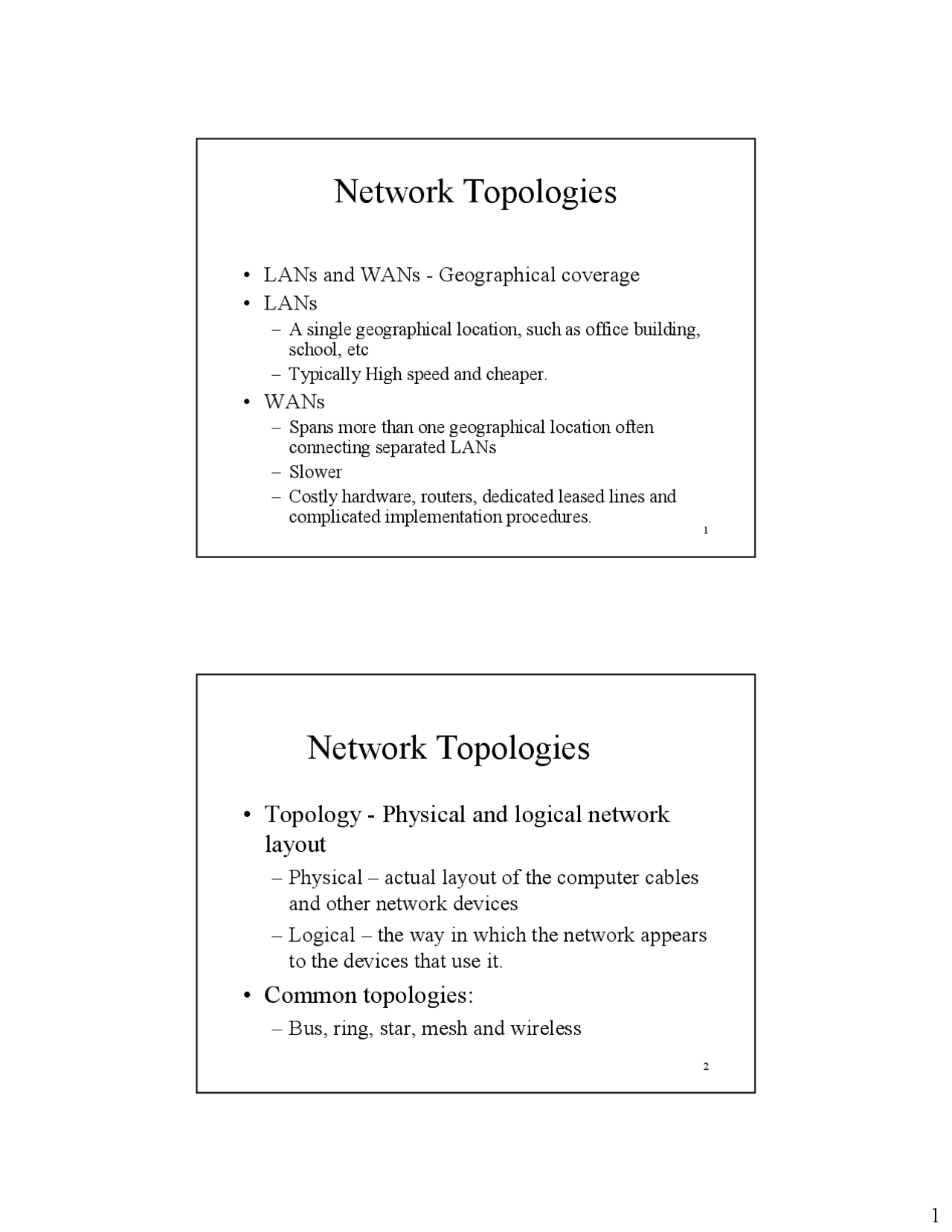

Network Topologies
• LANs and WANs - Geographical coverage
• LANs
- A single geographical location, such as office building,
school, etc
- Typically High speed and cheaper.
• WANs
- Spans more than one geographical location often
connecting separated LANs
- Slower
- Costly hardware, routers, dedicated leased lines and
complicated implementation procedures.
2
Network Topologies
• Topology - Physical and logical network
layout
– Physical – actual layout of the computer cables
and other network devices
– Logical – the way in which the network appears
to the devices that use it.
• Common topologies:
– Bus, ring, star, mesh and wireless
3
Bus topology
- Uses a trunk or backbone to which all of the computers on
the network connect.
- Systems connect to this backbone using T connectors or
taps.
- Coaxial cablings ( 10Base-2, 10Base5) were popular
options years ago.
4
Bus Topology
Does not use any specialized network Difficult to troubleshoot. equipment.
A break in the cable will prevent all systems from accessing the network.
Require less cable
Network disruption when computers are added or removed
Cheap and easy to implement
Advantages Disadvantages
7
Star Topology
• All computers/devices connect to a central
device called hub or switch.
• Each device requires a single cable
• point-to-point connection between the
device and hub.
• Most widely implemented
• Hub is the single point of failure
8
Star Topology
Easy to troubleshoot and isolate More difficult to implement problems
A central connecting device allows for a single point of failure
Cable failure affects only a single user
Easily expanded without disruption Requires more cable to the network
Advantages Disadvantages
9
Mesh Topology
• Each computer connects to every other.
• High level of redundancy.
• Rarely used.
- Wiring is very complicated
- Cabling cost is high
- Troubleshooting a failed cable is tricky
- A variation hybrid mesh – create point to point
connection between specific network devices, often
seen in WAN implementation.
10
Mesh Topology
The network can be expanded Complicated implementation without disruption to current uses
Requires more cable than the other LAN topologies
Provides redundant paths between devices
Advantages Disadvantages
13
IEEE and Networking standards
• Institute of Electrical and Electronic
Engineers (IEEE) developed a series of
networking standards
– Networking technologies developed by
manufacturers are Compatible
– Cabling, networking devices and protocols are
all interchangeable under the banner of a
specific IEEE
14
802.12 100Mbps technologies, including 100BASEVG-AnyLAN
802.11 Wireless networks
Standards for Interoperable LAN/MAN Security (SILS) (Network Security)
802.9 Integrated Voice and Data Networks
802.8 Fiber-Optic Technical Advisory Group
802.7 Broadband Technical Advisory Group
802.6 Metropolitan Area Network (MAN)
802.5 Token Ring networks
802.4 A token passing bus
CSMA/CD ( Carrier Sense Multiple Access with Collision Detection) for Ethernet networks
802.2 The LLC(Logincal Link Control) sublayer
802.1 Internetworking
Specification Name
15
802.3 IEEE standard
- Defines characteristics for Ethernet networks.
- New additions,
- 802.3u for Fast Ethernet
- 802.3z for Gigabit Ethernet, referred to as 802.3x.
- … …
- 802.3ac 10gbits/s, expe. 2009
- … …
- Speed: Original 10Mbps, Fast Ethernet 100Mbps, Gigabit Ethernet
1000Mbps
- Topology: bus or star.
- Media: Coaxial and twisted pair cabling, also fiber optic cable.
- Access method: CSMA/CD
16
802.5 IEEE standard
• Specifies the characteristics for Token Ring
Networks.
• Introduced by IBM in the mid 80s, network
topology of choice until the rise of the popularity
of Ethernet.
• Speed: 4 to 16Mbps
• Topology: logical ring and most often a physical
star. Logical ring is often created in the
Multistation Access Unit (MSAU)
• Media: twisted pair cabling.
• Access method: token passing.
19
Token passing
Fiber-optic Twisted pair/CDDI
FDDI 100Mbps Dual Ring Ring
802.11b 11Mbps Wireless Bus Radio waves CSMA/CA
Token passing
4Mbps and Star Ring Twisted pair 16Mbps
(802.3z) 1000Mbps Star Bus Twisted pair CSMA/CD
100Mbps( Fast Star Bus Twisted pair CSMA/CD Ethernet)
(802.3u)
Coaxial and CSMA/CD Twisted pair
802.3 10Mbps Bus and Star
Access Method
Logical Media Topology
Physical Topology
Standard Speed
