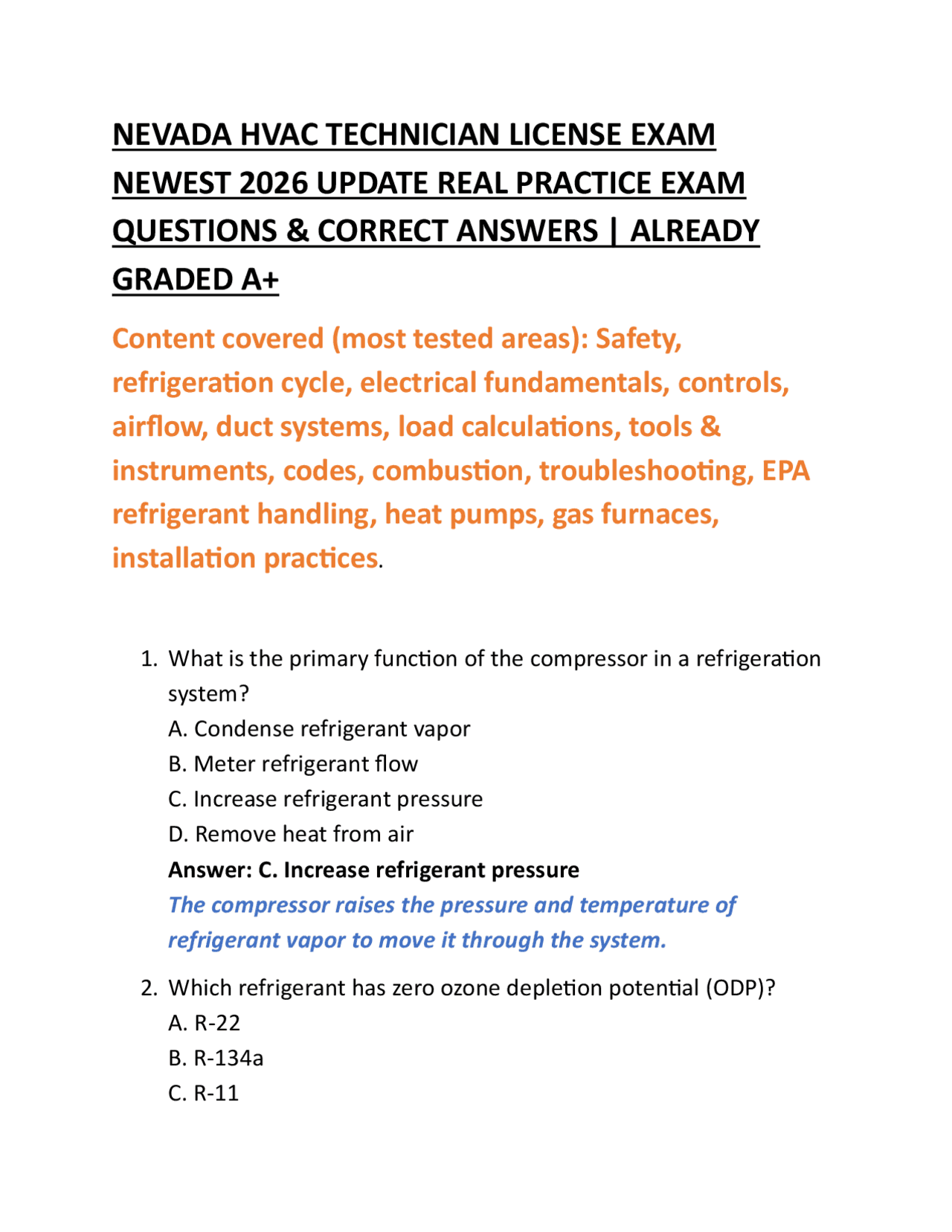

NEVADA HVAC TECHNICIAN LICENSE EXAM
NEWEST 2026 UPDATE REAL PRACTICE EXAM
QUESTIONS & CORRECT ANSWERS | ALREADY
GRADED A+
Content covered (most tested areas): Safety,
refrigeration cycle, electrical fundamentals, controls,
airflow, duct systems, load calculations, tools &
instruments, codes, combustion, troubleshooting, EPA
refrigerant handling, heat pumps, gas furnaces,
installation practices.
1. What is the primary function of the compressor in a refrigeration
system?
A. Condense refrigerant vapor
B. Meter refrigerant flow
C. Increase refrigerant pressure
D. Remove heat from air
Answer: C. Increase refrigerant pressure
The compressor raises the pressure and temperature of
refrigerant vapor to move it through the system.
2. Which refrigerant has zero ozone depletion potential (ODP)?
A. R-22
B. R-134a
C. R-11
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d

Partial preview of the text

Download NEVADA HVAC TECHNICIAN LICENSE EXAM NEWEST 2026 UPDATE REAL PRACTICE EXAM QUESTIONS & CO and more Exams Mechanical Engineering in PDF only on Docsity!

NEVADA HVAC TECHNICIAN LICENSE EXAM

NEWEST 2026 UPDATE REAL PRACTICE EXAM

QUESTIONS & CORRECT ANSWERS | ALREADY

GRADED A+

Content covered (most tested areas): Safety,

refrigeration cycle, electrical fundamentals, controls,

airflow, duct systems, load calculations, tools &

instruments, codes, combustion, troubleshooting, EPA

refrigerant handling, heat pumps, gas furnaces,

installation practices.

  1. What is the primary function of the compressor in a refrigeration system? A. Condense refrigerant vapor B. Meter refrigerant flow C. Increase refrigerant pressure D. Remove heat from air Answer: C. Increase refrigerant pressure The compressor raises the pressure and temperature of refrigerant vapor to move it through the system.
  2. Which refrigerant has zero ozone depletion potential (ODP)? A. R- 22 B. R-134a C. R- 11

D. R- 12

Answer: B. R-134a R-134a contains no chlorine, so it does not deplete ozone.

  1. Superheat is measured at the: A. Condenser outlet B. Evaporator outlet C. Compressor discharge D. Liquid line Answer: B. Evaporator outlet Superheat confirms that only vapor returns to the compressor.
  2. Subcooling is measured at the: A. Compressor inlet B. Evaporator inlet C. Condenser outlet D. Suction line Answer: C. Condenser outlet Subcooling verifies liquid refrigerant leaving the condenser.
  3. A capacitor in a single-phase motor is used to: A. Reduce voltage B. Increase current draw C. Improve starting torque D. Control speed Answer: C. Improve starting torque Capacitors create phase shift for stronger motor startup.
  4. The device that meters refrigerant into the evaporator is the: A. Accumulator B. TXV
  1. Ohm’s Law states that voltage equals: A. Current × Resistance B. Power ÷ Current C. Resistance ÷ Current D. Power × Resistance Answer: A. Current × Resistance V = I × R.
  2. A heat pump in heating mode extracts heat from: A. Indoor air B. Refrigerant only C. Outdoor air D. Electrical resistance Answer: C. Outdoor air Even cold air contains usable heat energy.
  3. The reversing valve is energized during: A. Cooling only (most systems) B. Heating only C. Both modes D. Defrost only Answer: A. Cooling only (most systems) Most manufacturers energize the valve for cooling operation.
  4. Static pressure measures: A. Air velocity B. Air temperature C. Resistance to airflow D. Humidity

Answer: C. Resistance to airflow High static pressure indicates airflow restriction.

  1. A cracked heat exchanger can cause: A. Refrigerant leak B. Carbon monoxide exposure C. Low airflow D. High voltage Answer: B. Carbon monoxide exposure Combustion gases may enter living spaces.
  2. The purpose of a filter-drier is to remove: A. Oil only B. Moisture and debris C. Heat D. Airflow restriction Answer: B. Moisture and debris Contaminants damage system components.
  3. Which tool measures refrigerant pressure? A. Manifold gauge set B. Psychrometer C. Anemometer D. Megohmmeter Answer: A. Manifold gauge set Standard tool for diagnosing system pressures.
  4. The evaporator coil is located: A. Outside the building B. In the duct plenum C. In the condenser

C. Superheated vapor D. Saturated vapor Answer: C. Superheated vapor Protects compressor from liquid slugging.

  1. A system low on refrigerant will typically show: A. High suction pressure B. Low suction pressure C. High subcooling D. High airflow Answer: B. Low suction pressure Less refrigerant means reduced evaporator pressure.
  2. The purpose of insulation on suction lines is to: A. Prevent freezing outside B. Maintain vapor temperature C. Increase pressure D. Improve oil flow only Answer: B. Maintain vapor temperature Prevents heat gain and condensation.
  3. Defrost control in heat pumps prevents: A. Compressor overheating B. Coil icing C. High voltage D. Refrigerant loss Answer: B. Coil icing Ice blocks airflow and reduces efficiency.
  4. BTU stands for: A. British Thermal Unit

B. Basic Temperature Unit C. Boiler Transfer Unit D. Balanced Thermal Utility Answer: A. British Thermal Unit Standard heat measurement.

  1. The liquid line carries refrigerant as: A. Low-pressure vapor B. High-pressure vapor C. High-pressure liquid D. Low-pressure liquid Answer: C. High-pressure liquid After condensation, refrigerant is liquid.
  2. A psychrometer measures: A. Pressure B. Humidity C. Voltage D. Airflow Answer: B. Humidity Uses wet-bulb and dry-bulb readings.
  3. The function of a relay is to: A. Reduce resistance B. Electrically isolate circuits C. Increase voltage D. Store energy Answer: B. Electrically isolate circuits Allows low-power control of high-power devices.

Answer: B. Insulation resistance Used on motors and compressors.

  1. Proper duct sealing improves: A. Refrigerant charge B. System efficiency C. Electrical load D. Compressor speed Answer: B. System efficiency Prevents conditioned air loss.
  2. The condenser fan motor failure will cause: A. Low head pressure B. High head pressure C. Low airflow indoors D. No thermostat control Answer: B. High head pressure Heat cannot be expelled outdoors.
  3. A pilot light that goes out repeatedly may indicate: A. Dirty evaporator B. Faulty thermocouple C. Low refrigerant D. Bad capacitor Answer: B. Faulty thermocouple Thermocouple shuts gas if flame is not sensed.
  4. Voltage in most residential HVAC control circuits is: A. 12 V B. 24 V C. 48 V

D. 120 V

Answer: B. 24 V Standard low-voltage control level.

  1. A clogged air filter primarily reduces: A. Refrigerant pressure B. Airflow C. Voltage D. Humidity control Answer: B. Airflow Leads to coil freezing and inefficiency.
  2. Which component removes heat from refrigerant? A. Evaporator B. Compressor C. Condenser D. Metering device Answer: C. Condenser Rejects heat to outdoor air.
  3. Oil return to the compressor depends on: A. Proper refrigerant velocity B. Thermostat setting C. Electrical resistance D. Coil size only Answer: A. Proper refrigerant velocity Oil travels with refrigerant flow.
  4. A scroll compressor differs from a reciprocating compressor by using: A. Pistons
  1. Refrigerant recovery is required by: A. Local utility companies B. EPA regulations C. Manufacturer warranty D. Insurance providers Answer: B. EPA regulations Protects the environment from emissions.
  2. A TXV senses temperature using a: A. Bulb B. Float C. Sensor wire D. Thermostat Answer: A. Bulb Bulb pressure controls valve opening.
  3. A furnace blower delay allows: A. Immediate airflow B. Heat exchanger warm-up C. Lower gas usage D. Reduced voltage Answer: B. Heat exchanger warm-up Prevents blowing cold air at startup.
  4. The discharge line is also called the: A. Liquid line B. Suction line C. Hot gas line D. Return line

Answer: C. Hot gas line Carries high-temperature vapor.

  1. A dual-run capacitor serves: A. Compressor only B. Fan only C. Both compressor and fan D. Thermostat Answer: C. Both compressor and fan Common in residential condensers.
  2. The most common cause of compressor failure is: A. Electrical burnout B. Loss of lubrication C. Overcharging D. Dirty ducts Answer: B. Loss of lubrication Oil problems quickly damage internal parts.
  3. Proper evacuation removes: A. Refrigerant B. Moisture and air C. Oil D. Heat Answer: B. Moisture and air Vacuuming prevents acid formation and inefficiency. If you want, I can provide:
  • Questions 51– 100

D. Single-speed operation Answer: B. Variable air volume It adjusts airflow for comfort and efficiency.

  1. A pressure switch in an HVAC system is primarily used to: A. Sense airflow or refrigerant pressure B. Control voltage C. Regulate temperature D. Open the gas valve Answer: A. Sense airflow or refrigerant pressure Shuts the system down if unsafe conditions exist.
  2. A system that freezes coils likely has: A. Low airflow or low refrigerant B. High voltage C. Oversized ductwork D. Dirty condenser only Answer: A. Low airflow or low refrigerant Insufficient heat absorption causes freezing.
  3. The term “latent heat” refers to: A. Heat that changes temperature B. Heat absorbed during phase change C. Electrical heat D. Combustion heat Answer: B. Heat absorbed during phase change For example, evaporation absorbs latent heat.
  4. Which refrigerant is no longer used in new equipment due to ozone depletion? A. R-410A

B. R- 22

C. R-134a D. R-407C Answer: B. R- 22 R-22 is phased out under the Montreal Protocol.

  1. A multimeter set to measure resistance is used to: A. Measure voltage B. Measure current C. Check continuity and resistance D. Check airflow Answer: C. Check continuity and resistance Verifies wiring and motor windings.
  2. The main function of a condenser coil is to: A. Absorb heat from indoor air B. Remove heat from refrigerant to outdoor air C. Increase suction pressure D. Increase refrigerant superheat Answer: B. Remove heat from refrigerant to outdoor air Releases heat absorbed from indoors.
  3. In a split system, the indoor unit is called the: A. Condenser B. Evaporator C. Compressor D. Expansion device Answer: B. Evaporator Absorbs heat from indoor air.

Answer: B. Anemometer Measures cubic feet per minute or velocity.

  1. A low-voltage transformer in HVAC typically converts: A. 120V to 24V B. 24V to 120V C. 12V to 24V D. 220V to 110V Answer: A. 120V to 24V Provides safe control voltage to thermostat and relays.
  2. A compressor that hums but does not start likely has: A. Electrical problem or bad start capacitor B. Low refrigerant C. High airflow D. Open TXV Answer: A. Electrical problem or bad start capacitor Start winding issues prevent rotation.
  3. In cooling mode, the evaporator coil temperature is typically: A. 40–55°F B. 70–75°F C. 120–140°F D. 32–35°F Answer: A. 40–55°F Optimal for dehumidification and comfort.
  4. Heat pump efficiency is measured by: A. SEER B. HSPF C. CFM

D. PSI

Answer: B. HSPF Heating Seasonal Performance Factor evaluates heating efficiency.

  1. A furnace flame rollout switch shuts off: A. Suction pressure B. Gas valve if flame escapes burner area C. Compressor D. Thermostat Answer: B. Gas valve if flame escapes burner area Prevents fire hazards.
  2. A duct static pressure reading that is too high indicates: A. Oversized duct B. Airflow restriction C. Proper airflow D. Correct blower speed Answer: B. Airflow restriction Blocked or undersized ducts create high static pressure.
  3. A dual fuel system combines: A. Electric and gas heat B. Two compressors C. Heat pump and water coil D. Two thermostats Answer: A. Electric and gas heat Switches fuel source for efficiency depending on outdoor temperature.
