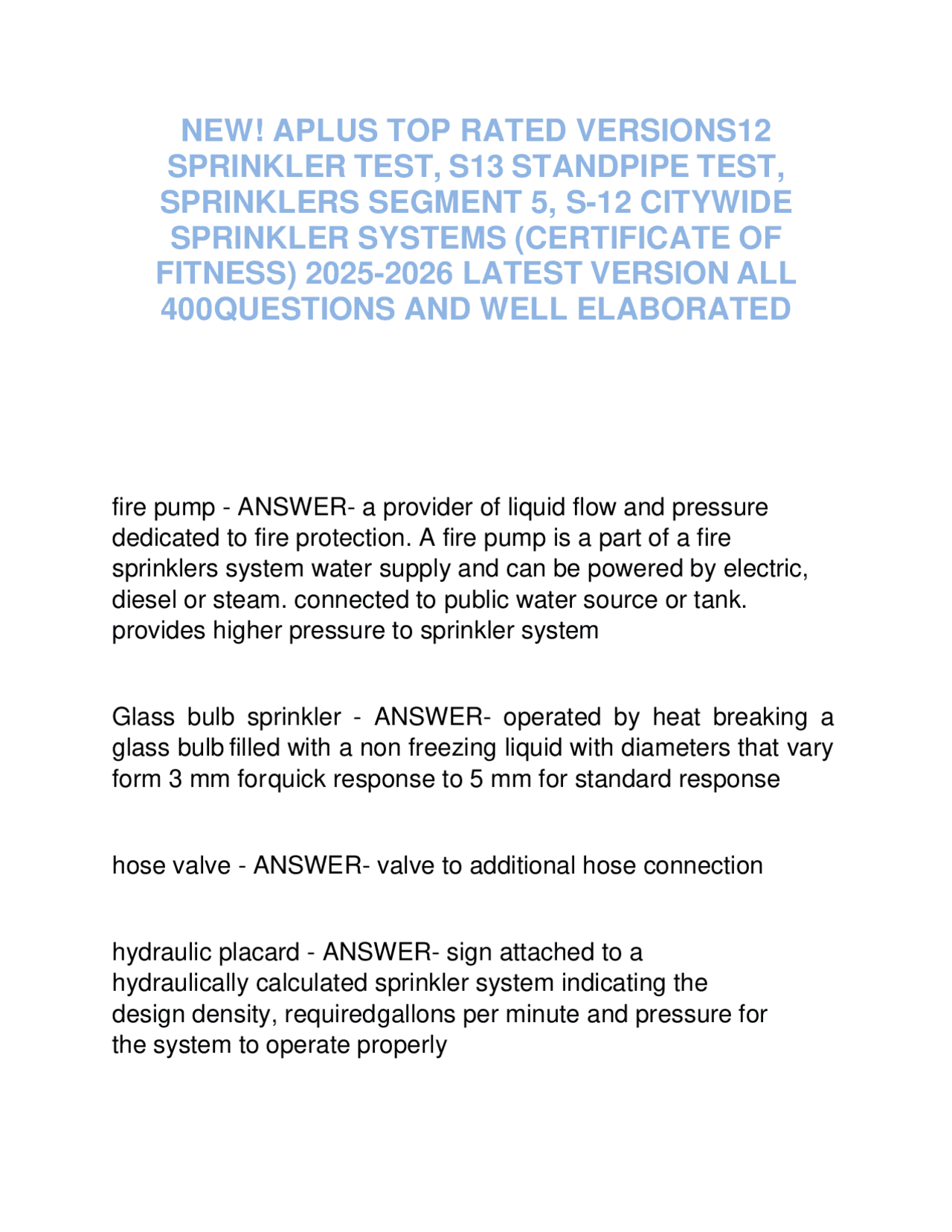

NEW! APLUS TOP RATED VERSIONS
SPRINKLER TEST, S13 STANDPIPE TEST,
SPRINKLERS SEGMENT 5, S-12 CITYWIDE
SPRINKLER SYSTEMS (CERTIFICATE OF
FITNESS) 2025 - 2026 LATEST VERSION ALL
400 QUESTIONS AND WELL ELABORATED
fire pump - ANSWER- a provider of liquid flow and pressure dedicated to fire protection. A fire pump is a part of a fire sprinklers system water supply and can be powered by electric, diesel or steam. connected to public water source or tank. provides higher pressure to sprinkler system Glass bulb sprinkler - ANSWER- operated by heat breaking a glass bulb filled with a non freezing liquid with diameters that vary form 3 mm for quick response to 5 mm for standard response hose valve - ANSWER- valve to additional hose connection hydraulic placard - ANSWER- sign attached to a hydraulically calculated sprinkler system indicating the design density, required gallons per minute and pressure for the system to operate properly
hydraulically calculated systems - ANSWER- method of sizing auto sprinkler piping using a prescribed amount of water to be distributed over a specific area. impairment coordinator - ANSWER- in charge of safety during out of service systems intermediate level sprinkler - ANSWER- sprinkler equipped with integral shields to protect the operating elemtn form discharge from sprinklers installed at higher elevations large orifice sprinkler - ANSWER- sprinkler head with orifice size equal or greater than 3/4 and less than 1 inch listed device - ANSWER- A fire protection component that has been tested to perform under parameters specified for its use by a nationally recognized testing agency. Underwriter's Laboratory (UL) and Factory Mutual (FM) are the two most common. Master Pressure Reducing Valve - ANSWER- A pressure reducing valve installed to regulate pressures in an entire fire protection system and/or standpipe system zone. Main Drain - ANSWER- The primary drain connection located on the system riser and also utilized as a flow test connection.
Pressure Control Valve - ANSWER- A pilot operated pressure reducing valve that may be used with a fire or booster pump designed for the purpose of preventing the incoming water supply pressure from dropping below a set pressure. Pressure-Reducing Valve - ANSWER- A valve designed for the purpose of reducing the downstream water pressure under both flowing (residual) and nonflowing (static) conditions. fire department connection - ANSWER- normally on exterior of building... FDNY can pump supplemental water into the sprinkler system, standpipe, or other system furnishing water for fire extinguishment to supplement existing water supplies. system control valve - ANSWER- valve controlling flow to water- based fire protection systems. fire command center - ANSWER- Designated room or area in a structure where the status of the fire detection, alarm, and protection systems is displayed and the systems can be manually controlled. Fire pump, automatic standpipe. - ANSWER- A fire pump located at or below street level that supplies the lower 300 feet (91.4 m) of a standpipe system or a combined standpipe and sprinkler system.
tags - ANSWER- on closed section valves serving affected areas: area affected, brief description, occupancy classification, c of f number, estimated time until operational Green tag - ANSWER- no impairment found in entire system- main control valve red tag - ANSWER- place on main control valve if FULLY out of service... put sprinkler company name, date of removal from service and anticipated time to operational blue disk - ANSWER- partially out of service- on all fire department connections water storage tank - ANSWER- Collects cooled water OS & Y valve - ANSWER- indicating type of control valve used for fire sprinkler system deluge valve - ANSWER- water supply control valve intended to be operated by actuation of an automatic detection system that is installed in the same area as the discharge devices. INTENDED USE IS MANUAL AND AUTO deluge sprinkler system - ANSWER- employing open sprinklers that are attached to a piping system that is connected to a water supply through a valve that is opened by the operation of a detection system installed in
Recessed Sprinkler - ANSWER- A sprinkler in which all or part of the body, other than the shank thread, is mounted above the ceiling. Residential Sprinkler - ANSWER- A type of fast response sprinkler that has been specifically tested to enhance survivability in the room of fire origin and listed for use in dwelling units. Response Time Index (RTI) - ANSWER- A measurement of the thermal sensitivity of a sprinkler head expressed in (meters- seconds) 1/2. Supervisory signal - ANSWER- A signal indicating the need for action or the use of such device in connection with the supervision of fire alarm systems or the maintenance features of related systems. Small orifice sprinklers - ANSWER- A sprinkler head with and orifice size smaller than 1⁄2" Solder Link Sprinkler - ANSWER- A sprinkler operated by the melting of a metal link, they vary in size and configuration for quick response and standard response sprinklers. The smaller the size of the link, the faster the sprinkler operates. Spray Sprinkler - ANSWER- A type of sprinkler listed for its capabilityto provide fire control for a wide range of fire hazards. The most commonly used sprinkler since 1953.
Standard Response Sprinkler Head - ANSWER- A sprinkler having a fusible link with a response time index (RTI) of 80 or more. Supervisory signal-initiating device - ANSWER- An initiating device, such as a valve supervisory switch,that triggers a supervisory signal. Testing - ANSWER- A procedure used to determine the status of a system as intended by conducting periodic physical checks on water based fire protection systems such as waterflow tests, fire pump tests, alarm tests, and trip tests of dry pipe, deluge, or preaction valves. These tests follow up on the original acceptance test at intervals specified in the appropriate chapter of NFPA #25, 2002 edition. Upright Sprinkler - ANSWER- A sprinkler designed to be installed in such a way that the water spray is directed upwards against the deflector. Water Spray Fixed System - ANSWER- A special fixed pipe system connected to a reliable fire protection water supply and equipped with water spray nozzles for specific water discharge and distribution over the surface or area to be protected. PREACTION SPRINKLER SYSTEMS - ANSWER- designed for situations where there is danger of serious water damage. Water damage is usually caused by damaged sprinklers or broken piping. Under normal conditions there is no water in the piping. The air in the piping may or may not be is under pressure. A preaction valve prevents the water from entering the system. The valve is
preaction valve is tripped by the fire detection system before any of thesprinkler heads open. A supervisory device signals when the valve is opened. The preaction valve can also be operated manually. DELUGE SPRINKLER SYSTEMS - ANSWER- equipped with open sprinkler heads designed to wet down an entire area involved in a fire. This system is needed when there is danger of a fire rapidly spreading throughout the building. The deluge system will slow down the spread of the fire. Deluge systems are suitable for hazardous occupancies. This includes buildings in which flammable liquids or other hazardous materials are handled or stored. The sprinkler heads in the deluge system are open at all times. Under normal conditions there is no water in the piping. The air in the piping is not under pressure. A closed control valve prevents water from flowing into the system. A fire detection device automatically opens the control valve when a fire is identified. A supervisory device signals when the valve is opened. When the valve is opened water flows into the system. The water is then discharged out all of the sprinkler heads. The water control valve may also be opened manually. NON-AUTOMATIC DRY SPRINKLER SYSTEMS - ANSWER- ll pipes are normally dry. Water is supplied when needed by pumping water into the system through the Fire Department connection. Some of these systems are supplied by manual operation of a water control valve and may be equipped with sprinklers with or without fusible links. There are several non-automatic systems: 1) Perforated pipe systems - a single line of piping drilled at intervals for water discharge. These systems are usually found in basements or other areas difficult to reach in fire fighting operations. 2) Open
fixed spray nozzles for transformer vaults or other hazardous areas; 3) exterior exposure sprinklers (or
Fire Pumps - ANSWER- used as a main water supply source for sprinkler systems. They may also be used in combination with gravitytanks to supply sprinkler system. Fire pumps are designed to take the water from a supply source and then discharge the water into the fire protection system under pressure. Waterflow Alarm Valves - ANSWER- The basic design of most water- flow alarm valves is that of a check valve which lifts from its seat when water flows into a sprinkler system. This alarm then starts an audible signal to alert the occupants in the building that the sprinkler system has been activated. Vane type waterflow - ANSWER- Switches have a paddle inserted inside the main supply piping perpendicular to the direction of flow. Upon waterflow, the paddle switch transmits an alarm. Vane type waterflow switches cannot be installed to monitor waterflow in dry pipe sprinkler systems. Alarm Retarding Devices - ANSWER- An alarm check valve that is exposed to changing water supply pressure needs an alarm retarding device. This is required to prevent false alarms when the check valve clapper is lifted from its seat by a temporary pressure surge. Vane type water flow switches sensitivity can also be adjusted to changing water pressures. The Centrifugal Pump - ANSWER- The centrifugal fire pump is the standard pump currently used in fire protection systems. This is the preferred pump because it is reliable, compact, requires low
maintenance, and it can be powered by a variety of drivers including: electric motors, internal combustion engines, and steam turbines The Vertical Turbine Pump - ANSWER- A vertical turbine pump is really a modified centrifugal pump that has the capability to draw water from streams, ponds, wells etc. Unlike the standard centrifugal pump, the vertical turbine pump does not need the suction supply to be under pressure for it to operate. Instead it draws the water into the pump by suction. The water is drawn into the pump. When it reaches the rotating impellers the water pressure is increased and then forcefully discharged into the fire protection system. Pump Activation - ANSWER- A fire pump can be started automaticallyor manually. The pump can be started automatically by an electric controller or an engine controller. These controllers activate the pump when there is a drop of water pressure or water flow in the fire protection system. Pressure Maintenance Pumps (Jockey Pumps) - ANSWER- Pressure maintenance pumps, Some times referred to as jockey, or makeup pumps, are often found on sprinkler systems. These pumps are designed to automatically operate when there is a slight drop in pressure due to the leakage in the system or a pressure surge. The jockey pump restores the pressure in the fire protection system to the desired level. When the drop of pressure in the system greater than the capacity of the jockey pump the fire pump is activated.
fire hydrant - ANSWER- A valve connection on a water supply system having one or more outlets and that is used to supply hose and fire department pumps with water. Control valve - ANSWER- A valve controlling flow to water base fire protection system. Control valve do not include hose valves Fire pump locations - ANSWER- the fire pump should be located in a place that is noncombustible or fire resistant. has to be heated to a minimum of 40 degrees Fahrenheit. Gravity tanks should be how high above the highest sprinkler head? - ANSWER- 25 feet. What are the three methods to heating a gravity tank - ANSWER- Hot water circulation Steam is discharged directly into the tank steam coils are placed inside the tanks Heat from the sun is used Automatic fill pumps supply the water to most gravity tanks. The pumps fill the tank at a rate of gpm - ANSWER- 65 Centrifugal pump can pump at a rate of - ANSWER- 25 to 5000 gallons per minute
what is a fire hydrant? - ANSWER- A valve connection on a water supply system having one or more outlets and that is used to supply hose and fire department connections with water. What is the purpose of gate valves? - ANSWER- A valve controlling flow to water based fire protection systems. Is used to isolate,shut off, and open sprinkler systems. Which option best describes a the term: Operational - ANSWER- Water availability An Automatic Standpipe System is - ANSWER- A standpipe system that is attached to a water supply capable of supplying the system demand at all times and that requires no action other than opening a hose valve to provide water at hose connections. Auxiliary water supply - ANSWER- supplementary source of water for a standpipe and/or sprinkler system. Control Valve - ANSWER- A valve controlling flow to water-based fire protection systems. Control valves do not include hose valves, inspector's test valves, drain valves, trim valves for dry pipe, pre- action and deluge valves, check valves, or relief valves. Branch line - ANSWER- A pipe system, generally in a horizontal plane, connecting not more than
an approved nonpermeable lining, or with an inner reinforcement between a protective cover and an approved nonpermeable lining. Fire Hydrant - ANSWER- A valve connection on a water supply system having one or more outlets and that is used to supply hose and fire department pumps with water. Fire Pump - ANSWER- A pump that is a provider of liquid flow and pressure dedicated to fire protection. A fire pump is a part of a fire standpipe system's water supply and can be powered by electric, diesel or steam. The pump intake is either connected to the public underground water supply piping or a static water source (e.g., tank, reservoir, lake). The pump provides water flow at higher pressure and volume to the standpipe system risers and hose standpipes. A Fold is a - ANSWER- A transverse bend (fold) occurring where the hose is lengthwise double over on itself, as on a pin rack. Gallons per minute (GPM) - ANSWER- typically used to measure fluid flow rate (such as water) or pump capacity. Measurement of water flow rate for a pump or a fire standpipe or sprinkler system. Hose Connection - ANSWER- a combination of equipment provided for connection of a hose to the standpipe system that includes a hose valve with a threaded outlet.
An Attack Hose is - ANSWER- Hose designed to be used by trained fire fighters and fire brigade members to combat fires beyond the incipient stage. A Booster Hose is - ANSWER- A non-collapsible hose used under positive pressure having an elastomeric or thermoplastic tube, a braided or spiraled reinforcement, and an outer protective cover. A Covered Hose is - ANSWER- A hose with a jacket covered and lined with a continuous synthetic rubber or plastic. The cover is usually thicker than a coating. A Fire Hose is - ANSWER- A flexible conduit used to convey water. Hose Valve - ANSWER- The valve to an individual hose connection Occupant Use Hose - ANSWER- Fire hose designed to be used by the building's occupants to fight incipient fires prior to the arrival of trained fire fighters or fire brigade members. Unlined Hose - ANSWER- A hose consisting of only a woven jacket that is usually of linen yarns and is of such quality that the yarn swells when wet, tending to seal the hose. Hose Size - ANSWER- An expression of the internal diameter of the hose.
