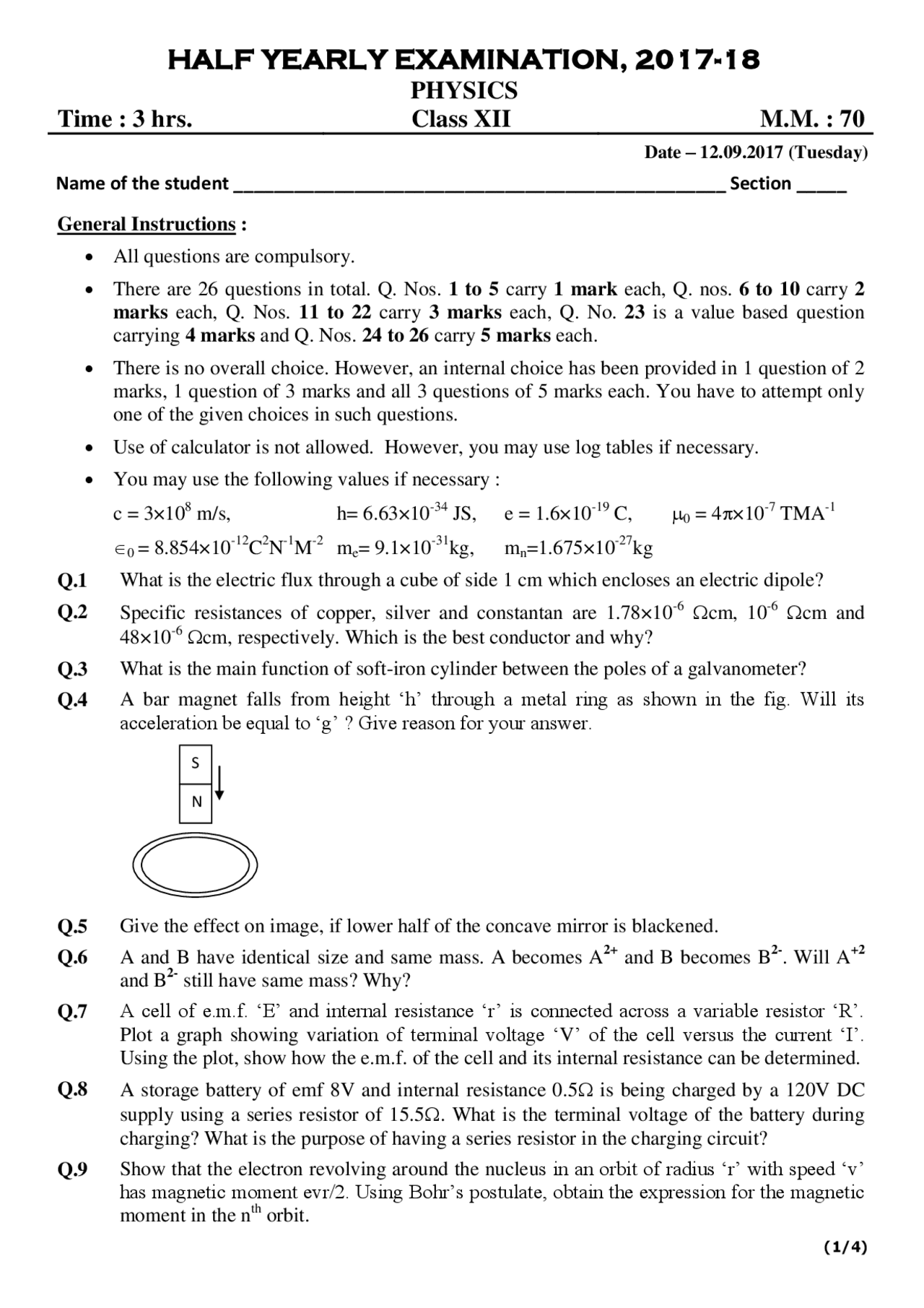

HALF YEARLY EXAMINATION, 2017-18

PHYSICS

Time : 3 hrs.

Class XII

M.M. : 70

Date – 12.09.2017 (Tuesday)

Name of the student _________________________________________________ Section _____

General Instructions :

 All questions are compulsory.

 There are 26 questions in total. Q. Nos. 1 to 5 carry 1 mark each, Q. nos. 6 to 10 carry 2

marks each, Q. Nos. 11 to 22 carry 3 marks each, Q. No. 23 is a value based question

carrying 4 marks and Q. Nos. 24 to 26 carry 5 marks each.

 There is no overall choice. However, an internal choice has been provided in 1 question of 2

marks, 1 question of 3 marks and all 3 questions of 5 marks each. You have to attempt only

one of the given choices in such questions.

 Use of calculator is not allowed. However, you may use log tables if necessary.

 You may use the following values if necessary :

c = 3×108 m/s, h= 6.63×10-34 JS, e = 1.6×10-19 C, 0 = 4×10-7 TMA-1

0 = 8.854×10-12C2N-1M-2 me= 9.1×10-31kg, mn=1.675×10-27kg

Q.1

What is the electric flux through a cube of side 1 cm which encloses an electric dipole?

Q.2

Specific resistances of copper, silver and constantan are 1.78×10-6 cm, 10-6 cm and

48×10-6 cm, respectively. Which is the best conductor and why?

Q.3

What is the main function of soft-iron cylinder between the poles of a galvanometer?

Q.4

A bar magnet falls from height ‘h’ through a metal ring as shown in the fig. Will its

acceleration be equal to ‘g’ ? Give reason for your answer.

Q.5

Give the effect on image, if lower half of the concave mirror is blackened.

Q.6

A and B have identical size and same mass. A becomes A2+ and B becomes B2-. Will A+2

and B2- still have same mass? Why?

Q.7

A cell of e.m.f. ‘E’ and internal resistance ‘r’ is connected across a variable resistor ‘R’.

Plot a graph showing variation of terminal voltage ‘V’ of the cell versus the current ‘I’.

Using the plot, show how the e.m.f. of the cell and its internal resistance can be determined.

Q.8

A storage battery of emf 8V and internal resistance 0.5 is being charged by a 120V DC

supply using a series resistor of 15.5. What is the terminal voltage of the battery during

charging? What is the purpose of having a series resistor in the charging circuit?

Q.9

Show that the electron revolving around the nucleus in an orbit of radius ‘r’ with speed ‘v’

has magnetic moment evr/2. Using Bohr’s postulate, obtain the expression for the magnetic

moment in the nth orbit.
