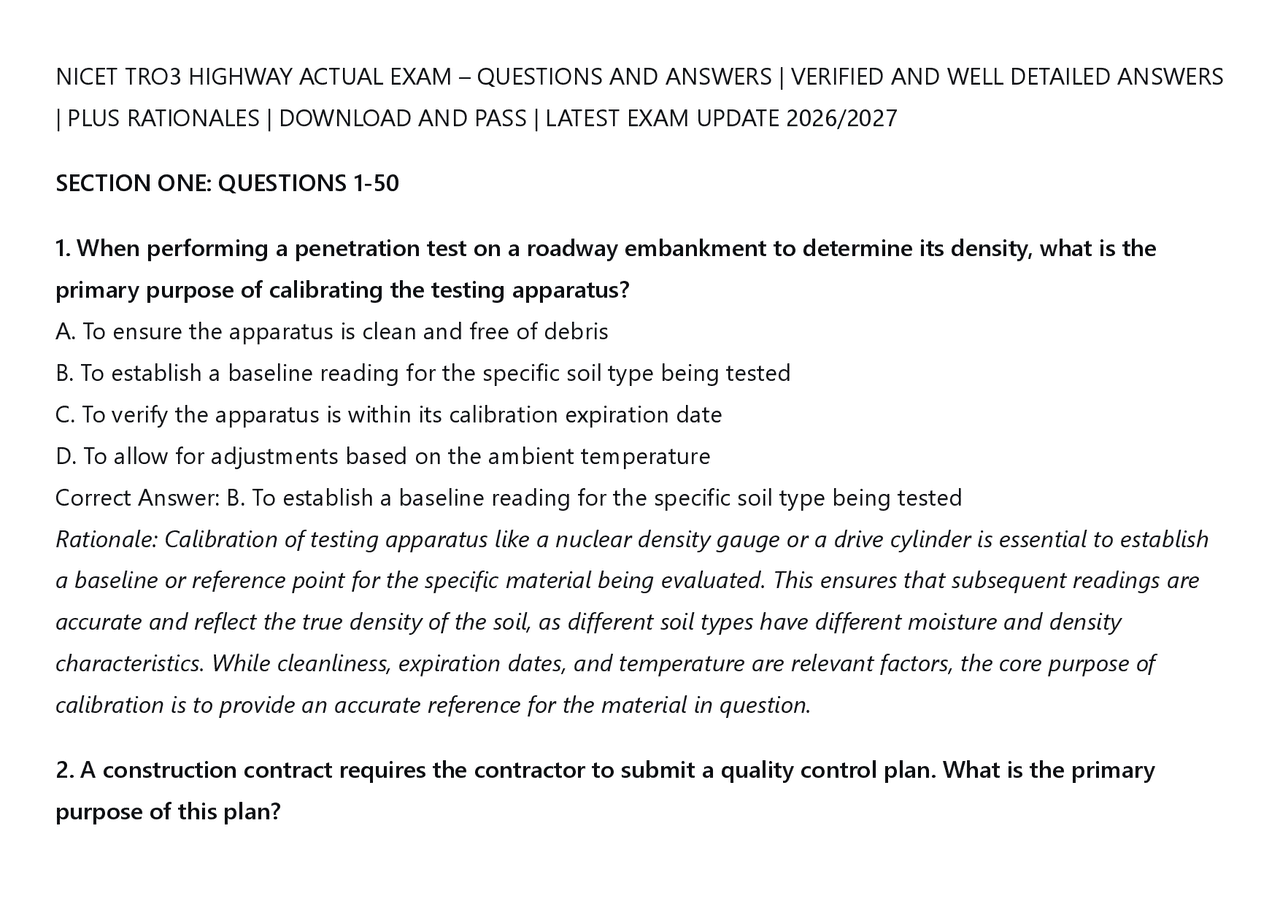

NICET TRO3 HIGHWAY ACTUAL EXAM – QUESTIONS AND ANSWERS | VERIFIED AND WELL DETAILED ANSWERS
| PLUS RATIONALES | DOWNLOAD AND PASS | LATEST EXAM UPDATE 2026/
SECTION ONE: QUESTIONS 1-
1. When performing a penetration test on a roadway embankment to determine its density, what is the primary purpose of calibrating the testing apparatus? A. To ensure the apparatus is clean and free of debris B. To establish a baseline reading for the specific soil type being tested C. To verify the apparatus is within its calibration expiration date D. To allow for adjustments based on the ambient temperature Correct Answer: B. To establish a baseline reading for the specific soil type being tested Rationale: Calibration of testing apparatus like a nuclear density gauge or a drive cylinder is essential to establish a baseline or reference point for the specific material being evaluated. This ensures that subsequent readings are accurate and reflect the true density of the soil, as different soil types have different moisture and density characteristics. While cleanliness, expiration dates, and temperature are relevant factors, the core purpose of calibration is to provide an accurate reference for the material in question. 2. A construction contract requires the contractor to submit a quality control plan. What is the primary purpose of this plan?
A. To provide a detailed schedule of all material deliveries B. To outline the staffing plan for the project's management team C. To document the procedures and tests that will be used to ensure work meets specifications D. To serve as the official project budget for all quality-related activities Correct Answer: C. To document the procedures and tests that will be used to ensure work meets specifications Rationale: A quality control plan is a proactive document that details how the contractor will monitor and control the work to ensure compliance with the contract's technical specifications. It outlines specific tests, inspection frequencies, and acceptance criteria. The other options are components of other project plans, like a logistics or staffing plan, not the core of a quality control plan.
3. In the context of highway construction, what does the term "riprap" refer to? A. A type of geotextile fabric used for soil stabilization B. A layer of large, durable stones used to protect slopes and channels from erosion C. A temporary barrier used to divert water flow during construction D. A mixture of cement, sand, and water used for rapid patching Correct Answer: B. A layer of large, durable stones used to protect slopes and channels from erosion Rationale: Riprap is specifically defined as a layer of large, rough stones placed on slopes, embankments, or around structures to absorb and deflect the energy of flowing water, preventing erosion. The other options describe different materials or structures (geotextile, cofferdams, and rapid-set concrete) that serve different purposes.
D. The field density is correct, and the lab maximum dry density is incorrect Correct Answer: B. The soil in the field contains larger aggregate particles than the lab sample Rationale: Field density tests often yield higher densities than the lab's maximum dry density because the field sample includes oversize particles (gravel, cobbles) that are excluded from the lab sample. These larger particles have a higher density than the finer soil matrix, skewing the results. Calibration errors, wet vs. dry density confusion, or a flawed lab test are possible, but the presence of oversize material is the most common and likely explanation.
6. The plans for a highway project specify a Type A, Class 2 aggregate for the base course. What is the most important characteristic this classification defines? A. The source quarry from which the aggregate must be obtained B. The specific gravity of the aggregate particles C. The particle size distribution and quality requirements for the material D. The color and texture of the aggregate for aesthetic purposes Correct Answer: C. The particle size distribution and quality requirements for the material Rationale: Aggregate classifications like "Type A, Class 2" are standardized designations that define the material's physical properties, including its gradation (particle size distribution), plasticity index, and other quality requirements such as abrasion resistance. This ensures the material used meets the engineering requirements for its intended purpose.
7. During a slump test on a concrete sample, the concrete slumps to 3 inches after the cone is removed. What does this result indicate about the concrete's properties? A. The concrete is too stiff and will be difficult to place B. The concrete has a high water content and is too wet C. The concrete has adequate workability for most general placement applications D. The concrete sample has failed the test and must be rejected Correct Answer: C. The concrete has adequate workability for most general placement applications Rationale: A slump of 3 inches is considered to have good workability and is suitable for many general construction applications like pavements and slabs. A slump of 1-2 inches would be stiff (option A), and a slump of 6+ inches would be very wet (option B). The 3-inch result is a normal, acceptable range. 8. What is the primary function of a geotextile fabric when used as a separator between a subgrade and an aggregate base course? A. To increase the load-bearing capacity of the base course B. To prevent the intermixing of the fine subgrade soil with the coarse aggregate C. To provide a waterproof barrier to prevent moisture from rising into the base D. To act as a reinforcement layer, increasing the tensile strength of the pavement Correct Answer: B. To prevent the intermixing of the fine subgrade soil with the coarse aggregate Rationale: As a separator, the primary function of geotextile is to maintain the distinct layers of the pavement structure. It prevents the fine-grained subgrade from being pumped up into the voids of the aggregate base course,
C. To provide assurance that the tests are conducted correctly and the results are reliable and objective D. To allow the technician to authorize changes to the project plans without consulting the engineer Correct Answer: C. To provide assurance that the tests are conducted correctly and the results are reliable and objective Rationale: Certification and qualification programs ensure that the technician has demonstrated a specific level of knowledge and skill in performing tests according to standardized procedures. This provides confidence to the project owner and engineer that the results are accurate, reliable, and free from bias, which is critical for making acceptance decisions.
11. A test section of asphalt pavement is being placed. The technician is performing a nuclear density gauge test. What safety precaution is of paramount importance? A. Ensuring the gauge is not left in direct sunlight for extended periods B. Wearing a reflective safety vest and hard hat at all times C. Keeping the gauge stored in its transport case with the source in the shielded position when not in use D. Ensuring the aggregate in the pavement mix is dry Correct Answer: C. Keeping the gauge stored in its transport case with the source in the shielded position when not in use Rationale: Nuclear density gauges contain radioactive sources. The most critical safety precaution is minimizing exposure to radiation. When the gauge is not in use, the source is stored in a shielded position within its transport
case. Safety vests and hardhats are important for general site safety but are not specific to the gauge's radioactive hazard. Direct sunlight and aggregate moisture are operational concerns, not primary safety hazards.
12. When evaluating the gradation of an aggregate sample, what is the significance of the "fines" portion, typically defined as material passing the No. 200 sieve? A. It increases the overall strength of the aggregate matrix B. It acts as a lubricant, making the mix easier to compact C. It can reduce drainage and increase the potential for frost heave and moisture susceptibility D. It has no significant impact on the performance of the pavement Correct Answer: C. It can reduce drainage and increase the potential for frost heave and moisture susceptibility Rationale: A high percentage of fines in an aggregate can fill the voids between larger particles, reducing the permeability of the layer. This can trap water, which is a primary cause of frost heave and can lead to a loss of strength in the base or subgrade when saturated. While fines can act as a lubricant, this is generally a negative effect in aggregate base. 13. The Project Engineer has directed the contractor to remove and replace a section of concrete curb that does not meet the alignment tolerances. The contractor believes the tolerance was misinterpreted. What is the most professional first step for the contractor to take? A. Proceed with the removal as directed to maintain a cooperative relationship B. Stop work on the curb and immediately submit a change order for the extra work
15. What is the primary function of a dowel bar in a jointed concrete pavement? A. To provide a structural connection between the two slabs to prevent faulting B. To allow for the expansion and contraction of the concrete without cracking C. To act as a tie between the concrete slab and the subbase D. To reinforce the concrete against tensile forces in the middle of the slab Correct Answer: A. To provide a structural connection between the two slabs to prevent faulting Rationale: Dowel bars are smooth steel bars placed across transverse joints. Their primary purpose is to transfer a load from one slab to the adjacent slab, helping to ensure the slabs act as a single unit under traffic. This load transfer is critical to preventing the vertical displacement known as faulting at the joint. Tie bars (not dowels) are used to hold slabs together laterally. 16. A contractor is using a laser level to establish grades for a subbase. What is the most significant advantage of using a laser level over traditional optical levels for this task? A. It provides a more accurate reading than an optical level B. It requires only one person to operate, increasing efficiency C. It is not affected by weather conditions such as fog or rain D. It creates a visible plane of reference, allowing for rapid grade checking Correct Answer: B. It requires only one person to operate, increasing efficiency Rationale: The main advantage of a laser level is the efficiency it offers. A single operator with a receiver can quickly and accurately check grades across a large area without needing a second person to hold a rod, as is
required with traditional optical levels. While modern lasers are accurate, they are not inherently more so than a properly set up optical level. They are also affected by weather, though less so by fog than optical instruments.
17. During a pavement coring operation, the recovered core shows that the asphalt layer thickness is 0. inches less than what is specified in the plans. What is the most appropriate immediate action? A. Deduct payment for the asphalt by a calculated amount B. Direct the contractor to remove and replace the entire pavement section C. Reject the entire load of asphalt that was used for that section D. Request additional cores to be taken from the same and adjacent areas to determine the extent of the issue Correct Answer: D. Request additional cores to be taken from the same and adjacent areas to determine the extent of the issue Rationale: A single core may not be representative of the entire placement. Before making a final decision on a pay adjustment or removal, it is standard practice to take additional cores to determine if the thinness is an isolated incident or a systemic problem. This allows for a fair and accurate assessment of the quantity of material placed. 18. A technician observes that a freshly placed aggregate base course is being compacted with a vibratory roller. What is the primary effect of the vibratory action on the aggregate? A. It breaks down larger aggregate particles into smaller ones B. It forces water out of the base course, improving drainage C. It causes the aggregate particles to interlock and reorient into a denser configuration
B. Measuring the settlement of a conical sample after lifting the mold C. Weighing a known volume of the concrete D. Taking a sample and having it analyzed in a mobile lab Correct Answer: B. Measuring the settlement of a conical sample after lifting the mold Rationale: The slump test is a standardized field test that measures the consistency of freshly mixed concrete. It involves filling a standard Abrams cone in three layers, rodding each layer, striking off the top, and then lifting the cone. The amount the concrete subsides (settles) is measured and is the "slump." This is a direct measure of workability.
21. A contractor has placed a section of reinforced concrete pipe (RCP) for a drainage culvert. The plans call for the pipe to be laid on a Class B bedding. What does this classification describe? A. The type of backfill material to be used around the pipe B. The minimum compressive strength of the pipe C. The soil support conditions and bedding configuration for the pipe D. The thickness of the concrete in the pipe wall Correct Answer: C. The soil support conditions and bedding configuration for the pipe Rationale: Pipe bedding classifications (Class A, B, C, etc.) define the method and material used to support the pipe. Class B bedding typically involves a shaped trench bottom with a granular material, providing a specific level of support and load distribution for the pipe. It does not directly specify the backfill material (A), pipe strength (B), or wall thickness (D).
22. An inspector is reviewing the contractor's daily report and notices that the ambient temperature exceeded 90°F during the placement of a concrete slab. What is the primary concern regarding this high- temperature condition? A. The concrete may freeze before it gains enough strength B. The rate of hydration will be significantly reduced, slowing down the project C. The concrete may set too quickly, leading to plastic shrinkage cracking D. The concrete will have a higher final strength due to the accelerated curing Correct Answer: C. The concrete may set too quickly, leading to plastic shrinkage cracking Rationale: High ambient temperatures accelerate the chemical reaction of hydration. This causes the concrete to set more rapidly and lose its moisture content faster. This rapid moisture loss, combined with the concrete's inherent shrinkage as it sets, creates tensile stresses that are likely to result in plastic shrinkage cracking on the surface. It also makes finishing more difficult. 23. The standard test method for determining the liquid limit of a soil, often used in classification, is known as the: A. Proctor test B. Sand Cone test C. Atterberg Limits test D. California Bearing Ratio (CBR) test Correct Answer: C. Atterberg Limits test
D. Dig a small test hole or "digout" to measure the layer depth Correct Answer: D. Dig a small test hole or "digout" to measure the layer depth Rationale: The most direct and common method for verifying the thickness of an unbound aggregate base is to excavate a small hole down to the subgrade and measure the depth of the aggregate layer. This is a non- destructive (in terms of the structure, though the hole must be patched) and quick method for spot-checking. Coring (C) is used for bound materials like asphalt or concrete.
26. A concrete cylinder is being prepared for a compressive strength test in the lab. The technician is capping the ends. What is the purpose of this capping procedure? A. To create a smooth, uniform surface for load application B. To waterproof the cylinder to prevent moisture loss C. To increase the overall height of the cylinder for testing D. To provide a permanent label for the cylinder identification Correct Answer: A. To create a smooth, uniform surface for load application Rationale: Capping the ends of a concrete cylinder is crucial to ensure that the applied compressive force is evenly distributed across the entire cross-section of the cylinder. An uneven or rough end surface can cause stress concentrations that lead to premature failure, resulting in a lower, and inaccurate, strength reading. 27. The contractor proposes using a "fiber reinforcement" in the concrete pavement. What is the primary benefit of this addition?
A. To increase the concrete's resistance to cracking B. To accelerate the concrete's setting time C. To reduce the need for curing compounds D. To lower the cost of the concrete mix Correct Answer: A. To increase the concrete's resistance to cracking Rationale: The primary benefit of adding fibers (synthetic, steel, or glass) to concrete is to improve its post-cracking behavior and control cracking. The fibers act as micro-reinforcement that bridges cracks, providing enhanced toughness, impact resistance, and crack control, typically in plastic shrinkage and early thermal cracking.
28. What is the primary concern when you observe "bleeding" in a fresh concrete mix? A. The concrete is too dry and will be difficult to place B. The concrete is too rich and will cost more than budgeted C. Water rises to the surface, which can lead to a weak surface layer and dusting D. The concrete is segregating, which will cause honeycombing Correct Answer: C. Water rises to the surface, which can lead to a weak surface layer and dusting Rationale: Bleeding is the process where water from the concrete mix rises to the surface due to the settling of heavier solid particles. If this water is not removed or reincorporated through finishing, it creates a high water- cement ratio at the surface. This results in a weak, soft surface that is prone to dusting, scaling, and a lack of durability.
31. A contractor has just completed a large area of fine grading. To check the final surface tolerance, you would most likely use a: A. A 10-foot straightedge B. A standard tape measure C. An engineer's level and a grade rod D. A visual inspection only Correct Answer: A. A 10-foot straightedge Rationale: A 10-foot straightedge is the standard tool for checking the smoothness and surface tolerance of a graded subgrade, base course, or pavement surface. It is placed on the surface, and the gap between the straightedge and the surface is measured to ensure it does not exceed a specified tolerance. 32. When testing asphalt content using the ignition method, a sample is burned in a furnace. What is being measured? A. The loss of aggregate weight due to the intense heat B. The loss of moisture in the asphalt sample C. The weight loss of the sample as the asphalt binder burns off D. The amount of carbon emissions produced during the burn Correct Answer: C. The weight loss of the sample as the asphalt binder burns off Rationale: The ignition method determines asphalt content by burning off the asphalt binder from the aggregate.
The weight of the sample is recorded before and after the ignition process. The difference in weight represents the amount of asphalt binder that was present in the original sample.
33. A contractor is concerned about the stability of an excavation and requests a change from the designed shoring system to a different method. What is the most appropriate course of action? A. Approve the contractor's request immediately to maintain project schedule B. Deny the request and insist the contractor follows the approved plans C. Require the contractor to submit a formal change request with a new engineered shoring plan for review D. Advise the contractor to consult their insurance company for guidance Correct Answer: C. Require the contractor to submit a formal change request with a new engineered shoring plan for review Rationale: The shoring system is a critical safety and engineering component. Any change from the approved design must be evaluated for safety and constructability. A formal change request, which includes a new engineered plan, is the proper process. This ensures the new system meets all safety and regulatory requirements before it is implemented, protecting the project and all personnel. 34. What is the primary purpose of a tack coat in asphalt pavement construction? A. To provide a wear-resistant surface on the new asphalt layer B. To act as a waterproofing membrane between pavement layers C. To promote adhesion between an existing pavement surface and a new asphalt overlay
