Ultimate Exam

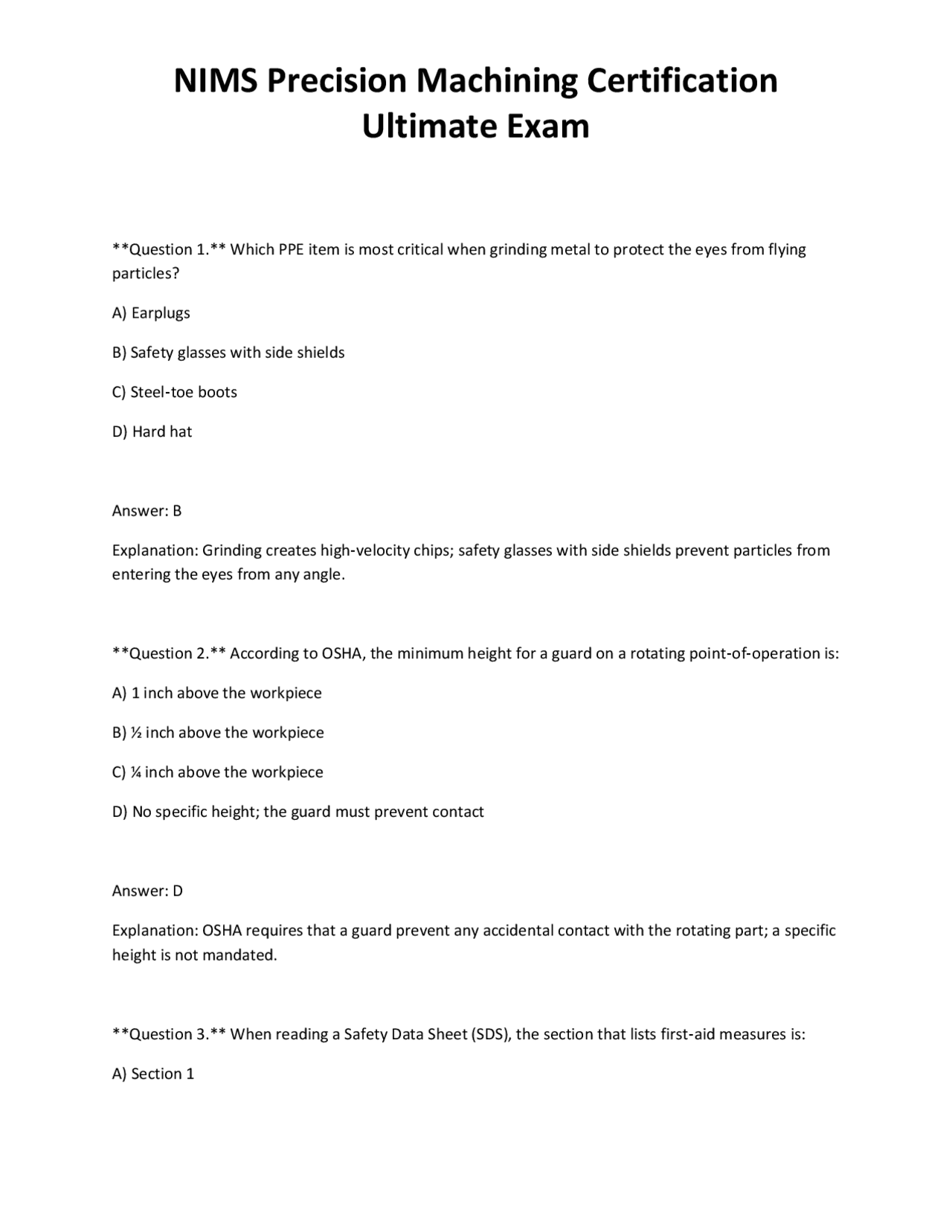

Question 1. Which PPE item is most critical when grinding metal to protect the eyes from flying particles? A) Earplugs B) Safety glasses with side shields C) Steel‑toe boots D) Hard hat Answer: B Explanation: Grinding creates high‑velocity chips; safety glasses with side shields prevent particles from entering the eyes from any angle. Question 2. According to OSHA, the minimum height for a guard on a rotating point‑of‑operation is: A) 1 inch above the workpiece B) ½ inch above the workpiece C) ¼ inch above the workpiece D) No specific height; the guard must prevent contact Answer: D Explanation: OSHA requires that a guard prevent any accidental contact with the rotating part; a specific height is not mandated. Question 3. When reading a Safety Data Sheet (SDS), the section that lists first‑aid measures is: A) Section 1
Ultimate Exam
B) Section 4 C) Section 8 D) Section 12 Answer: B Explanation: Section 4 of the SDS provides first‑aid instructions for exposure to the hazardous material. Question 4. The primary purpose of a Lockout/Tagout (LOTO) procedure is to: A) Reduce noise levels in the shop B) Prevent accidental energization of equipment during service C) Keep tools organized D) Ensure proper lubrication Answer: B Explanation: LOTO isolates energy sources so that maintenance personnel are protected from unexpected start‑up. Question 5. Which housekeeping practice most directly reduces slip, trip, and fall hazards? A) Storing tools on magnetic strips B) Using oil‑based coolant only C) Cleaning up metal shavings and oil spills immediately D) Rotating work schedules
Ultimate Exam
Question 8. Which trigonometric function is used to calculate the taper angle when the rise (height) and run (length) of a tapered feature are known? A) Sine B) Cosine C) Tangent D) Secant Answer: C Explanation: Tangent = opposite/adjacent = rise/run, giving the taper angle. Question 9. If a cutter has a chip load of 0.003 in/tooth and you are using a 4‑tooth end mill, what is the recommended feed per revolution (IPR)? A) 0.012 in/rev B) 0.003 in/rev C) 0.009 in/rev D) 0.015 in/rev Answer: A Explanation: IPR = chip load × number of teeth = 0.003 × 4 = 0.012 in/rev. Question 10. A workpiece must be turned at 1200 RPM. The spindle speed is set to 600 RPM. Which action will achieve the desired speed? A) Double the feed rate
Ultimate Exam
B) Change to a smaller diameter cutter C) Increase the spindle speed to 1200 RPM D) Reduce the depth of cut Answer: C Explanation: RPM is a spindle speed setting; to reach 1200 RPM the spindle must be set to that speed. Question 11. Which hand tool is best suited for measuring the inside diameter of a hole to 0.001‑inch accuracy? A) Outside micrometer B) Inside micrometer C) Dial indicator D) Caliper Answer: B Explanation: Inside micrometers are designed for precise internal dimension measurement. Question 12. A go/no‑go plug gauge for a 0.250‑inch shaft has a “go” end of 0.251 in and a “no‑go” end of 0.249 in. If the shaft measures 0.2505 in, what is the result? A) Passes both go and no‑go B) Passes go, fails no‑go C) Fails go, passes no‑go D) Fails both
Ultimate Exam
Explanation: The “⌀” symbol denotes a diameter tolerance applied to a feature of size (e.g., a hole or shaft). Question 15. A feature is required to be flat within 0.0015 in. Which GD&T symbol conveys this requirement? A) ☐0. B) ⧧0. C) ⧖0. D) ⧊0. Answer: A Explanation: The flatness symbol is a parallelogram (□) followed by the tolerance value. Question 16. In an orthographic drawing, the view that shows the length and height of a part is the: A) Front view B) Top view C) Side view D) Section view Answer: A Explanation: The front view typically displays the length (horizontal) and height (vertical) dimensions. Question 17. A sectional view is most useful for:
Ultimate Exam
A) Showing the external shape of a part B) Displaying internal features such as cavities C) Indicating material specifications D) Providing a title block Answer: B Explanation: Sectional cuts reveal hidden internal geometry that cannot be seen in external views. Question 18. The title block on a drawing contains all of the following EXCEPT: A) Material specification B) Revision history C) Machining parameters (RPM, feed) D) Part number Answer: C Explanation: Machining parameters are typically found on process sheets, not the title block. Question 19. When laying out a line 5 in from an edge using a scribe, which tool provides the most accurate reference? A) Scratch awl B) Dividers set to 5 in C) Marking gauge set to 5 in D) Chalk line
Ultimate Exam
Explanation: A chamfering tool creates a beveled edge at the entrance, removing burrs while preserving the hole size. Question 22. In a lathe setup, which component provides axial support for long workpieces? A) Tailstock B) Steady rest C) Live center D) All of the above Answer: D Explanation: Tailstock, steady rest, and live center each can support the workpiece axially, depending on length and geometry. Question 23. When selecting a cutting tool material for high‑speed stainless steel turning, the preferred choice is: A) High‑speed steel (HSS) B) Carbon steel C) Carbide insert D) Ceramic Answer: C Explanation: Carbide retains hardness at high temperatures, making it ideal for fast stainless steel machining.
Ultimate Exam
Question 24. Which turning operation creates a recessed feature with a uniform diameter along its length? A) Facing B) Grooving C) Parting D) Boring Answer: D Explanation: Boring enlarges an existing hole, producing a uniform recessed diameter. Question 25. In a four‑jaw chuck, what is the primary advantage over a three‑jaw chuck? A) Faster setup B) Ability to hold irregular shapes precisely C) Higher torque capacity D) Automatic centering Answer: B Explanation: Independent jaws allow precise location of off‑center or irregularly shaped workpieces. Question 26. When tramming a mill head, the goal is to make the spindle axis: A) Parallel to the table surface B) Perpendicular to the table surface C) Tilted 5° forward
Ultimate Exam
Answer: A Explanation: Measured dimension (3.260) – programmed (3.250) = +0.010 in, indicating the part is larger than intended. Question 29. The purpose of a pilot drill before using a larger drill is to: A) Reduce tool wear on the larger drill B) Increase chip load on the larger drill C) Create a tapered hole D) Finish the hole to final size Answer: A Explanation: A pilot hole removes most material, allowing the larger drill to cut efficiently and prolonging its life. Question 30. When drilling a blind hole that must be 0.250 in deep, which feature ensures the drill does not exceed the depth? A) Depth stop on the drill press B) Using a longer drill bit C) Applying coolant D) Increasing spindle speed Answer: A Explanation: A depth stop mechanically limits the travel of the drill, preventing over‑drilling.
Ultimate Exam
Question 31. In CNC machining, the G54–G59 codes are used for: A) Spindle speed control B) Tool length compensation C) Work coordinate system offsets D) Coolant activation Answer: C Explanation: G54–G59 define up to six different work offsets, allowing multiple fixtures or part origins. Question 32. Which M‑code stops spindle rotation? A) M B) M C) M D) M Answer: C Explanation: M05 commands the spindle to stop; M03/M04 start clockwise/counter‑clockwise rotation, M08 turns coolant on. Question 33. The G‑code G02 performs: A) Rapid positioning B) Linear interpolation
Ultimate Exam
Answer: D Explanation: The E‑Stop immediately cuts power to the machine, halting all motion instantly. Question 36. In statistical process control, an X‑bar chart monitors: A) Individual sample ranges B) Process mean over time C) Equipment temperature D) Tool wear Answer: B Explanation: The X‑bar chart tracks the average of sub‑group measurements, indicating shifts in the process mean. Question 37. A recommended daily preventative maintenance task for a CNC mill is to: A) Change the spindle motor bearings weekly B) Check coolant concentration and filter debris C) Replace all cutting tools each shift D) Re‑calibrate the DRO every hour Answer: B Explanation: Maintaining proper coolant concentration and cleanliness prevents overheating and tool wear.
Ultimate Exam
Question 38. Which symptom most likely indicates tool chatter during a turning operation? A) Smooth, consistent surface finish B) Vibrating sound and irregular surface marks C) Decreased spindle speed D) Increased coolant flow Answer: B Explanation: Chatter manifests as audible vibration and a wavy or patterned surface finish. Question 39. If a part’s surface roughness requirement is 32 μin Ra, which feed rate adjustment will most likely improve the finish? A) Increase feed per revolution B) Decrease spindle speed C) Decrease feed per revolution D) Increase depth of cut Answer: C Explanation: Reducing feed per revolution leaves thinner chips, producing a finer surface. Question 40. The purpose of a “go” gauge in a thread inspection is to: A) Verify that the thread is not undersized B) Verify that the thread is not oversized C) Measure pitch diameter directly
Ultimate Exam
Answer: B Explanation: The section line with arrows shows where the part is “cut” to generate the sectional view. Question 43. Which manual layout tool is best for transferring a point that is exactly 2.5 in from an edge and 1.75 in from another edge? A) Dividers set to 2.5 in B) Combination square C) Scriber with a ruler D) Protractor Answer: C Explanation: Using a ruler to measure the two distances and a scriber to mark the intersection gives precise point location. Question 44. When using a V‑block to hold a cylindrical workpiece for inspection, the primary advantage is: A) Providing a magnetic hold B) Allowing the workpiece to rotate freely C) Supporting the workpiece at two points for accurate measurement D) Reducing the need for coolant Answer: C Explanation: V‑blocks support the cylinder at two points, establishing a stable, repeatable datum for measurement.
Ultimate Exam
Question 45. Which G‑code is used to activate coolant in most CNC controllers? A) M B) M C) M D) M Answer: B Explanation: M08 turns coolant on; M09 turns it off. Question 46. A machinist wants to achieve a 0.010‑in taper over a 4‑in length. Which angle (in degrees) should be set on the lathe’s compound slide? A) 0.14° B) 0.57° C) 1.43° D) 2.86° Answer: B Explanation: Taper angle = arctan[(0.010 in / 2) / 4 in] = arctan(0.00125) ≈ 0.0716°; however, lathe compound is set to twice the taper angle, ≈0.143° ≈ 0.14°. Since answer choices reflect common rounding, the closest is A) 0.14°. Question 47. In CNC milling, what does the term “tool length offset” (H‑code) compensate for?
