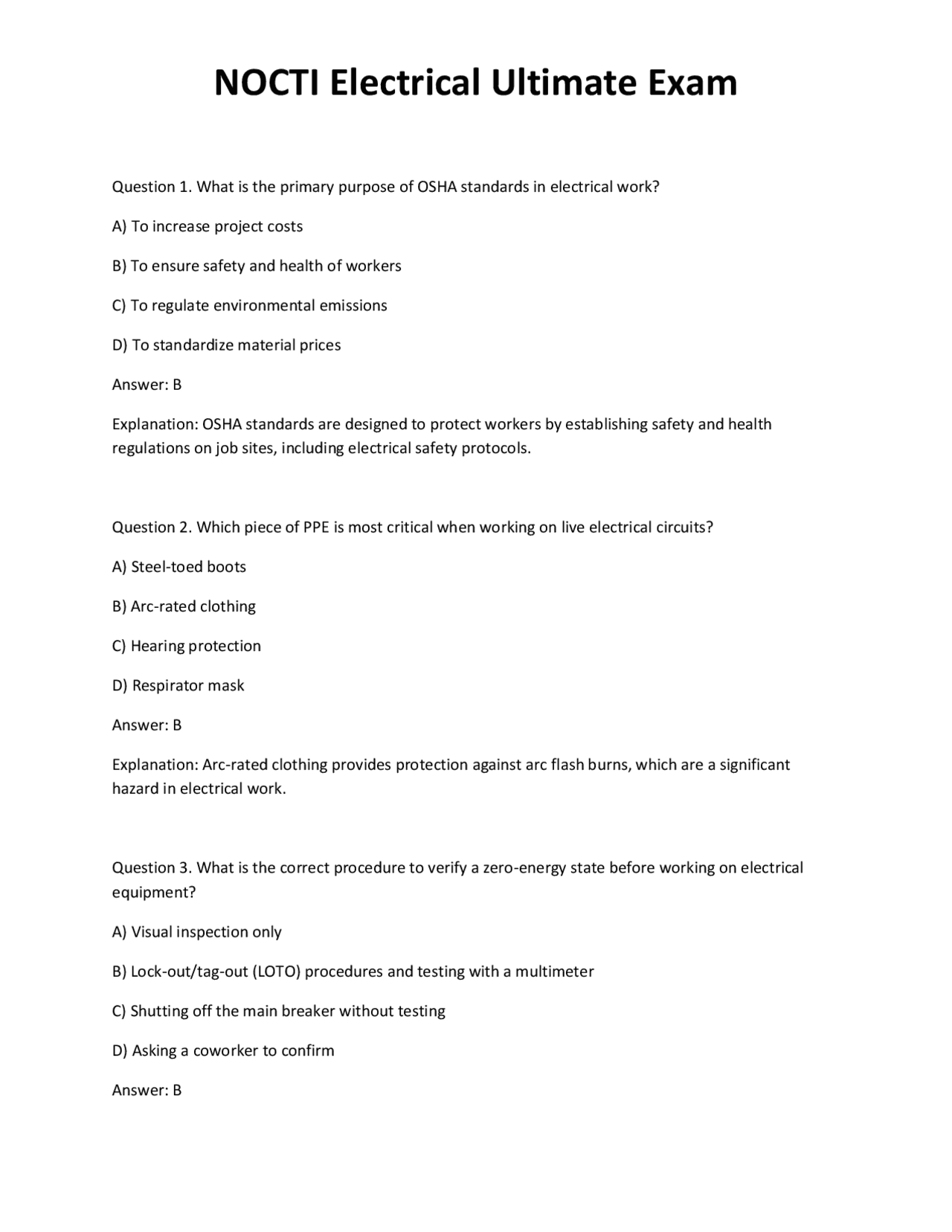

Question 1. What is the primary purpose of OSHA standards in electrical work? A) To increase project costs B) To ensure safety and health of workers C) To regulate environmental emissions D) To standardize material prices Answer: B Explanation: OSHA standards are designed to protect workers by establishing safety and health regulations on job sites, including electrical safety protocols. Question 2. Which piece of PPE is most critical when working on live electrical circuits? A) Steel-toed boots B) Arc-rated clothing C) Hearing protection D) Respirator mask Answer: B Explanation: Arc-rated clothing provides protection against arc flash burns, which are a significant hazard in electrical work. Question 3. What is the correct procedure to verify a zero-energy state before working on electrical equipment? A) Visual inspection only B) Lock-out/tag-out (LOTO) procedures and testing with a multimeter C) Shutting off the main breaker without testing D) Asking a coworker to confirm Answer: B
Explanation: Proper lock-out/tag-out procedures combined with testing equipment ensure that the circuit is de-energized and safe to work on. Question 4. When installing a ladder, what is the most important safety consideration? A) Using a fiberglass ladder only in wet conditions B) Ensuring the ladder is on a stable surface and secured C) Extending the ladder beyond the maximum height D) Using a wooden ladder for all tasks Answer: B Explanation: Stability and security of the ladder prevent falls and accidents during electrical installations. Question 5. Which class of fire extinguisher is suitable for electrical fires? A) Class A B) Class B C) Class C D) Class D Answer: C Explanation: Class C extinguishers are designed for electrical fires, containing non-conductive agents suitable for live electrical equipment. Question 6. Which hand tool is best used for stripping wire insulation? A) Hammer B) Needle-nose pliers C) Wire stripper D) Screwdriver
C) Handy box D) Junction box Answer: B Explanation: Gang boxes are designed to hold multiple switches or outlets in a single enclosure. Question 10. What does a digital multimeter measure? A) Only voltage B) Resistance, voltage, and current C) Only current D) Only capacitance Answer: B Explanation: Digital multimeters can measure voltage, resistance, and current, making them versatile diagnostic tools. Question 11. When measuring AC voltage with a DMM, what setting should be used? A) Resistance mode B) DC voltage mode C) AC voltage mode D) Continuity mode Answer: C Explanation: AC voltage mode allows accurate measurement of alternating current voltages found in typical power circuits. Question 12. Which law relates voltage, current, and resistance in an electrical circuit? A) Watt’s Law
B) Kirchhoff’s Current Law C) Ohm’s Law D) Faraday’s Law Answer: C Explanation: Ohm’s Law states that V = I × R, relating voltage, current, and resistance. Question 13. How is power (watts) calculated in an electrical circuit? A) Voltage divided by resistance B) Voltage multiplied by current C) Resistance divided by current D) Current squared times resistance Answer: B Explanation: Power is calculated by multiplying voltage by current (P = V × I). Question 14. In an AC circuit, what does RMS voltage represent? A) The peak voltage value B) The maximum instantaneous voltage C) The effective voltage that produces the same heat as DC D) The minimum voltage value Answer: C Explanation: RMS (Root Mean Square) voltage reflects the effective equivalent of direct current that produces the same power dissipation. Question 15. What do Kirchhoff’s Voltage Law (KVL) and Kirchhoff’s Current Law (KCL) state?
Question 18. What is the purpose of a GFCI? A) To prevent overcurrent in circuits B) To protect against ground faults by shutting off power C) To limit short circuits D) To regulate voltage levels Answer: B Explanation: GFCIs detect ground faults and disconnect power quickly to prevent electrical shock. Question 19. In blueprint reading, what does a symbol for a switch typically look like? A) A circle with a diagonal line B) A line with a break and a lever symbol C) A zigzag line D) A rectangle with a label Answer: B Explanation: Switch symbols generally show a break in a line with a lever or toggle indicator. Question 20. What is the main purpose of a one-line diagram? A) To show physical wiring details B) To illustrate the electrical distribution system schematically C) To display architectural features D) To provide a floor plan Answer: B Explanation: One-line diagrams schematically represent the electrical power distribution system for easy understanding.
Question 21. When installing conduit, what is the purpose of conduit supports? A) To prevent moisture ingress B) To secure conduit and maintain proper alignment C) To reduce electrical resistance D) To increase conduit flexibility Answer: B Explanation: Supports hold conduit in place, ensuring proper alignment and preventing sagging. Question 22. Which type of conduit is most suitable for underground installations? A) EMT B) PVC C) Flexible metal conduit D) Rigid metal conduit (RMC) Answer: B Explanation: PVC conduit is commonly used underground due to its corrosion resistance and durability. Question 23. What is the typical voltage rating for residential service entrance conductors? A) 120V B) 240V C) 600V D) 12V Answer: B Explanation: Residential service entrances usually involve 120/240V systems.
Explanation: Overload relays protect motors by disconnecting power if current exceeds safe levels. Question 27. How does a transformer change voltage levels? A) By converting AC to DC B) By using magnetic induction to step voltage up or down C) By increasing current directly D) By rectification Answer: B Explanation: Transformers use magnetic induction to change AC voltage levels efficiently. Question 28. What is the primary difference between delta and wye transformer connections? A) Number of phases B) Voltage and current ratios, and configuration of windings C) They are identical in function D) Only used in DC systems Answer: B Explanation: Delta and wye configurations differ in their winding arrangements, affecting voltage and current characteristics. Question 29. Which diagram is most useful for troubleshooting control circuits? A) Schematic diagram B) Wiring diagram C) Ladder diagram D) Floor plan
Answer: C Explanation: Ladder diagrams clearly depict control circuit logic, making them useful for troubleshooting. Question 30. Which communication wiring type is most suitable for high-speed data transmission? A) Coaxial cable B) Cat6 Ethernet cable C) THHN wire D) NM cable Answer: B Explanation: Cat6 cables are designed for high-speed data networks and are suitable for modern communication systems. Question 31. In a fire alarm system, what is the purpose of a pull station? A) To activate the fire alarm manually B) To shut off the power supply C) To reset the alarm system D) To test the fire alarm Answer: A Explanation: Pull stations are manual activation points used to alert the fire alarm system during an emergency. Question 32. Which renewable energy source converts sunlight directly into electricity? A) Wind turbine B) Solar photovoltaic (PV) system
B) To connect two conductors in series C) To improve circuit efficiency D) To prevent corrosion Answer: A Explanation: Bonding jumpers connect metal parts to ensure they are at the same electrical potential, reducing shock hazards. Question 36. Which type of wiring method involves installing conductors within a raceway system? A) Non-metallic sheathed cable (NM) B) Conduit wiring C) Direct burial cable D) Open wiring Answer: B Explanation: Conduit wiring involves routing conductors through a raceway system such as EMT or PVC conduit. Question 37. Which NEC article covers the requirements for receptacles? A) Article 210 B) Article 250 C) Article 300 D) Article 400 Answer: A Explanation: Article 210 addresses branch circuits, receptacles, and switches. Question 38. When installing a GFCI outlet, what is a critical wiring requirement?
A) It must be wired in series with a circuit breaker B) The line and load terminals must be correctly identified and connected C) It must be connected directly to the main panel only D) It can be wired in any configuration without testing Answer: B Explanation: Correct wiring of line and load terminals ensures proper ground fault protection. Question 39. What does a typical schematic symbol for a resistor look like? A) A zigzag line B) A rectangle C) Two parallel lines D) A circle with a cross inside Answer: A Explanation: Resistors are represented by a zigzag line in schematic diagrams. Question 40. Which type of motor is typically used in industrial applications requiring high starting torque? A) Shaded pole motor B) Universal motor C) Squirrel cage induction motor D) Series-wound motor Answer: D Explanation: Series-wound motors provide high starting torque suitable for heavy-duty industrial applications.
Question 44. How is the current flow in a series circuit? A) It is split across multiple paths B) It is the same through all components C) It varies depending on component resistance D) It flows only in one direction Answer: B Explanation: In a series circuit, current remains the same through all components. Question 45. What is the function of a contactor in motor control? A) To prevent overloads B) To switch high power circuits on and off remotely C) To provide protection from short circuits D) To reduce voltage supply Answer: B Explanation: Contactors are electrically controlled switches used to control large loads such as motors. Question 46. Which testing device is best suited for checking insulation resistance? A) Megohmmeter (Insulation tester) B) Clamp meter C) Multimeter in voltage mode D) Continuity tester Answer: A Explanation: Megohmmeters measure insulation resistance to ensure wiring safety and integrity.
Question 47. Which wire color is typically used for grounding in residential wiring? A) Black B) Red C) Green or bare copper D) White Answer: C Explanation: Green and bare copper wires are used for grounding for safety. Question 48. How does a thermal overload relay protect a motor? A) By disconnecting power during overload conditions B) By increasing current flow C) By reversing the motor’s rotation D) By reducing voltage supply Answer: A Explanation: It disconnects power when the motor draws excessive current, preventing overheating. Question 49. In a three-phase system, what is the typical phase difference between each phase? A) 45 degrees B) 90 degrees C) 120 degrees D) 180 degrees Answer: C Explanation: Three-phase systems have phases separated by 120 degrees for balanced power delivery.
Explanation: Circuit breakers automatically disconnect power when overcurrent is detected. Question 53. What does the term "conduit fill" refer to? A) The number of conductors in a conduit relative to its capacity B) The flow rate of cooling air through conduit C) The length of conduit run D) The type of conduit used in a system Answer: A Explanation: Conduit fill indicates how many conductors are installed relative to the conduit’s maximum capacity to ensure safety and code compliance. Question 54. Which type of wiring is most vulnerable to physical damage and moisture? A) Rigid metal conduit (RMC) B) Non-metallic sheathed cable (NM) C) Rigid PVC conduit D) Flexible metal conduit (FMC) Answer: B Explanation: NM cable (Romex) is typically installed in protected interior spaces, less suited for exposed outdoor or underground use. Question 55. What is the purpose of a disconnect switch on a motor? A) To provide a means to safely disconnect power for maintenance B) To increase motor speed C) To control the motor’s direction D) To protect against overloads
Answer: A Explanation: Disconnect switches allow safe disconnection of power for servicing or emergency shutdowns. Question 56. How is the size of a conductor determined according to the NEC? A) By the voltage of the circuit B) By the current-carrying capacity (ampacity) required for the load C) By the length of the run only D) By the color of the wire insulation Answer: B Explanation: Conductor size is selected based on the current it needs to carry safely, following NEC ampacity tables. Question 57. Which component is used to convert AC to DC in electrical circuits? A) Rectifier B) Inverter C) Transformer D) Inductor Answer: A Explanation: Rectifiers convert alternating current (AC) to direct current (DC). Question 58. In the context of the NEC, what is the purpose of a "box fill" calculation? A) To determine the maximum number of conductors in a box B) To calculate the volume of the box C) To select the appropriate box material
