Assignment 1S

Norton’s Theorem

Name: JONEHSA F. YUCOR

Fill-in the blanks and show your solution. You may take photo of your solution and submit it

together with your answer.

Problem Solving

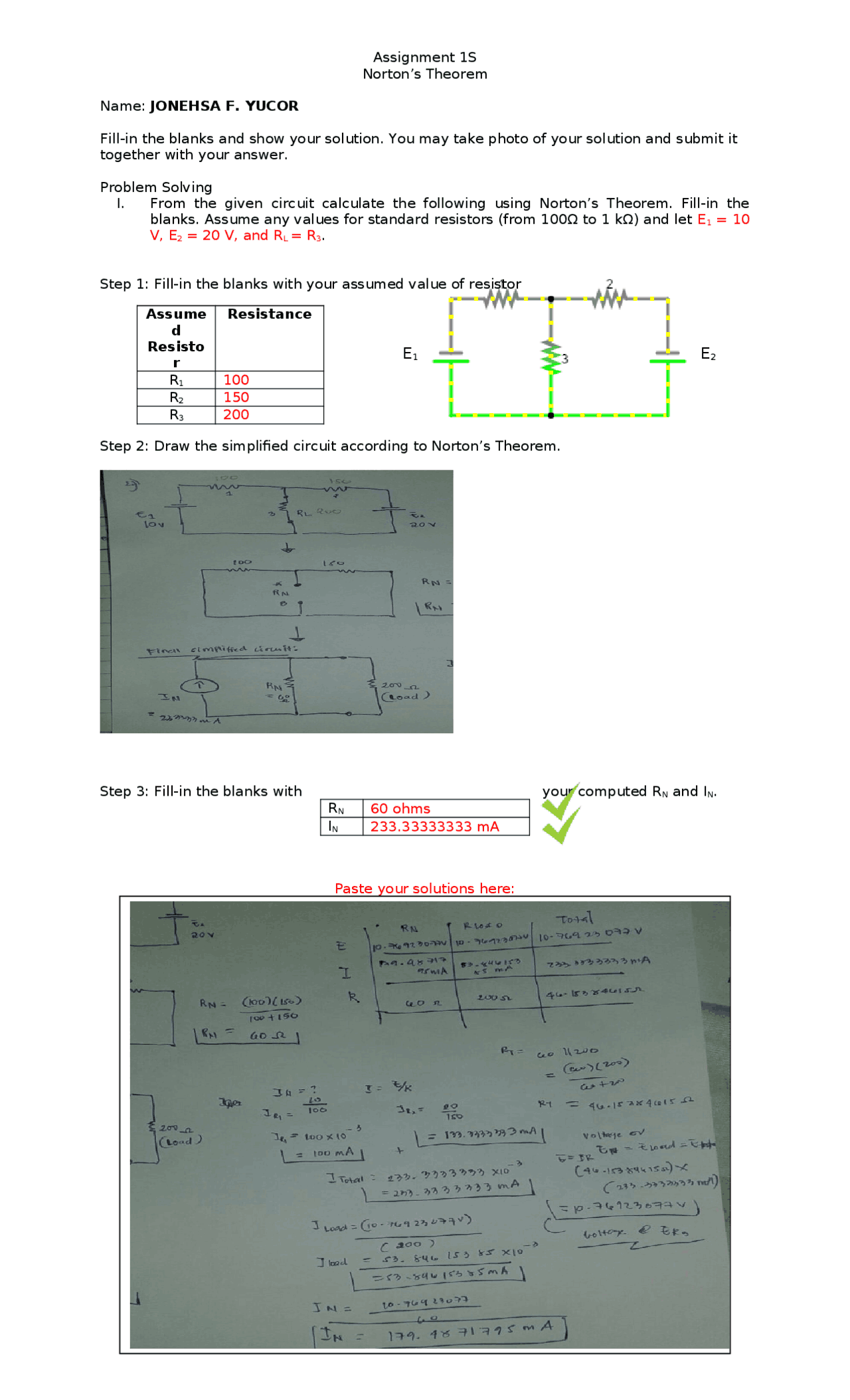

I. From the given circuit calculate the following using Norton’s Theorem. Fill-in the

blanks. Assume any values for standard resistors (from 100Ω to 1 kΩ) and let E1 = 10

V, E2 = 20 V, and RL = R3.

Step 1: Fill-in the blanks with your assumed value of resistor

Step 2: Draw the simplifed circuit according to Norton’s Theorem.

Step 3: Fill-in the blanks with your computed RN and IN.

Paste your solutions here:

E1E2

Assume

d

Resisto

r

Resistance

R1100

R2150

R3200

RN60 ohms

IN233.33333333 mA
