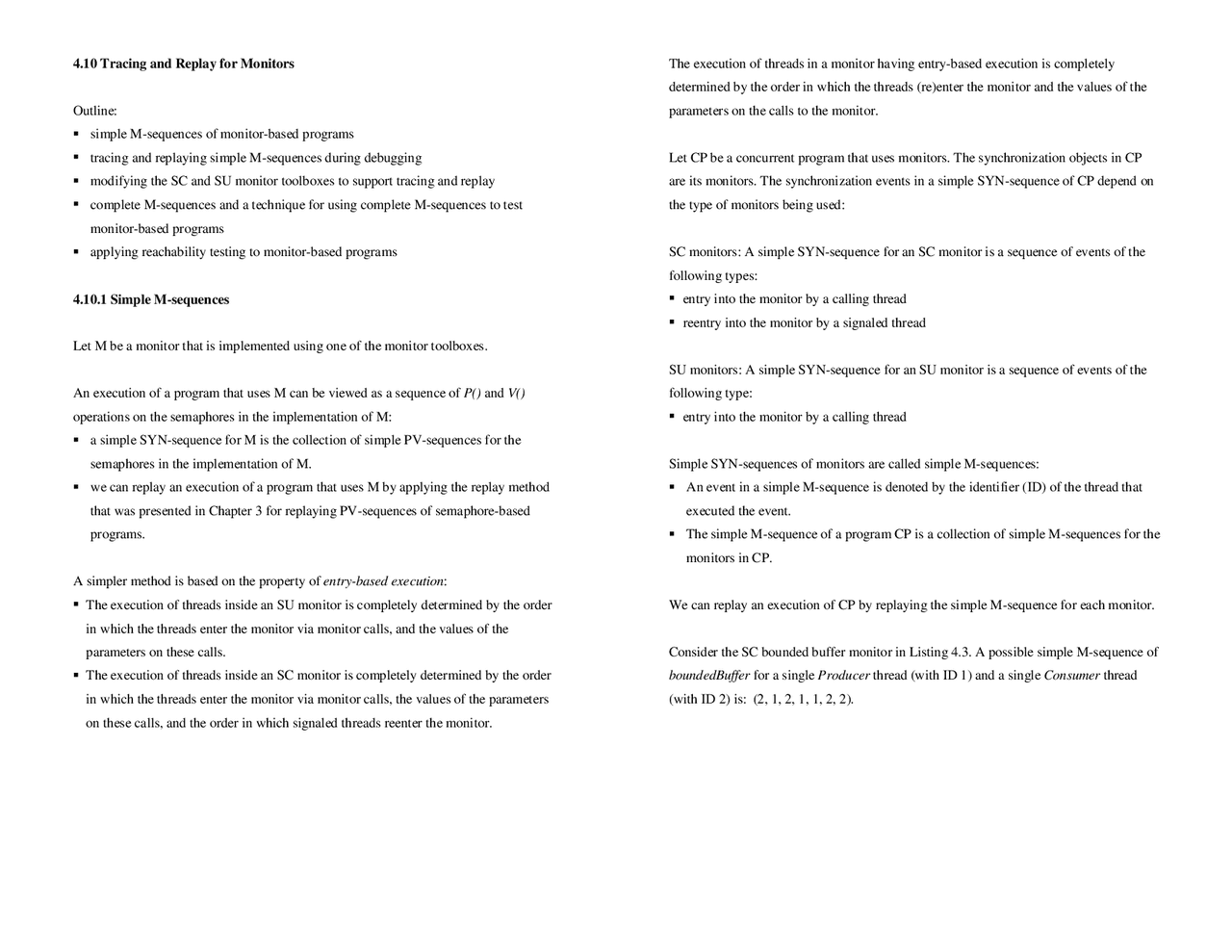

4.10 Tracing and Replay for Monitors Outline:^
simple M-sequences of monitor-based programs
tracing and replaying simple M-sequences during debugging
modifying the SC and SU monitor toolboxes to support tracing and replay
complete M-sequences and a technique for using complete M-sequences to testmonitor-based programs
applying reachability testing to monitor-based programs 4.10.1 Simple M-sequences Let M be a monitor that is implemented using one of the monitor toolboxes.An execution of a program that uses M can be viewed as a sequence of
P()
and
V()
operations on the semaphores in the implementation of M:^
a simple SYN-sequence for M is the collection of simple PV-sequences for thesemaphores in the implementation of M.
we can replay an execution of a program that uses M by applying the replay methodthat was presented in Chapter 3 for replaying PV-sequences of semaphore-basedprograms. A simpler method is based on the property of
entry-based execution
^ The execution of threads inside an SU monitor is completely determined by the orderin which the threads enter the monitor via monitor calls, and the values of theparameters on these calls. ^ The execution of threads inside an SC monitor is completely determined by the orderin which the threads enter the monitor via monitor calls, the values of the parameterson these calls, and the order in which signaled threads reenter the monitor.
The execution of threads in a monitor having entry-based execution is completelydetermined by the order in which the threads (re)enter the monitor and the values of theparameters on the calls to the monitor.Let CP be a concurrent program that uses monitors. The synchronization objects in CPare its monitors. The synchronization events in a simple SYN-sequence of CP depend onthe type of monitors being used:SC monitors: A simple SYN-sequence for an SC monitor is a sequence of events of thefollowing types:^
entry into the monitor by a calling thread
reentry into the monitor by a signaled thread SU monitors: A simple SYN-sequence for an SU monitor is a sequence of events of thefollowing type:^
entry into the monitor by a calling thread Simple SYN-sequences of monitors are called simple M-sequences:^
An event in a simple M-sequence is denoted by the identifier (ID) of the thread thatexecuted the event.
The simple M-sequence of a program CP is a collection of simple M-sequences for themonitors in CP. We can replay an execution of CP by replaying the simple M-sequence for each monitor.Consider the SC bounded buffer monitor in Listing 4.3. A possible simple M-sequence of boundedBuffer
for a single
Producer
thread (with ID 1) and a single
Consumer
thread
(with ID 2) is: (2, 1, 2, 1, 1, 2, 2).
This sequence is generated when:^
The
Consumer
enters the monitor first and executes
notEmpty.wait()
The
Producer
then enters the monitor, deposits an item, and signals the
Consumer
The
Consumer
then reenters the monitor and consumes an item.
Note: This sequence begins with 2, 1, 2 since the
Consumer
generates one event when it
enters the monitor (the first 2) and one event when it reenters the monitor (the second 2).If the same scenario were to occur when
boundedBuffer
was an SU monitor, then the
simple M-sequence of
boundedBuffer
would be: (2, 1, 1, 1, 2, 2).
In this sequence, the
Consumer
does not generate an event when it reenters the monitor,
since
boundedBuffer
is an SU monitor. Thus, the sequence begins with 2, 1 and is
followed by a second entry event for the
Producer
(the second 1) and not a reentry event
for the
Consumer
We are making several important assumptions in our definition of simple M-sequences:1.
All shared variables are accessed inside a monitor and monitor (re)entry is the onlysource of non-determinism in the program.
Semaphores with FCFS notifications are used in the implementation of conditionvariables. If notifications wake up waiting threads in an unpredictable order, then non-determinism is introduced in the implementation of the monitor.
VP
() operations are used in the semaphore implementation of a monitor. Without
VP
or some other mechanism, context switches can occur between
V()
and
P()
operations,
which introduces non-determinism in the implementation of the monitor. Assumptions 2 and 3 are necessary for entry-based execution. If assumption 1 does nothold, then replaying the simple M-sequences of an execution may not replay theexecution.
class
boundedBuffer
extends monitor {
private int fullSlots = 0; // number of full slots in the bufferprivate int capacity = 0;
// capacity of the buffer
private int[] buffer = null;
// circular buffer of ints
private int in = 0, out = 0;private conditionVariable notFull = new conditionVariable();private conditionVariable notEmpty = new conditionVariable();public boundedBuffer(int bufferCapacity ) {
capacity = bufferCapacity;buffer = new int[bufferCapacity];}public void deposit(int value) {while (fullSlots == capacity)
notFull.wait(); buffer[in] = value;in = (in + 1) % capacity;
++fullSlots;
notEmpty.signal(); //alternatively:if (fullSlots == 1) notEmpty.signal(); } public int withdraw() {
int value;while (fullSlots == 0)
notEmpty.wait(); value = buffer[out];out = (out + 1) % capacity; --fullSlots;notFull.signal(); //alternatively:if (fullSlots == capacity–1) notFull.signal();return value; } } Listing 4.3 Monitor class
boundedBuffer
4.10.3 Other Approaches to Program Replay Another approach to replaying an execution of a multithreaded Java program is to traceand replay the scheduling events of the operating system.A thread schedule is a sequence of time slices, where a time slice is the interval of timebetween two context switches. A thread schedule of an execution can be replayed byforcing context switches to occur at the exact same points during the execution.Since detailed scheduling information is not always available from the operating system,a logical thread schedule can be used instead.A logical thread schedule of an execution is a record of the number of critical operationsthat the threads executed during their time slices. Critical operations are:^
read and write operations on shared variables,
entering and exiting synchronized methods and blocks,
wait and notify operations. A logical thread schedule can be replayed my modifying the Java Virtual Machine (JVM)to count critical operations.For example, assume Thread 1 executes fifty critical operations during its time quantum.This can be represented by
(1, 20, 69) // Thread 1 executed the (fifty) operations numbered 20 through 69. The DejaVu system uses logical thread schedules to replay multithreaded Java programs.Java applications can be traced and replayed in DejaVu without any modifications to thesource code.
4.11 Testing Monitor-Based Programs Outline:^
complete M-sequences
determining
whether a particular complete M-sequence is allowed by a program.
4.11.1 M-sequences Debugging process:^
Observe a failure
Replay the simple M-sequence of the execution, perhaps several times, to locate thefault that caused the failure.
Modify the program to fix the bug
Test the modification to make sure that the fault has been corrected and that no newfaults were introduced by the modification. The last step is commonly known as “regression testing”.Regression testing requires that we determine whether or not a particular SYN-sequenceis feasible:^
A feasible SYN-sequence is a sequence that can be exercised by the program.
The SYN-sequence may represent an illegal (or “invalid”) behavior that was observedwhen the program failed.
A SYN-sequence may represent a legal (or “valid”) behavior that was exhibitedpreviously, then this valid sequence should remain feasible after the modifications. We may also want to use test sequences to detect failures.^
If a test sequence is expected to be feasible but is not feasible, or is expected to beinfeasible but is not infeasible, then we can start the debugging process.
Selecting sequences and checking their feasibility is part of a general testing techniquecalled
deterministic testing
Determining the feasibility of a SYN-sequence is a problem that is subtly different fromthe replay problem:^
Replaying a SYN-sequence involves repeating a sequence that is known to be feasible(Assuming the sequence was just exercised and the program has not been modified.)
During regression testing, we want to know whether or not a program that is executedwith a given input can exercise a particular sequence and produce a particular output. For regression testing, we need more information than is contained in a simple M-sequence.Consider the following simple M-sequence for a 2-slot bounded buffer with a single Producer
(with ID 1) and a single
Consumer
(with ID 2): (1, 1, 1, 2, 2).
This gives the order in which threads entered the monitor, but which methods did theycall? During testing, we must check that threads call the expected monitor methods.Suppose now that we also specify the name of the method: (1,deposit),(1,deposit),(1,deposit), (2,withdraw),(2,withdraw)):^
If the third item was deposited into a full buffer, then the first item was lost.
If the
Producer
executed
notFull.wait()
then a third deposit was not made until after a
withdrawl, and a failure was avoided. We cannot determine from the information in this sequence what happened.Even after checking the output, we may still be unsure about what happened. If the itemsdeposited were ‘C’, ‘A’, and ‘C’, then the items withdrawn are also ‘C’, ‘A’, and ‘C’,even if the first item is overwritten by the third item.
To more completely characterize the execution of a monitor-based program, we willconsider the following types of monitor events:(a)
the entry of a monitor method and, for SC monitors, the reentry of a monitor method
(b)
the exit of a monitor method
(c)
the start of execution of a
wait
operation
(d)
the start of execution of a
signal
, or
signalAndExit
, or
signalAll
operation.
What about other events such as the end of execution of a
wait
or
signal
operation, or the
resumption of a monitor method after a
wait
or an SU
signal
operation?
Their occurrence can be inferred by the occurrence of events of types (a) through (d).
It may still be desirable to trace these events to aid in understanding executions. A sequence of events of types (a) through (d) is called a complete M-sequence, asopposed to “simple M-sequences” which are used for replay.The events of an M-sequence have the format:(Type,Thread,Method,ConditionVariable)^
Type: the type of this event Thread: the ID of the thread executing this event Method: the monitor method of this event, qualified with the monitor name if there aremultiple monitors ConditionVariable: the name of the condition variable if this event is a
wait
,^
signal
signalAndExit
, or
signalAll
event; and “NA” otherwise.
Example: a possible M-sequence of the SC bounded buffer monitor in Listing 4.3 is:
((enter,
consumer,
withdraw,
NA
(wait,
consumer,
withdraw,
notEmpty
(enter,
producer,
deposit,
NA
(signal,
producer,
deposit,
notEmpty ),
(exit,
producer,
deposit,
NA
(reenter, consumer,
withdraw,
NA
(signal,
consumer,
withdraw,
notFull ),
(exit,
consumer,
withdraw,
NA
When we modify a program to correct a fault, we want an answer to the followingquestion:
If we execute the program with the same the input that detected the fault, can the samepath be exercised and the same output be produced? An M-sequence partially identifies the path exercised by a program and helps us answerthis question.Consider the following monitor method:
public void F() {
enterMonitor();if (…) {
condition.waitC(); } if (… ) {/* true-part*/
else {/* false-part */ }condition.signalC();exitMonitor(); } An M-sequence for an execution of a program containing method
F()
indicates the order
in which threads entered
F()
and whether or not the
wait()
operation in
F()
was executed.
This tells us a lot about the path through
F()
that each thread executed.
But, an M-sequence, by itself, does not indicate whether the threads executed the true-part or the false-part of the second if-statement in
F()
So a path consists of more than just an M-sequence, and more than just a sequence ofstatements executed by the thread(s). Note: The output is likely to indicate whether the true-part or the false-part was executed.Thus, the M-sequence and the output of an execution, together, describe the executionvery well and together are often are enough to determine if a failure has occurredA formal definition of a “path” for a concurrent program is given in Chapter 7.
4.11.2 Determining the Feasibility of an M-sequence The feasibility of an M-sequence is determined using the same technique that was usedfor replay:^
Before a thread can perform a monitor operation, it requests permission from a controlmodule.
The control module is responsible for reading an M-sequence and forcing theexecution to proceed according to this sequence.
If the M-sequence is determined to be infeasible, the control module displays amessage and terminates the program. 4.11.2.1 Modifying the monitor operations
. Each monitor operation is modified by
adding one or more calls to the controller. Below, we describe the modifications made tothe SC monitor operations.Method
enterMonitor
public final void enterMonitor(String methodName) {
control.requestMPermit(ENTRY,threadID,methodName,”NA”);mutex.P();control.releaseMPermit(); } For the method name to be available inside the toolbox, it must be passed by the user asan argument to
enterMonitor()
public void deposit(char value) {
enterMonitor(”deposit”);... }
Method
waitC
public void waitC() {
// wait your turn to entercontrol.requestMPermit(WAIT,threadID,methodName,conditionName);numWaitingThreads++;threadQueue.VP(mutex);// wait your turn to reentercontrol.requestMPermit(REENTRY,threadID,methodName,”NA”);mutex.P();control.releaseMPermit(); // allows next event in the M-sequence to occur } A
conditionVariable’s
name is automatically generated when the
conditionVariable
is
constructed. Alternately, a more descriptive name can be specified when the conditionVariable
is constructed, but each name must be unique:
notFull = new conditionVariable("notFull”); signalC()
public void signalC() {
control.requestMPermit(SIGNAL,threadID,methodName,conditionName);if (numWaitingThreads > 0) {
numWaitingThreads--;threadQueue.V(); } } exitMonitor():
public void exitMonitor() {
control.requestMPermit(EXIT,threadID,methodName,”NA”);mutex.V(); } If a monitor contains calls to
exerciseEvent()
, then Threads executing
exerciseEvent()
must request permission before executing a communication (COMM) event:
public void exerciseEvent(String eventLabel) {
control.requestMPermit(COMM,threadID,eventlabel,”NA”);
}
4.11.2.2 The Controller
. The controller attempts to force a deterministic execution of the
program according to the M-sequence that it inputs. The M-sequence is feasible if andonly if the M-sequence is completely exercised. Ideal: the controller would display a message if it finds that an M-sequence definitelycannot be exercised. However, the problem of determining whether a concurrent programterminates for a given input and SYN-sequence is, in general, undecidable. Practical: the controller specifies a maximum time interval that is allowed between twoconsecutive events:^
If a timeout occurs, then the sequence is
assumed
to be infeasible.
It is always possible that some larger timeout value would give the next event enoughtime to occur and allow the sequence to complete. The controller is implemented in two parts. The first part inputs an M-sequence and thenforces the execution to proceed according to the order of events in the M-sequence.^
This is implemented just like the replay controller.
The controller also checks that the attributes of each event match the attributes in theM-sequence, e.g., the method names match, the condition variable names match.
If a mismatch is detected, then a diagnostic is issued and the program is terminated. At any point in the sequence, if an expected request does not arrive within the timeoutinterval, a diagnostic is issued and the program is terminated.This timeout function of the controller is handled by a “watch dog” thread:^
Monitors the value of the variable
index
, which indicates which event is being
exercised.
If the value of
index
does not change within the timeout interval, then the M-sequence
is assumed to be infeasible.
Example: Consider a
boundedBuffer
monitor with a capacity of three.
Even if we never see a trace with four consecutive
deposit
operations during non-
deterministic testing it is possible that
boundedBuffer
contains a fault that allows a
deposit
into a full buffer.
Likewise, it is possible that a
withdrawal
is allowed from an empty buffer.
To test these cases, we can specify two Communication-sequences and check theirfeasibility. A sequence that checks for an invalid
withdrawal
is:
(comm, consumer,
withdraw
, NA)
// withdraw from an empty buffer
The following invalid sequence contains four consecutive
deposits
(comm, producer,
deposit
, NA),
(comm, producer,
deposit
, NA),
(comm, producer,
deposit
, NA),
(comm, producer,
deposit
, NA).
// deposit into a full buffer
If either of these Communication-sequences is feasible, then a fault is detected in boundedBuffer. Alternatively:
use
reachability
testing
to
indirectly
check
the
feasibility
of
these
sequences. That is, if neither of these sequences are exercised during reachability testing,then they are infeasible.
4.11.4 Reachability Testing for Monitors Reachability testing can also be used to automatically derive and exercise every(partially-ordered) M-sequence of a monitor-based program.^
Reachability testing identifies race conditions in an execution trace and uses the raceconditions to generate race variants.
Recall from Chapter 3 that a race variant represents an alternate execution behaviorthat
definitely could have happened
, but didn’t, due to the way race conditions were
arbitrarily resolved during execution.
Replaying a variant ensures that a different behavior occurs during the next execution. Fig. 4.30a shows an execution trace of a bounded buffer program with two producers (P1and P2), two consumers (C1 and C2), and an SC monitor M.^
A solid arrow from a producer or consumer thread to monitor M indicates that thethread called and entered monitor M.
In this execution, the producer and consumer threads enter the monitor in the order(C1, P1, C1, P2, C2).
The 2
nd
entry by C1 occurs when C1 reenters the monitor after being signaled by P1. call
{P1,P2,C2}
enter
enter{P2,C2}
wait signal
call call
call
exit
reenter{P2,C2}
exit
enter {C2}
exit^ enter {}
exit
P
P
M^
C
C
call
enter
wait enter signal
call call
call
exit
enter
P
P
M^
C
C
call
call
(a)
(b)
Figure 4.30 Execution trace and a race variant
call
{P1,P2,C2}
enter
enter{P2,C2}
wait signal
call call
call
exit
reenter{P2,C2}
exit
enter {C2}
exit^ enter {}
exit
P
P
M^
C
C
call
enter
wait enter signal
call call
call
exit
enter
P
P
M^
C
C
call
call
(a)
(b)
Figure 4.30 Execution trace and a race variant
Fig. 4.30a identifies the racing threads, called the “race set”, for each entry event:^
The race set for C1’s reentry event is shown beside the reentry event as {P2, C2}.
This indicates that P2 or C2 could have entered the monitor instead of C1.
Note that the monitor calls made by P2 and C2 were concurrent with C1’s call toreenter the monitor. (This is how the racing monitor calls were identified.) A race variant is created by changing the calling thread for a monitor (re)entry event. Thenew calling thread must be a member of the race set for the (re)entry event.Fig. 4.30b shows one of the eight race variants for the trace in Fig. 4.30a.^
In this variant, P2 enters the monitor before C1 reenters the monitor.
When this race variant is replayed, the two producers will both deposit their itemsbefore either consumer withdraws one.
The order in which the two consumers will (re)enter the monitor and withdraw theiritems after the variant is replayed is non-deterministic. The complete trace of whichever sequence occurs can be analyzed to derive morevariants, which can be replayed to generate more traces, and so on, so that all possible M-sequences are exercised during reachability testing.
Table 4.2 shows the results of applying reachability testing to several monitor programs:^
BB is the bounded buffer program in Listing 4.3.
DP2 is the second solution to the dining philosophers program in Listing 4.8.
RW is the readers and writers program in Listing 4.9. For BB and RW, we show results for SU and SC monitors
Program
Config.
#Seqs.
Program
Config.
#Seqs.
Program
Config.
#Seqs.
BB- MonitorSU
3P+3C+2S
720
RW- MonitorSU
3R+2W
13320
DP2- MonitorSU
3
30
BB- MonitorSC
3P+3C+2S
12096
RW- MonitorSC
3R+2W
70020
DP2- MonitorSU
4
624
DP2- MonitorSU
5
19330
Table 4.2 Reachability testing results for the example programs in Section 4.2. These results help to quantify the difference between SU and SC monitors.^
SC monitors generate more M-sequences than SU monitors since SC monitors haveraces between signaled threads that are trying to reenter the monitor and callingthreads that are trying to enter the monitor for the first time.
SU monitors avoid these races by giving signaled threads priority over calling threads. As we discussed in Chapter 3, the number of sequences exercised during reachabilitytesting can be reduced by considering the symmetry of the threads in the programs.^
For the bounded buffer program, reachability testing considers all the possible ordersin which a group of producers can perform their deposit operations, or a group ofconsumers can perform their withdraw operations.
Producer threads may enter the monitor in the order (Producer
, Producer 1
, Producer^2
or (Prodocer
, Producer 2
, Producer 1
), or (Producer 3
, Producer 3
, Producer 2
), etc. 1
Using thread symmetry, reduces the number of sequences exercised for the twobounded buffer programs from 720 and 12096 to 20 and 60, respectively.
4.11.5.2 Using the C++/Win32/Pthreads Toolboxes
The mode of execution is specified using the environment variable MODE.The possible values for MODE are TRACE, REPLAY, TEST, RT (for
R
eachability
T esting), COMMTEST (to determine the feasibility of a Communication-sequence), andNONE.To trace an execution of program Buffer in Windows/DOS execute:
set MODE=TRACE
// Unix: setenv MODE TRACEand then executing program
Buffer
Random delays are controlled by variable RANDOMDELAY:
set RANDOMDELAY=ON
// Unix: setenv RANDOMDELAY ONDeadlock detection is controlled by variable DEADLOCKDETECTION:
set DEADLOCKDETECTION=ON
// Unix: setenv DEADLOCKDETECTION ONAn execution in TRACE mode creates three trace files:^
file monitor-replay.txt contains the simple M-sequence of the execution
file monitor-test.txt contains the M-sequence of the execution
file monitor-comm.txt contains the Communication-sequence of the execution. The value of environment variable CONTROLLERS determines how many sequencefiles are created:
set CONTROLLERS=SINGLE
// one simple M-sequence and// M-sequence per program
// Unix: setenv CONTROLLERS SINGLE
set CONTROLLERS=MULTIPLE // one simple M-sequence and
// M-sequence per monitor
// Unix: setenv CONTROLLERS MULTIPLEThe default value for CONTROLLERS is SINGLE.Reachability testing is performed setting the MODE to RT and customizing the driverprocess in file
RTDriver
.cpp, which is part of the synchronization library. Directions for
customizing the driver process are in the file.Some development environments have powerful debuggers that make it possible to stopthreads, examine call stacks and variables of threads, suspend and resume threads, etc.In replay mode, you can use such a debugger to set a breakpoint inside the controlmonitor at the point where a thread receives permission to execute the next event:
if (ID != nextEvent.getThreadID()) {
// nextEvent does not involve the requesting threadthreads[ID].waitC();
// wait for permission
//get nextEvent again since it may have changed during the waitnextEvent = (monitorEvent)MSequence.elementAt(index); } // set breakpoint here; a thread has received permission to execute the next event. With this breakpoint in place, it is possible to step through the execution and replaymonitor events one at a time. Additional breakpoints can be set in the
run()
methods of
the threads to watch what each thread does between events, without disturbing the replay.The Win
OutputDebugString()
function can be used to send text messages to the
debugger while the program is running. (In the Visual C++ environment, these messagesappear in the tabbed window labeled “Debug”.)
